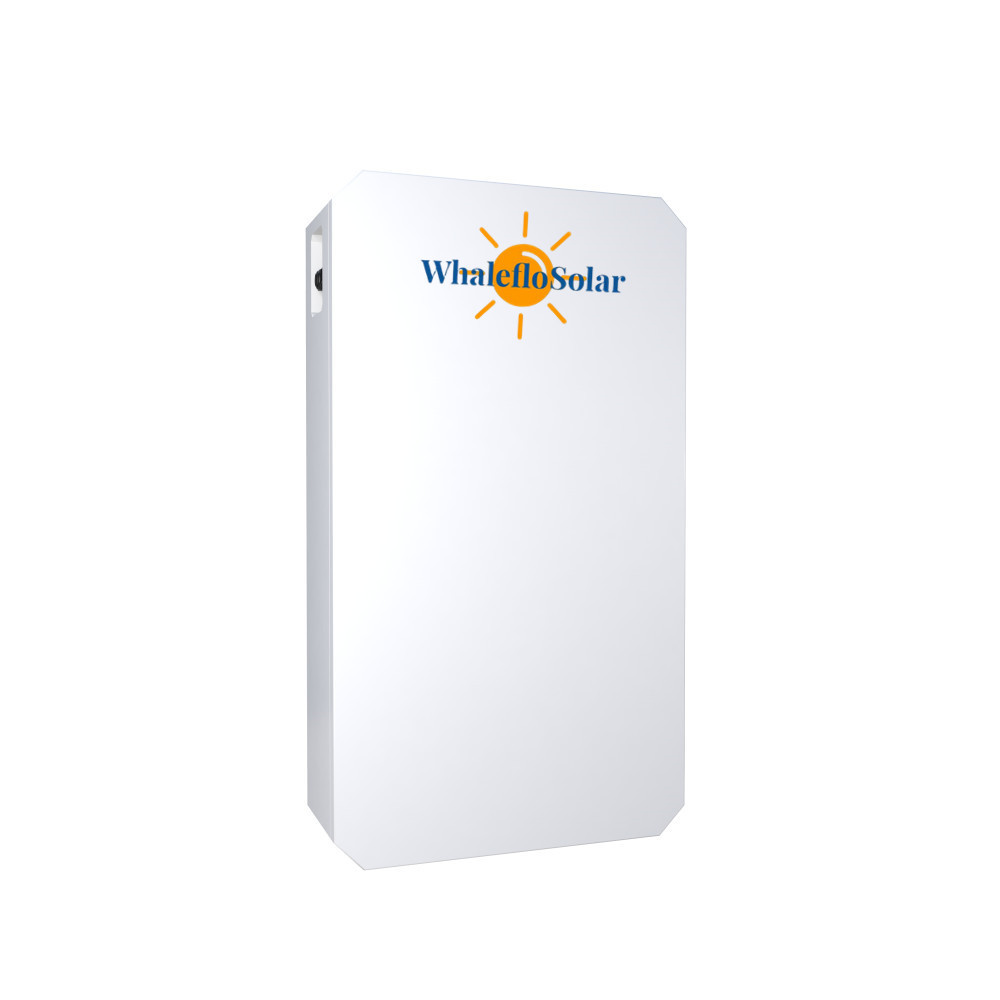

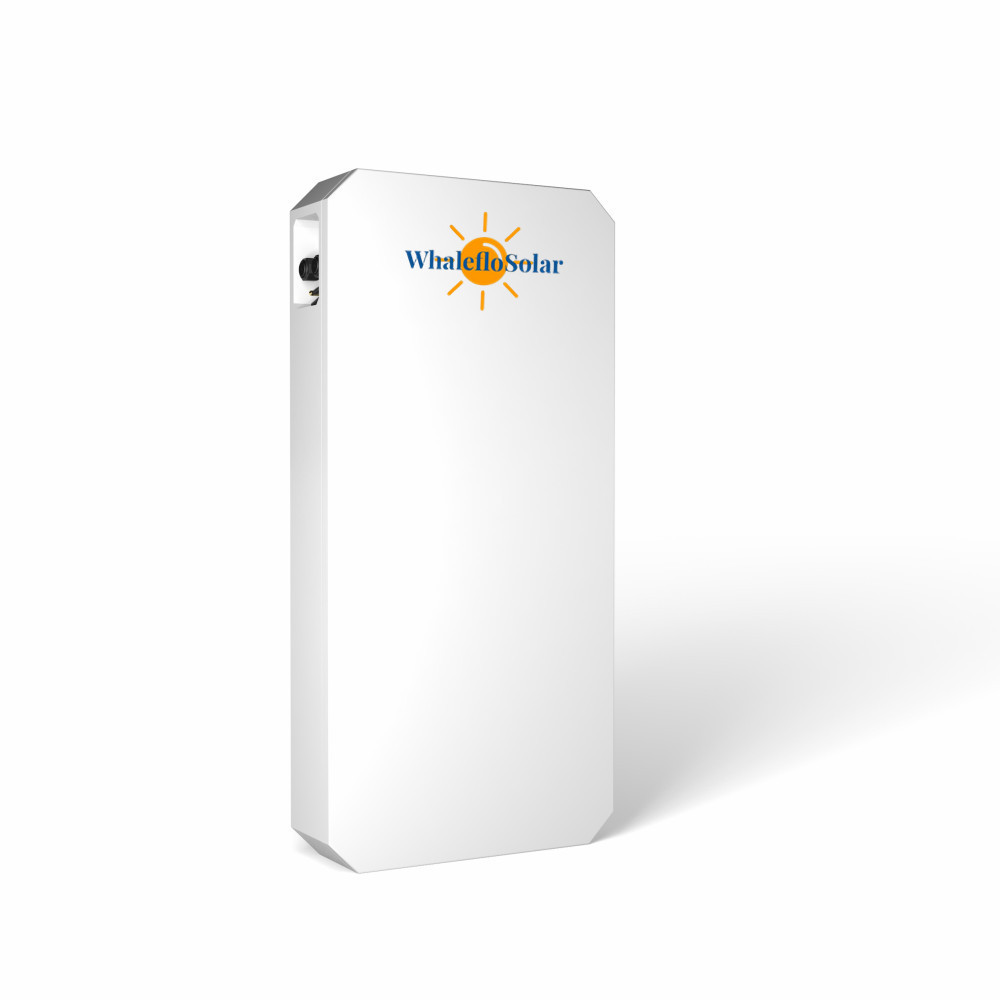

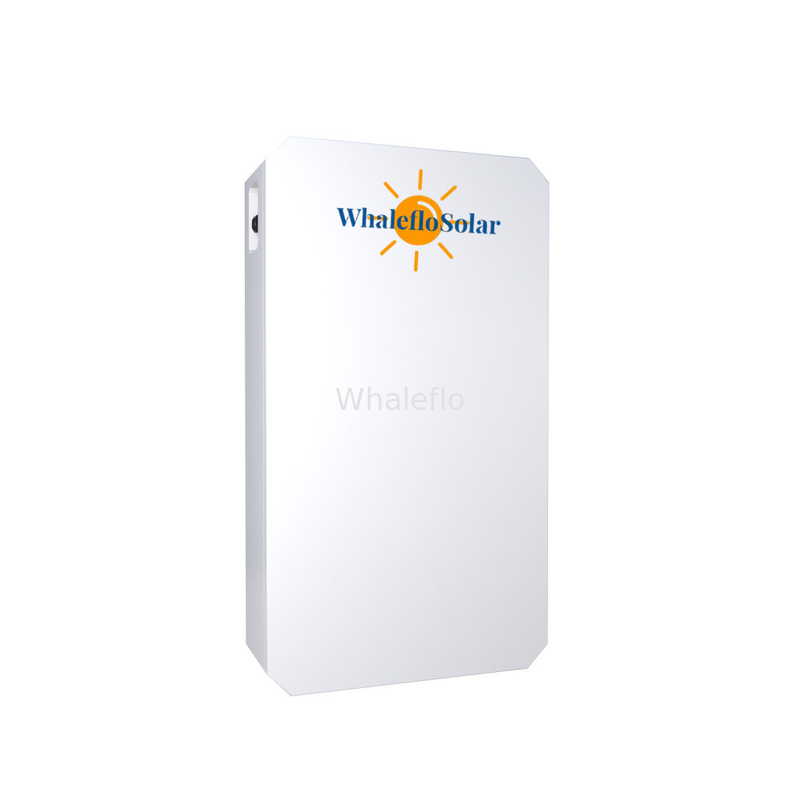

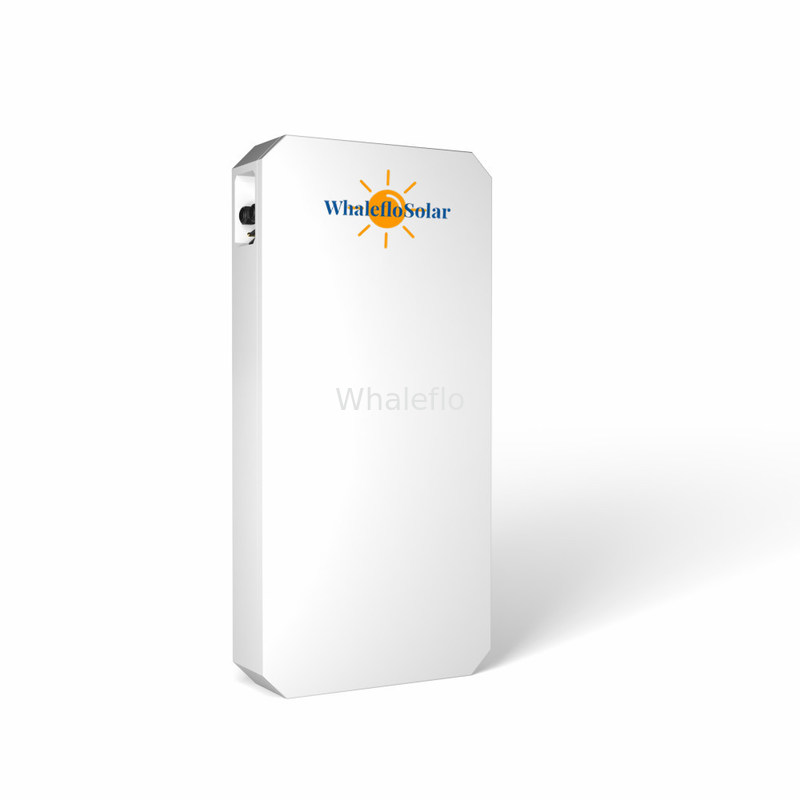

ELESHELL-6.1K Lifepo4 Lithium Powerwall For Solar System
48V Lithium LiFePO4 Battery Description:
Battery Type:lifepo4 power wall
Warranty:5 Years
IP Rating:IP 65
Weight:60~120KG
BMS:YES, (Growatt, Ginlong, Goodwe, INVT,SOFAR)
Application: Off-grid/ Hybrid Solar System
Size:510 * 868 * 135mm
Cycle life:> 6000 Times
Operating Voltage:48~57V
Discharge of Depth(DoD):80%
48V 200Ah lifepo4 battery technical parameter
|
Datasheet
|
ELESHELL-6.1K
|
ELESHELL-10.2K
|
ELESHELL-14.3K
|
|
Dimensions (H x W x D)
(mm / ")
|
867.5 * 422 * 118mm
34.154 *16.6 * 4.646’’
|
871.1 * 509 * 133mm
34.3 *20.04 * 5.236’’
|
750 * 412 * 235mm
29.5 * 16.2*9.25’’
|
|
Weight (Kgs)
|
76 |
102.3 |
120 |
|
Operating Temperature
|
0 to 55℃ / 0 to131℉
|
0 to 55℃ / 0 to131℉
|
0 to 55℃ / 0 to131℉
|
| IP Protection |
IP65 |
IP65 |
IP65 |
|
Storage Temperature
|
-40 to 60℃ / -104 to 140℉
|
-40 to 60℃ / -104 to 140℉
|
-40 to 60℃ / -104 to 140℉
|
|
Cycle Life (80% DoD @25℃)
|
≥6000
|
≥6000
|
≥6000
|
|
Operating Life (Years)
|
10
|
10
|
10
|
|
Communication Port
|
RS232 / RS485 / CAN
|
RS232 / RS485 / CAN
|
RS232 / RS485 / CAN
|
|
Communication Mode
|
WIFI/BLUETOOTH
|
WIFI/BLUETOOTH
|
WIFI/BLUETOOTH
|
|
Operating Altitude (m)
|
＜3000
|
＜3000
|
＜3000
|
|
Humidity Conditions (%)
|
5% to 95%
|
5% to 95%
|
5% to 95%
|
|
Warranty (Years)
|
5/10 Years
|
5/10 Years
|
5/10 Years
|
|
Installation
|
Ground Mounted / Wall-Hanging
|
Ground Mounted / Wall-Hanging
|
Ground Mounted / Wall-Hanging
|
|
Specifification
|
|
|
|
|
Nominal Energy Capacity
(Wh)
|
6100
|
10200
|
14300 |
|
Nominal Voltage (V)
|
51.2 |
51.2 |
51.2 |
|
Operating Voltage Range
|
48-57 |
48-57 |
48-57 |
|
Max Charge Current (A)
|
100 |
100 |
100 |
|
Max Discharge Current (A)
|
100 |
100 |
100 |
|
Continuous Charging
Current (A)
|
60 |
100 |
100 |
|
Continuous Discharging
Current (A)
|
60 |
100 |
100 |
|
Depth Of Discharge (%)
|
80 |
80 |
80 |
|
Battery Cell Material
|
Lithium (LiFePO4)
|
Lithium (LiFePO4)
|
Lithium (LiFePO4)
|
|
Certifification
|
UN38.3 CE-EMC IEC62619 MSDS ROHS
|
UN38.3 CE-EMC IEC62619 MSDS ROHS
|
UN38.3 CE-EMC IEC62619 MSDS ROHS
|
ELESHELL6.1K/10.2K/14.3K is a lithium battery energy storage system with an
operating voltage range of between 49V~56.8V, it is used for household energy
storage applications, in cooperation with low voltage inverters, to achieve home energy
storage purpose.
ELESHELL6.1K/10.2K/14.3K has a built-in B M S (Battery Management
System) which can manage and monitor cells information, including voltage,
current and temperature. In addition, the BMS can balance battery charging to
extend lifespan. BMS has the protections including over-discharge, overcharge,
over-current, high / low temperature, etc. The system can automatically manage the
charging status, discharge state, balance state. Multiple batteries can be connected in
parallel to expand storage capacity to meet larger capacity and continuous power support
time,ELESHELL6.1K/10.2K/14.3K support up to 16 parallel operations.
Home Hybrid Energy Storage System
Multiple protections to ensure the reliability of battery pack performance
Multiple communication functions remote real-time monitoring
Modular design, Muti-protocol stack design plug and play
Core level fault location Accurate positioning of each cell
Application
Smart
Intelligently select and use energy from grid / solar / battery storage
Efficient
Real-time tracking of power generation consumption to optimize energy utilization
Reliable
Multiple protections by BMS to ensure system safe and stable
