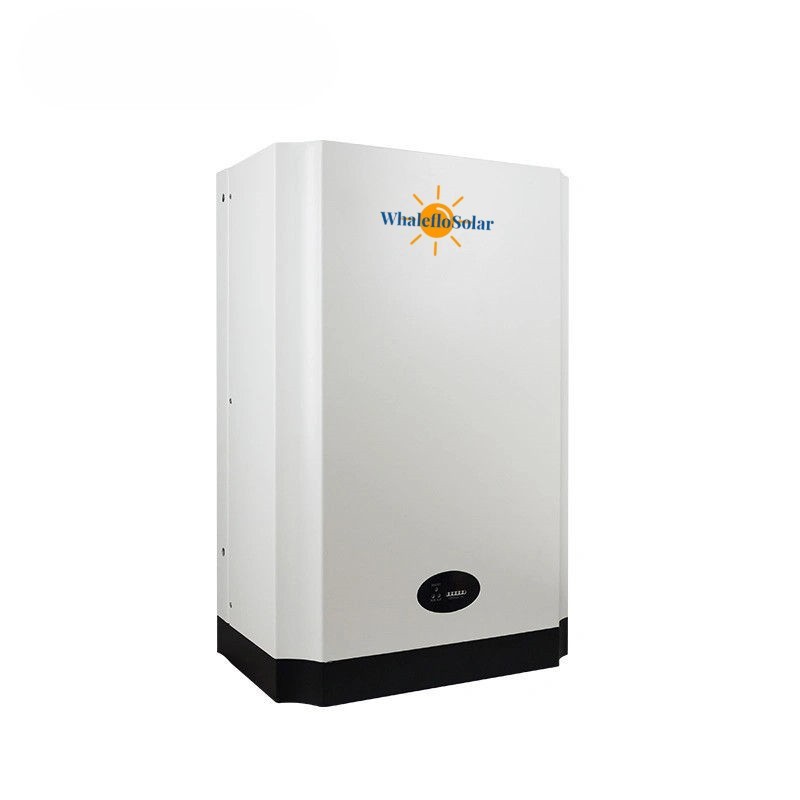

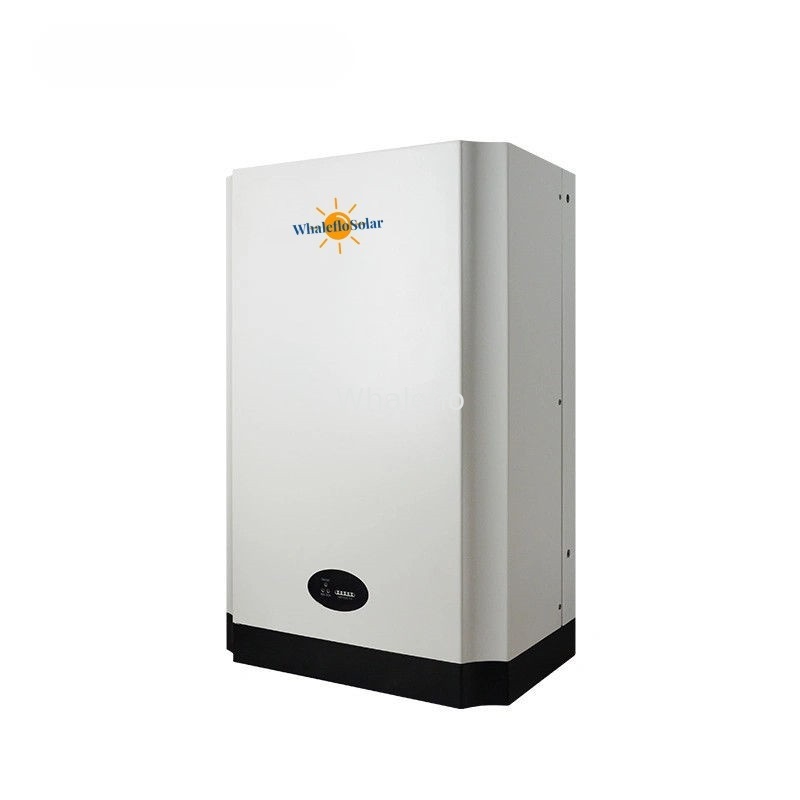

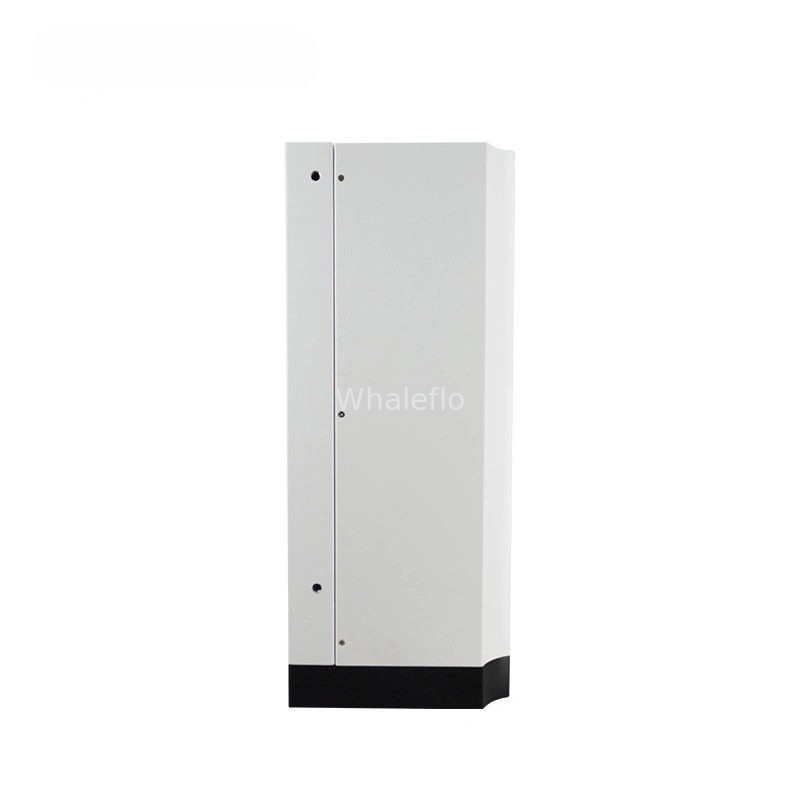

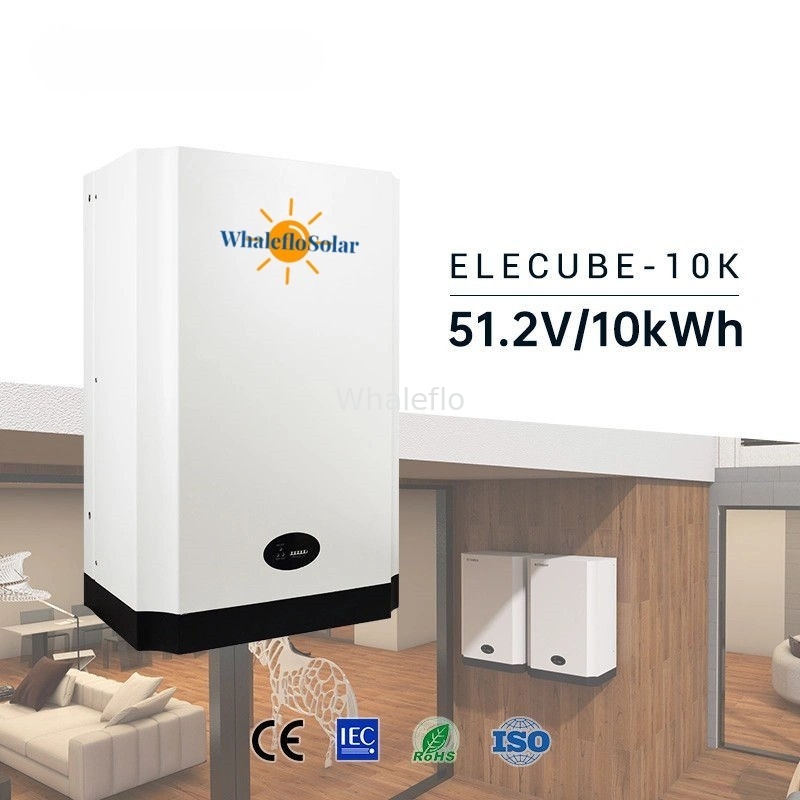

WhalefloSolar 200Ah 48V Lifepo4 Lithium Powerwall For Growatt Inverter Home Solar System

WhalefloSolar 200Ah 48V Lifepo4 Lithium Powerwall For Growatt Inverter Home Solar System
WhalefloSolar 200Ah 48V Lifepo4 Lithium Powerwall For Growatt Inverter Home Solar System WhalefloSolar 200Ah 48V Lifepo4 Lithium Powerwall For Growatt Inverter Home Solar System WhalefloSolar 200Ah 48V Lifepo4 Lithium Powerwall For Growatt Inverter Home Solar System WhalefloSolar 200Ah 48V Lifepo4 Lithium Powerwall For Growatt Inverter Home Solar System
Basic Information
Place of Origin: China
Brand Name: WhalefloSolar/BETTENERGY
Certification: CE
Model Number: ELECUBE-10K
Minimum Order Quantity: 10pcs
Price: neogatiable
Packaging Details: carton box/wooden box
Delivery Time: 10-30 working days
Payment Terms: T/T
Supply Ability: 1000 units per month
Contact Now
Application: Home Storage System Battery Type: Lithium-ion
Nominal Energy Capacity: 10200 Wh Nominal Voltage: 51.2V
Cycle Life: 6000 Times Dimensions: 871.1 * 509* 133mm
Operating Temperature: 0 To 55ºC/0 To 131ºF Storage Temperature: -40 To 60ºC/-104 To 140ºF
Voltage: 51.2V Warranty: 10years
Communication Port: RS232 / RS485 / CAN

Whaleflo Solar Whaleflo Solar 200Ah 48V Lifepo4 Lithium Powerwall For Solar System

48V Powerwall Storage Batteries Description



1.Lithium iron phosphate batteries are highly safe, have a service life of up to ten years, and have high power
2.Multiple battery modules can be connected in parallel to expand capacity and power.
3.Compatible with multi - brand inverter communication.Growatt, Deye, Must, Bluesun, Megarevo, Sorotec and etc.

Wall-hanging and landing installation is convenient, the product module is safe and pollution-free



Nominal Energy Capacity:10200 Wh
Nominal Voltage:51.2 V
Dimensions (H*W*D):871.1 * 509* 133mm
Cycle Life (80% DoD @25℃):≥6000
Communication Port:RS232 / RS485 / CAN
Warranty:5/10 Years







Datesheet
ELECUBE-10K
Dimensions(L*W*H)
871.1 * 509* 133mm
Weight(Kgs)
95
IP Protection
IP65
Operating Temperature
0 to 55ºC/0 to 131ºF
Storage Temperature
-40 to 60ºC/-104 to 140ºF
Cycle Life(80% DOD@25ºC)
>6000
Operating Life(Years)
10
Communication Port
RS232/RS485/CAN
Operating Altitude(m)
<3000
Humidity Conditions(%)
5% to 95%
Warranty(Years)
10 Years
Istallation
Ground Mounted/Wall-Hanging
Specification

Nominal Energy Capacity(Wh)
5120
Nominal Voltage(V)
51.2
Operating Voltage Range
48-57
Max Charge Current(A)
50
Max Discharge Current(A)
50
Continuous Charging Current(A)
50
Continuous Discharging Current(A)
50
Depth Of Discharge(%)
80
Battery Cell Material
Lithium(LifePO4)
Certification
UN38.3 / CE-EMC / CE-LVD / IEC62619 / MSDS / ROHS
