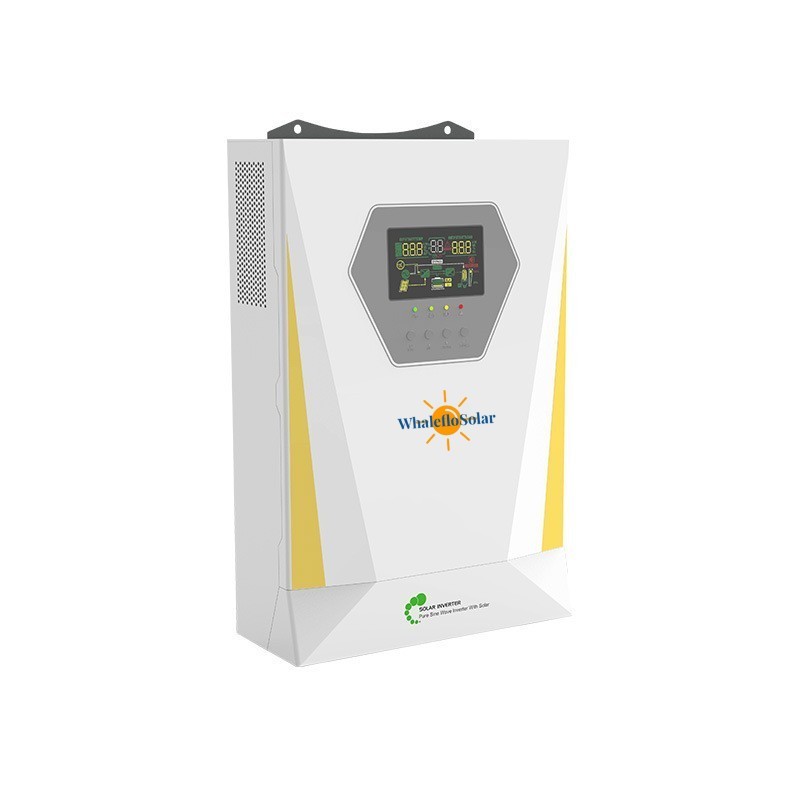

Name: WhalefloSolar High Frequency 24V DC 3kVA Off-Grid Solar Inverter for Household Power Supply
Brand: Xiamen Whaleflo Industry and Trade Co.,Ltd.
SKU: WhalefloSolar
Availability: InStock

Input Phase:	L+N+PE	Input Nominal Voltage:	208/220/230/240VAC
Input Voltage Range:	154-264VAC±3V（Normal Mode) 185-264VAC±3V（UPS Mode）	Frequency Range:	50Hz/60Hz(Adaptive)
Output Rated Power:	3000W	Output Voltage(AC):	208/220/230/240VAC±5%
Output Frequency:	50/60Hz±0.1%	Waveform:	Pure Sine Wave
Transfer Time( Optional):	10ms For Computer , 20ms For Home Appliances	Output Peak Power:	6000VA
Overload:	Battery Mode： 1min@102%~110% Load 10s@110%~130% Load 3s@130%~150% Load 200ms@>150% Load	Peak Efficiency (battery Mode):	>94%
Battery Rated Voltage:	24Vdc	Battery Constant Voltage Charging Voltage (Optional):	28.2Vdc
Floating Charge Voltage (Optional):	27Vdc	PV Charging Method:	MPPT
PV Max Input Power:	4000w	MPPT Tracking Range:	120~500Vdc
Max PV Input Voltage:	500Vdc	Max PV Charging Current:	100A
Max AC Charging Current:	100A	Max Charging Current:	100A
LCD Display:	Operating Mode/load/input/output, Etc.	Communication Port:	BMS/RS232/RS485
Certifications:	EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1

WhalefloSolar High Frequency 24V DC 3kVA Off-Grid Solar Inverter for Household Power Supply

Description

Unleash the potential of sustainable energy with the WhalefloSolar 24V DC 3kVA 5kW Off-Grid Solar Inverter. This high-performance inverter is designed to convert solar energy into a reliable and uninterrupted power source for your off-grid needs.

With a robust 24V DC input, this inverter offers a seamless connection to your solar panel system. The 3kVA capacity ensures that it can handle substantial power loads, making it suitable for residential and small-scale commercial applications. Whether you're looking to power your home, cabin, or remote facility, this inverter has you covered.

The 3kW power output delivers consistent electricity, allowing you to run essential appliances and equipment with ease. Its advanced technology ensures efficiency and reliability, even in remote locations where a grid connection is not an option.

The WhalefloSolar inverter's user-friendly design makes installation and operation straightforward. It also incorporates safety features to protect your solar investment, including over-voltage and overload protection.

Make the transition to clean, renewable energy with the WhalefloSolar 24V DC 3kVA Off-Grid Solar Inverter and enjoy the freedom of self-sustained power generation, reducing your carbon footprint while ensuring a consistent power supply.

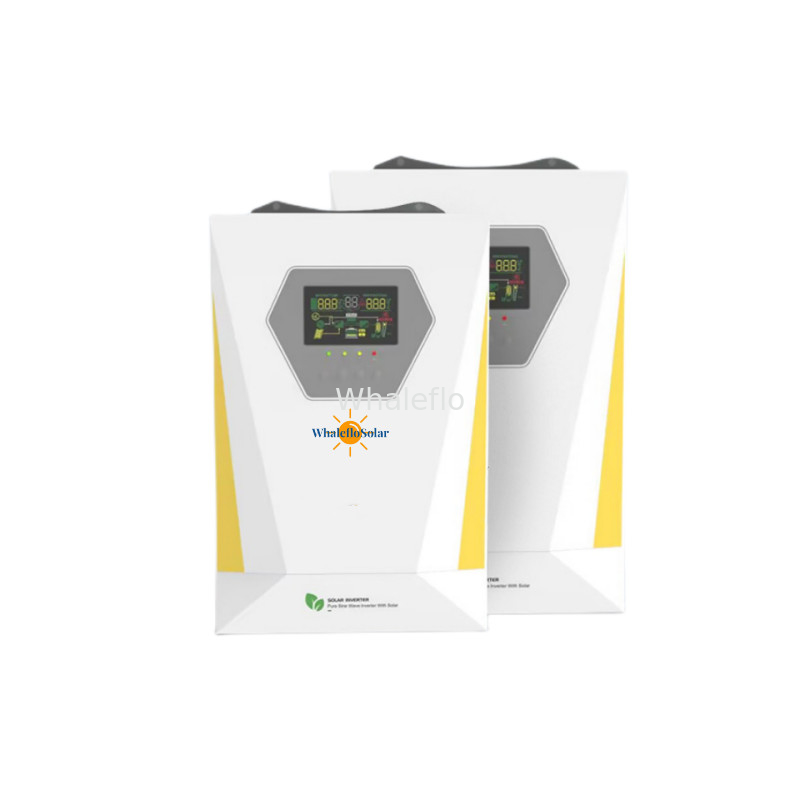

WhalefloSolar High Frequency 24V DC 3kVA Off-Grid Solar Inverter for Household Power Supply 0

GD series High frequency inverter data sheet
Model		3024EMH	3024JMH	5548JMH
Input	Phase	L+N+PE
	Nominal Voltage	208/220/230/240VAC
	Voltage Range	154-264VAC±3V(Normal Mode) 185-264VAC±3V(UPS Mode)
	Frequency Range	50Hz/60Hz(Adaptive)
Output	Rated Power	3000W	3000W	5500W
	Output Voltage(AC)	208/220/230/240VAC±5%
	Output Frequency	50/60Hz±0.1%
	Waveform	Pure sine wave
	Transfer Time( Optional)	10ms for computer , 20ms for home appliances
	Peak power	6000VA	6000VA	11000VA
	Overload	Battery Mode: 1min@102%~110% Load 10s@110%~130% Load 3s@130%~150% Load 200ms@>150% Load
	Peak efficiency (battery mode)	>94%	>94%	>94%
Battery	Rated voltage	24Vdc	24Vdc	48Vdc
	Constant voltage charging voltage (Optional)	28.2Vdc	28.2Vdc	56.4Vdc
	Floating charge voltage (Optional)	27Vdc	27Vdc	54Vdc
charger	PV charging method	MPPT	MPPT	MPPT
	PV max input power	3000W	4000W	5500W
	MPPT tracking range	300~400Vdc	120~500Vdc	300~400Vdc
	Max PV input voltage	400Vdc	500Vdc	500Vdc
	Max PV charging current	80A	100A	100A
	Max AC charging current	80A	100A	60A
	Max charging current	80A	100A	100A
Display	LCD display	Operating mode/load/input/output, etc.
Communication port	RS232	5PIN/Pitch2.0mm, baud rate 2400
	Expansion & configuration port	2×5PIN/Pitch2.54mm, lithium battery BMS communication card, WIFI card, dry contact card, etc.
	Parallel interface	No		Optional
Environmental parameters	Operating environment temperature	0~40℃
	Operating environment humidity	20%~95%(Non condensing)
	Storage temperature	-15~60℃
	Altitude	The altitude should not exceed 1000m, derating above 1000m, up to 4000m, refer to IEC62040
	noise	≤50db
Certifications		EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1

Place of Origin:	China
Brand Name:	GD3024JMH
Certification:	CE
Model Number:	WhalefloSolar

Minimum Order Quantity:	100pcs
