| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | CE, RoHS, UL |
| Model Number: | BW1000A/BW2000A/BW3000A |
| Minimum Order Quantity: | 10pcs |
| Price: | USD38/piece |
| Packaging Details: | Qty/inner box(pcs):4 Qty/inner box(set):1 Qty/master box(PCS) :50 Specification of inner box:20*11.5*8cm specification of master box:40*23*16cm |
| Delivery Time: | 7-15 WORK DAYS |
| Payment Terms: | Western Union, L/C, T/T, T/T |
| Supply Ability: | 100000 Piece/Pieces per Month |
| Housing Material: | Plastic | Dimensions(L×W×H Inches）: | 3.0X5.5X7.5 |
|---|---|---|---|
| Power (W): | 60 | Voltage (V): | 220 |
| Model Number: | BW2000A | Color: | White |
| Amp Draw: | 0.25A | Water Temperature: | 0-60℃ |
| Product Name: | Home Appliance Parts |

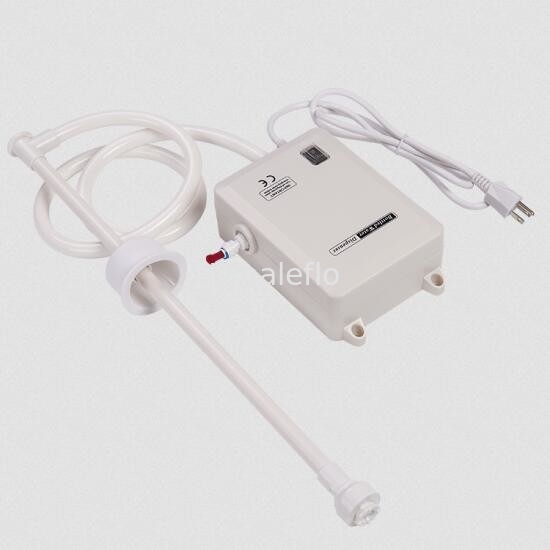

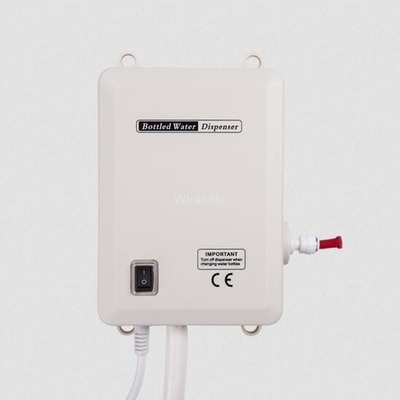

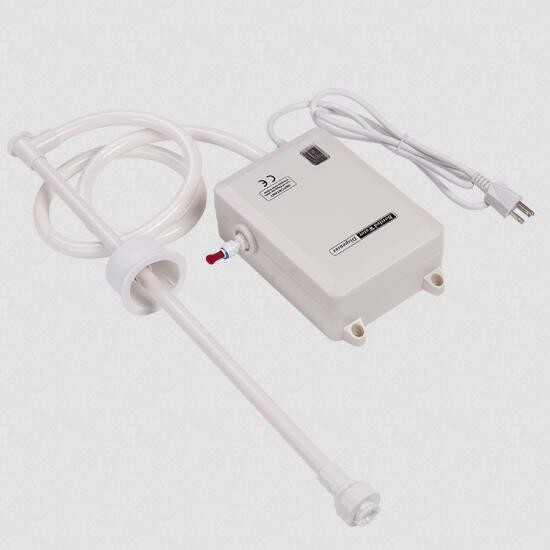

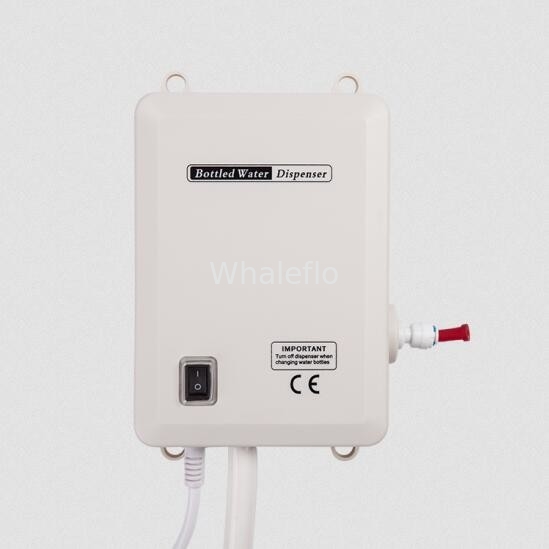

Bottled Water System 2000 Series
HOW THE SYSTEM WORKS
The 2000 Series Bottled Water System by Whaleflo is designed to pump purified water from commercially available 5 gallon purified water bottles.The system will deliver the water under pressure to an individual drinking water faucet, the water inlet of a refrigerator for icemaker and chilled drinking water tap, to a faucet in portable sink and to certain personal use and commercial use coffee / tea brewers / espresso machines.
When the suction wand is inserted into the standard 5 gallon bottle, it will activate the float switch on the end of the end of the wand and turn on the pump. This same float switch shuts off the system when the bottle is empty. The wand has built in back-flow preventor valve that prevents water in the system from flowing back into the bottle, or spilling while changing bottles.
The heart of the system is the main module that automatically fills an appliance or dispenser water through a faucet when there is demand.
The system is equipped with and automatic themal cut-off device for additional protection.
TECHNICAL DATA
Model: BW2000A
Voltage: 230V AC
Current:0.25 Amps
Maximum Flow: 3.81 LPM
Maximum Pressure: 40PSI
FEATURES
PLUMBING INSTALLATION
Sample order is very welcome to have a test, if need more technical specification, pls send email to us !
Technical Data
| Model | GPM(LPM) | Max PSI |
Outlet | Tubing | Volts | Amps | Cycle | Cord | Dimensions (H x W x D) |
Wt (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|
| BW1000A | 1.0(3.8) | 40 | 1/4″ | 20′ | 115Vac | 0.5 | 50/60 | 6′ | 3.0″ x 5.5″ x 7.5″ | 3.2 |
| BW2000A | 1.0(3.8) | 40 | 1/4” | 20′ | 220Vac | 0.25 | 50/60 | 6′ | 3.0″ x 5.5″ x 7.5″ | 3.2 |
| BW3000A | 1.0(3.8) | 40 | 1/4” | 20′ | 12Vdc | 5.0 | 6′ | 3.0″ x 5.5″ x 7.5″ | 3.2 |
