| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | CE,ROHS，ISO |
| Model Number: | WL24 |
| Minimum Order Quantity: | 1set |
| Price: | 38-45pcs |
| Packaging Details: | 1pcs per box, 10pcs in a carton |
| Delivery Time: | 7-15 WORK DAYS |
| Payment Terms: | Western Union, Paypal,T/T, L/C |
| Supply Ability: | 100000 Piece/Pieces per Month |

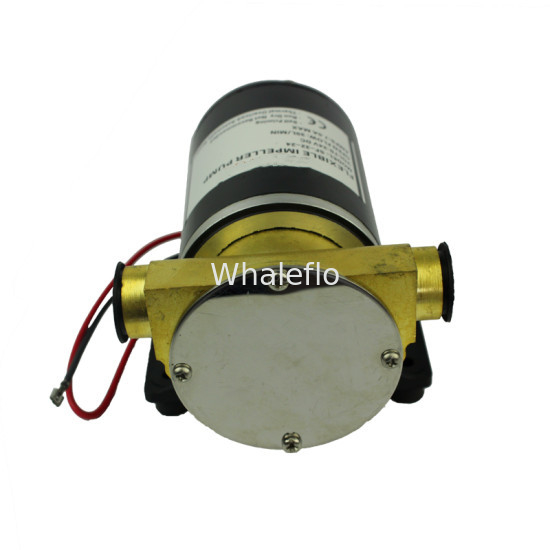

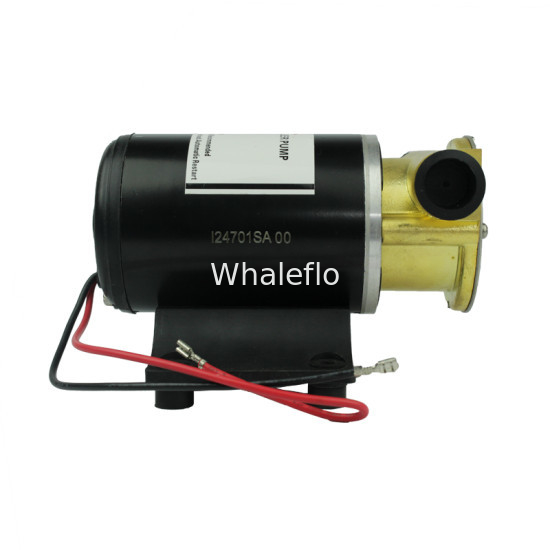

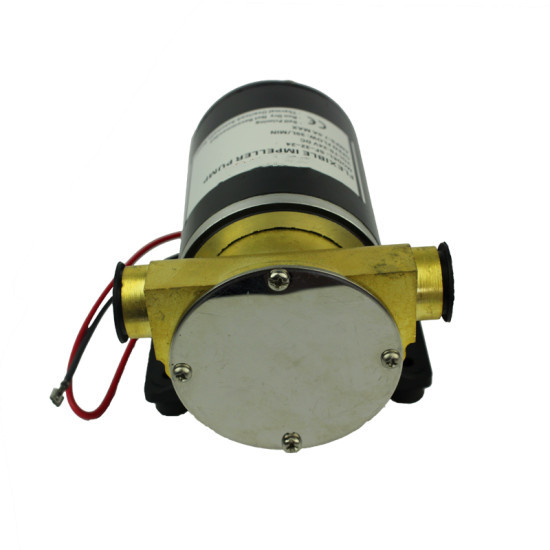

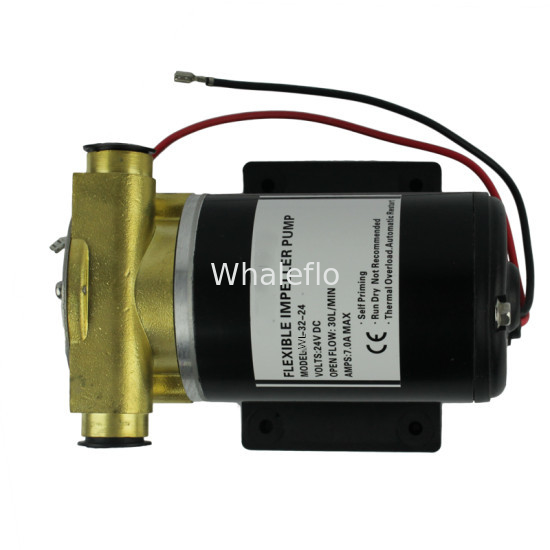

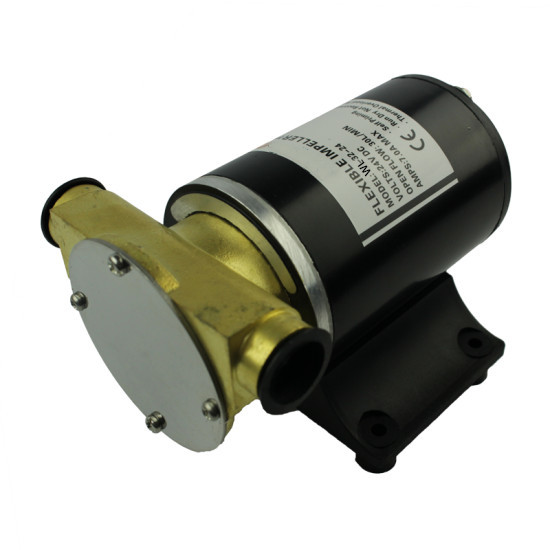

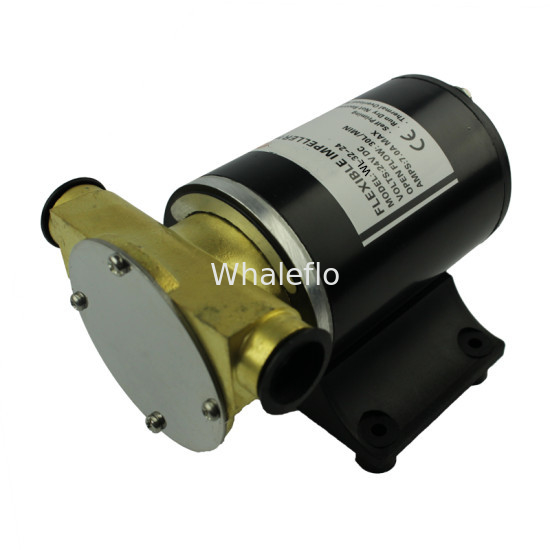

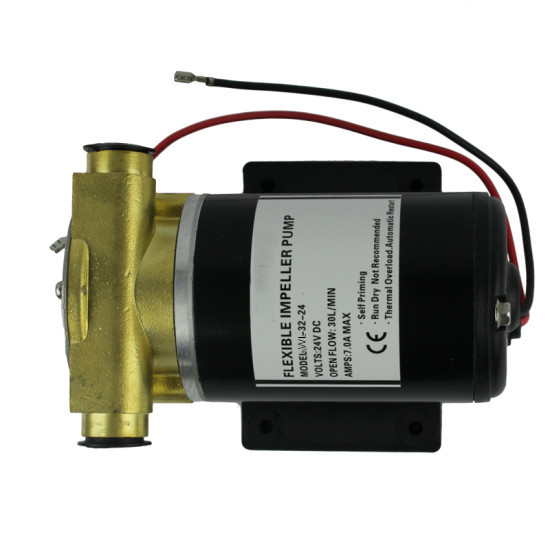

| Theory: | Flexible Impeller Pump | Power: | Electric |
|---|---|---|---|
| Pressure: | Low Pressure | Vacuum Flow: | 30L/min |
| N.W/G.W: | 2.38/2.58 | Voltage:: | 24v |
| Packing Size: | 215*135*110mm | Material: | Bronze Body |
| Max.Lift: | 3m | Application: | Used In Marine To Drain Water On Deck And Wash Deck |

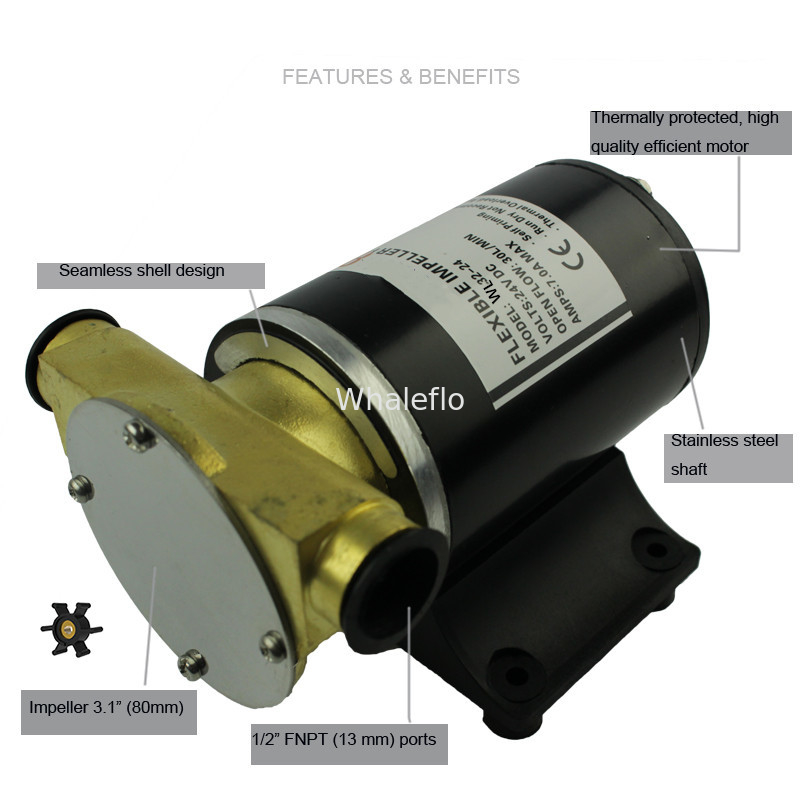

Features.
Easy installation
Bronze body and flexible impeller
High flow and excellent suction
Bilge debris presents no problem to this bronze bodied,flexible impeller design
Should be installed in a dry.
Well ventilated position
Must not run dry.It is better yo work with a bilge control panel to avid running dry.
Technical data.
| Model | VolT | Flow(lpm/gpm) | Max.Lift(m) | Amps (A) | Max Amps(A) | Packing Size(mm) | N.W/G.W(Kg) |
WL3212 |
12V | 30.0/8.0 | 3 |
8.0 |
10.0 |
215*135*110 | 2.38/2.58 |
WL3224 |
24V | 30.0/8.0 | 3 |
5.0 | 7.0 |
215*135*110 | 2.38/2.58 |
DIMENSION DRAWING
DISEMBLE OF THIS PUMP
Sample order is very welcome to have a test, if need more technical specification, pls send email to us !
1.What's your product MOQ of it?
Our company is pleasure accept all items 1pcs order.
2. How can I choose the most suitable pump?
Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.
3. What's your delivery time? If i need products very urgent, how can i get it?
Our delivery time usual within 7-15workdays, and urgent order please check with our sales and who will offer a good delivery time for you according to your urgent request by express shipping.
4. How long i can ge your reply after i send inquiry.
You can get reply within 24hour from Monday to Friday, and within 48hours at weekend. If need urgent, please call us so we can reply soon after we phone communiated. Phone call is warmly welcome 24hours whole day.
5.What's your warranty & after service policy for all products?
12 Moths for all product, and some product warranty is 18months. Usual offer 1% spare parts free for your after service and this parts will send with order goods together.
6. How many qty so i can get your OEM service with myself brand name?
Bottled water dispenser qty:300pcs, other type pumps 200pcs. If you don't want any brand name, package can offer by neutral boxes. Bottled water dispenser can be offered blue color boxes without brand name. For more detail please check with sales who contact with you.
7 What's your product certificate?
All product has CE certificated, some product with ISO8846 for marine usage.And drinking water pumps can be offered withi NSF certificate cause all our material made according to NSF & FDA certifate, but for our qty is not large enough, so we don't have it. If your order qty is enough for it, we can offer NSF Certificate within 6 months.
8 What's the payment can you accept?
Usually we accept T/T ,Western Union or PayPal, MoneyGram, also RMB transfer in China mainland.
9. What's your main products of your company?
We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm pump,Marine pump,RV pump )for over 10 years with excellent quality and competitive
