| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | CE ROHS, ISO |
| Model Number: | FP24 |
| Minimum Order Quantity: | 1set |
| Price: | USD38-45USD/PC |
| Packaging Details: | 10pcs into a carton |
| Delivery Time: | 8-15 working days |
| Payment Terms: | Western Union,T/T,L/C ,Paypal |
| Supply Ability: | 1000 pieces per month |
| Body Material: | Bronze | Impeller: | Neoprene Compound |
|---|---|---|---|
| Seal: | Lip Type | Port: | 3/8''Female Thread,1/2''Barbed Fittings Included |
| Volt: | 24V Dc | Pump Amp: | 4.0(amp) |
| Motor Type: | Permanent Magnet Type Fully Enclosed Stainless Steel Shaft Ball TypeShaft Bearing Reversible | Self-priming: | 3.0m Vertical Lift |
| Pressure: | Can Generate Pressures Up To 2bar(30psi) | Liquids: | Lubricants, Diesel, And Visous Liquids |
Whaleflo dc hydraulic gear oil pump 24V dc 14LPM 3M Psi for water and machinery/disel transfer pump/electric oil pump
Features:
Application:
Specification:
| Body Materials | Bronze |
| Impeller | Neoprene compound |
| Seal | Lip Type |
| Port(s) | 3/8''Female Thread,1/2''Barbed Fittings Included |
| Voltage | 24dc |
| Amp Draw | Max.6.0(amp) |
| Motor Type | Permanent Magnet Type Fully Enclosed Stainless Steel Shaft Ball TypeShaft Bearing Reversible |
| Self-priming | 3.0m vertical lift |
| Pressure | Can generate pressures up to 2bar(30psi) |
| Liquids | Lubricants and visous liquids |
Technical data:
| Model | Volt | Flow (lpm/gpm) |
Max.Lift (m) |
Amp Draw (A) |
Max draw (A) |
Packing Size (mm) |
N.W./G.W. (kgs) |
| WLE-12 | 12 | 14.0/3.7 | 3 | 7 | 10 | 215*135*110 | 2.48/2.68 |
| WLE-24 | 24 | 14.0/3.7 | 3 | 4 | 6 | 215*135*110 | 2.48/2.68 |

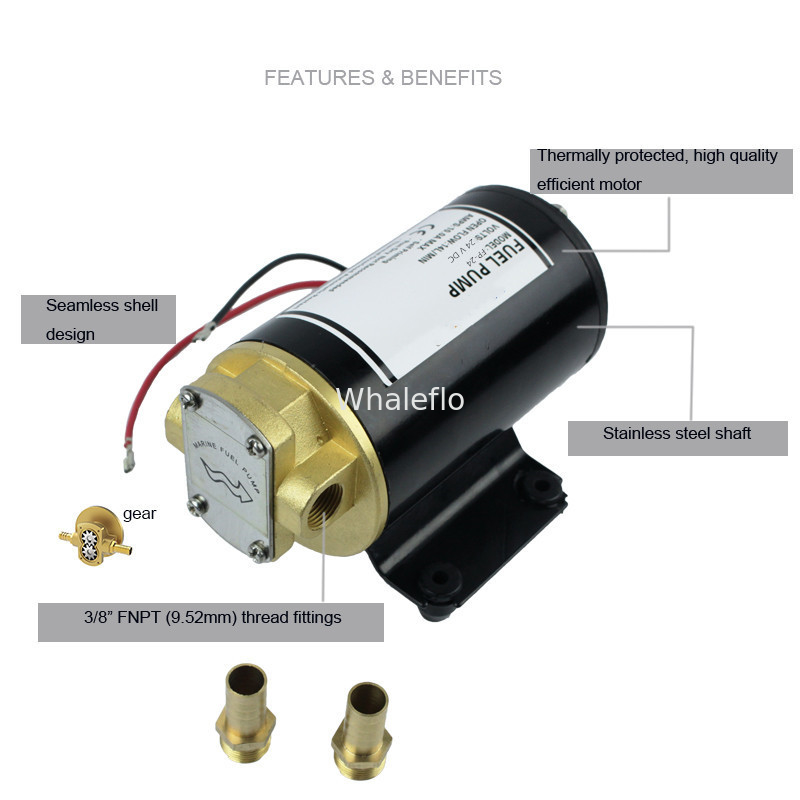

Detailed composition& drawing:

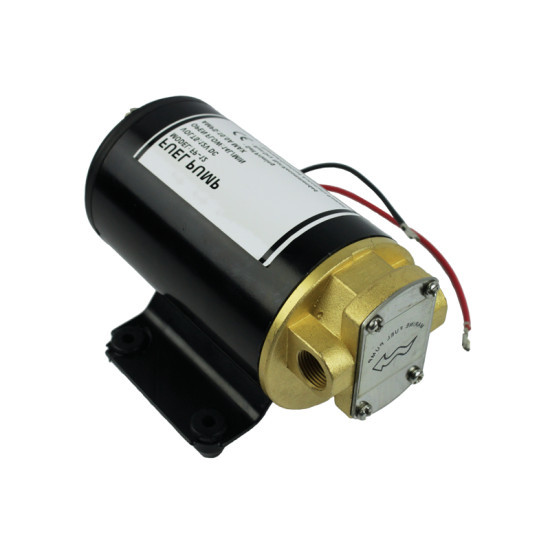

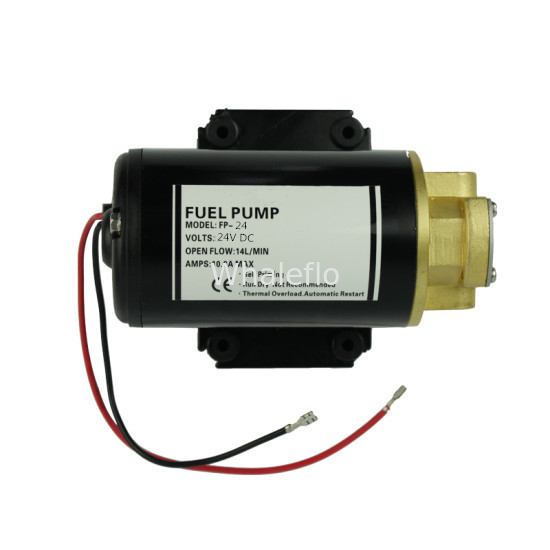

pump pic:
Sample order is welcome testing.
24 month warranty
Fast delivery time.
