| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | Rohs/CE/ISO9001 |
| Model Number: | FL-55 |
| Minimum Order Quantity: | 1 piece |
| Price: | USD58-65USD/piece |
| Packaging Details: | 1 piece in a box |
| Payment Terms: | L/C, T/T, Western Union, Western Union,Paypal |
| Supply Ability: | 100000 per month |
| Theory: | Electromagnetic Pump | Structure: | Diaphragm Pump |
|---|---|---|---|
| Typical Application: | Marine/RV/Water Treatment/Beverage/Food Service/Agriculture Irrigation/General Industrial/Automotive | Pump Design: | 5 Chamber Diaphragm |
| Port Size: | 3/4"(19mm)quick Attach | Voltage: | 12V DC |
| Check Valve: | EPDM/VITON | Liquid Temp: | (60℃）Maximum |
| Self-Priming: | 8feet/2.5M Suction Lift | Max Flow LPM: | 20LPM(5.2GPM) |
| Max Pressure: | 55Psi(3.8bar) | Amps: | 16.0 |
| Packing Size(mm): | 240*135*138mm | N.W/G.W: | 3.2/3.5KGS |

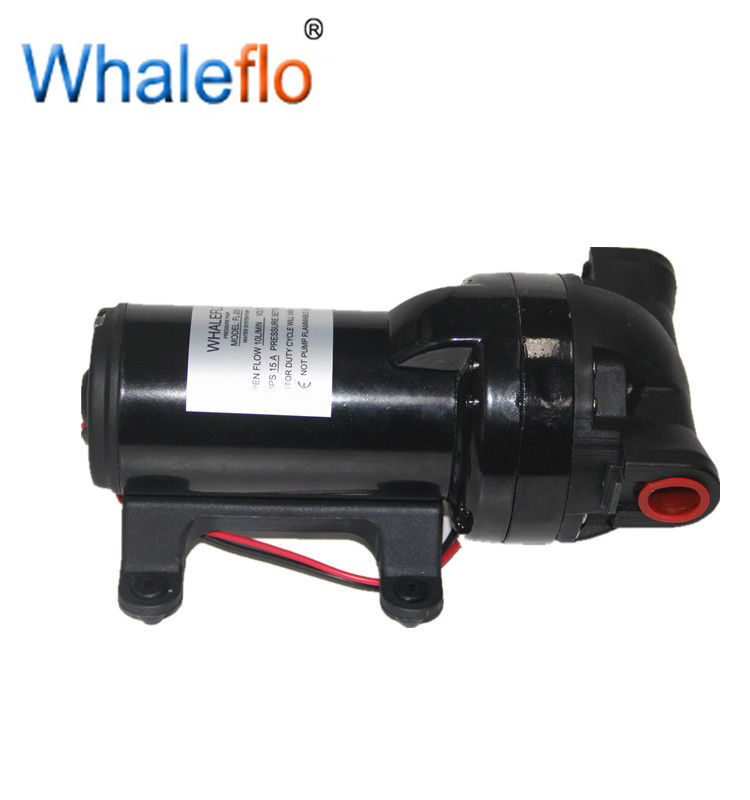

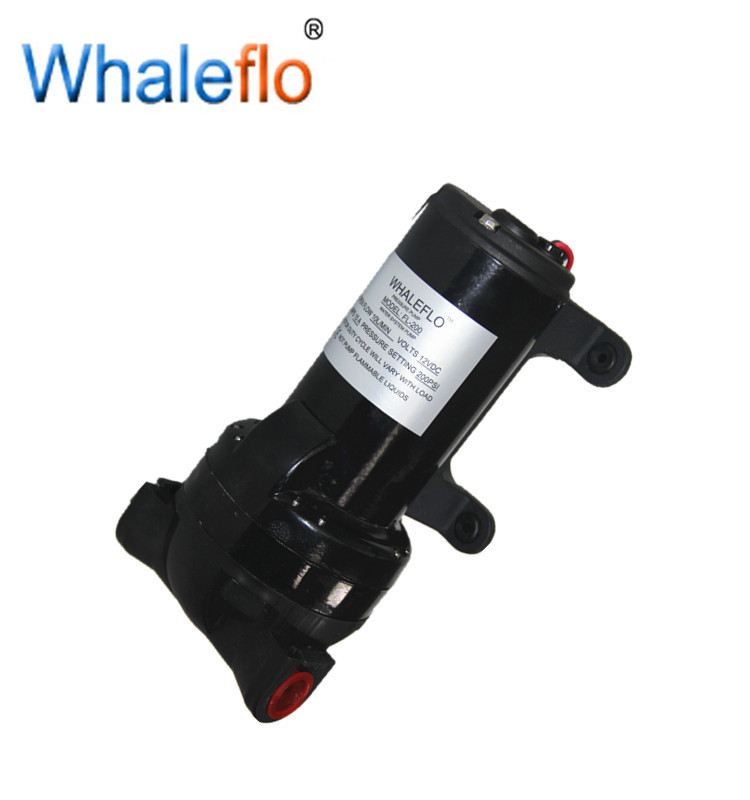

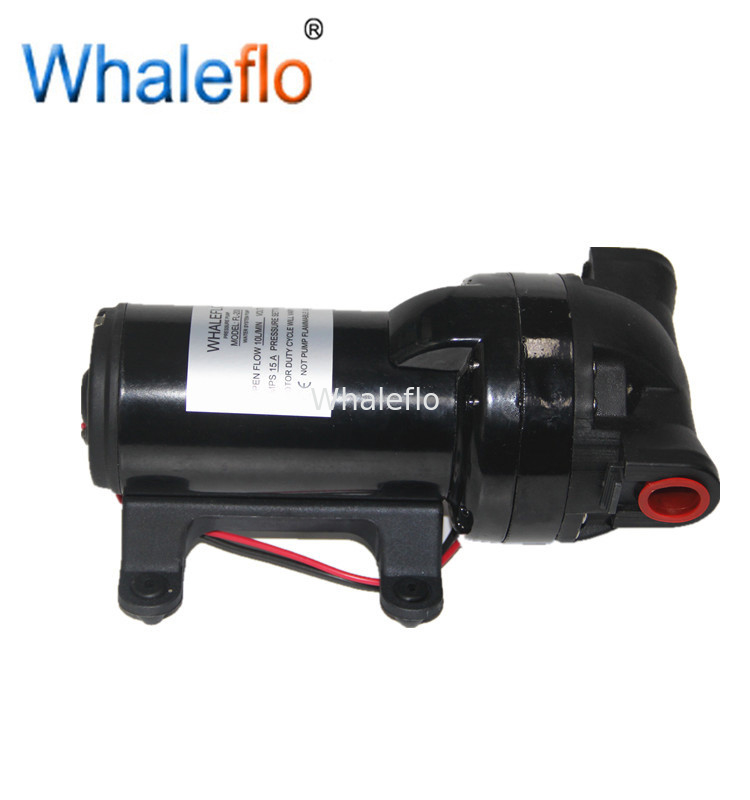

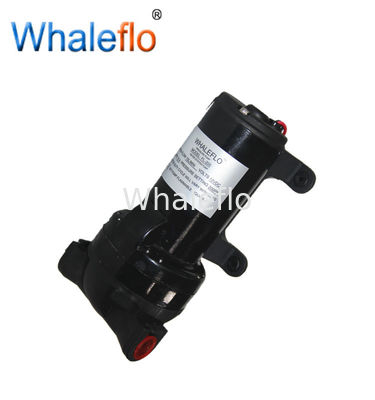

FL-55 12V DC 55PSI 20LPM High Flow 5Chamber Diaphragm Water Pump Self-priming Liquid Transfer Pumps
FL-55 electric water pump is perfect for caravans, boats, motorbikes, trucks,camping and agricultural industry liquid transportation.
It is ok to use it with fresh or salt water or other chemical liquid. And wash or to run your toilet or shower.These pumps your deck automatically turn themselves on and off when you turn the tap on and off.

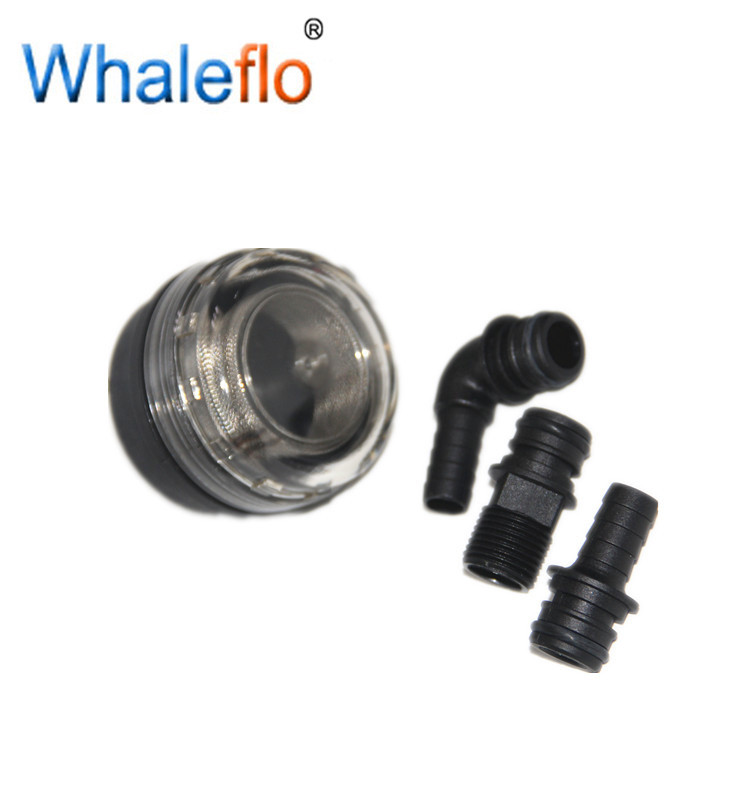

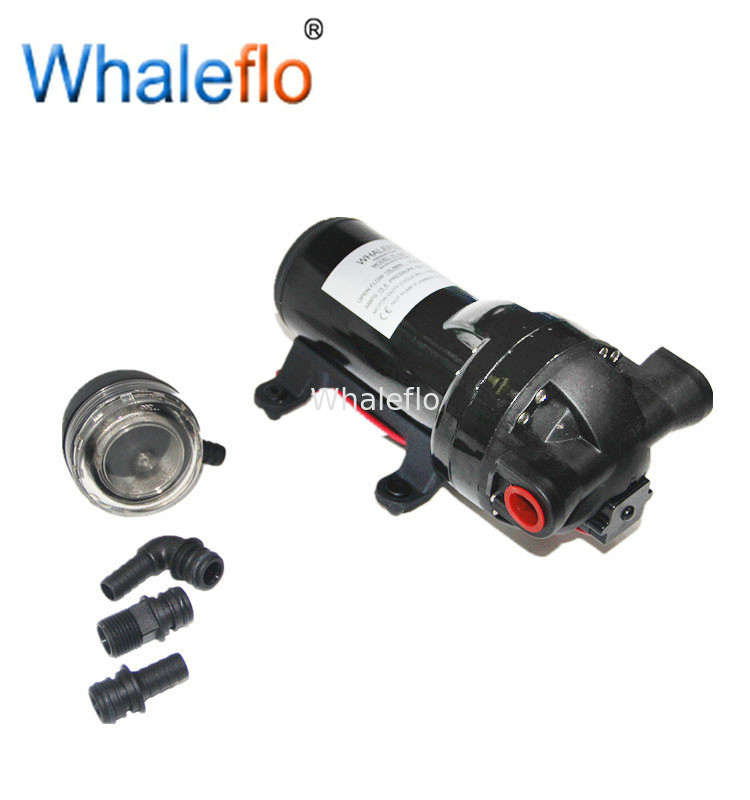

The diaphragm water pump Comes with filter and fittings.These pumps are for intermittent use only.
APPLICATION
PUMP
| Body of diaphragm pump | Glass Filled Nylon |
| Check valve | EPDM & VITION all are available, five chamber pump |
| Diaphragm | TPV( Stantoprene) |
| Ports | 3/4" Female Thread, 1/2"barbed fitting Included |
| Connector | 1pc 3/4” Male Thread, 1pc 1/2” hose barb, 1pc 1/2” hose barb filter |
| Voltage | 12/24V DC Voltage are all available |
| Amp draw | Max.15.a(amp) for 12v, Max.8.a(amp) for 24v |
| Pump design | 5 Chamber Diaphragm |
| Motor Type | Permanent magnet type |
| Self priming | 3m vertical lift |
| Max Pressure | 55PSI |
|
Duty cycle |
working intermittent |
| Liquid | Clean water, sea water & light corrovisity chemical liquids |
| Liquid temperature | 60°C |
FEATURES
1.Excellent Self-priming high to 10 feet.
2.Max.pressure: 55psi with intermittent working duty cycle.
3.Pump Max. flow rate: 20L/min.
4. Self priming diaphragm water pump.
BENEFITS
| √ High volume flow rate, Built-in chec valve |
| √ Permanent Magnet motor with longer lifetime |
| √ Antivibration pad,easy installation. |
| √ Self-priming,Top quality Automatic Pressure Switch. |
| √ Thermally Protected |
| √ Low Noise,with excellent resistant to chemical corrosion. |
TECHNICAL DATA
| Model | Voltage | Flow Rate | Pressure | Amps | N.W/G.W | SIZE |
| FL-55 | 12V | 20LPM | 55PSI | 16A | 3.4/3.5KGS | 240*135*138MM |
| FL-55B | 24V | 20LPM | 55PSI | 8.0A | 3.4/3.5KGS | 240*135*138MM |

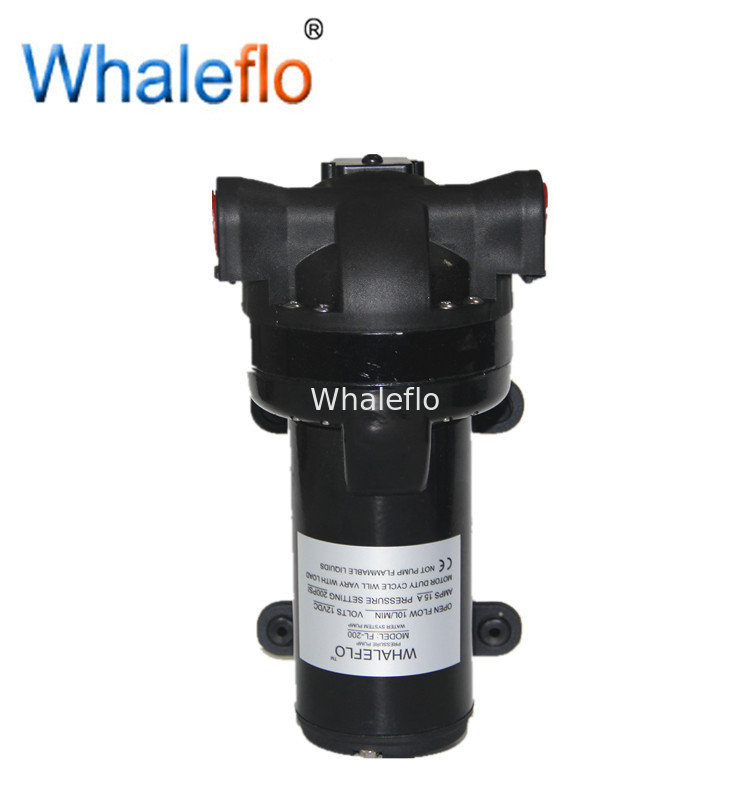

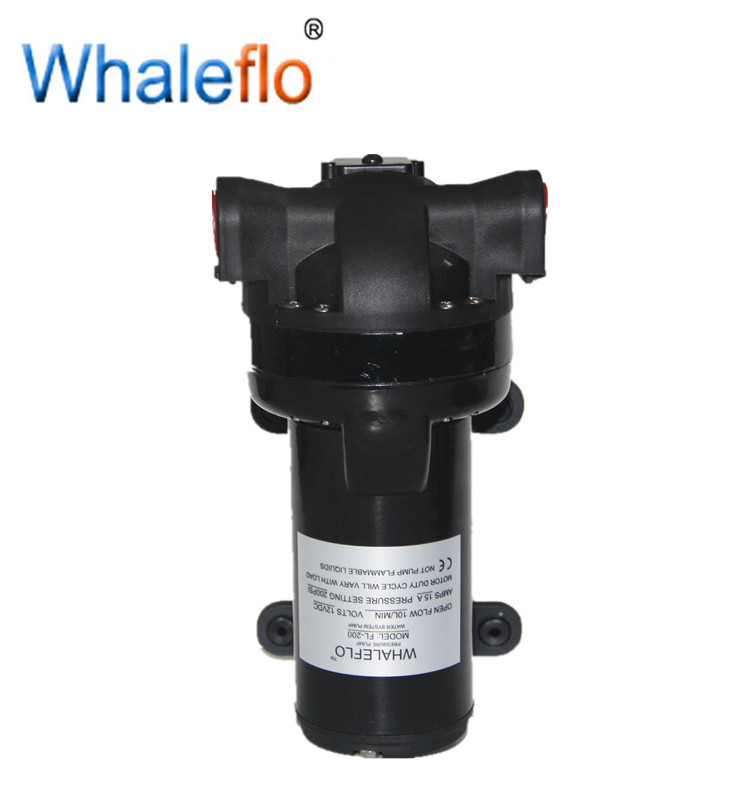

| FL-200 | 12V | 10LPM | 200PSI | 15A | 3.4/3.5KGS | 240*135*138MM |
| FL-200B | 24V | 10LPM | 200PSI | 8.0A | 3.4/3.5KGS | 240*135*138MM |
| Itmes | Description |
| 1 | Motor |
| 2 | Diaphragm Assembly |
| 3 | Valve plate Assembly |
| 4 | Pump head Assembly |
| 5 | Pressure switch Assembly |
Sample is welcome testing,pls feel freely to send email to us !
