| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | Rohs/CE/ISO9001 |
| Model Number: | FL-200 |
| Minimum Order Quantity: | 1 piece |
| Price: | USD48-59USD/piece |
| Packaging Details: | 1 piece in a box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union, Western Union,Paypal |
| Supply Ability: | 100000 per month |
| Theory: | Electromagnetic Pump | Structure: | Diaphragm Pump |
|---|---|---|---|
| Typical Application: | Marine/RV/Water Treatment/Beverage/Food Service/Agriculture Irrigation/General Industrial/Automotive | Pump Design: | 5 Chamber Diaphragm |
| Port Size: | 3/4"(19mm)quick Attach | Voltage: | 12V DC |
| Check Valve: | EPDM/VITON | Liquid Temp: | (60℃）Maximum |
| Self-Priming: | 8feet/2.5M Suction Lift | Max Flow LPM: | 10LPM(2.6GPM) |
| Max Pressure: | 200Psi(13.8bar) | Amps: | 15.0 |
| Packing Size(mm): | 240*135*138mm | N.W/G.W: | 3.2/3.5KGS |

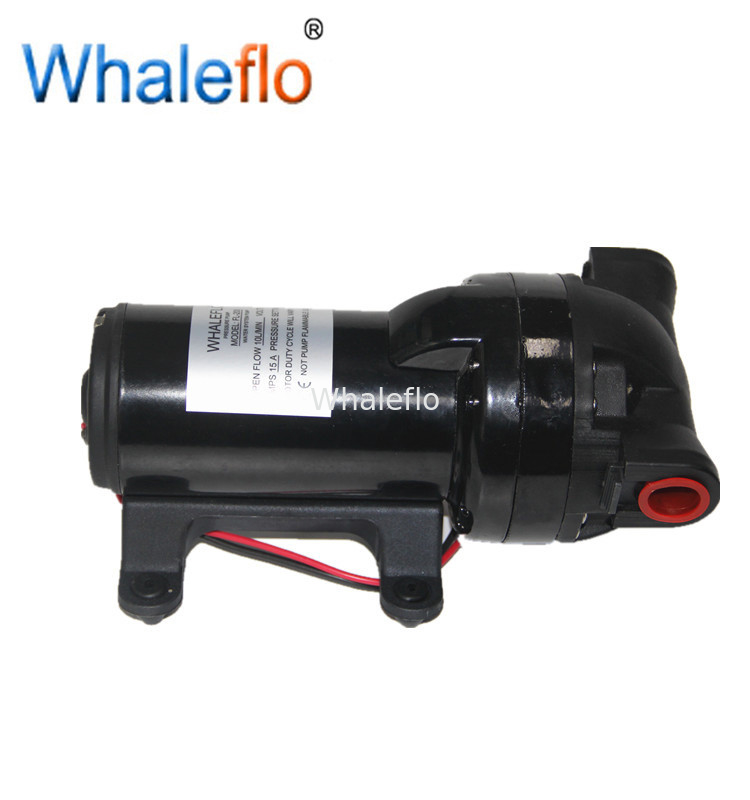

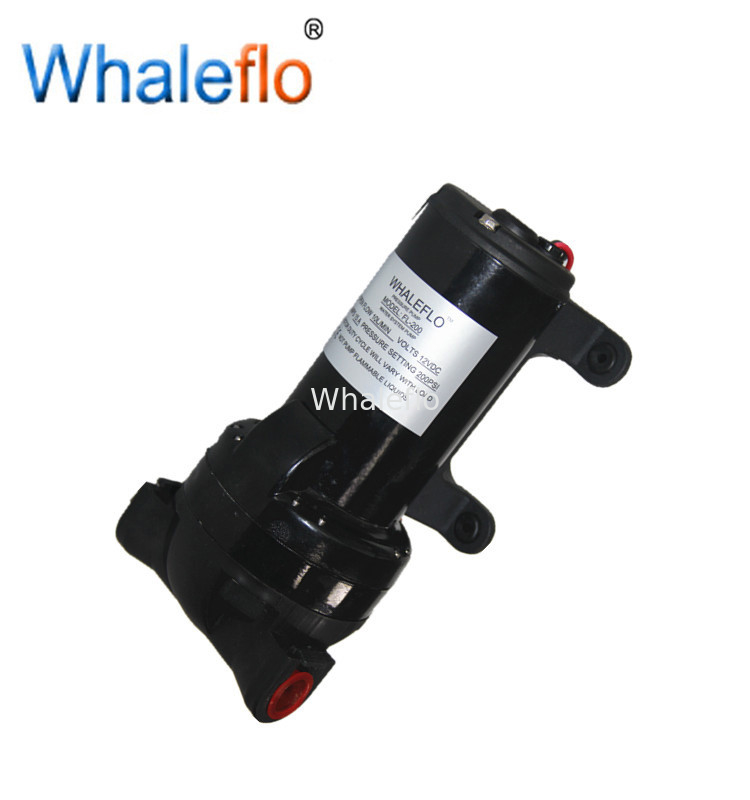

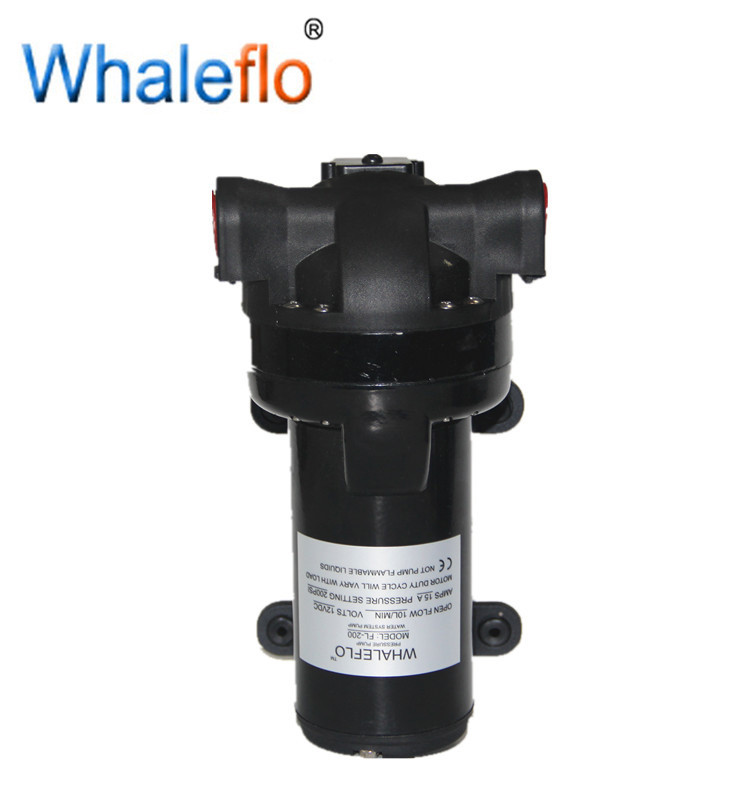

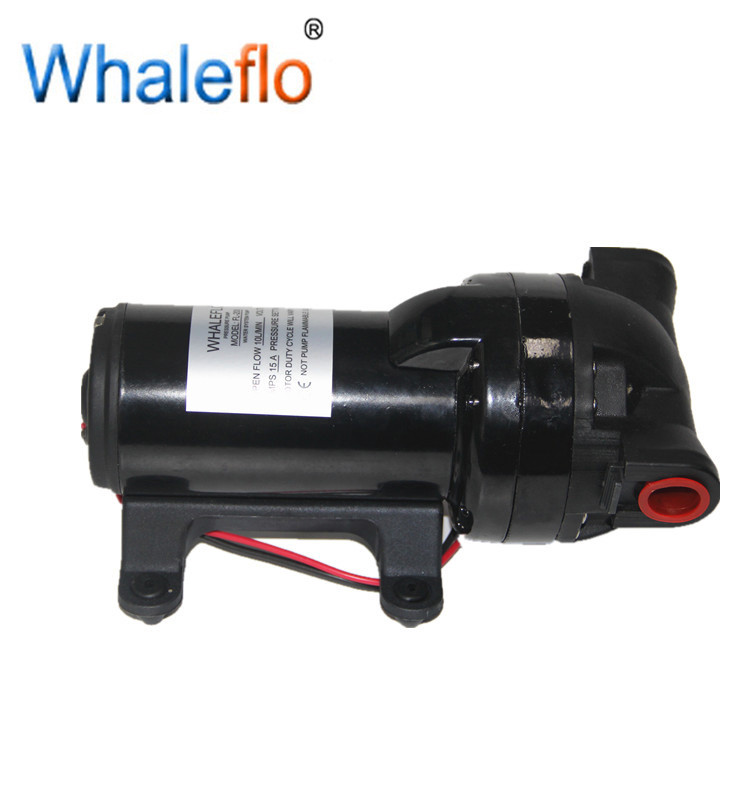

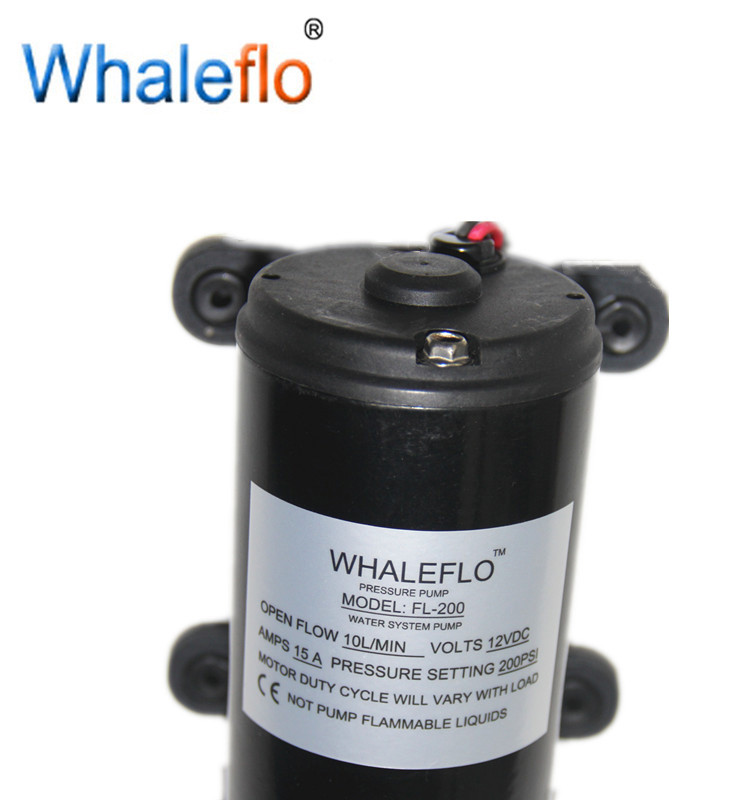

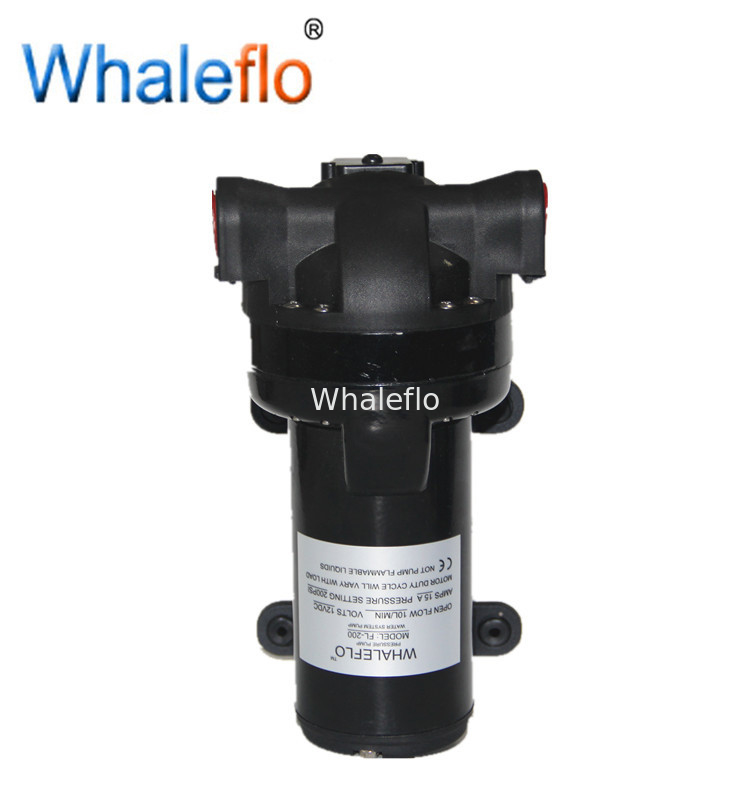

FL-200 12V DC 200PSI 10LPM High Flow 5Chamber Diaphragm Water Pump Self-priming Liquid Transfer Pumps
12V DC High Pressure Water Pump
FL-200 12V 10LPM 200PSI high pressure water pump designed for the caravans, boats, motorbikes, trucks, camping and agricultural industry liquid transportation.Use it with fresh or salt water or other chemical liquid. These pumps your deck automatically

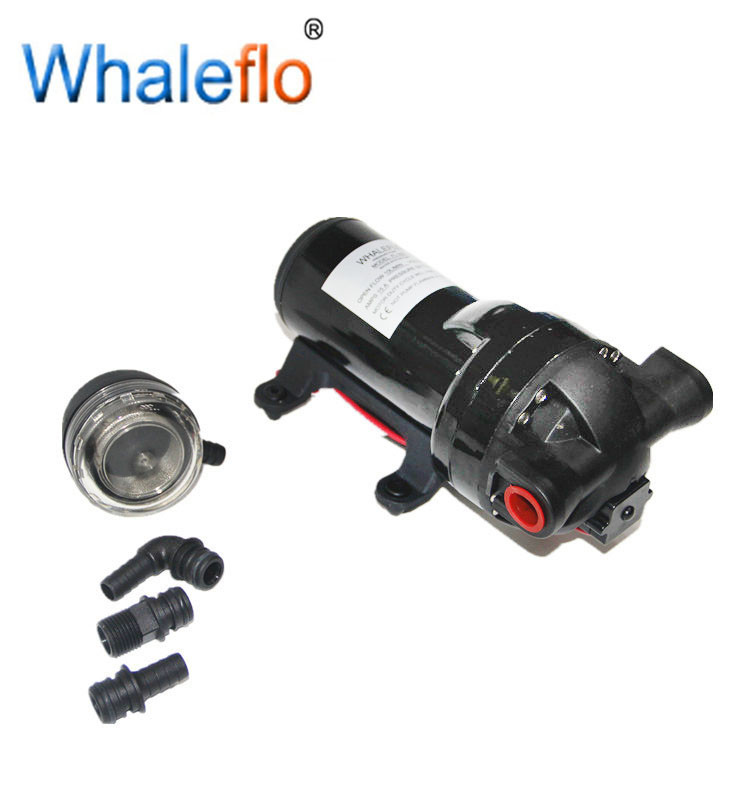

turn themselves on and off when you turn the tap on and off. It comes with filter and fittings.These pumps are for intermittent use only.
As 5 chamber electric high pressure water pump , it is available for 12v dc and 24v dc.
FEATURES
High volume flow rate, Built-in chec valve
Permanent Magnet motor with longer lifetime
Antivibration pad,easy installation.
Self-priming,Top quality Automatic Pressure Switch.
Thermally Protected
Low Noise,with excellent resistant to chemical corrosion.
TECHNICAL DATA
| Model | Voltage | Pressure | Amps Draw | N.G | Dimension |
| FL-200 | 12V DC | 200PSI | 15A | 3.4/3.5KG | 240*135*138mm |
| FL-200B | 24 V DC | 200PSI | 8A | 3.4/3.5KG | 240*135*138mm |
BENEFITS
| √ High volume flow rate, Built-in chec valve |
| √ Permanent Magnet motor with longer lifetime |
| √ Antivibration pad,easy installation. |
| √ Self-priming,Top quality Automatic Pressure Switch. |
| √ Thermally Protected |
| √ Low Noise,with excellent resistant to chemical corrosion. |
| Itmes | Description |
| 1 | Motor |
| 2 | Diaphragm Assembly |
| 3 | Valve plate Assembly |
| 4 | Pump head Assembly |
| 5 | Pressure switch Assembly |
Application:
Sample is very welcome to have a test, and inquiry, pls feel freely to send email to us !
