| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | Rohs/CE/ISO9001 |
| Model Number: | FLO-2202A |
| Minimum Order Quantity: | 1 piece |
| Price: | USD8-15USD/piece |
| Packaging Details: | 1 piece in a box |
| Delivery Time: | 7-20 work days |
| Payment Terms: | L/C, T/T, Western Union, Western Union,Paypal |
| Supply Ability: | 100000 per month |
| Theory: | Electromagnetic Pump | Structure: | Diaphragm Pump |
|---|---|---|---|
| Typical Application: | Marine/RV/Water Treatment/Beverage/Food Service/Agriculture Irrigation/General Industrial/Automotive | Pump Design: | 2 Chamber Diaphragm |
| Port Size: | 3/8"(9.5mm) | Voltage: | 12V DC |
| Check Valve: | EPDM/VITON | Liquid Temp: | (60℃）Maximum |
| Self-Priming: | 4feet/1.2M Suction Lift | Max Flow LPM: | 4.0LPM(1.1gpm) |
| Max Pressure: | 80Psi(5.5bar) | Amps: | 2.6 |
| N.W/G.W: | 0.68/0.72KGS |

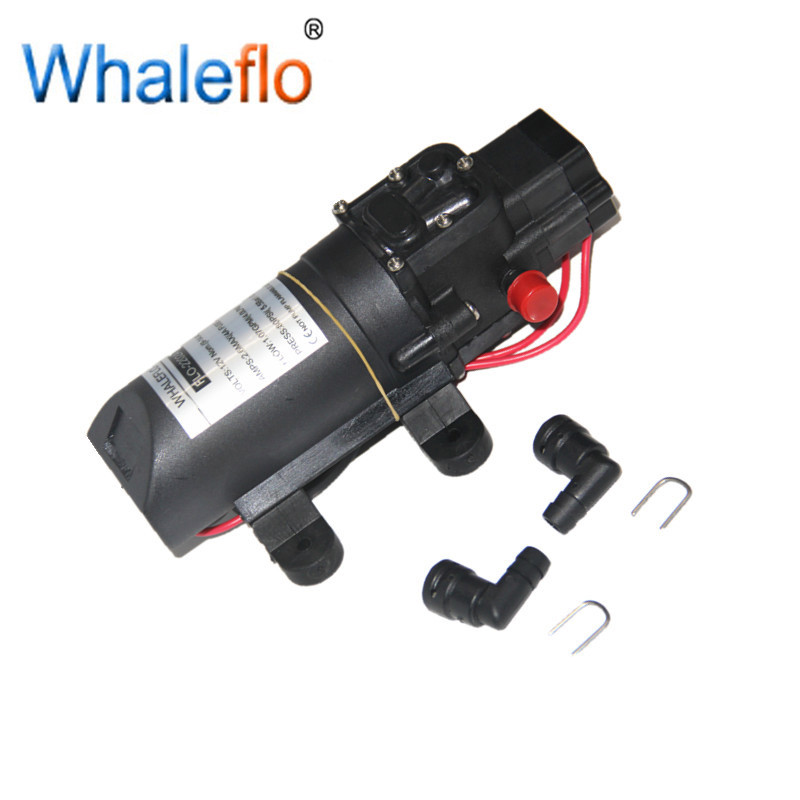

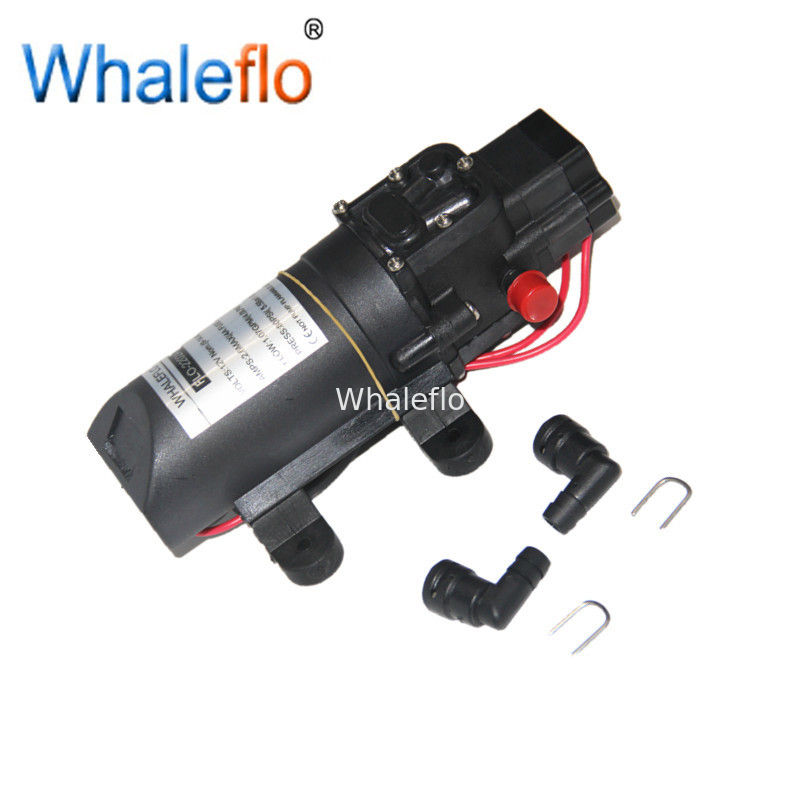

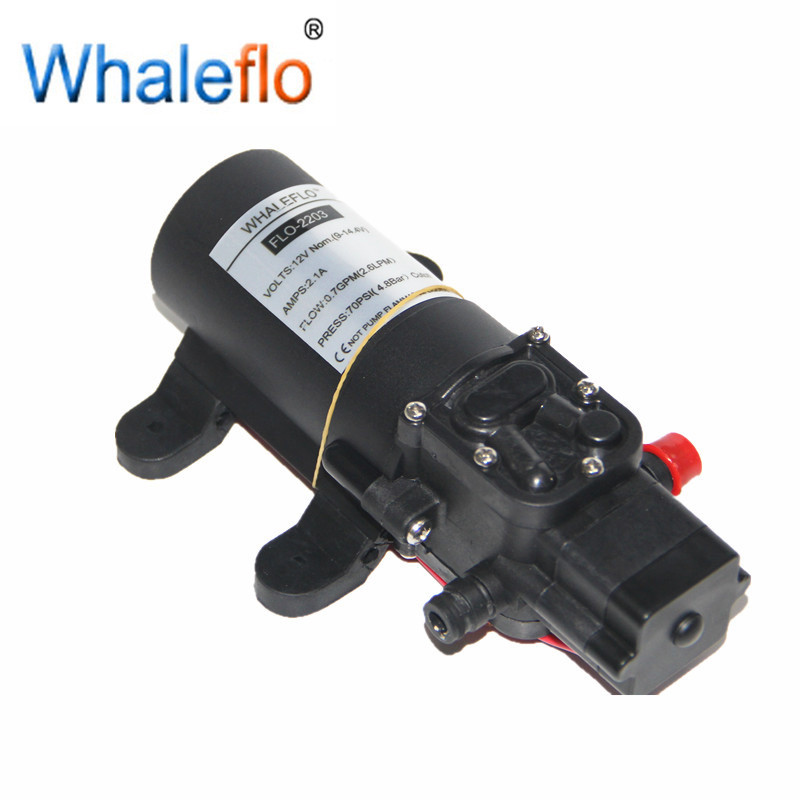

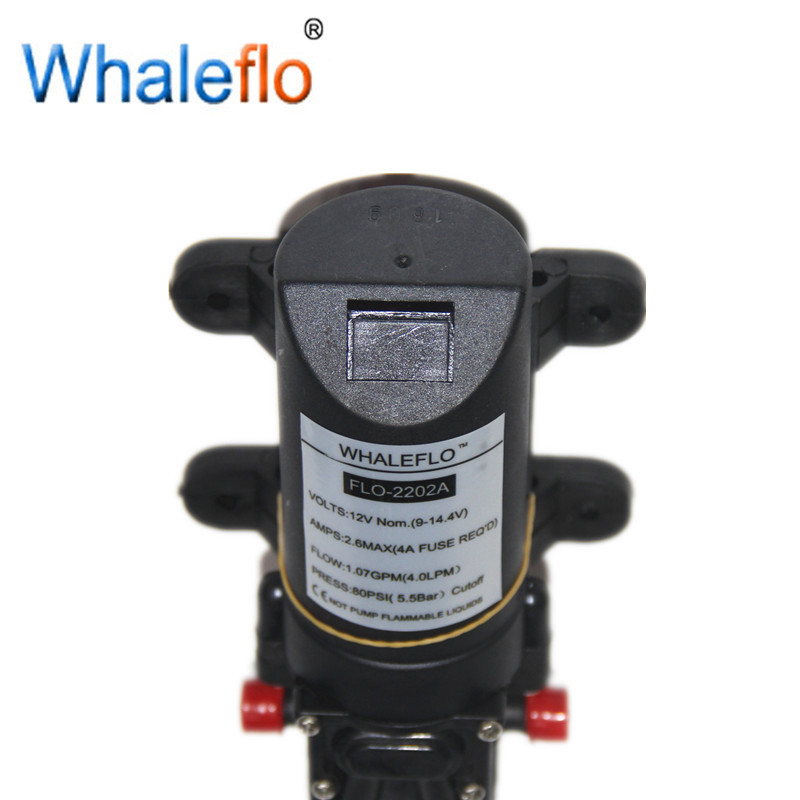

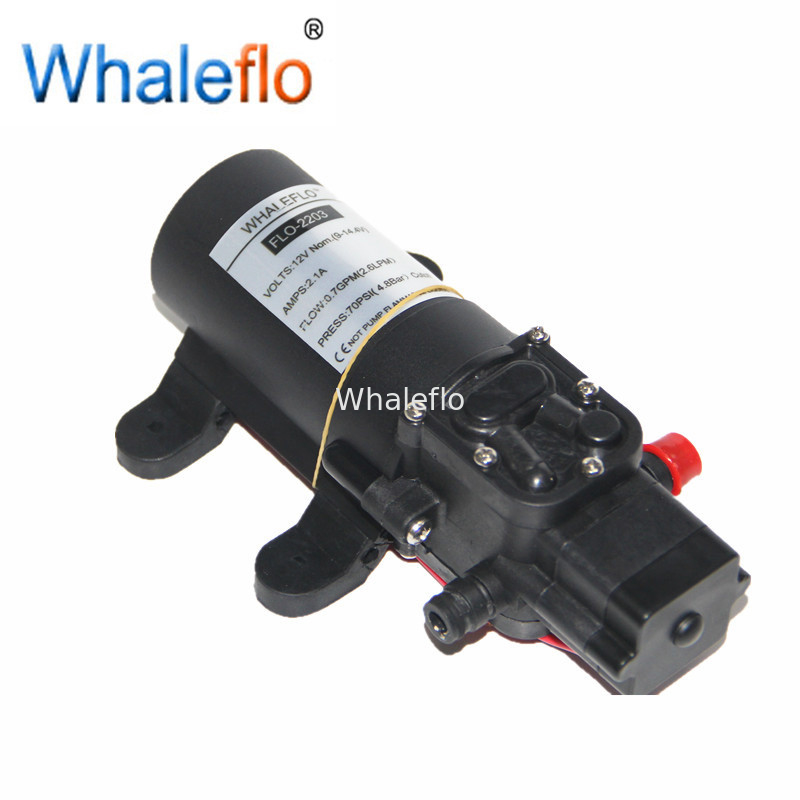

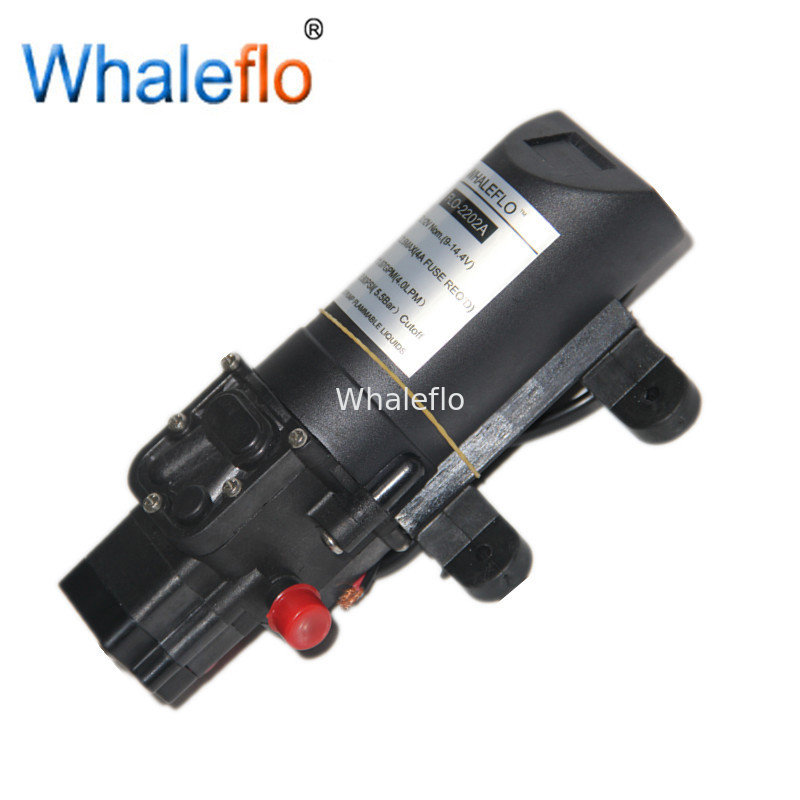

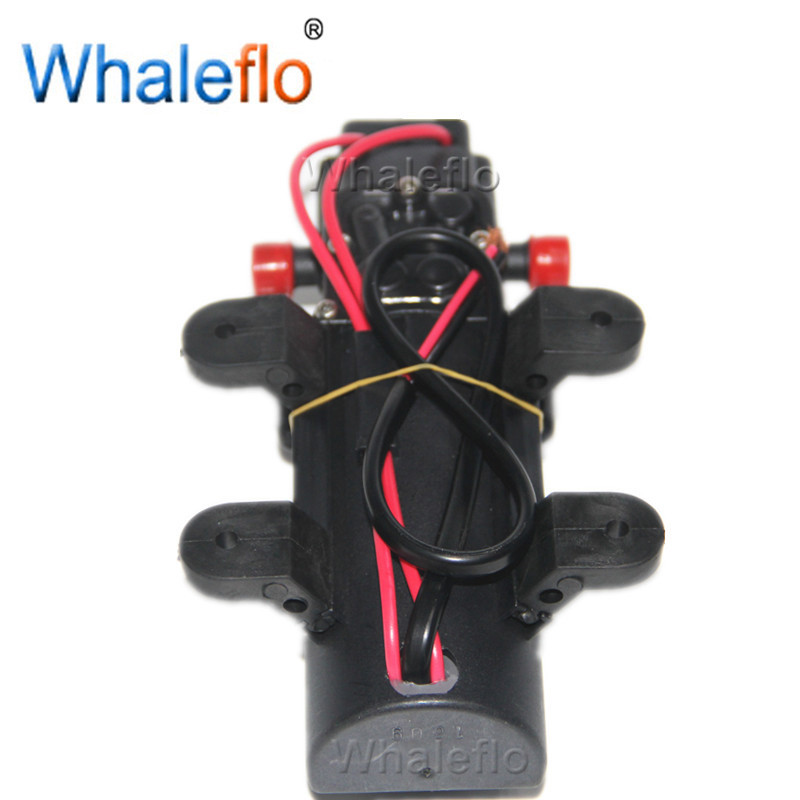

WATER SPRAYER PUMP RV 12 VOLTS WATER PUMP
| It can be used for low flow rate while high pressure requirements in situation as: |
| Pressure pumps used in sprayers and spray fixtures. |
| Water purification, filter machine , chemical metering and fluid supply. |
| Food, Beverage filling and transfer. |
| Ex .pressure switch control pump's working or not, turn on switch, pump is at working; |
| turn off switch with pump stop working, |
| So, it is special suitable for sprayers and spray fixtures with its low flow rate. |
| Motor | Pump | Material of Contruction | Weight & Size |
| Type: 12V/24V DC, Permanent magnet, totally |
Type:2-chamber positive displacement |
Motor Housing: PA66 | Dimension:18.5*11*6.5cm |
| Enclosed, non-ventilated |
Liquid Temperature: 140ºF(60°C)Maximum |
Pump Housing: Polypropylene | Net weight:0.67kgs |
| Leads:16 AWG | Priming Capabilities: 3feet(0.9m)suction lift |
Valves: Viton or EPDM | Packing:50pcs/CTN |
| Duty cycle: Work intermittent |
Pump able to run dry without damage |
Diaphragm: Santoprene | Ctn size:58*37*37cm |
| CHECK VALVE: (1-Way Operation) Prevents Reverse Flow |
Ports Size: 3/8'' Hose Barb | N.W.:34kgs, G.W.:36kgs |
| Model | Volt | Flow LPM(GPM) |
Pressure PSI(BAR) |
Amp Draw(A) | BYPASS |
| FLO-2201 | 12 | 2(0.52) | 55(3.79) | 1.8 | YES |
| FLO-2202 | 12 | 3.8(1.0) | 35(2.41) | 3 | YES |
| FLO-2202 | 12 | 4.3(1.13) | 35(2.41) | 3.5 | YES |
| FLO-2203 | 12 | 2.6(0.68) | 70(4.83) | 2.1 | YES |
| FLO-2203-1 | 12 | 3.1(0.82) | 70(4.83) | 2.2 | YES |
| FLO-2202A | 12 | 4(1.05) | 80(5.52) | 2.6 | YES |
| FLO-2401 | 24 | 2(0.53) | 55(3.79) | 0.9 | YES |
| FLO-2402 | 24 | 3.8(1.0) | 35(2.41) | 1.5 | YES |
| FLO-2403 | 24 | 2.6(0.68) | 70(4.83) | 1 | YES |
| FLO-2402A | 24 | 4(1.05) | 80(5.52) | 1.3 | YES |
|
1. Do not use this product beyond the limit specified in this specification, when useing the brushless motor be noted that the input power should be constant pressure, filtering..
2.Keep the import eara and export eara clean and smooth , no solid particles, may contain a small amount of water, not so solid foreign objects into the pump body, in the non-clean air in and out of the installation of air intake filters.
3.The specification of this product is only for your reference,the details should check the real products,spcific and be made according to customers’request within the permitted range.
4.non-professional person should not open this product. |
|
Each valve chamber has a diaphragm behind it in the lower pump housing. As the motor shaft turn an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence creating a suction. As this suction builds, fluid is pulled hrough the inlet, through the various valve chamber check valves to the outlet he volume of flow is determined by several factors including: the number and size of the pump chambers,cam offset, operating pressure, fluid viscosity.
|
PRODUCT DESCRIPTION
FLO Series Industrial Pumps are designed for a wide range of application and are constructed from a selection of material suitable for handling a broad range of chemicals.The FLO Series of diaphragm pumps are self-priming and can be run constinously for short periods of time. The higher the duty cycle the shorter the expected life of the pump.
Typical pump uses are liquid transfer,spraying, circulation, filtration and dispensing.
DESCRIPTION
1.Switch cover screws 2.Pump head screw 3.Pump head
4. Motor 5.Lead Wires 6.Pressure
Operation
To start and prime the pump, the discharge line must be open allowing trapped air to escape thus avoiding the potential of airlock.The pressure switch will shut off the pump qutomatically when the discharge valve is closed the pressure has risen to the switch OFF set point.The pressure switch will restart the pump of the pressure switch.
Demand Operation(intermittent duty)
Demand Operation is considered and "intermittent duty" application.The maximum intermittent duty cycle is that switch will cause the motor to reach its maximum themal limits.Once the maximum themal limit is reached, the motor must be allowed to settle to a lower temperature ideally being ambient before resuming operation.Running the pump
at or near the maximum thermal limited for extended period of time will shorten the life of the pump and may result in immediate pump failure.
Bypass Operation(if equipped)
Models equipped with an external bypass system are designed to pump at high pressure while at low or high flow rates.Models equipped with a bypass only will continue to run until the power is manually turned off.
The FLO pumps are not recommended for continous duty service due to limited motor brush life.Operation at lower pressure and temperatures.However, will extend overall pump service life.
Mounting
The FLO Series pumps are self-priming.Vertical prime ay vary depending on the fluid viscosity, suction tube size, foot valve and pump configuration.The pump should be mounted in a dry and adequately ventilate area.If mounted within an enclosure,provisions to coor the motor may be necessary.
Preventative Maintenance Tips
If pumping a liquid other than water the pump should be flushed with water(if applicable) after each use.
Before freezing conditions occur, the pump must be liquid free or winterize with proper anti-freezing chemicals.
Dimensional Drawing of mini water pump
TECHNICAL DATA
Technical Data:
| Model | Volt | Flow(L/Min) | Pressure(PSI) | Amp Draw(A) |
| FLO-2201 | 12 | 2 | 55 | 1.8 |
| FLO-2202 | 12 | 3.8 | 35 | 3 |
| FLO-2202-1 | 12 | 4.3 | 35 | 3.5 |
| FLO-2203 | 12 | 2.6 | 70 | 2.1 |
| FLO-2203-1 | 12 | 3.1 | 70 | 2.2 |
| FLO-2202A | 12 | 4 | 80 | 2.6 |
| FLO-2401 | 24 | 2 | 55 | 0.9 |
| FLO-2402 | 24 | 3.8 | 35 | 1.5 |
| FLO-2403 | 24 | 2.6 | 70 | 1 |
| FLO-2402A | 24 | 4 | 80 | 1.3 |
| Inlets size: | 3/8''hose barb, thread | |||
| Outlets size: | 3/8''hose barb, thread | |||
| dimension/pc: | 18.5x11x6.5cm | |||
| Net weight/pc: | 0.64kg | |||
| Gross weight/pc: | 0.72kg | |||
| Carton dimension(50pcs): | 56.5x38.5x36.5cm | |||
Sample order is very welcome to have a test, if need more technical specification, pls send email to us !
