| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | Rohs/CE/ISO9001 |
| Model Number: | FL-30 |
| Minimum Order Quantity: | 1 piece |
| Packaging Details: | 1pc/box,10pcs/ctn |
| Delivery Time: | 5-8 work days after confirmed |
| Payment Terms: | L/C, T/T, Western Union, Western Union,Paypal |
| Supply Ability: | 100000 per month |
| Pump Design: | 4 Chamber Diaphragm | Port Size: | 3/4"(19mm) Quick Attach |
|---|---|---|---|
| Voltage: | 12V DC | Check Valve: | EPDM/VITON |
| Liquid Temp: | (60℃）Maximum | Self-Priming: | 6.5feet/2M Suction Lift |
| Max Flow LPM: | 10LPM(2.6gpm) | Max Pressure: | 17Psi(1.17bar) |
| Amps: | 2.2 | N.W/G.W: | 1.9/2.3kgs |
| Packing Size: | 210*125*105mm | Connecto: | 1pc 1/4" Male Thread,1pc 1/2" Hose Barb,1pc Elbow 1/2" Hose Barb Filter |
| Application: | MARINE/RV,water Treatment/beverage/food Service/agriculture Irrigation/general Industrial/automotive |

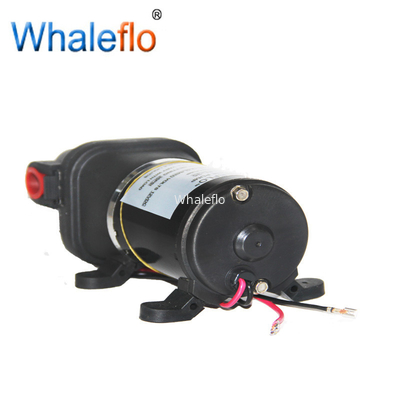

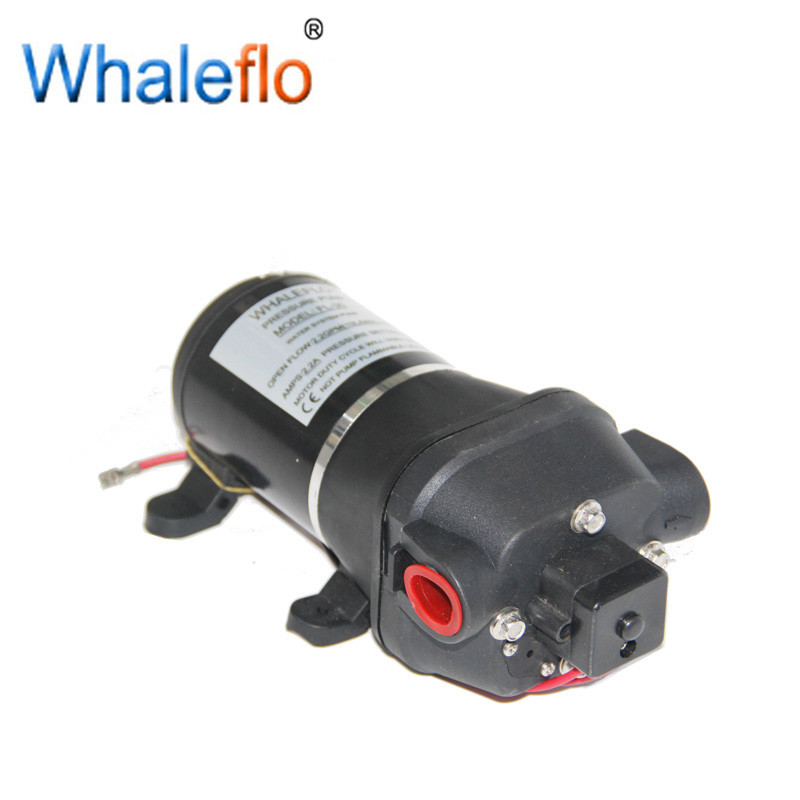

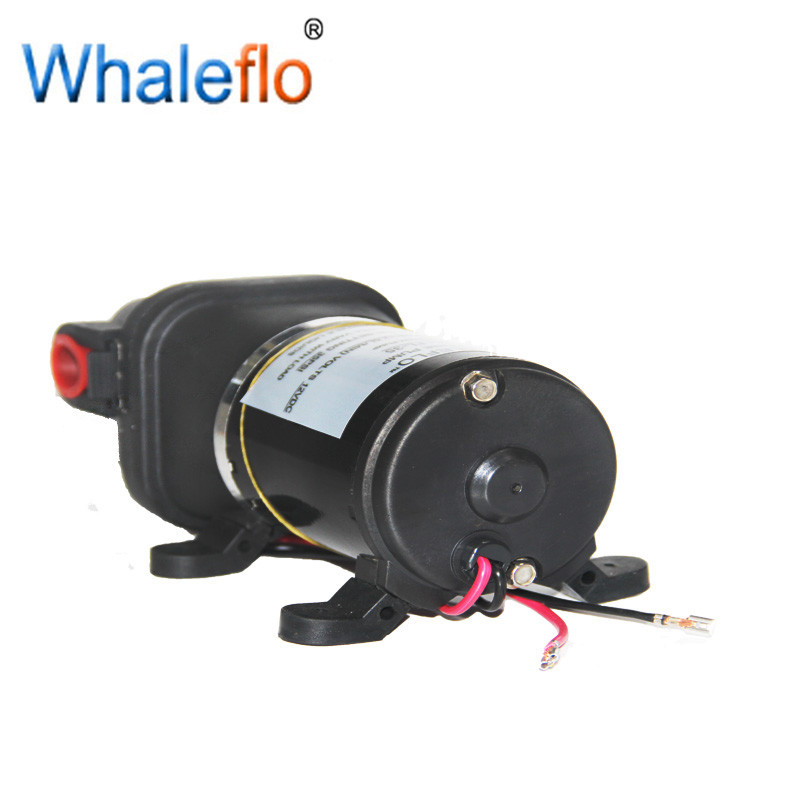

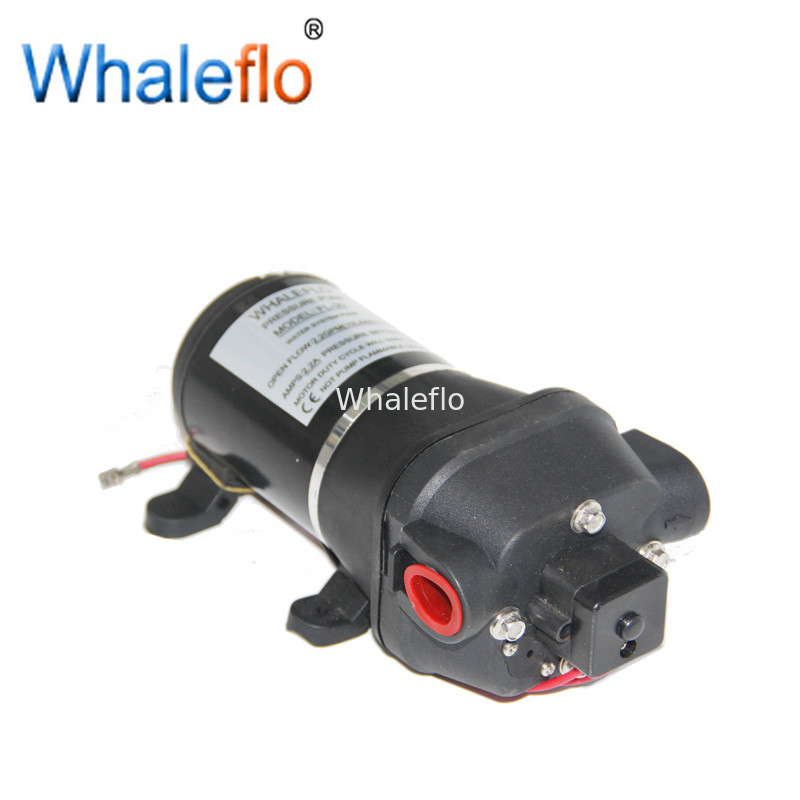

Whaleflo FL-30 12V DC high flow rate mini pump/ ATV water diaphragm pump
Model: FL-30
Votage: 12V DC
Amps: 2.2A
Flow Rate: 2.60 GPM (10.0 L/min)
Maximum Pressure: 17 PSI (1.17bar)
Duty Cycle: Working intermittent
Dimensions( H*W*D): 33.5*12.5*10.5cm
Net Weight: 1.9kg
Gross Weight: 2.4kg
Check Valve made: EPDM / VITON
Port size: 12.5mm( 1/2'') Hose bard, 3/4 NPT thread
Liquid tempeture: 60℃
Specifications:

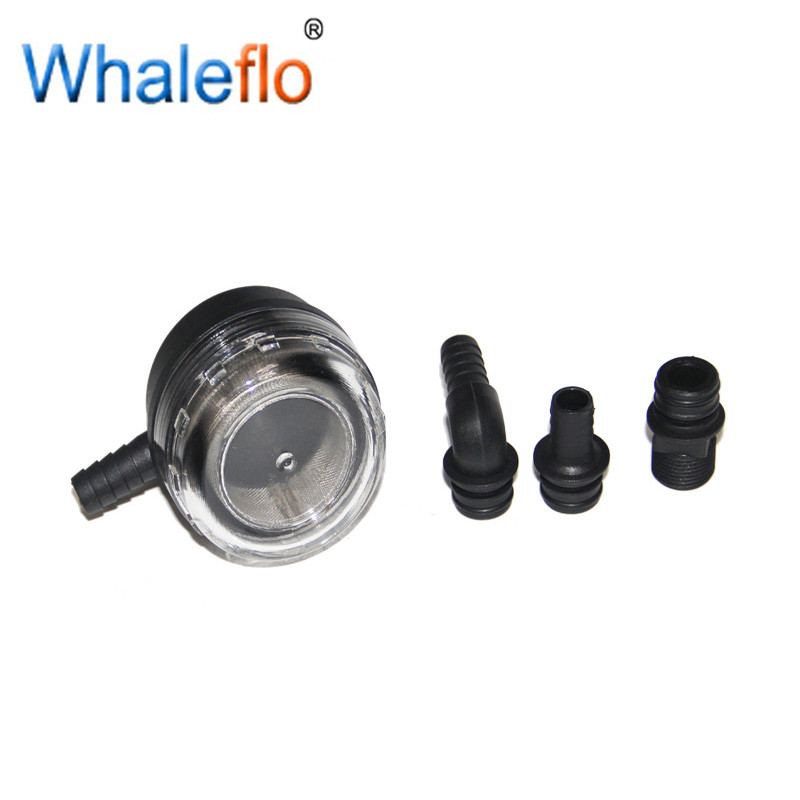

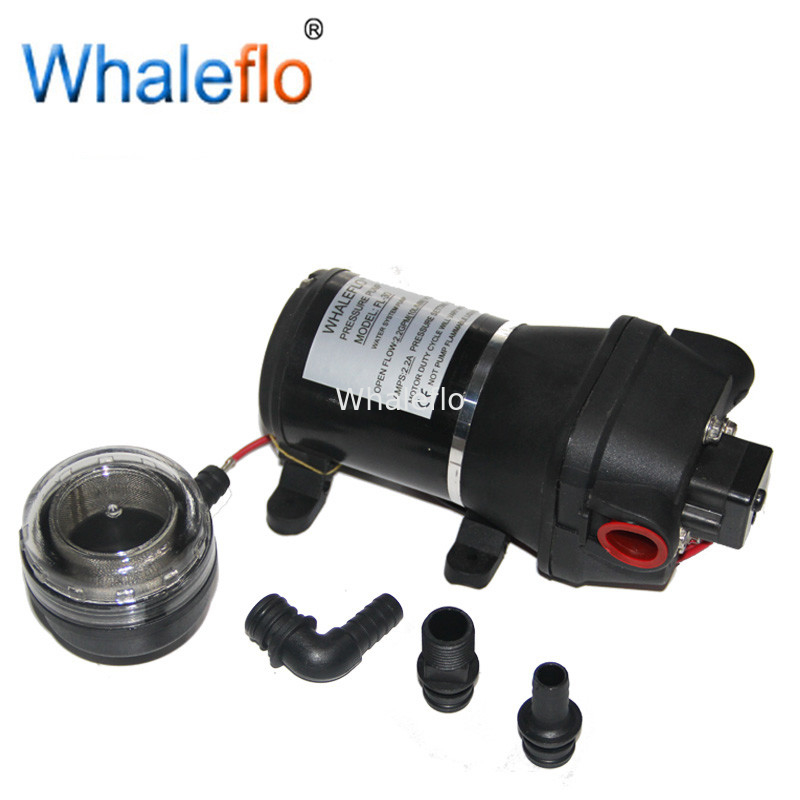

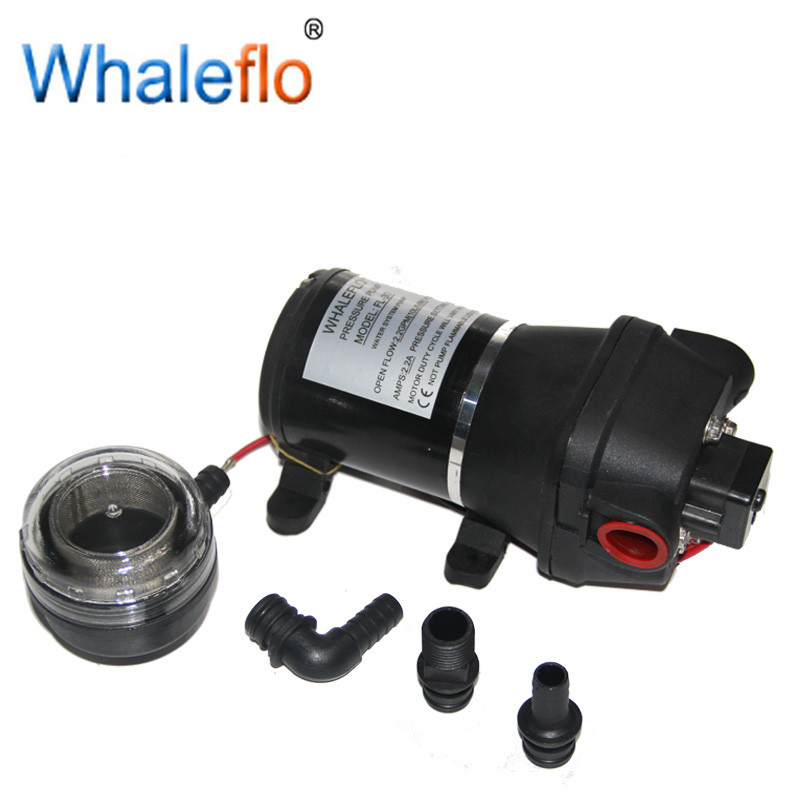

Perfect for caravans, boats, motorbikes, trucks and camping. Use it with fresh or salt water with your deck wash or to run your toilet or shower. These pumps automatically turn themselves on and off when you turn the tap on and off. Comes with filter and fittings. hese pump are for intermittent use only.
A great pump for those country folk, with a small family, on tank water who only need to boost the pressure from a tank next to the house.
We have tested these pumps and found they will operate to a 2 metre suction lift and 5 metre head with no problems.
| Type: | 4 Chamber Diaphragm |
| Port Size: | 1/2''(12.5mm)House Barb |
| Liquid: | 140°F [60 °C] Max |
| Self-priming: | 6 feet [about 2M] |
| Max pressure | 40psi(2.76bar);can be adjust to 60psi. |
| Run Dry: | Yes |
| Motor: | Permanent Magnet, Intermittent |
| Duty Protection: | Thermal Overload, Automatic Restart |
| Volts: | 12/24 VDC and 115/220 VAC motors standard (consult factory for other voltages) |
Features:
Technical Data:
| TECHNICAL DATA OF DC VOLTAGE | ||||
| Model | Volt | Flow(L/Min) | Pressure(PSI) | Amp Draw(A) |
| FL-30 | 12 | 10 | 17 | 2.2 |
| FL-31 | 24 | 10 | 17 | 1.5 |
| FL-35 | 12 | 12.5 | 35 | 7 |
| FL-34 | 24 | 12.5 | 35 | 4 |
| FL-40 | 12 | 17 | 40 | 9.2 |
| FL-44 | 24 | 17 | 40 | 5.6 |
| TECHNICAL DATA OF AC VOLTAGE | ||||
| Model | Volt | FLow(L/Min) | Pressure(PSI) | Amp Draw(A) |
| FL-33 | 115 | 12.5 | 35 | 0.5 |
| FL-32 | 220 | 12.5 | 35 | 0.4 |
| FL-41 | 115 | 17 | 40 | 0.5 |
| FL-43 | 220 | 17 | 40 | 0.8 |
| Inlets size: | 1/2''hose barb, thread | |||
| Outlets size: | 1/2''hose barb, thread | |||
| dimension/pc FL-3: | 33.5x12.5x10.5cm | |||
| Net weight/pc FL-3: | 1.9kg | |||
| Gross weight/pc FL-3: | 2.3kg | |||
| Carton dimension(10pcs FL-3 Series): | 63x29x22.5cm | |||
| dimension/pc FL-4: | 37x12.5x10.5cm | |||
| Net weight/pc Shape FL-4: | 2.45kg | |||
| Gross weight/pc FL-4: | 2.9kg | |||
| Carton dimension(10pcs FL-4 Series): | 64x39x22cm | |||
