| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | Rohs/CE/ISO9001 |
| Model Number: | FL-33 |
| Minimum Order Quantity: | 1 piece |
| Price: | USD30-50USD/piece |
| Packaging Details: | 1pc/box,10pcs/ctn |
| Delivery Time: | 5-8 work days after confirmed |
| Payment Terms: | L/C, T/T, Western Union, Western Union,Paypal |
| Supply Ability: | 100000 per month |
| Pump Design: | 4 Chamber Diaphragm | Port Size: | 3/4"(19mm) Quick Attach |
|---|---|---|---|
| Voltage: | 115V AC | Check Valve: | EPDM/VITON |
| Liquid Temp: | (60℃）Maximum | Self-Priming: | 6.5feet/2M Suction Lift |
| Max Flow LPM: | 12.5LPM(3.3gpm) | Max Pressure: | 35Psi(2.41bar) |
| Amps: | 0.8 | N.W/G.W: | 3.0/3.2kgs |
| Packing Size: | 280*125*105mm | Connecto: | 1pc 1/4" Male Thread,1pc 1/2" Hose Barb,1pc Elbow 1/2" Hose Barb Filter |
| Application: | MARINE/RV,water Treatment/beverage/food Service/agriculture Irrigation/general Industrial/automotive |

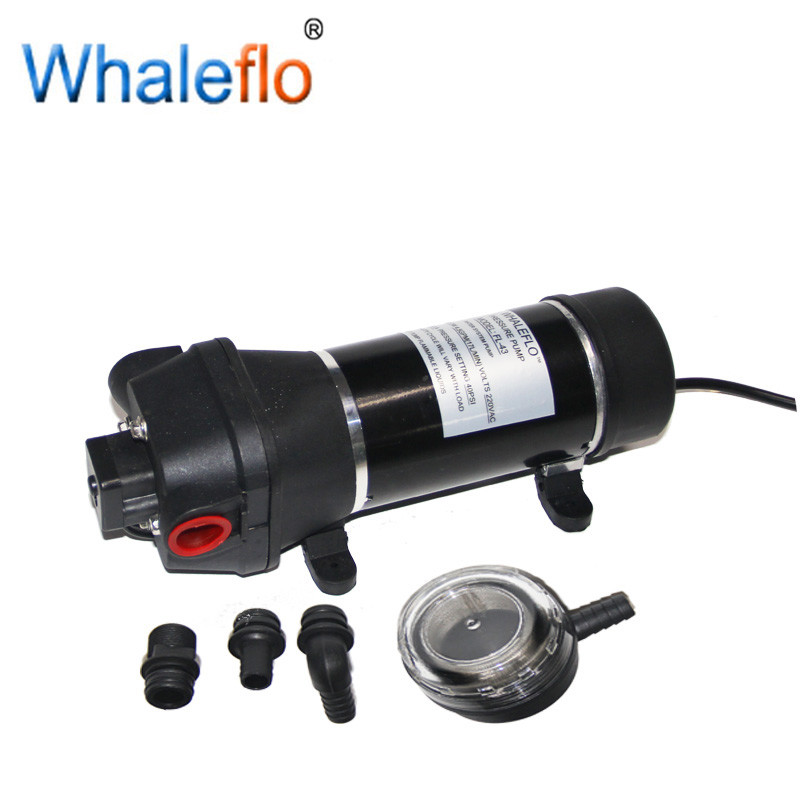

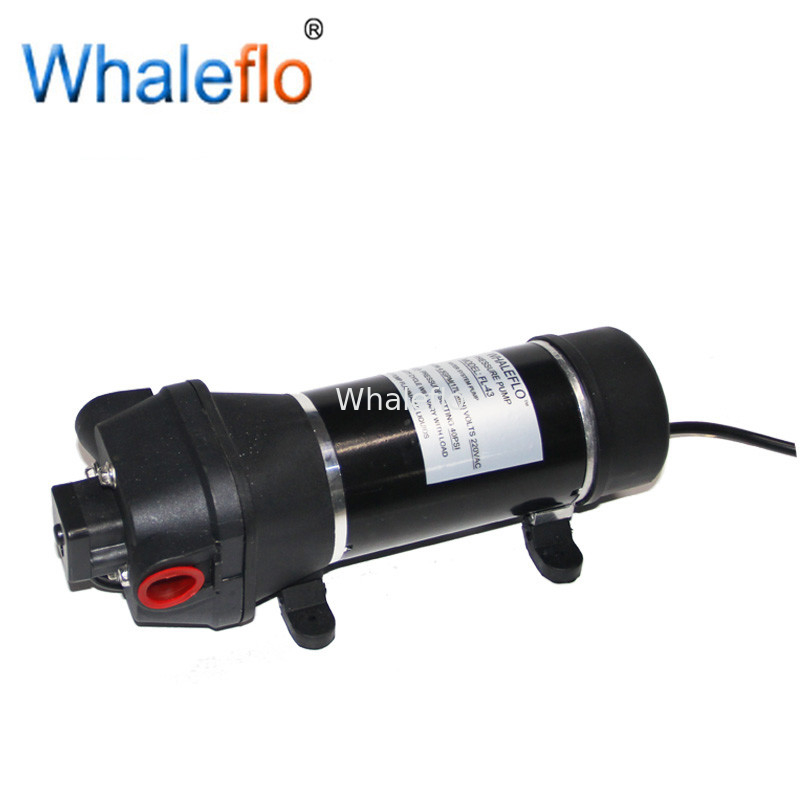

Whaleflo FL-33 115V AC 12.5LPM 35PSI Pressure Water Diaphragm Pump small electric pumps for agriculture
PRODUCT DESCRIPTION
OPERATION
This bait tank pump is designed to self-priming up to 6 feet suction lift and fill your tank in 812 minutes.This allows 5 to 6 water changes per hour. If pump fills tank in less than 8 minuted divert excess water by installing a T or Y valve.Ruduce turbulence by adding additional inlet at water line or drill out multiple stand pipe hples so water does not spurt out of holes.Your lively bait need calm, fresh water.
This pump is quiet running. It is recommend you ultilize off when not in use. The "Qual LL" is able to run dry.(no liquid) for extended periods with no damage to the pump. However, this could cause needless battery drain.
For general purpose or diesel transfer,plug in your choice of ports and lock in with slide clips.Attach hoses and wiring.
For portable use we recommend the pump be attach to a base.(ie.3/4"*8"*10" board or plywood),add a toogle switch, a length of two conductor cable with alligator clips for battery connection.
FEATURES
Self-Priming
Soft,Noise Absorbing Mounts
Corrosion Resistant Materials
With Themal Overload Protection
SPECIFICATIONS
Motor: Permanent Magnet, Ball Bearings on both Front and Rear Endbells. CE Models are fully suppressed.
Pump: Fiyr chamber positive displacement diaphragm design; Self-priming up to 6 ft .suction lift;
Pump able to run dry without damage; Removable port to hose connectors.
TECHNICAL DATA OF RV PUMP
| Technical Data | ||||
| Model | Volt/V | Flow(L/Min) | Pressure(PSI) | Amp Draw(A) |
| FL-30 | 12 | 10 | 17 | 2.2 |
| FL-31 | 24 | 10 | 17 | 1.5 |
| FL-35 | 12 | 12.5 | 35 | 7 |
| FL-34 | 24 | 12.5 | 35 | 4 |
| FL-40 | 12 | 17 | 40 | 9.2 |
| FL-44 | 24 | 17 | 40 | 5.6 |
| FL-33 | 115 | 12.5 | 35 | 0.5 |
| FL-32 | 220 | 12.5 | 35 | 0.4 |
| FL-41 | 115 | 17 | 40 | 0.5 |
| FL-43 | 220 | 17 | 40 | 0.8 |
| Inlets size: | 1/2''hose barb, thread | |||
| Outlets size: | 1/2''hose barb, thread | |||
| dimension/pc: | 33.5x12.5x10.5cm | |||
| Net weight/pc: | 1.9kg | |||
| Gross weight/pc: | 2.3kg | |||
| Carton dimension(10pcs): | 63x29x22.5cm | |||
| dimension/pc(FL-4): | 37x12.5x10.5cm | |||
| Net weight/pc(FL-4): | 2.45kg | |||
| Gross weight/pc(FL-4): | 2.9kg | |||
| Carton dimension(10pcs): (FL-4) |
64x39x22.5cm | |||
Q: What's your payment terms?
A: Usually we accept T/T ,Western Union or PayPal.
Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 3-5days by international express after received
2.The batch order can be shipped to you in about 10-15days after order confirmation (by air or by sea)
Q: What's your main products of your company?
A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm pump,Marine pump,RV pump )for over 10 years with excellent quality and competitive
Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.
Q: How long is your pump lifetime?
A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor For your choice, the pump warranty is 12 months.we can supply 1% spare parts for after service.
Sample order is very welcome to have a test, if need more technical specification, pls send email to us !
