| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | Rohs/CE/ISO9001 |
| Model Number: | DP-100M |
| Minimum Order Quantity: | 1 piece |
| Price: | USD37-45USD/piece |
| Packaging Details: | 1pc/box,10pcs/ctn |
| Delivery Time: | 5-8 work days after confirmed |
| Payment Terms: | L/C, T/T, Western Union, Western Union,Paypal |
| Supply Ability: | 100000 per month |
| Pump Design: | 3 Chamber Diaphragm | Port Size: | 3/8"BSPT Female Thread |
|---|---|---|---|
| Voltage: | 220V AC | Check Valve: | EPDM/VITON |
| Liquid Temp: | (60℃）Maximum | Self-Priming: | 6.5feet/2M Suction Lift |
| Max Flow LPM: | 5.5LPM(1.5gpm) | Max Pressure: | 160Psi(11.0bar) |
| Amps: | 0.6 | N.W/G.W: | 3.1/3.3KGS |
| Packing Size: | 250*110*105mm | Connecto: | 1pc 1/4" Male Thread,1pc 1/2" Hose Barb,1pc Elbow 1/2" Hose Barb Filter |
| Application: | MARINE/RV,water Treatment/beverage/food Service/agriculture Irrigation/general Industrial/automotive |

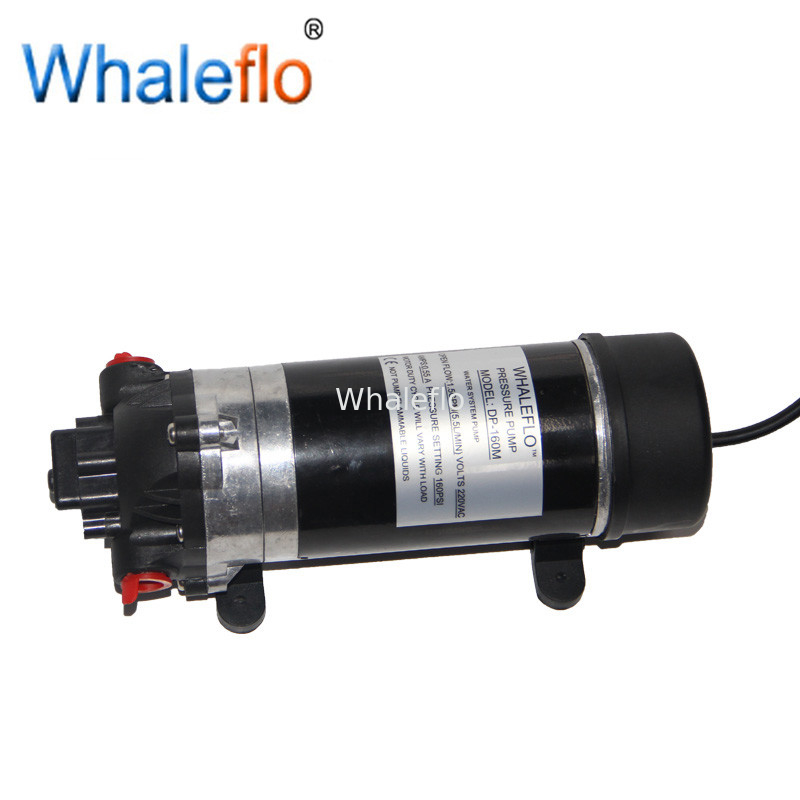

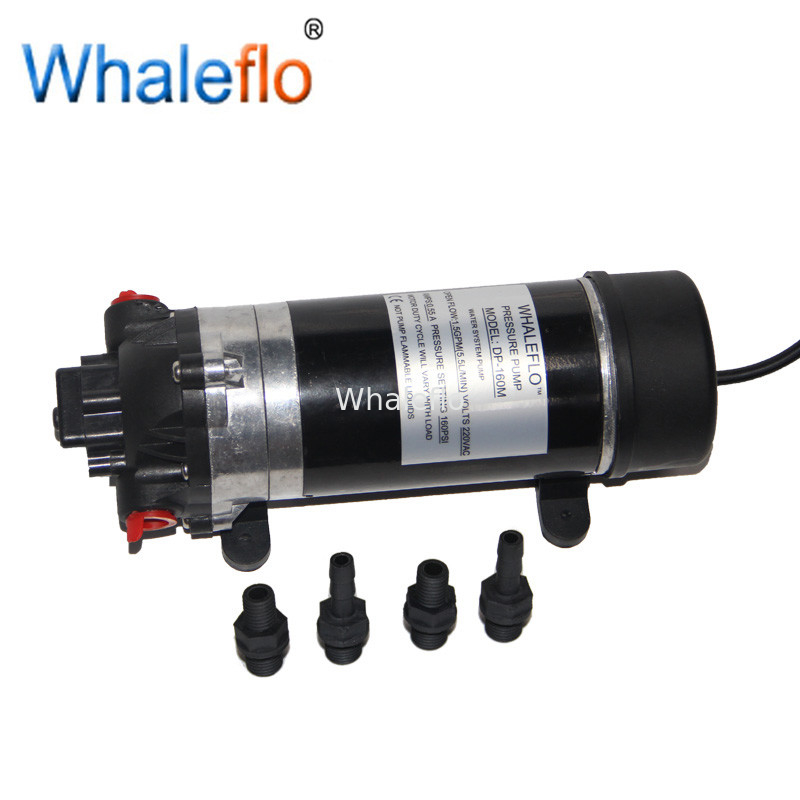

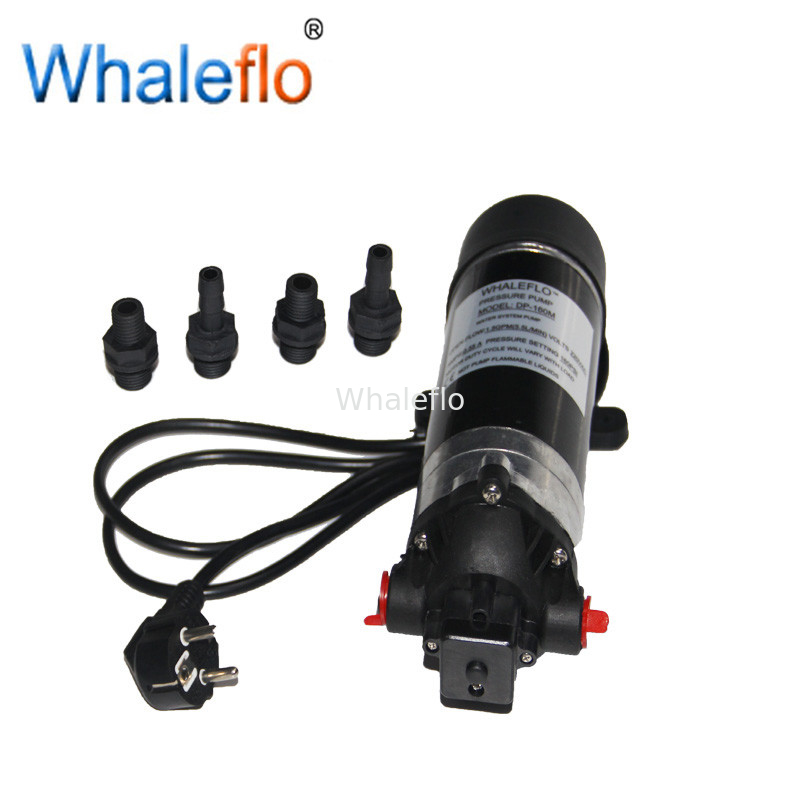

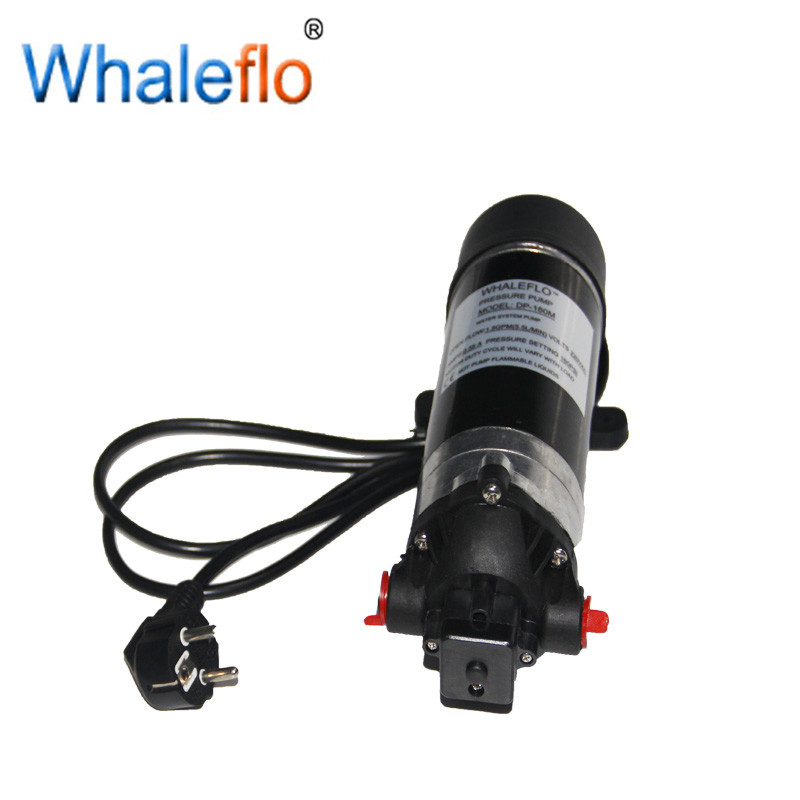

WHALEFLO DP-160M 220V AC 160psi 12v dc high pressure car wash water pump cleaner
Application:
Water purification,filter machine,chemical metering and fluid supply.
High pressure pumps used in sprayers and spray fixtures for high plants.
Food,beverage filling and liquid transfer.
Can be used for washing car and conditioner.
FEATURES
| Feature & Benefits | |
| Production Name | Diaphragm Pump |
| Pump Design | 3 Chamber Diaphragm |
| Port Size | 3/8" (12.5mm) Hose barb |
| Voltage | 12v,24v dc / 115v,220v dc |
| Check Valve | EPDM or Vtion |
| Liquid Temp | 140℉(60℃) Maximum |
| Self-Priming | 6.5 feet (2M) susction |
| On/demand pressure | Adjustable pressure switch from 60psi-170psi for OEM needed |
| Motor | Built-in Thermal protector |
| Rubber feet | for noise reduction from vibration |
| Bypass system | Bypass system is available |
| Threaded connections | it with multiple fittings allow connect to any outlet |
| Model | Volt | Flow(L/Min) | Pressure(PSI) | Amp Draw(A) |
| DP-60 | 12 | 4.6 | 60 | 7 |
| DP-60B | 24 | 4.5 | 60 | 4 |
| DP-80 | 12 | 5.5 | 80 | 8 |
| DP-100 | 12 | 5.5 | 100 | 9 |
| DP-120 | 12 | 5.5 | 120 | 9.5 |
| DP-120B | 24 | 5.3 | 120 | 4.5 |
| DP-160 | 12 | 5.5 | 160 | 10.5 |
| DP-160B | 24 | 5.5 | 160 | 4.2 |
| DP-100M | 230 | 5.5 | 100 | 0.6 |
| DP-160S | 120 | 5.5 | 160 | 1 |
| DP-120M | 220 | 5.5 | 120 | 0.5 |
| DP-160M | 220 | 5.5 | 160 | 0.55 |
| Inlets size: | 3/8''hose barb, thread | |||
| Outlets size: | 3/8''hose barb, thread | |||
| dimension/pc: | 26.5x12x10.5cm | |||
| Net weight/pc: | 2.4kg | |||
| Gross weight/pc: | 2.7kg | |||
| Carton dimension(10pcs AC Voltage): | 64x39x22cm | |||
| Carton dimension(10pcs DC Voltage): | 63x29x22.5cm | |||
Sample order is welcome testing.
24 month warranty
Fast delivery time.
