| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | Rohs/CE/ISO9001 |
| Model Number: | DP-100M |
| Minimum Order Quantity: | 1 piece |
| Price: | USD37-45USD/piece |
| Packaging Details: | 1pc/box,10pcs/ctn |
| Delivery Time: | 5-8 work days after confirmed |
| Payment Terms: | L/C, T/T, Western Union, Western Union,Paypal |
| Supply Ability: | 100000 per month |
| Pump Design: | 3 Chamber Diaphragm | Port Size: | 3/8"BSPT Female Thread |
|---|---|---|---|
| Voltage: | 220V AC | Check Valve: | EPDM/VITON |
| Liquid Temp: | (60℃）Maximum | Self-Priming: | 6.5feet/2M Suction Lift |
| Max Flow LPM: | 5.5LPM(1.5gpm) | Max Pressure: | 100Psi(7.0bar) |
| Amps: | 0.6 | N.W/G.W: | 3.1/3.3KGS |

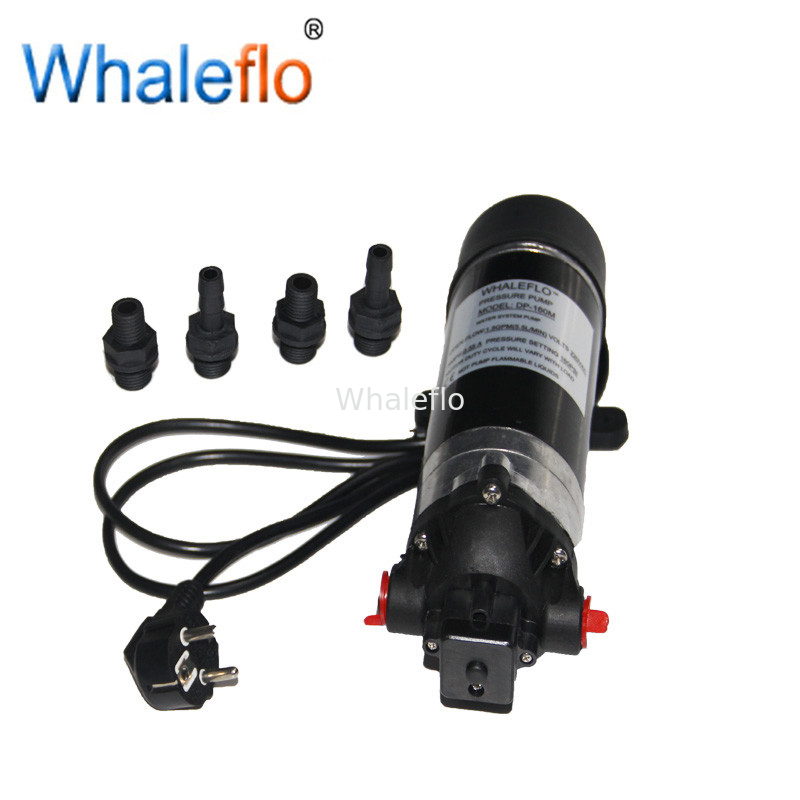

| Packing Size: | 250*110*105mm | Connecto: | 1pc 1/4" Male Thread,1pc 1/2" Hose Barb,1pc Elbow 1/2" Hose Barb Filter |
| Application: | MARINE/RV,water Treatment/beverage/food Service/agriculture Irrigation/general Industrial/automotive |

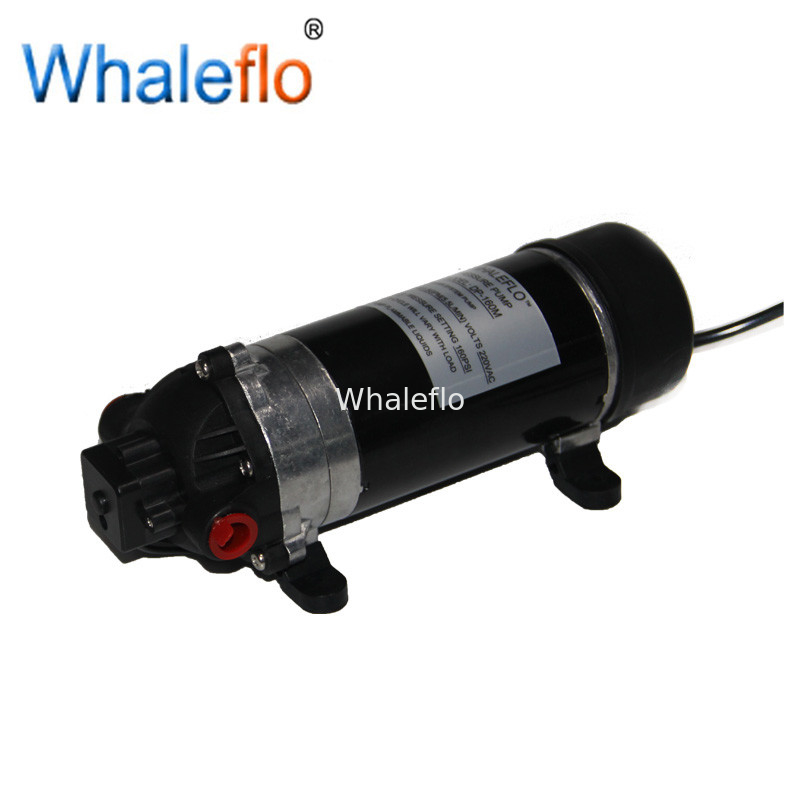

WHALEFLO DP-100M 230v ac 100 psi high pressure electric motor powerful pump /electric water pump
Features:
Specification:
| Model | Volt | Flow(L/Min) | Pressure(PSI) | Amp Draw(A) |
| DP-60 | 12 | 4.6 | 60 | 7 |
| DP-60B | 24 | 4.5 | 60 | 4 |
| DP-80 | 12 | 5.5 | 80 | 8 |
| DP-100 | 12 | 5.5 | 100 | 9 |
| DP-120 | 12 | 5.5 | 120 | 9.5 |
| DP-120B | 24 | 5.3 | 120 | 4.5 |
| DP-160 | 12 | 5.5 | 160 | 10.5 |
| DP-160B | 24 | 5.5 | 160 | 4.2 |
| DP-100M | 230 | 5.5 | 100 | 0.6 |
| DP-160S | 120 | 5.5 | 160 | 1 |
| DP-120M | 220 | 5.5 | 120 | 0.5 |
| DP-160M | 220 | 5.5 | 160 | 0.55 |
| Inlets size: | 3/8''hose barb, thread | |||
| Outlets size: | 3/8''hose barb, thread | |||
| dimension/pc: | 26.5x12x10.5cm | |||
| Net weight/pc: | 2.4kg | |||
| Gross weight/pc: | 2.7kg | |||
| Carton dimension(10pcs AC Voltage): | 64x39x22cm | |||
| Carton dimension(10pcs DC Voltage): | 63x29x22.5cm | |||
Sample order is welcome testing.
24 month warranty
Fast delivery time.
Working Video
