Name: Whaleflo TMC 12v Inline Galley pump set/FOR BOAT/CARAVAN/MOTORHOME/RV
Brand: Xiamen Whaleflo Industry and Trade Co.,Ltd.
SKU: FLO-2202+faucet
Price: 16.00 USD
Availability: InStock

Whaleflo TMC 12v Inline Galley pump set/FOR BOAT/CARAVAN/MOTORHOME/RV

Basic Information

Place of Origin:	China
Brand Name:	Whaleflo
Certification:	Rohs/CE/ISO9001
Model Number:	FLO-2202+faucet

Minimum Order Quantity:	1 piece
Price:	USD14-18USD/pc
Packaging Details:	1pc/ a box,50pcs/carton, carton gross weight :36kgs
Payment Terms:	L/C, T/T, Western Union, Western Union,Paypal
Supply Ability:	100000pcs per month

Contact Now

Theory:

Electromagnetic Pump

Structure:

Diaphragm Pump

Typical Application:

Marine/RV/Water Treatment/Beverage/Food Service/Agriculture Irrigation/General Industrial/Automotive

Pump Design:

2 Chamber Diaphragm

Port Size:

3/8"(9.5mm)

Voltage:

12V DC

Check Valve:

EPDM/VITON

Liquid Temp:

(60℃）Maximum

Self-Priming:

4feet/1.2M Suction Lift

Max Flow LPM:

4.3LPM(1.1gpm)

Max Pressure:

35Psi(2.4bar)

Amps:

3.0A

N.W/G.W:

0.68/0.72KGS

Product Description

Economical 12 volt galley pump system supplied complete with chrome plated 12 volt electric faucet & pump - so pump can be automatically activated by the toggle switch on the faucet. The pump is 'SELF-PRIMING' so it can be mounted virtually anywhere in your Boat/Caravan/RV etc... up to 1.5m above the water supply. Delivers up to 4.3 litres per minute at 5 metre head. Suits 10mm hose.

Application:

Good for Boating/Caravan/Motorhome/RV/Marine applications where a single

handle tap is required for space saving

Product Description:

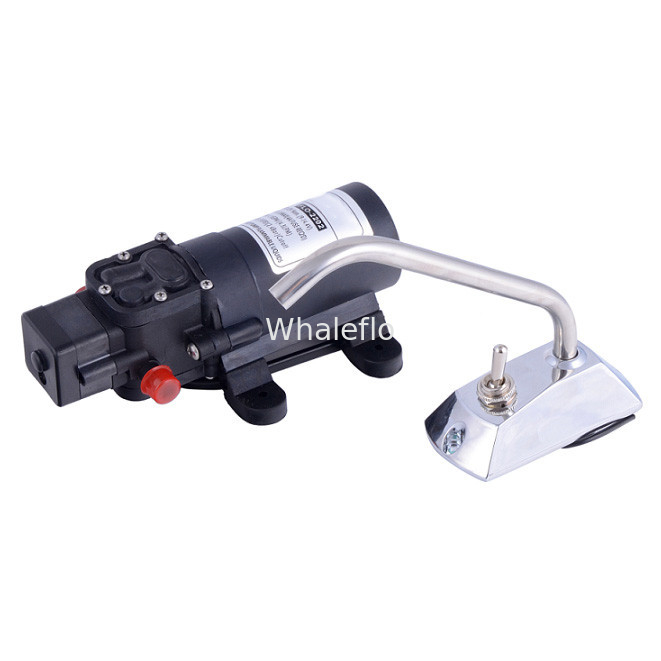

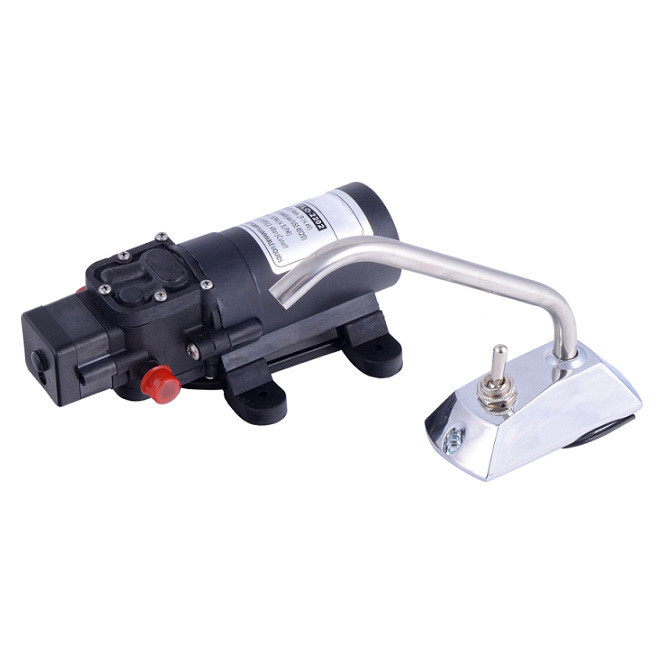

*Galley pump set,complete with mounting screws & faucet.

*Compact 12v electric pump operates quietly and easy to install

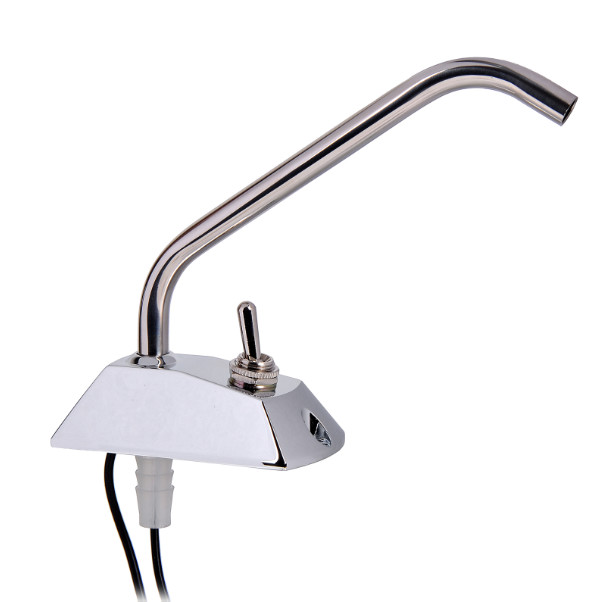

*Zinc-alloy metal faucet base and stainless steel swing spout

*Built-in 12v toggle switch in on the faucet base-To automatically activate pump.

*Full 360 degree rotation.

*Pump is self-priming, so it can be located above supply tank.

*Delivers up to 4.3liters per minute at 1 meter head.

*Suits 10mm ID hose.

*Durable rubber feet for reduced vibration

*Waterproof rubber boot on tap switch

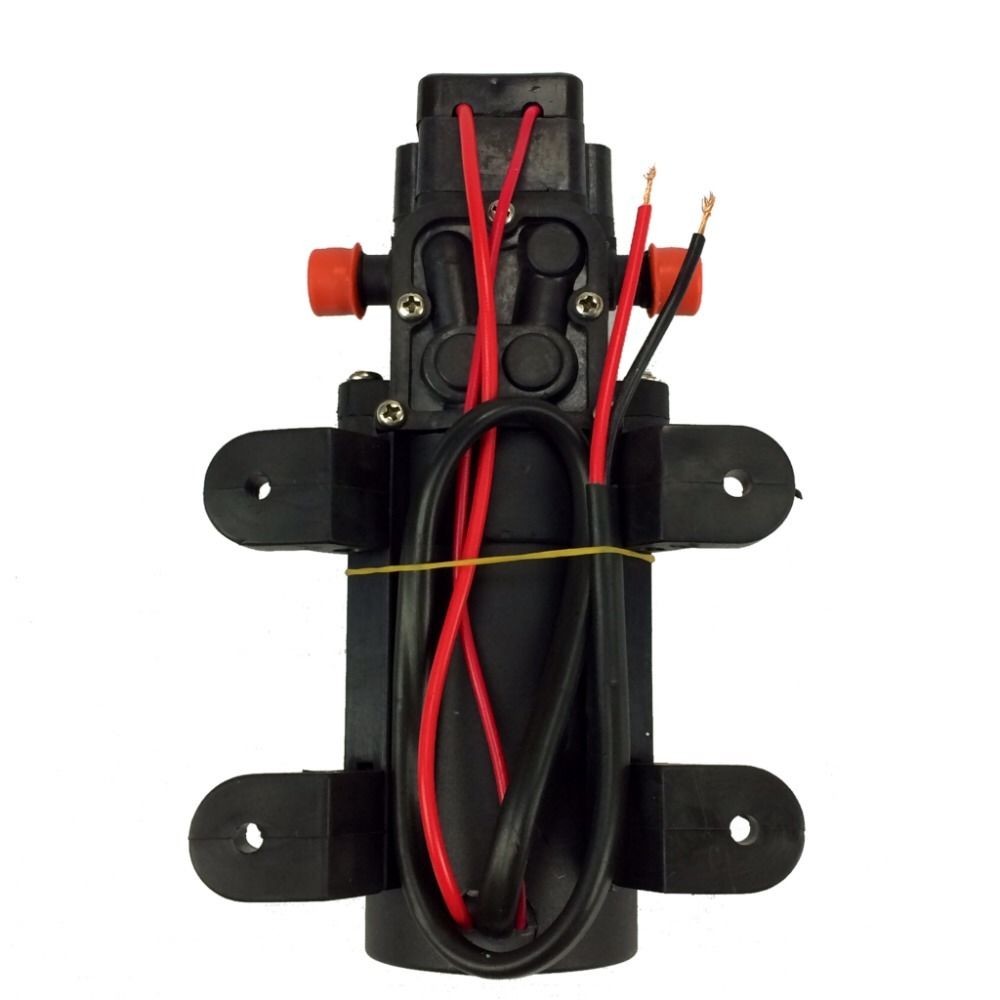

Description for pump	Description of Tap/Faucet
Self priming :Vertical within 1.2m	Chrome mirror finish
2 Chamber Diaphragm	Waterproof rubber boot
Port:3/8''(10mm)hose barb	Full 360 degree rotation
Liquid:60°C Max	Built in 15Amp max.on/off switch
Built-in Check valve	Size:12x15x90cm
Pressure: 35PSI
Run dry without damage
Protection:On-demand/Automatic turn on/off
Motor:12V Permanent Magnet,Intermittent duty

Whaleflo TMC 12v Inline Galley pump set/FOR BOAT/CARAVAN/MOTORHOME/RV 0

Whaleflo TMC 12v Inline Galley pump set/FOR BOAT/CARAVAN/MOTORHOME/RV 6

STANDARD PUMP CONFIGURATIONS

Whaleflo TMC 12v Inline Galley pump set/FOR BOAT/CARAVAN/MOTORHOME/RV 8

TECHNICAL DATA

Technical Data:

Model	Volt	Flow(L/Min)	Pressure(PSI)	Amp Draw(A)
FLO-2201	12	2	55	1.8
FLO-2202	12	3.8	35	3
FLO-2202-1	12	4.3	35	3.0
FLO-2203	12	2.6	70	2.1
FLO-2203-1	12	3.1	70	2.2
FLO-2202A	12	4	80	2.6
FLO-2401	24	2	55	0.9
FLO-2402	24	3.8	35	1.5
FLO-2403	24	2.6	70	1
FLO-2402A	24	4	80	1.3
Inlets size:	3/8''hose barb, thread
Outlets size:	3/8''hose barb, thread
dimension/pc:	18.5x11x6.5cm
Net weight/pc:	0.64kg
Gross weight/pc:	0.72kg
Carton dimension(50pcs):	56.5x38.5x36.5cm

Whaleflo TMC 12v Inline Galley pump set/FOR BOAT/CARAVAN/MOTORHOME/RV 9

Sample order is very welcome to have a test, if need more technical specification, pls send email to us !
