| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | CE/RoHS/ISO9001 |
| Model Number: | FL-35X |
| Minimum Order Quantity: | 1set |
| Price: | 110-140USD/set |
| Packaging Details: | 1set/box |
| Delivery Time: | 7-15 work days after confirmed |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Supply Ability: | 1000per month |
| Application: | Washing | Volt: | 12V |
|---|---|---|---|
| Flow Rate: | 10L~34L/min Max | Liquid Temperature: | 0-60 ℃ |
| Suction: | 3M | Certificate: | Rohs/CE/ISO9001 |

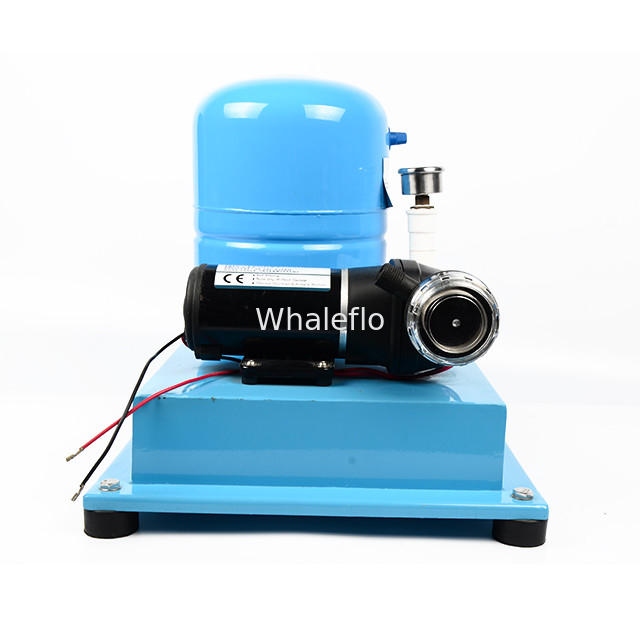

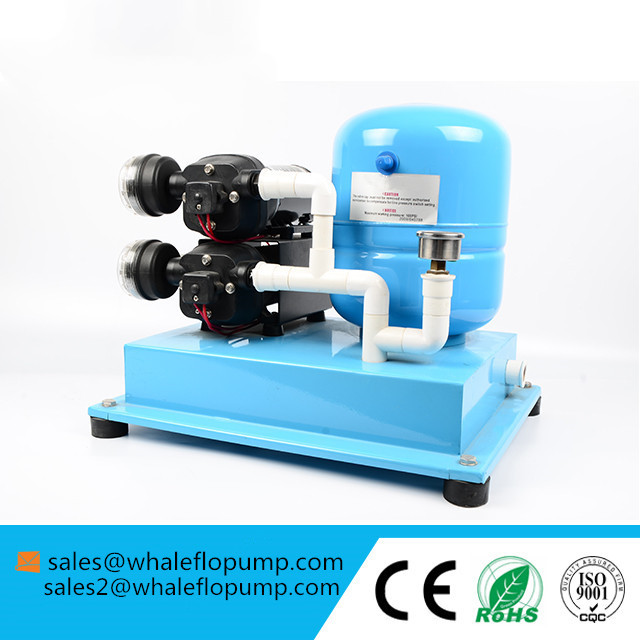

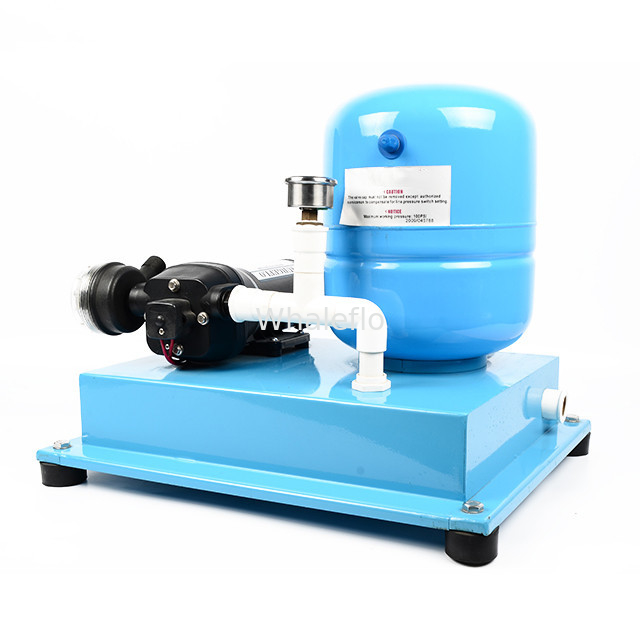

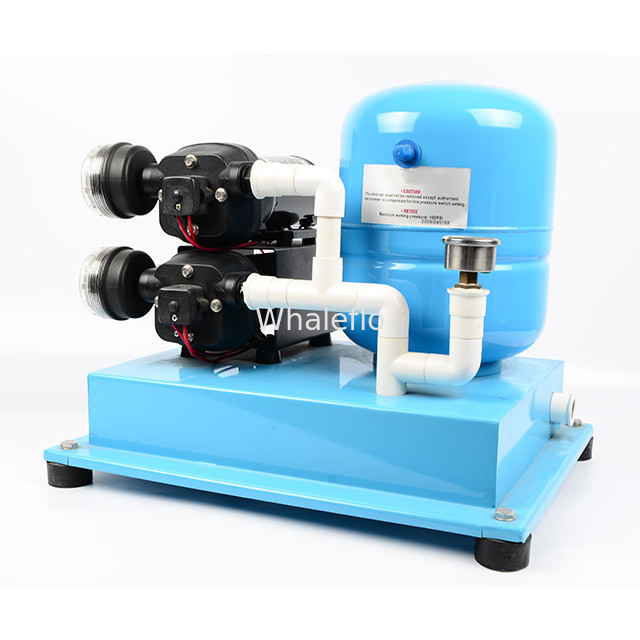

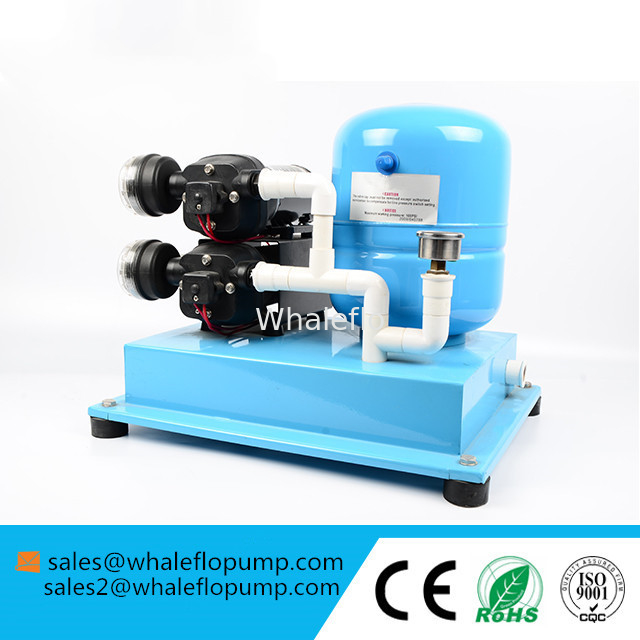

Whaleflo 12VDC 25Lpm 35Psi 7.8A High Volume Low Pressure Electric Water Pumps
●Integrated pump and accumulator tank system
● Long life, no leak, quiet operation
● Positive displacement pump
● Can run dry
● Industry standard mount pattern
● Built thermal protector
● Self priming, fully automatic, easy installation
● Special valve for liquid input and output
● 12v,24vDC and 110v,220v AC motors standard(consult factory for other voltages
● Numerous fittings options for greater mounting flexibility
● High pressure diaphragm pump;
● Small size,Light weight and Stable performance;
● special EPDM valve for liquid input and output;
● Antivibration pad,easy installation with stable function;
● Self-priming,Automatic Pressure Switch;
● Automatic Pressure Protection;
● Low Noise,with excellent resistant to chemical corrosion
Agriculture/Yacht / RV/Caravan pressurized water system
Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
Cleaning machine, Humidifier, Water purification, Medical apparatus
Food beverage filling & liquid transfer
Any other pressurization system
Model | Rated voltage (V) | Maximum flow (LPM/GPM ) | Pressure (Psi) | Rated current(A) | Lift (m) | Power Rating (W) | packing size (mm) | N.W/G.W (KG) |
FL-35X | 12 | 25.0/6.6 | 35/2.4 | 7.8 | 20 | 120 | 510*510*400 | 11.68/13.68 |
FL-34X | 24 | 25.0/6.6 | 35/2.4 | 4.0 | 20 | 120 | 510*510*400 | 11.68/13.68 |
FL-40X | 12 | 34.0/9.0 | 40/2.8 | 12.0 | 25 | 180 | 510*510*400 | 12.40/14.40 |
FL-44X | 24 | 34.0/9.0 | 40/2.8 | 5.0 | 25 | 180 | 510*510*400 | 12.40/14.40 |
Materials of Construction
Housings | PA66 |
Valves | Nitrile butadiene rubber |
Diaphragm | Santoprene |
Fasteners | Stainless Steel |
Motor Shell | Coated Steel |
√ High volume flow rate, Built-in chec valve
√ Permanent Magnet motor with longer lifetime
√ Antivibration pad,easy installation.
√ Self-priming,Top quality Automatic Pressure Switch.
√ Thermally Protected
√ Low Noise,with excellent resistant to chemical corrosion.
1: It is need to ensure the smooth water yield when the water pump is working, to avoid the damage of pressure switch due to the pump blocked operation!
2: Although the water pump support the dry operating in short time, please not to exceed 15 Minutes!
3.It is self-absorption diaphragm pump which with slight waterproof function, please do not put it in to water directly!
4.It is clean water pump, please do not pump the sewage with impurities to avoid the block of pump head!
