| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | Rohs/CE/ISO9001 |
| Model Number: | FLO-2202A |
| Minimum Order Quantity: | 1 piece |
| Price: | USD8-15USD/piece |
| Packaging Details: | 1 piece in a box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union, Western Union,Paypal |
| Supply Ability: | 100000 per month |
| Theory: | Electromagnetic Pump | Structure: | Diaphragm Pump |
|---|---|---|---|
| Typical Application: | Marine/RV/Water Treatment/Beverage/Food Service/Agriculture Irrigation/General Industrial/Automotive | Pump Design: | 2 Chamber Diaphragm |
| Port Size: | 3/8"(9.5mm) | Voltage: | 12V DC |
| Check Valve: | EPDM/VITON | Liquid Temp: | (60℃）Maximum |
| Self-Priming: | 4feet/1.2M Suction Lift | Max Flow LPM: | 4LPM(1.0gpm) |
| Max Pressure: | 80Psi(2.4bar) | Amps: | 2.6A |
| N.W/G.W: | 0.68/0.72KGS |

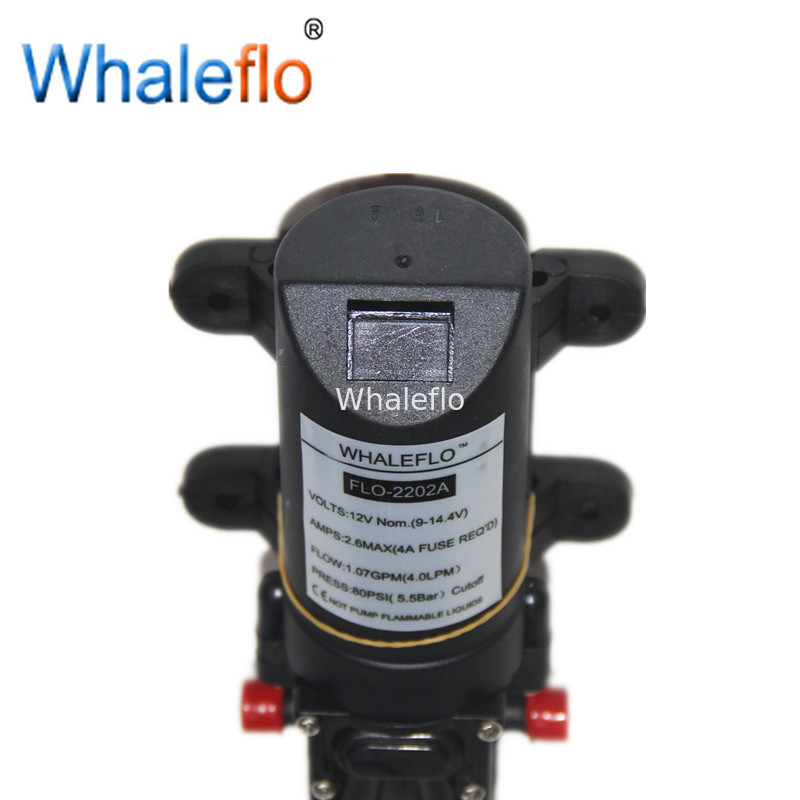

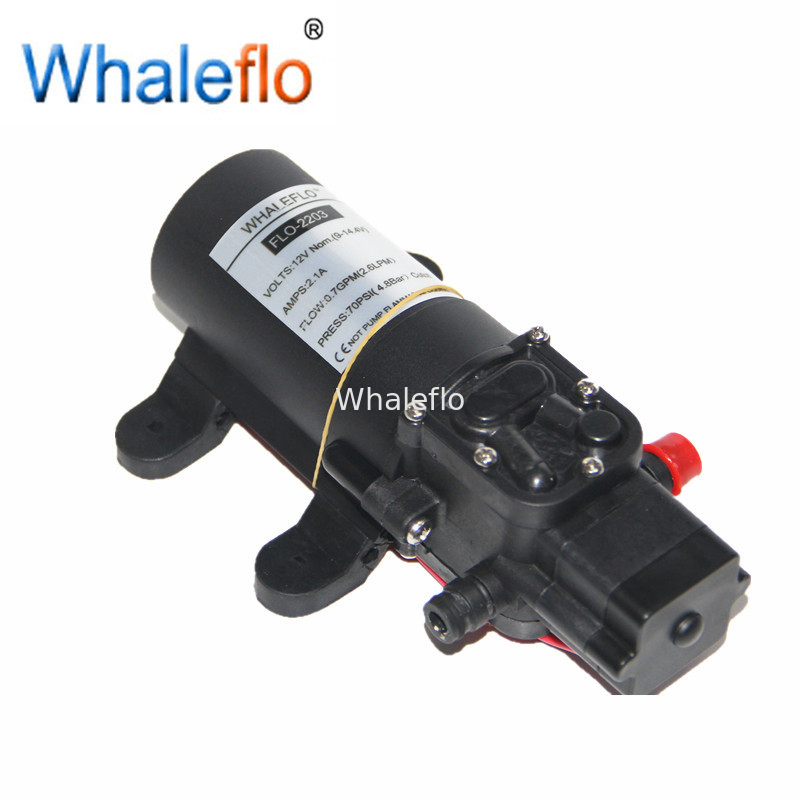

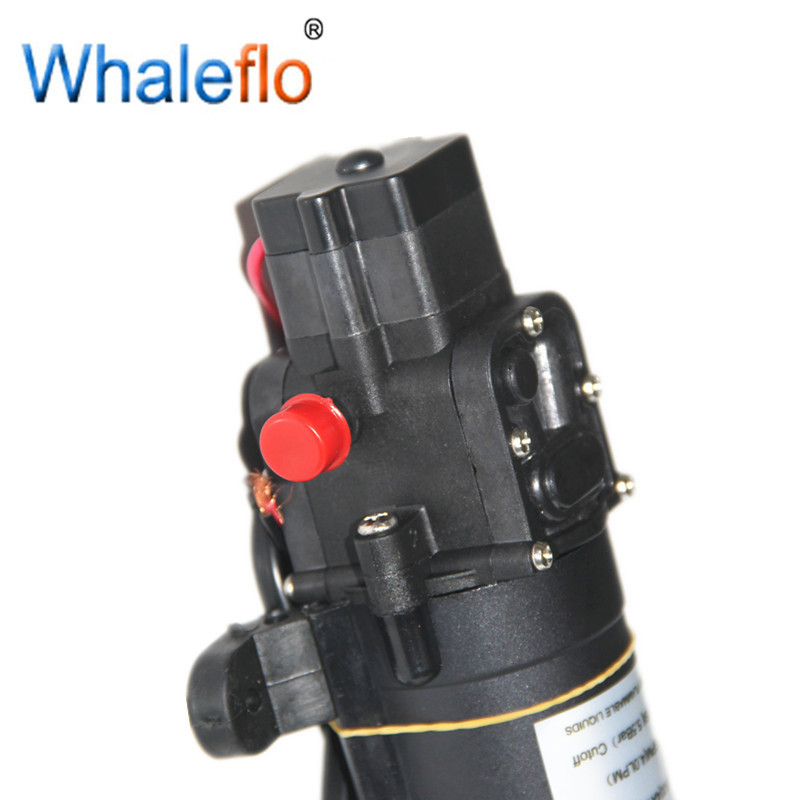

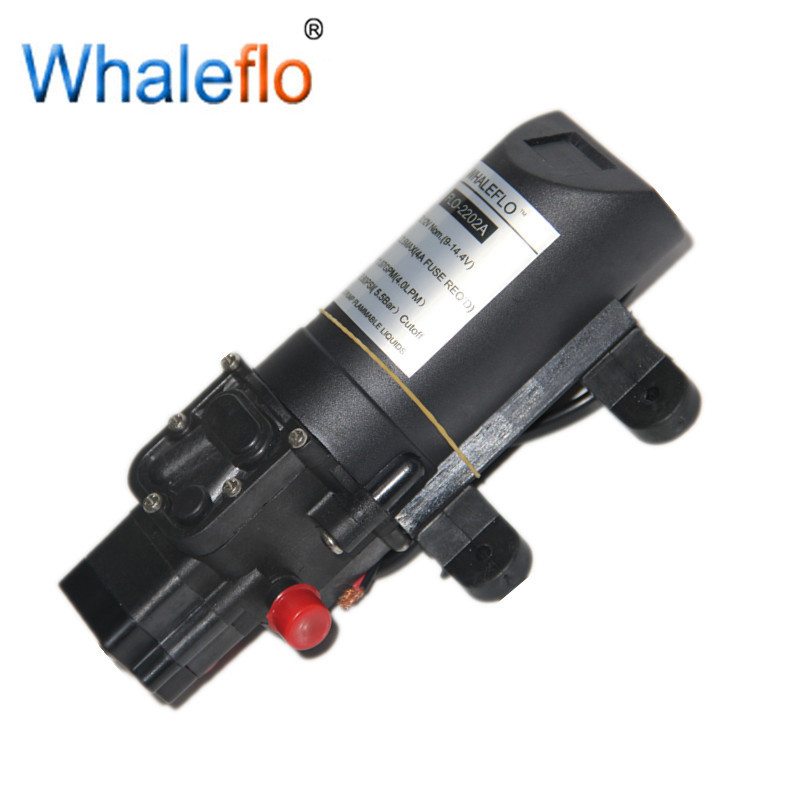

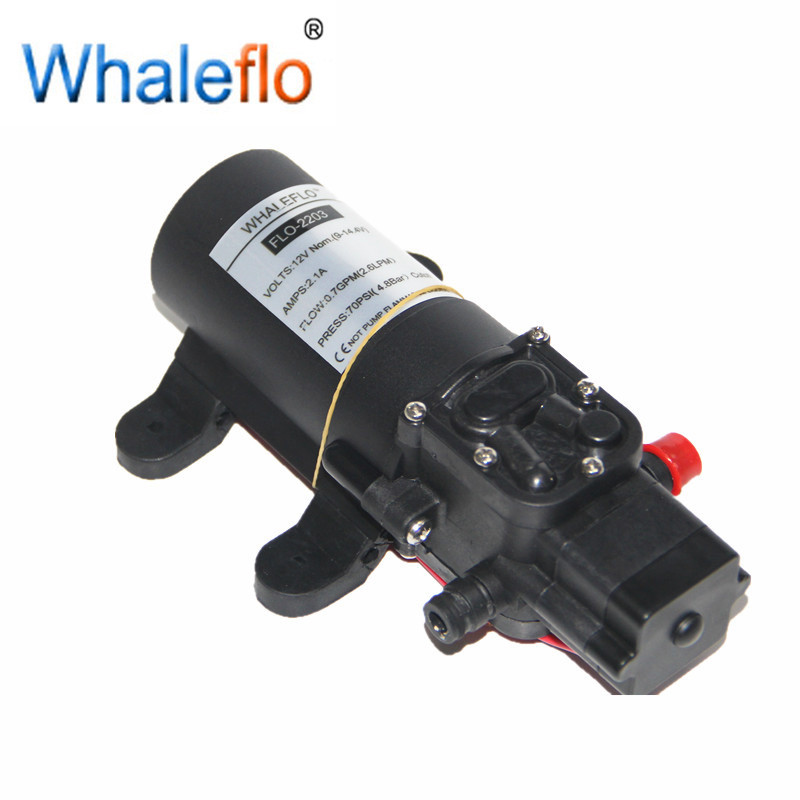

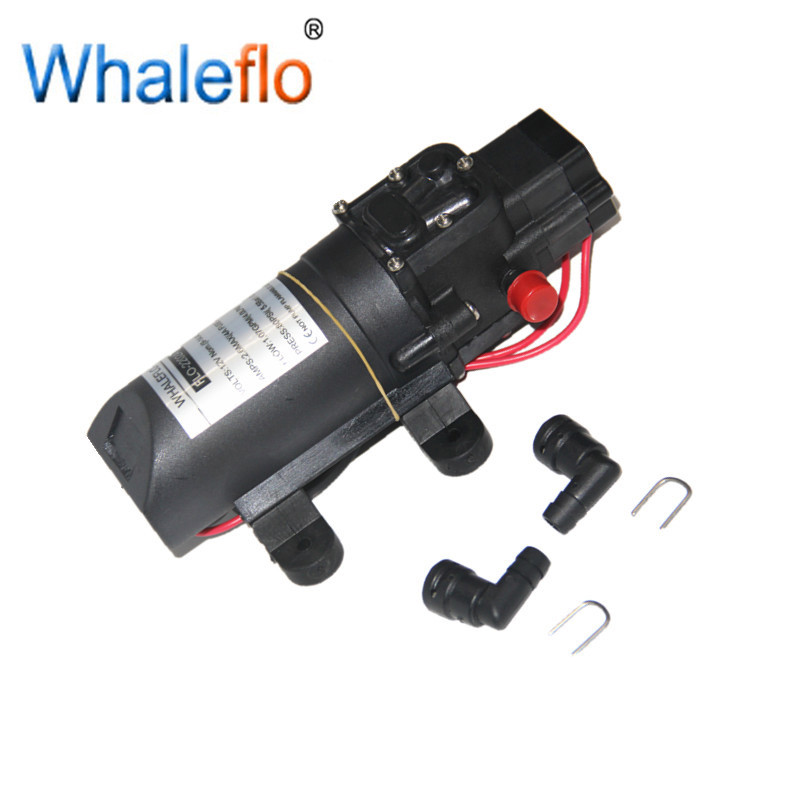

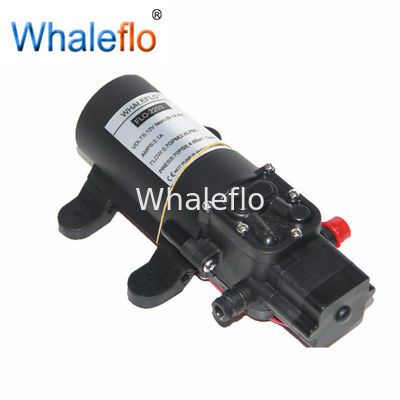

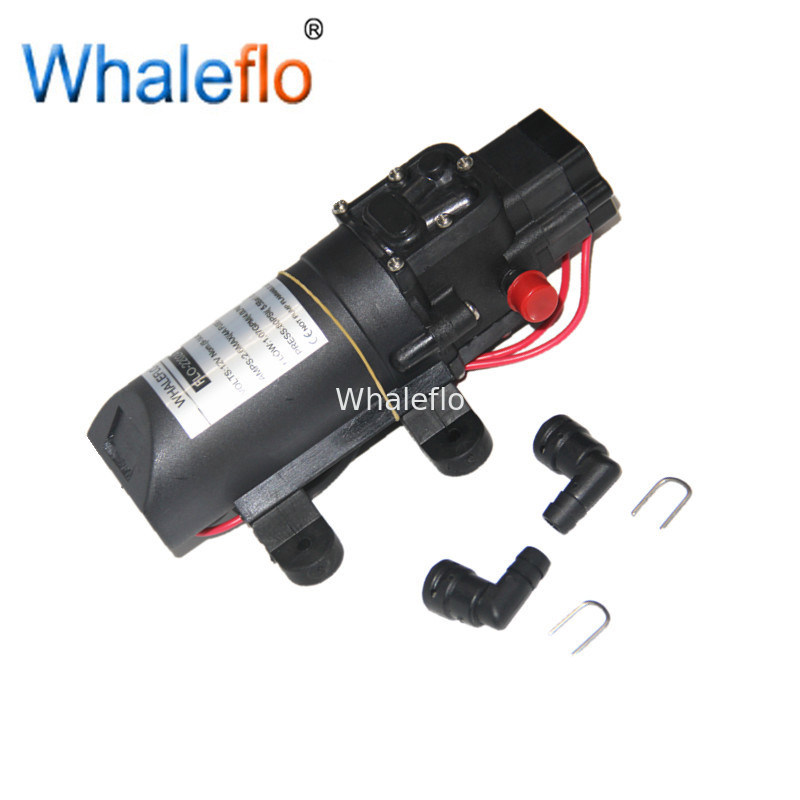

Whaleflo FLO Series Micro DC Diaphragm Pumps 12VDC4L/MIN 80PSI 2.6 Amps Small Water sprayer pump for agriculture
Packaging Details
packing with strong seaworthy carton
Port
Xiamen,Fuzhou,Ningbo,Shanghai
Lead Time :
Within 15 days since order confirmation
It can be used for low flow rate while high pressure requirements in situation as:
Pressure pumps used in sprayers and spray fixtures.
Water purification,filter machine,chemical metering and flud supply.
Food,Beverage filling and transfer.
Ex:Pressure switch control pump's working or not,turn on switch,pump is at working:turn off switch with pump stop working. So,it is special suitable for sprayers and spray fixtures with its low flow rate.
● This series pump can be used for general water transfer, sprayer pumps, small rain system, or other industry usage(perfetct for small car washer system,water heater shower,sprayer) , use it with fresh or salt water or other liquid with weak acid&alkaline is ok.
● We have tested these pumps and found they will operate to a 1.5 metre suction.
● The pump with built-in pressure switch, can be working automatically when the tap turn on-off.
Pump:
|
Production Name
|
Diaphragm Pump
|
|
Pump Design
|
2 Chamber Diaphragm
|
|
Open Flow
|
(1.0GPM)(3.8LPM)
|
|
Port Size
|
3/8'' (9.5mm) Hose barb
|
|
Check Valve
|
EPDM or Vtion
|
|
Max Pressure
|
80psi (5.5bar)
|
|
Liquid Temp
|
140℉(60℃) Maximum
|
|
Self-Priming
|
4.8 feet (1.5 M) suction lift
|
|
Duty Protection
|
Automatic Restart
|
|
Duty Cycle
|
working intermittent
|
|
|
1.Adjustable pressure switch for OEM
2.Motor sounds no louder tahn your room fan running 3.Thread or hose connections with multiple fittings allow connection to any outle pipe. 4.Rubber feet for noise reduction from vibration |
*Agriculture /Yacht/RV/Caravan pressurized water system
*Sprayer fixture (Vehicle-mounted sprayer,electric sprayer)
*Food beverage filling & liquid transfer
*Any other pressurization system.
|
Model
|
Rated voltage (V)
|
Maximum flow (LPM/GPM)
|
Control mode
|
Stop pressure
(Psi/Bar)
|
Rated current(A)
|
Lift
(m)
|
packing size
(mm)
|
N.W/G.W(KG)
|
|
FL-2202A
|
12
|
3.8/1.0
|
Pressure
&
Bypass Switch
|
80/5.5
|
2.6
|
55
|
205*110*65
|
0.68/0.75
|
Materials of Construction
|
Housings
|
PA66
|
|
Valves
|
Nitrile butadiene rubber
|
|
Diaphragm
|
Santoprene
|
|
Fasteners
|
Stainless Steel
|
|
Motor Shell
|
Coated Steel
|
√ High volume flow rate, Built-in chec valve
√ Permanent Magnet motor with longer lifetime
√ Antivibration pad,easy installation.
√ Self-priming,Top quality Automatic Pressure Switch.
√ Thermally Protected
√ Low Noise,with excellent resistant to chemical corrosion.
1. All enquiries will be valued and replied with 24 hours;
2.we will give you any professional suggest, according to different market and products for new customers;
3. Our Inspect Department will test each batch to ensure high quality, with material test & performance test;
4.Quick & efficient delivery to guarantee your inventory;
5.Good package to protect the products;
6.Your any feedback will be highly appreciate to make sure we can do better and better;
7.Accept OEM & ODM, our strong design team support custom products according to customer requirement;
8.Sample or small order is welcome;
DHL,FEDEX,UPS,TNT,EMS
T/T,L/C,western union,PayPal
the pump warranty is 12 months.we can supply 1% spare parts for after service.
Sample order is very welcome to have a test, if need more technical specification, pls send email to us !
