Noted:
when using the Pump need filling liquid , or the pump will idling and easy burning motor the pump can not self suction ,it is booster pump,not self priming pump
Description:
1. Products made of stainless steel head High temperature resistant blade Spindle and leaf separation will not leak Leakage of contaminated liquid
Not easy to plug Suitable for wort Recycling of saccharification on the boiled wort after the cycle of cooling and playing wort into the fermentation tank can be used
2. Pump extraction medium temperature changes should be controlled within 100 ℃, high temperature does not exceed 120 degrees
Features:

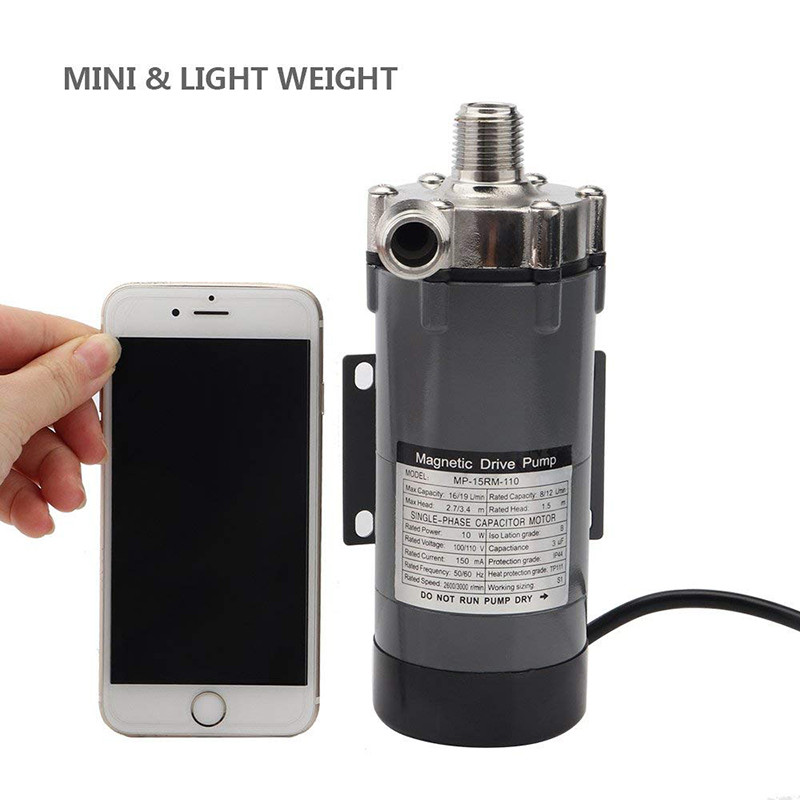

Magnetic Pump 15R,

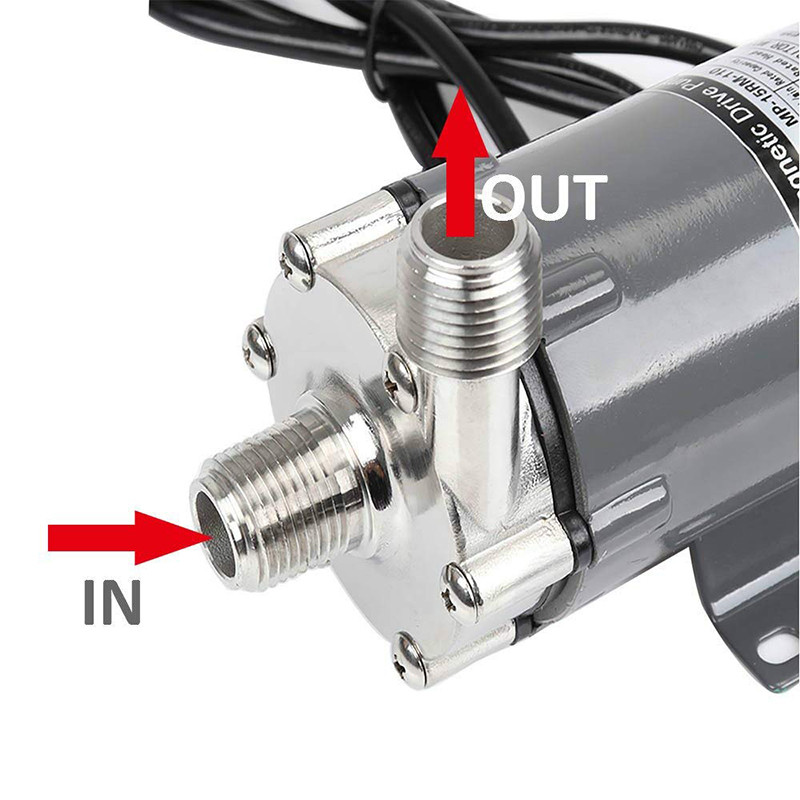

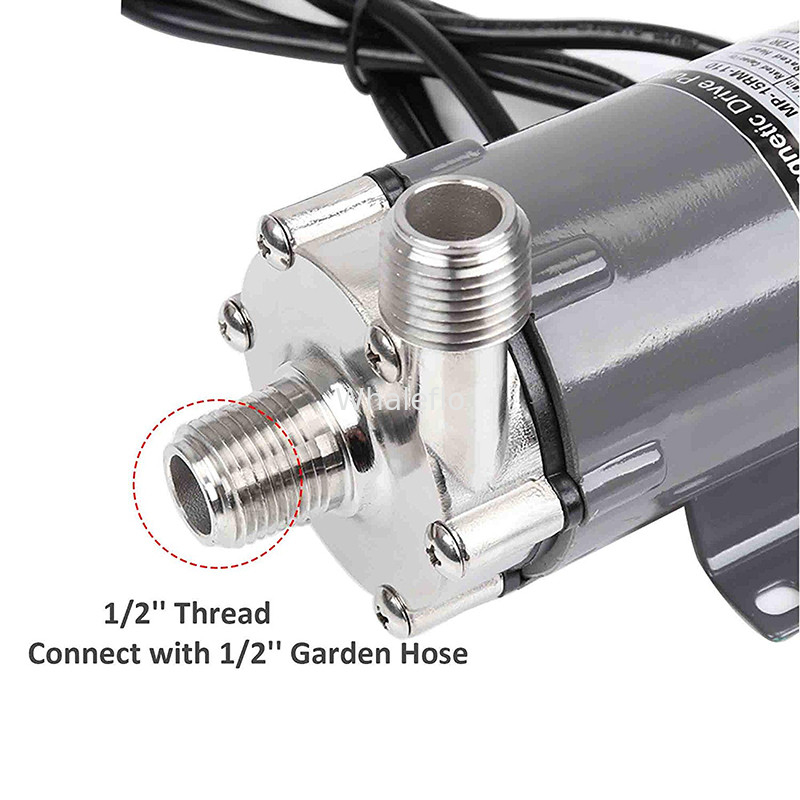

1/2''NPT thread
With Stainless Steel 304 Head
Food Grade High Temperature Resisting Magnetic Drive Pump
Heating Resisting 140 Celsius Degree (32℉-284℉) |
Barb Ending are available |
Max Capacity: 16/19 L/min |
Rated Capacity: 8/12 L/min |
Max Head :2.7/3.4 Meter |
Rated Head:1.5 Meter |
Warm Tiips: (magnetic pump precautions)
1. The magnetic pump is forbidden to empty the transport (the pump is closed when the outlet valve is closed).
2. If the pump is running, it must be stopped within 1 minute.
(Gas into the pump head caused by the page idle water flow water shortage)
4. Magnetic pump recommended continuous operation; often on / off the opportunity to greatly reduce the pump life.
5. Pump extraction medium temperature changes should be controlled within 100 ℃, high temperature does not exceed 130 degrees
Excessive temperature rise / fall may cause damage to pump parts (eg shafts, bearings).
6. If the pump is suddenly powered off, the power must be switched off immediately and the outlet gate valve closed.
Features
Advanced performance and quality optimum liquid transport pump on the industrial and home equipments.
Shaft bearing adopt special ceramics material which make it characterize strong resistance for abrasion and corrosion.
Full-sealed pump,motor connecting shaft and impeller are separately equipped with magnetic materials,they attract each other and coupled.
Apply to :Beer Dispensing,Water Treatment,Pollution Controll,Chemical Industry,Phatmaccutical Industry.
Notice:
1- Our Magnetic Pump with the CE certificate.
2- It is made by Big Factory,not the Small workshop.
3- It is with the very Top quality, we will make a secure and hard packing
4- If you need the CE certificate,please contact us fee free, we can send it to your by email.
Specifications:
• includes spare head Made from high temp food grade Polysulfone
• Also includes stainless steel head
• 110v/60hz
• 3.4 m max height (about 10 feet)
• 5 Gal/min max flow
• Max temperature - 248 F/ 120 C
• 1/2 inch fittings
sample order is very welcome to test,any question,pls feel free to contact us!
