| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | Rohs/CE/ISO9001 |
| Model Number: | FLO-2202+faucet |
| Minimum Order Quantity: | 1 piece |
| Price: | USD14-18USD/pc |
| Packaging Details: | 1pc/ a box,50pcs/carton, carton gross weight :36kgs |
| Payment Terms: | L/C, T/T, Western Union, Western Union,Paypal |
| Supply Ability: | 100000pcs per month |
| Theory: | Electromagnetic Pump | Structure: | Diaphragm Pump |
|---|---|---|---|
| Typical Application: | Marine/RV/Water Treatment/Beverage/Food Service/Agriculture Irrigation/General Industrial/Automotive | Pump Design: | 2 Chamber Diaphragm |
| Port Size: | 3/8"(9.5mm) | Voltage: | 12V DC |
| Check Valve: | EPDM/VITON | Liquid Temp: | (60℃）Maximum |
| Self-Priming: | 4feet/1.2M Suction Lift | Max Flow LPM: | 4.3LPM(1.1gpm) |
| Max Pressure: | 35Psi(2.4bar) | Amps: | 3.0A |
| N.W/G.W: | 0.68/0.72KGS | Key Word1: | 12v Galley Electric Water Pump |
| Key Word2: | Galley Electric Water Pump | Key Word3: | GALLEY WATER PUMP SET |

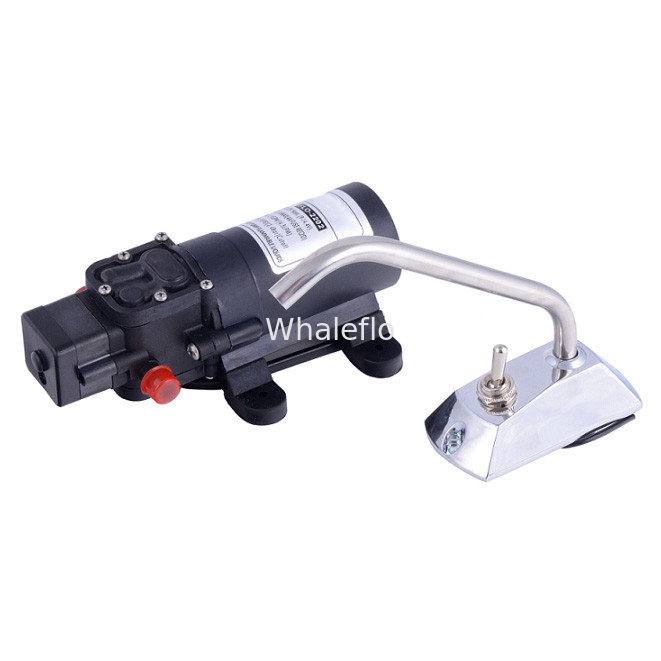

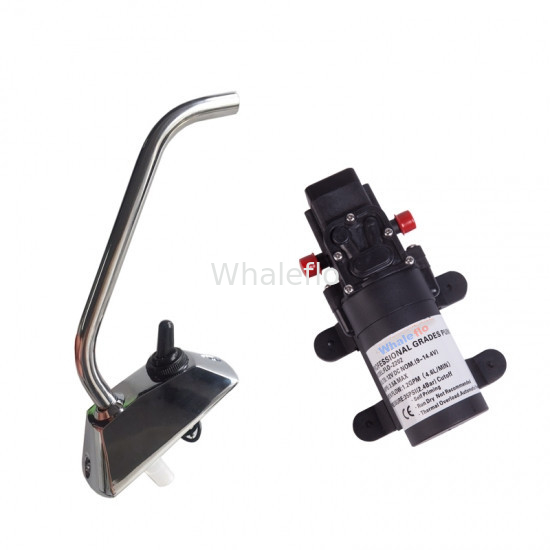

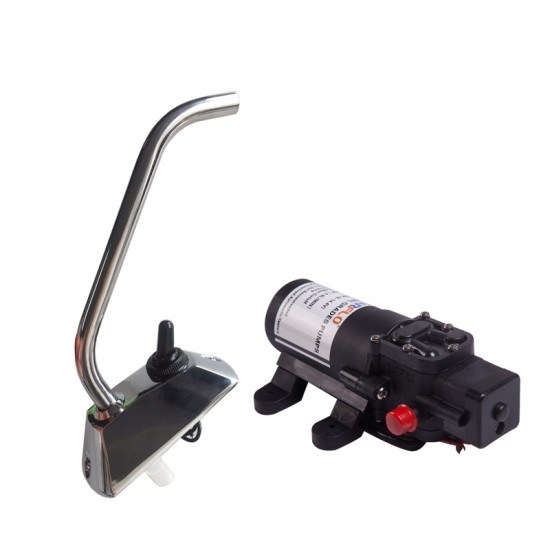

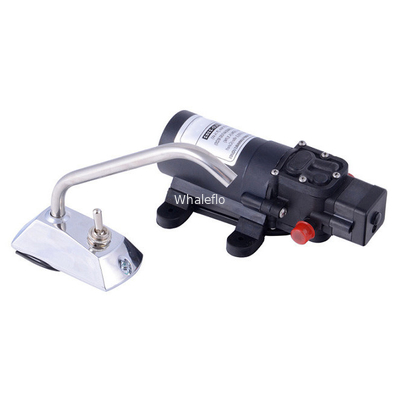

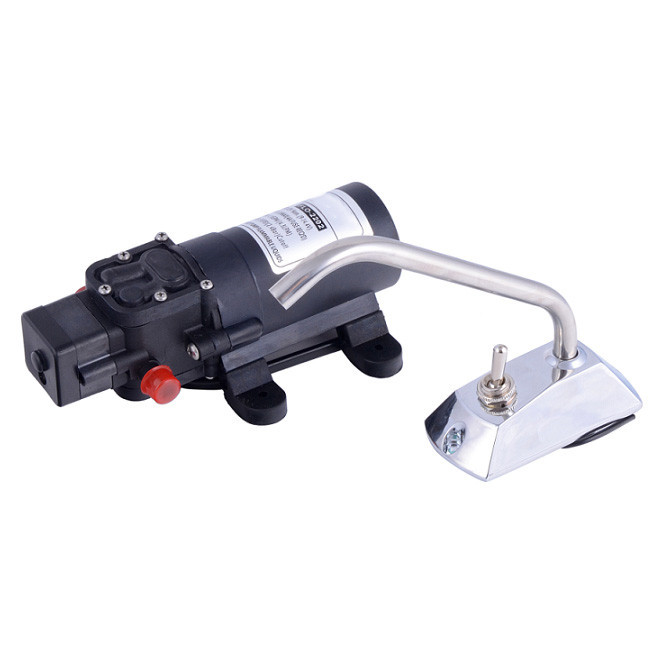

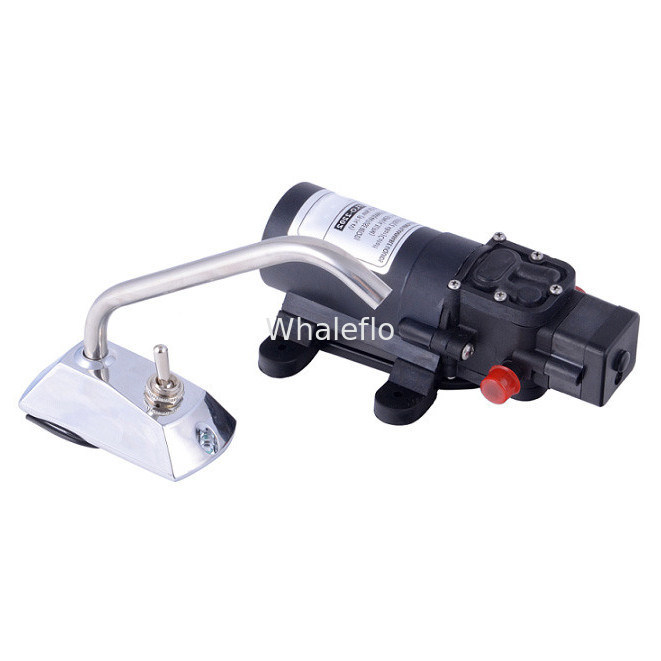

Economical 12 volt galley pump system supplied complete with chrome plated 12 volt electric faucet & pump - so pump can be automatically activated by the toggle switch on the faucet. The pump is 'SELF-PRIMING' so it can be mounted virtually anywhere in your Boat/Caravan/RV etc... up to 1.5m above the water supply. Delivers up to 4.3 litres per minute at 5 metre head. Suits 10mm hose.
Application:
Good for Boating/Caravan/Motorhome/RV/Marine applications where a single
handle tap is required for space saving
Product Description:
*Galley pump set,complete with mounting screws & faucet.
*Compact 12v electric pump operates quietly and easy to install
*Zinc-alloy metal faucet base and stainless steel swing spout
*Built-in 12v toggle switch in on the faucet base-To automatically activate pump.
*Full 360 degree rotation.
*Pump is self-priming, so it can be located above supply tank.
*Delivers up to 4.3liters per minute at 1 meter head.
*Suits 10mm ID hose.
*Durable rubber feet for reduced vibration
*Waterproof rubber boot on tap switch

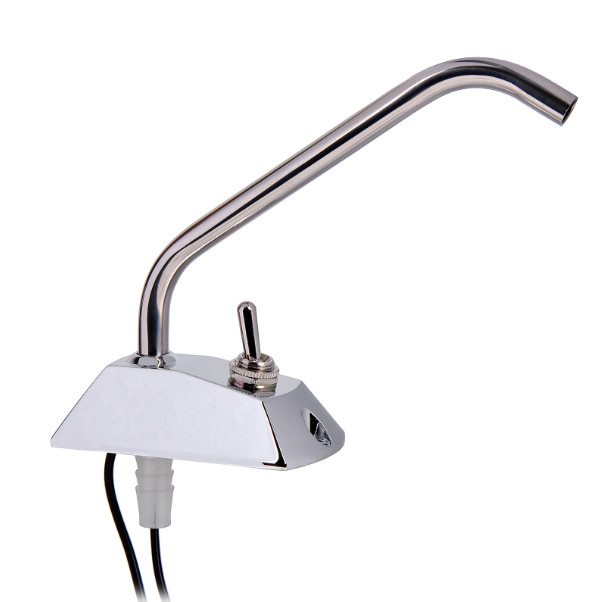

| Description for pump | Description of Tap/Faucet |
| Self priming :Vertical within 1.2m | Chrome mirror finish |
| 2 Chamber Diaphragm | Waterproof rubber boot |
| Port:3/8''(10mm)hose barb | Full 360 degree rotation |
| Liquid:60°C Max | Built in 15Amp max.on/off switch |
| Built-in Check valve | Size:12x15x90cm |
| Pressure: 35PSI | |
| Run dry without damage | |
| Protection:On-demand/Automatic turn on/off | |
| Motor:12V Permanent Magnet,Intermittent duty |
GALLEY WATER PUMP SET Boat Galley Water Pump Galley Electric Water Pump 12v Galley Electric Water Pump
STANDARD PUMP CONFIGURATIONS
TECHNICAL DATA
Technical Data:
| Model | Volt | Flow(L/Min) | Pressure(PSI) | Amp Draw(A) |
| FLO-2201 | 12 | 2 | 55 | 1.8 |
| FLO-2202 | 12 | 3.8 | 35 | 3 |
| FLO-2202-1 | 12 | 4.3 | 35 | 3.0 |
| FLO-2203 | 12 | 2.6 | 70 | 2.1 |
| FLO-2203-1 | 12 | 3.1 | 70 | 2.2 |
| FLO-2202A | 12 | 4 | 80 | 2.6 |
| FLO-2401 | 24 | 2 | 55 | 0.9 |
| FLO-2402 | 24 | 3.8 | 35 | 1.5 |
| FLO-2403 | 24 | 2.6 | 70 | 1 |
| FLO-2402A | 24 | 4 | 80 | 1.3 |
| Inlets size: | 3/8''hose barb, thread | |||
| Outlets size: | 3/8''hose barb, thread | |||
| dimension/pc: | 18.5x11x6.5cm | |||
| Net weight/pc: | 0.64kg | |||
| Gross weight/pc: | 0.72kg | |||
| Carton dimension(50pcs): | 56.5x38.5x36.5cm | |||
Sample order is very welcome to have a test, if need more technical specification, pls send email to us !
