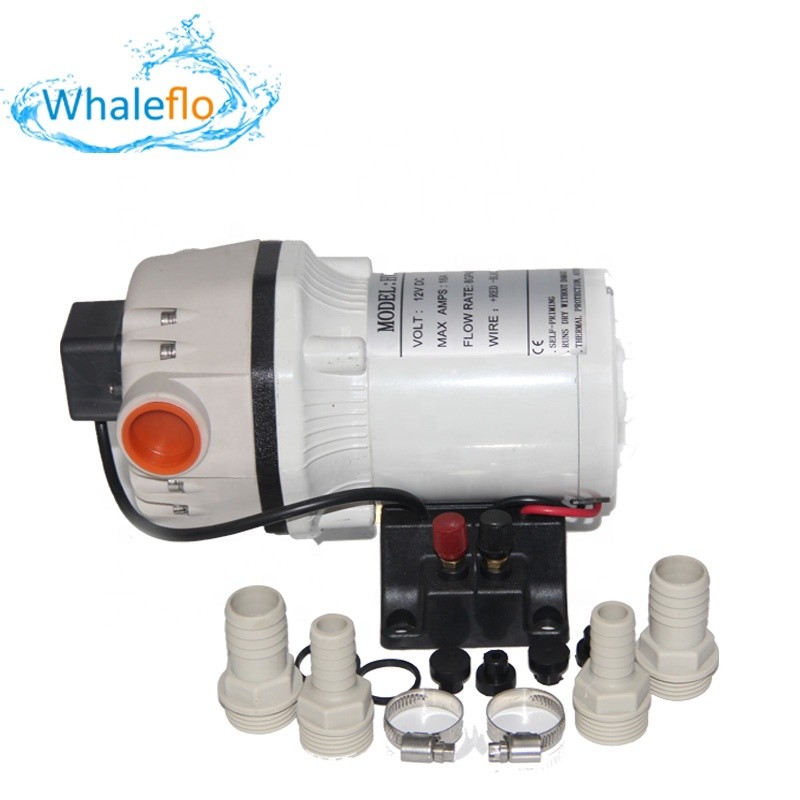

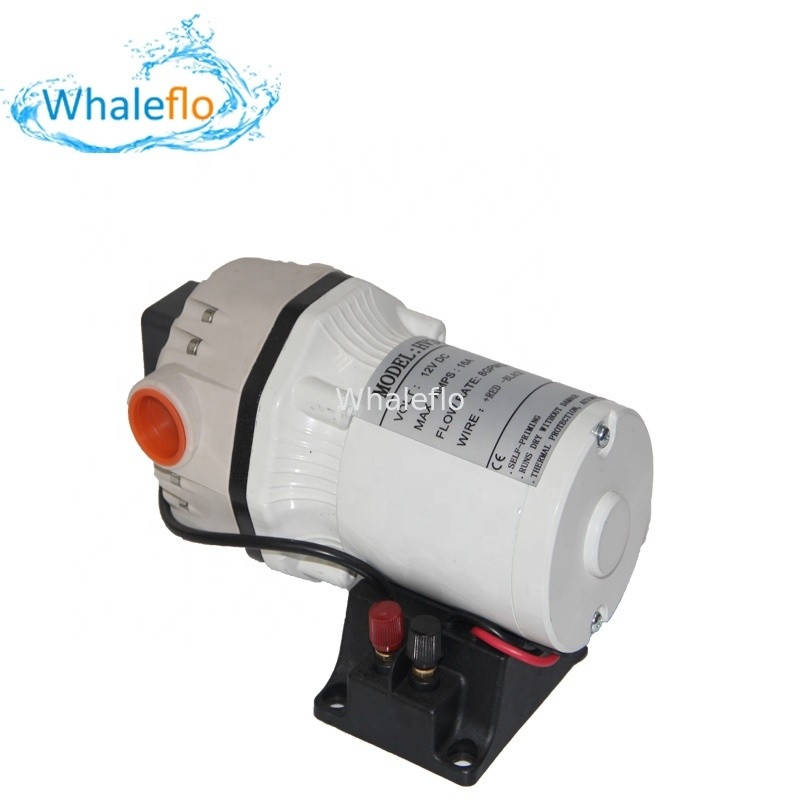

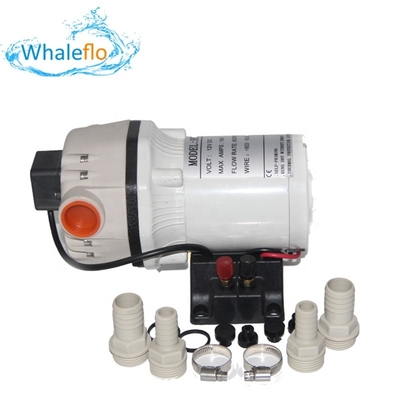

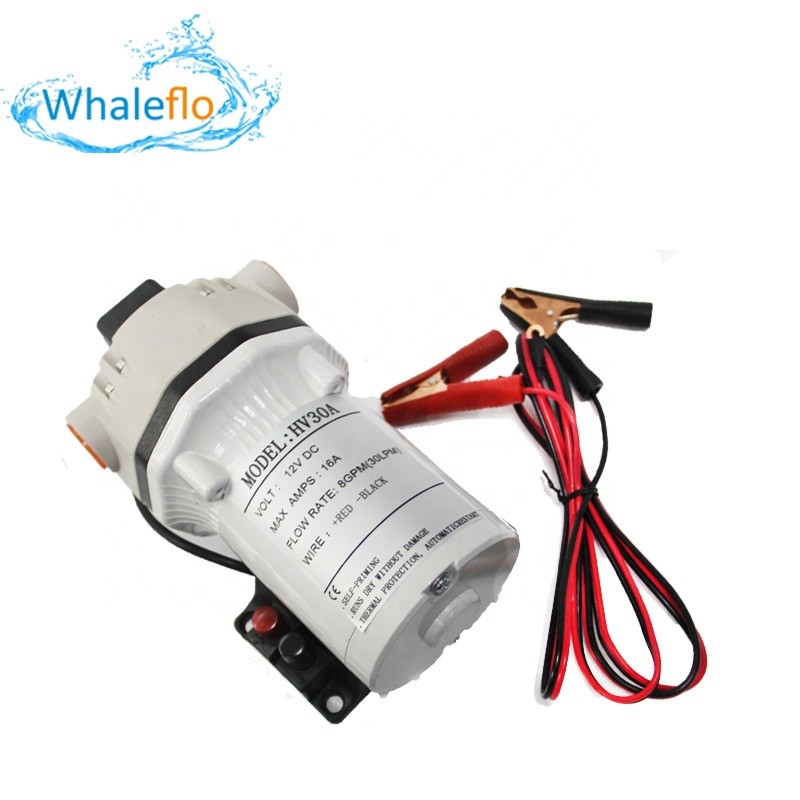

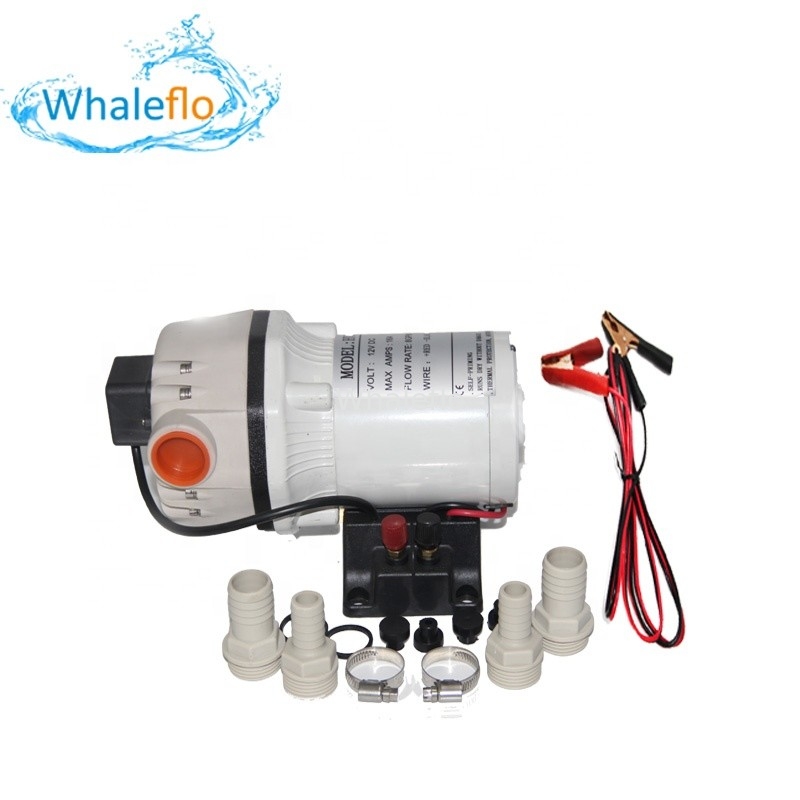

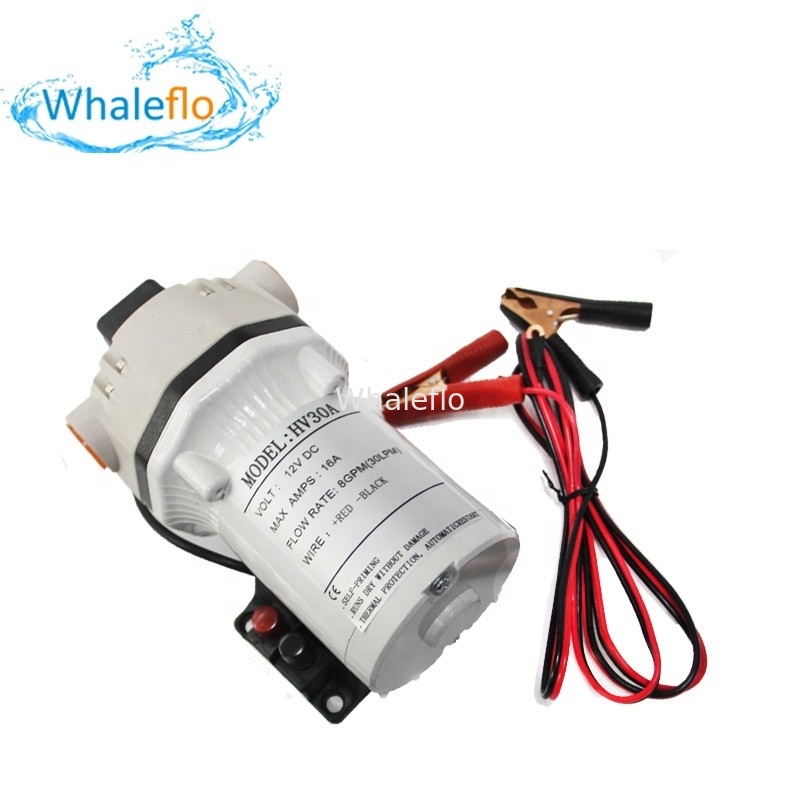

Whaleflo 5 Chamber Diaphragm Pumps for Adblue Liquid 12V 15amps

Whaleflo 5 Chamber Diaphragm Pumps for Adblue Liquid 12V 15amps
Whaleflo 5 Chamber Diaphragm Pumps for Adblue Liquid 12V 15amps Whaleflo 5 Chamber Diaphragm Pumps for Adblue Liquid 12V 15amps Whaleflo 5 Chamber Diaphragm Pumps for Adblue Liquid 12V 15amps Whaleflo 5 Chamber Diaphragm Pumps for Adblue Liquid 12V 15amps
Basic Information
Place of Origin: China
Brand Name: Whaleflo
Certification: CE
Model Number: HV-30A
Minimum Order Quantity: 1set
Price: 88-98USD/PC
Packaging Details: 2pcs into a carton
Delivery Time: 5-8 working days
Payment Terms: Western Union，L/C, T/T， Paypal,, MoneyGram
Supply Ability: 1000set per month
Contact Now
Theory: Reciprocating Pump Power: Electric, On/off Switch
Pressure:: Low Pressure Volt: 12V DC
Max Flow:: 30-35LPM Duty Cycle: Working Intermittent
Body Material:: Aluminium Pump Design: 5 Chamber Diahpragm
Port Size: Hose Connection 3/4'' 1'' Diaphragm Material: Viton
Speed: 2800rpm N.W/G.W: 5/5.5KG
Amps: 15a PSI: 40

Whaleflo 5 Chamber Diaphragm Pumps for Adblue Liquid
FEATURES & BENEFITS

The HV series 5 chamber diaphragm pumps with the Permanent magnet motor and continuous duty cycle, self-priming ability can be more than 3 meters. The pumps can be applied for fresh water, weak acid&basicity liquid, and specially for Adblue liquid.
Whaleflo 5 Chamber Diaphragm Pumps for Adblue Liquid



Voltage 12v,24v,DC,115V,220V,230V AC
Self-Priming More than 3 meters
Port Size Hose tail connection 3/4''
Pressure Max. 40PSI(2.8Bar)
Diaphragm/check value Material Viton
Body Material (DC): Polypropylene
Body Material(AC): Aluminium
Liquid of applications: specially for Adblue liquid,fresh water, weak acid&basicity liquid,



Our advantage









Certificate



FAQ
Q: Are you a manufacturer or trading company?
Our plant covers 10000 square meters with full set of automative production lines and integrated testing facilities. Our sales depart located in Xiamen, China.

Q: What's your main products of your company?
A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm
pump,Marine pump,RV pump, bilge pump )for over 8 years with excellent quality and competitive price.



Q. What is your MOQ?
Our company is pleasure accept all items 1pcs order for testing.If bulk order, pls send inquiry to get more discount.
Q. What about the delivery time?
A.The stock samples can be sent to you within 2-3days by international express after received
A.The batch order can be shipped to you in about 15-20 working days after order confirmation (by air or by sea

Q. Can I buy different types in one container?

A:Yes, you can mix different types in one container.

Q.How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application, pump working duty and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.If you don’t know the details for the pump, tell us the usage, must suitable model will be recommended

Q.Do you accept OEM/ODM
A:Yes. We are also the OEM supplier of many famous companies.

Q. What is your terms of payment.
A:Usually we accept T/T , Alipay ,Western Union or PayPal.

Q. What is your warranty?
A:24month warranty and 2% spare parts after service, and within 24 hours reply will be provided to solve customers’ problems.

Q. What is your port of loading?
A: Xiamen Port.
