| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | CE, RoHS |
| Model Number: | BW6004A |
| Minimum Order Quantity: | 10pcs |
| Price: | USD69.98/piece |
| Packaging Details: | 1pc/box |
| Delivery Time: | 7-15 WORK DAYS |
| Payment Terms: | Western Union, L/C, T/T, T/T |
| Supply Ability: | 100000 Piece/Pieces per Month |
| Housing Material: | Plastic | Dimensions(H×W×H Inches）: | 3.0X5.5X7.5 |
|---|---|---|---|
| Model Number: | BW6004A | Color: | White |
| Amps: | 0.25 | Water Temperature: | 0-60℃ |
| Max PSI: | 40 | Outlet: | 1/4" |
| Volts: | 230/115V AC |
[WATER GALLON PUMP DISPENSER]--Water pump dispenser works with a commercial five gallon jug of water.Designed for convenience and portability, pump recipe-quality water from commercial bottles.
[BOTTLED WATER PUMP WITH NOISE DAMPENING RUBBER FEET]--Quiet operation equipped with noise dampening rubber feet to minimize noise pollution, recommend using 4 screws and securing it to a wall to make it even more quiet and cuts down on vibration.
[PUMP WATER DISPENSERS]--Pump with Illuminated on/off switch, provides clear visibility in dark or hard-to-reach places.This dispensing pump system with 40 PSI (2.8 bar) maximum pressure, and pump will shut off when bottle is empty.

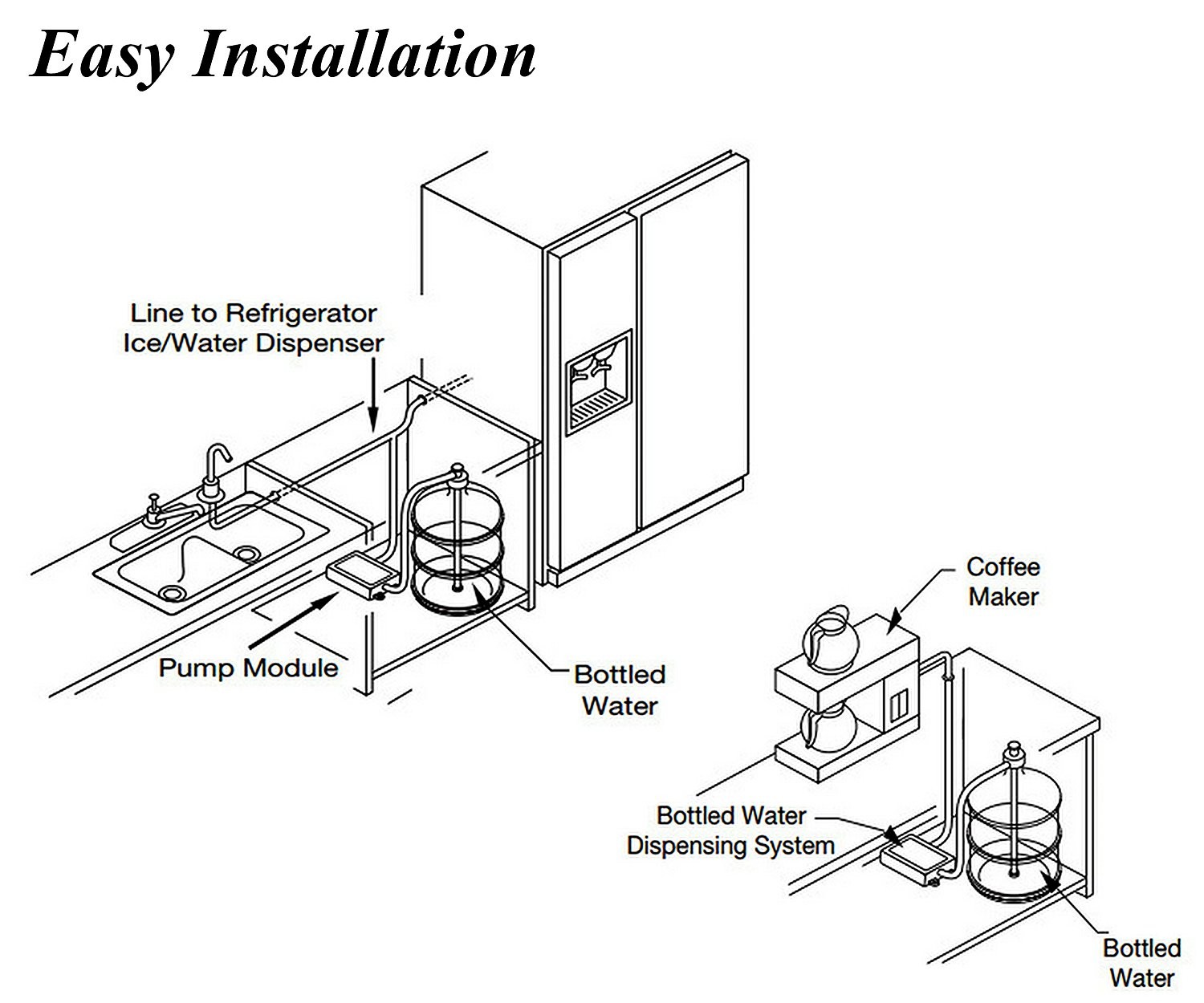

[EASY TO INSTALL]--The bottled water system comes with easy to read instructions that will make the install a breeze.
[MORE CONVENIENCE]--The water dispensing pump system will deliver the water under pressure to an individual drinking water faucet, let you have portable hot or chilled water anytime! Convenient for water inlet of a refrigerator, coffee & Tea machine the coffee and tea taste more mellow by using fresh and filtered water.
Packaging Details: 1pc per color box, 10pcs/carton
Port: Xiamen
Single package size: 3.0"X5..5"X7.5"
Single gross weight:4.0 kg
Package Type:cartons
Lead Time :
| Quantity(Piece) | 1 - 10 | 11 - 100 | >100 |
| Est. Time(day) | 5 | 7-15 | To be negotiated |
| Item | Tuble | Model | Voltage | Wire Type | Open Flow Rate | Max.Pressure | Dimension | Cord | Amp Draw | G.W | |||
| 1 | Single Inlet Tube | BW1000A | 115VAC | US PLUG | 3.8LPM | 40PSI | 3.0"x5.5"x7.5" | 6" | 0.5A | 3.5KGS | |||
| BW2000A | 220VAC |
AU / UK / EURO PLUG |
3.8LPM | 40PSI | 3.0"x5.5"x7.5" | 6" | 0.25A | 3.5KGS | |||||
| BW3000A | 12VDC | ONLY WIRE | 3.8LPM | 40PSI | 3.0"x5.5"x7.5" | 6" | 3A | 3.2KGS | |||||
| 2 | Double Inlet Tube | BW1010A | 115VAC | US PLUG | 3.8LPM | 40PSI | 3.0"x5.5"x7.5" | 6" | 0.25A | 3.5KGS | |||
| BW2020A | 220VAC |
AU / UK / EURO PLUG |
3.8LPM | 40PSI | 3.0"x5.5"x7.5" | 6" | 0.3A | 3.5KGS | |||||
| 3 | Disassembly Inlet Tube | Dual disassemble inlet tube. | |||||||||||
| BW4003A | 110-230VAC | Wall type | 3.8LPM | 40PSI | 3.0"x5.5"x7.5" | 6" | 0.25A | 3.3KGS | |||||

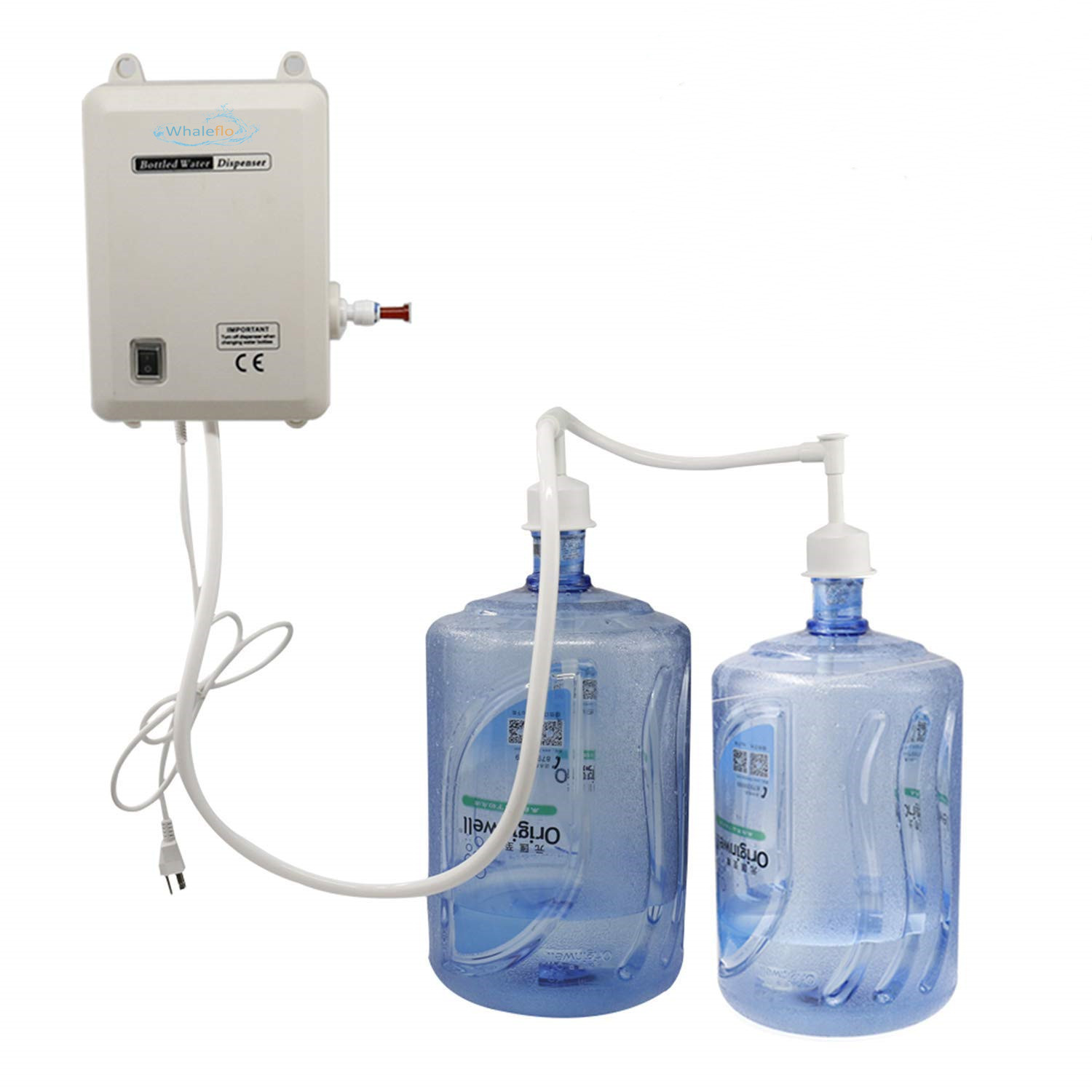

| Dual pumps buit in box with two inlet tube but working successively | |||||||||||||
| BW6004A | 110-230VAC | Wall type | 3.8LPM | 40PSI | 3.0"x5.5"x7.5" | 6" | 0.25A | 4KGS | |||||
Technical date:
| Model | GPM | Max PSI |
Outlet | Tubing | Volts | Amps | Cycle | Cord | Dimensions (H x W x D) |
Wt (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|
| BW1000A | 1.0 | 40 | 1/4" | 20' | 115 | 0.5 | 50/60 | 6' | 3.0" x 5.5" x 7.5" | 3.5 |
| BW2000A | 1.0 | 40 | 1/4'' | 20' | 220 | 0.25 | 50/60 | 6' | 3.0" x 5.5" x 7.5" | 3.5 |
| BW2020A | 1.0 | 40 | 1/4'' | 20' | 220v/115v | 0.25 | 50/60 | 6' | 3.0" x 5.5" x 7.5" | 3.6 |
| BW3000A | 1.0 | 40 | 1/4'' | 20' | 12 | 5 | 6' | 3.0" x 5.5" x 7.5" | 3.5 | |
| BW4003A | 1.0 | 40 | 1/4'' | 20' | 115-240 | 0.5 | 50/60 | 6' | 3.0" x 5.5" x 7.5" | 3.3 |
| BW6004A | 1.0 | 40 | 1/4" | 20' | 115-240 | 5/0.25 | 6' | 3.0" x 5.5" x 7.5" | 4 |
Sample order is welcome!
