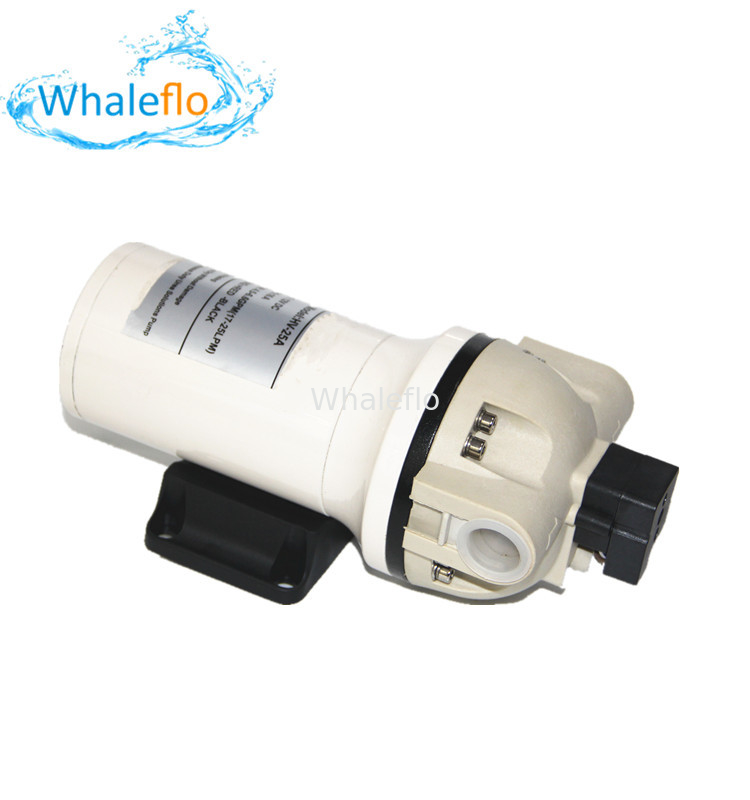

Whaleflo HV-25B 24V DC Adblue Pump 25LPM Diaphragm Diesel Pumps

Whaleflo HV-25B 24V DC Adblue Pump 25LPM Diaphragm Diesel Pumps
Whaleflo HV-25B 24V DC Adblue Pump 25LPM Diaphragm Diesel Pumps Whaleflo HV-25B 24V DC Adblue Pump 25LPM Diaphragm Diesel Pumps Whaleflo HV-25B 24V DC Adblue Pump 25LPM Diaphragm Diesel Pumps Whaleflo HV-25B 24V DC Adblue Pump 25LPM Diaphragm Diesel Pumps Whaleflo HV-25B 24V DC Adblue Pump 25LPM Diaphragm Diesel Pumps
Basic Information
Place of Origin: China
Brand Name: Whaleflo
Certification: CE
Model Number: HV-25B
Minimum Order Quantity: 1set
Price: 79-99USD/set
Packaging Details: carton
Delivery Time: 7-20 working days
Payment Terms: Western Union，L/C, T/T， Paypal,, MoneyGram
Supply Ability: 1000set per month
Contact Now
Theory: Reciprocating Pump Power: Electric, On/off Switch
Pressure:: Low Pressure Volt: 24V
Duty Cycle: Working Intermittent Diaphragm Material: Viton
Liquid Of Adblue: Adblue, Water, Urea, Oil Diaphragm: Santoprene
Pressure: Low Pressure,Max 40psi Max Flow: 25LPM

Whaleflo HV-25B 24V DC Adblue Pump 25LPM Diaphragm Diesel Pumps
FEATURES & BENEFITS

The HV series 5 chamber diaphragm pumps with the Permanent magnet motor and continuous duty cycle, self-priming ability can be more than 3 meters. The pumps can be applied for fresh water, weak acid&basicity liquid, and specially for Adblue liquid.




Voltage 12v,24v,DC,115V,220V,230V AC
Self-Priming More than 3 meters
Port Size Hose tail connection 3/4''
Pressure Max. 60-80PSI
Diaphragm/check value Material Viton
Body Material (DC): Polypropylene
Body Material(AC): Aluminium
Liquid of applications: specially for Adblue liquid,fresh water, weak acid&basicity liquid,



Whaleflo HV-25B 24V DC Adblue Pump 25LPM Diaphragm Diesel Pumps
