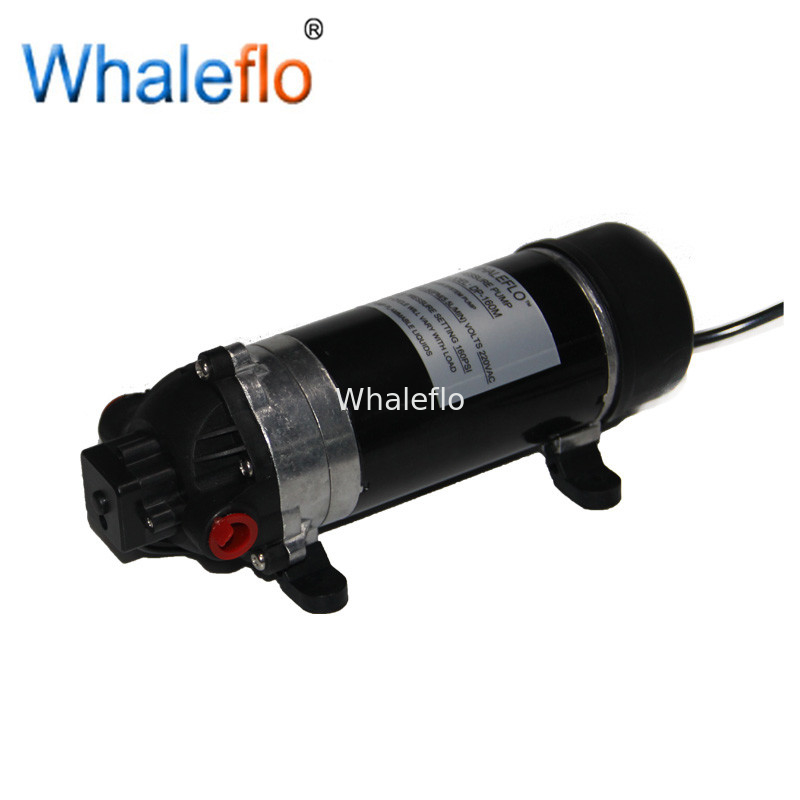

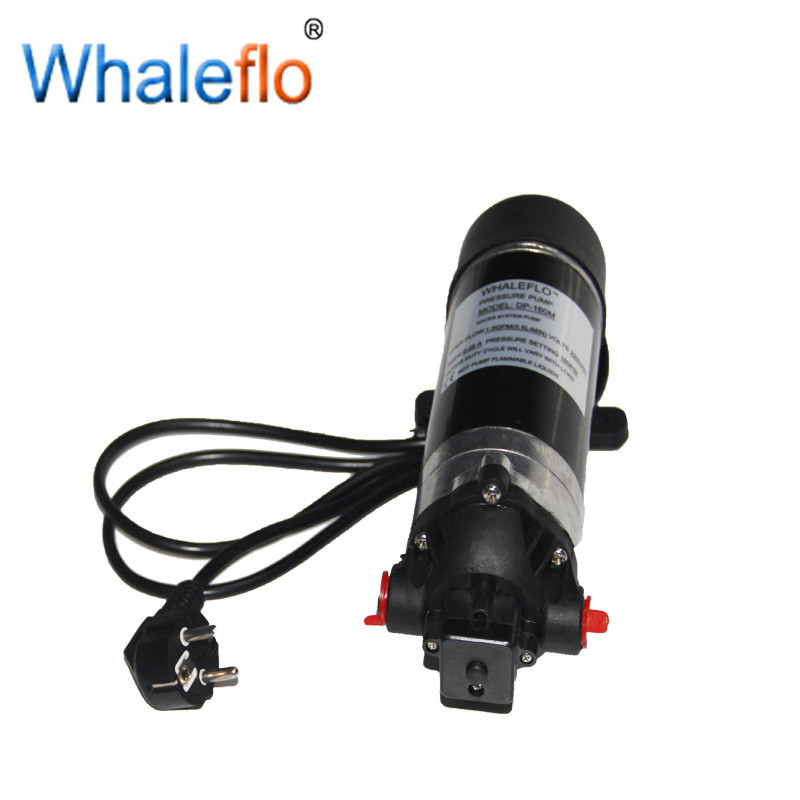

Whaleflo 220V ac 100psi 1.5gpm high pressure diaphragm water pump

Whaleflo 220V ac 100psi 1.5gpm high pressure diaphragm water pump
Whaleflo 220V ac 100psi 1.5gpm high pressure diaphragm water pump Whaleflo 220V ac 100psi 1.5gpm high pressure diaphragm water pump Whaleflo 220V ac 100psi 1.5gpm high pressure diaphragm water pump Whaleflo 220V ac 100psi 1.5gpm high pressure diaphragm water pump Whaleflo 220V ac 100psi 1.5gpm high pressure diaphragm water pump
Basic Information
Place of Origin: China
Brand Name: Whaleflo
Certification: Rohs/CE/ISO9001
Model Number: DP-100M
Minimum Order Quantity: 1 piece
Price: USD40-46USD/piece
Packaging Details: 1pc/box,10pcs/ctn
Delivery Time: 5-8 work days after confirmed
Payment Terms: L/C, T/T, Western Union, Western Union,Paypal
Supply Ability: 100000 per month
Contact Now
Pump Design: 3 Chamber Diaphragm Port Size: 3/8"BSPT Female Thread
Voltage: 220V AC Check Valve: EPDM/VITON
Liquid Temp: (60℃）Maximum Self-Priming: 6.5feet/2M Suction Lift
Max Flow LPM: 5.5LPM(1.5gpm) Max Pressure: 100Psi(7.0bar)
Amps: 0.6 N.W/G.W: 3.1/3.3KGS

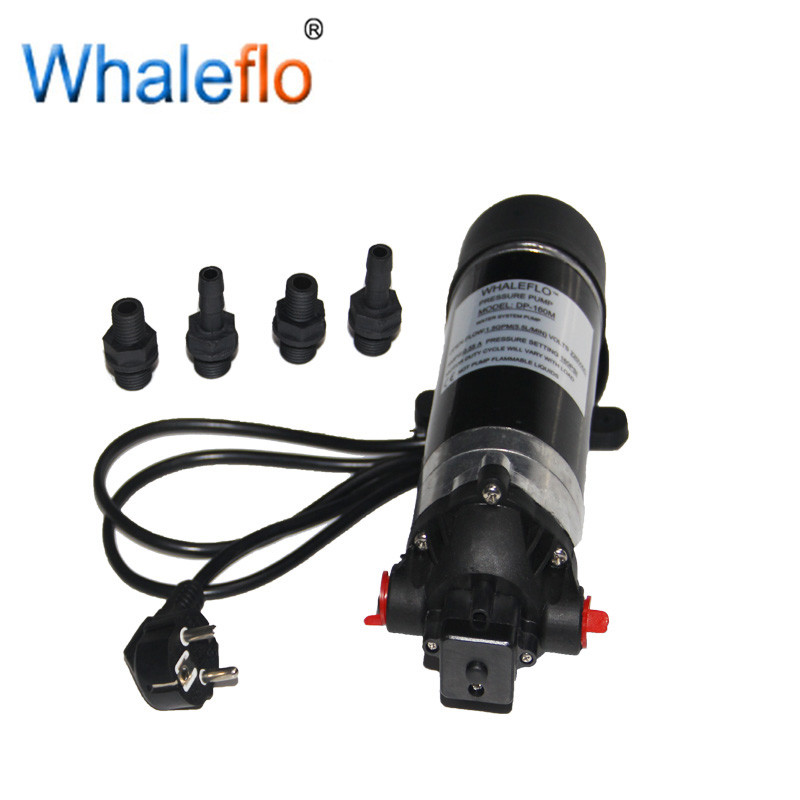

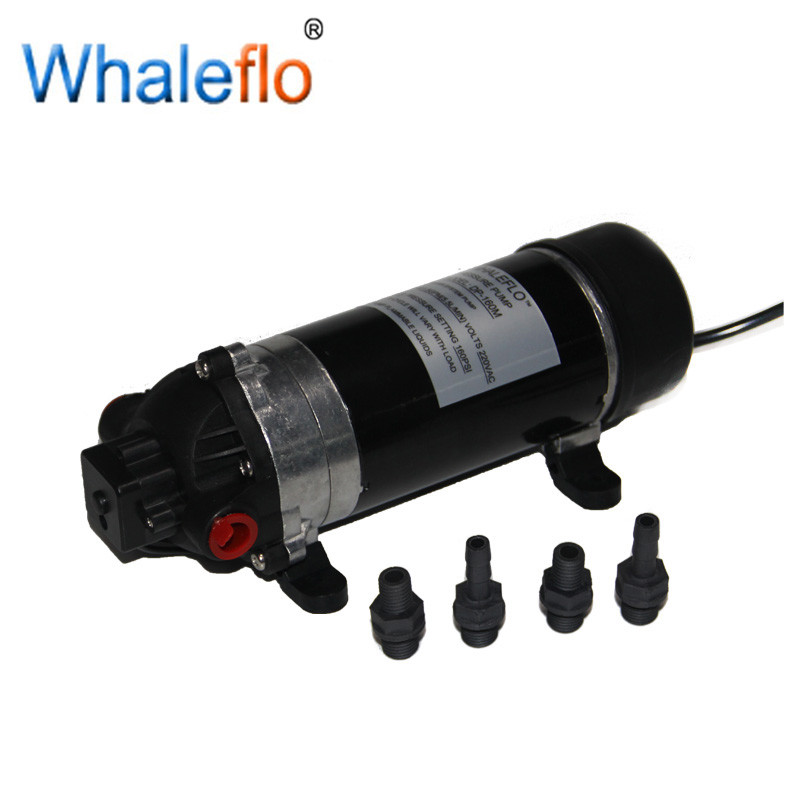

Packing Size: 250*110*105mm Connecto: 1pc 1/4" Male Thread,1pc 1/2" Hose Barb,1pc Elbow 1/2" Hose Barb Filter
Application: MARINE/RV,water Treatment/beverage/food Service/agriculture Irrigation/general Industrial/automotive

Whaleflo 220V ac 100psi 1.5gpm high pressure diaphragm water pump

Whaleflo 220V ac 100psi 1.5gpm high pressure diaphragm water pump 0
Features:

  • Long life, no leak, quiet operation
  • Positive displacement pump
  • Can run dry
  • Industry standard mount pattern
  • Built thermal protector
  • Self priming, fully automatic, easy installation
  • Special valve for liquid input and output
  • 12v,24vDC and 120v,230v AC motors standard(consult factory for other voltages
  • Numerous fittings options for greater mounting flexibility
  • High pressure diaphragm pump;
  • Small size,Light weight and Stable performance;
  • special EPDM valve for liquid input and output;
  • Antivibration pad,easy installation with stable function;
  • Self-priming,Automatic Pressure Switch;
  • Automatic Pressure Protection;
  • Low Noise,with excellent resistant to chemical corrosion

Specification:

  • Pump design: 3 chamber diaphragm
  • Max. flow: 1.14GPM(5.1L/min)
  • Port size: 3/8''(9.5mm)Hose Barb
  • Pressure max: 170psi
  • Diaphragm materials: Santoprene
  • Check valve made:EPDM or Viton
  • Voltage:12vdc, 24v dc,120v ac, 220v ac, 230v ac
  • Liquid temp: 140 °F(60°C) Maximum
  • Body material: Cast Iron
  • Duty cycle :Intermittent

Whaleflo 220V ac 100psi 1.5gpm high pressure diaphragm water pump 1Whaleflo 220V ac 100psi 1.5gpm high pressure diaphragm water pump 2Whaleflo 220V ac 100psi 1.5gpm high pressure diaphragm water pump 3Whaleflo 220V ac 100psi 1.5gpm high pressure diaphragm water pump 4Whaleflo 220V ac 100psi 1.5gpm high pressure diaphragm water pump 5

Model Volt Flow(L/Min) Pressure(PSI) Amp Draw(A)
DP-60 12 4.6 60 7
DP-60B 24 4.5 60 4
DP-80 12 5.5 80 8
DP-100 12 5.5 100 9
DP-120 12 5.5 120 9.5
DP-120B 24 5.3 120 4.5
DP-160 12 5.5 160 10.5
DP-160B 24 5.5 160 4.2
DP-100M 230 5.5 100 0.6
DP-160S 120 5.5 160 1
DP-120M 220 5.5 120 0.5
DP-160M 220 5.5 160 0.55
Inlets size: 3/8''hose barb, thread
Outlets size: 3/8''hose barb, thread
dimension/pc: 26.5x12x10.5cm
Net weight/pc: 2.4kg
Gross weight/pc: 2.7kg
Carton dimension(10pcs AC Voltage): 64x39x22cm
Carton dimension(10pcs DC Voltage): 63x29x22.5cm

Whaleflo 220V ac 100psi 1.5gpm high pressure diaphragm water pump 6

Whaleflo 220V ac 100psi 1.5gpm high pressure diaphragm water pump 7Whaleflo 220V ac 100psi 1.5gpm high pressure diaphragm water pump 8
Sample order is welcome testing.
24 month warranty
Fast delivery time.





Working Video

https://youtu.be/FuKhiNSOjPQ
