| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | Rohs/CE/ISO9001 |
| Model Number: | FLO-2203-1 |
| Minimum Order Quantity: | 1 piece |
| Price: | USD8-9.99USD/piece |
| Packaging Details: | 1 piece in a box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union, Western Union,Paypal |
| Supply Ability: | 100000 per month |
| Theory: | Electromagnetic Pump | Structure: | Diaphragm Pump |
|---|---|---|---|
| Typical Application: | Marine/RV/Water Treatment/Beverage/Food Service/Agriculture Irrigation/General Industrial/Automotive | Pump Design: | 2 Chamber Diaphragm |
| Port Size: | 3/8"(9.5mm) | Voltage: | 12V DC |
| Check Valve: | EPDM/VITON | Liquid Temp: | (60℃）Maximum |
| Self-Priming: | 4feet/1.2M Suction Lift | Max Flow LPM: | 3.1LPM(0.8gpm) |
| Max Pressure: | 70Psi(4.8bar) | Amps: | 2.2 |
| N.W/G.W: | 0.68/0.72KGS |

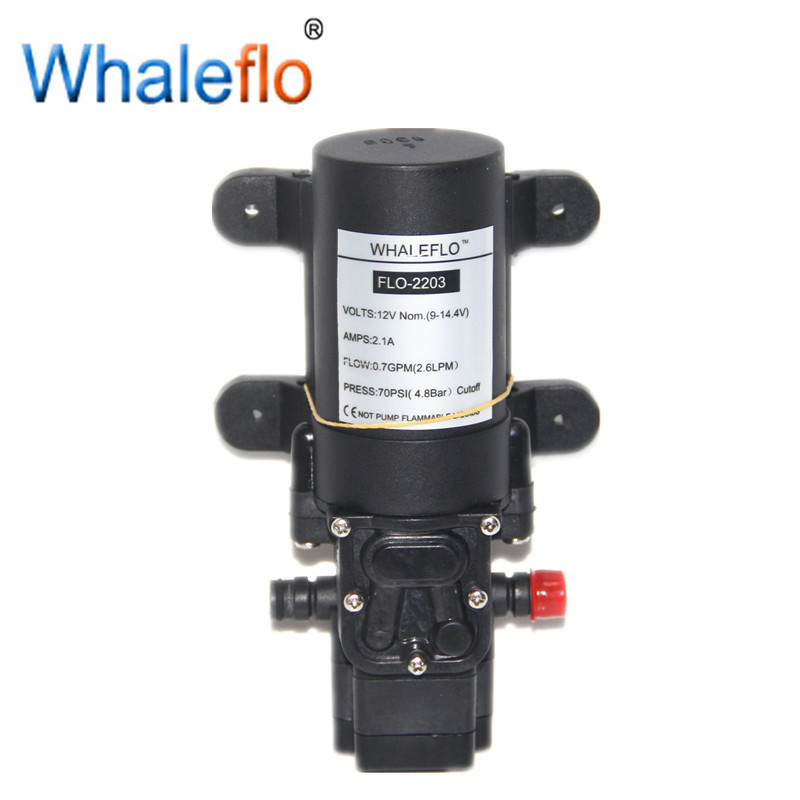

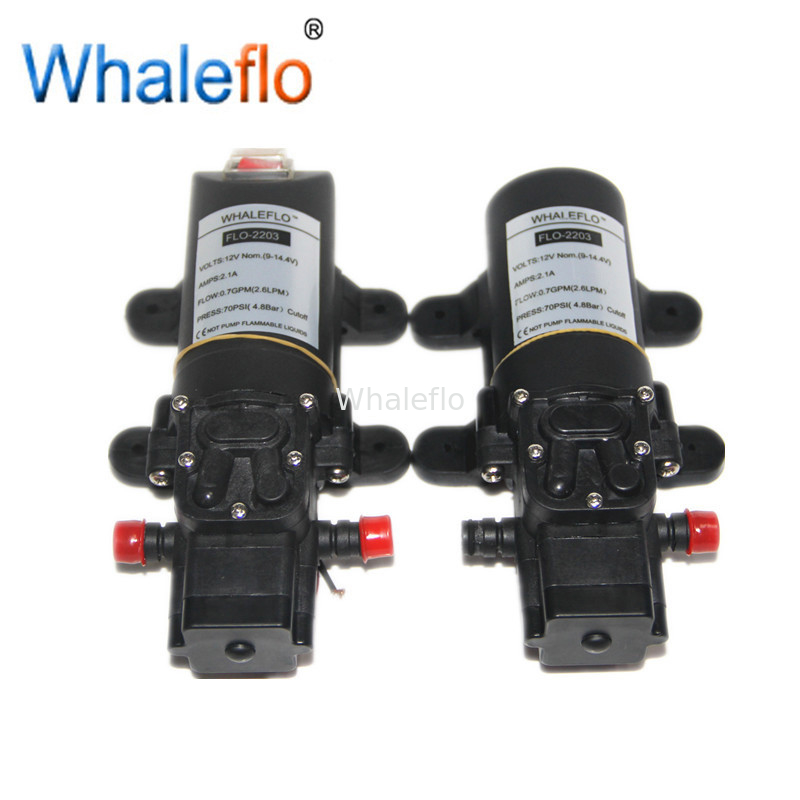

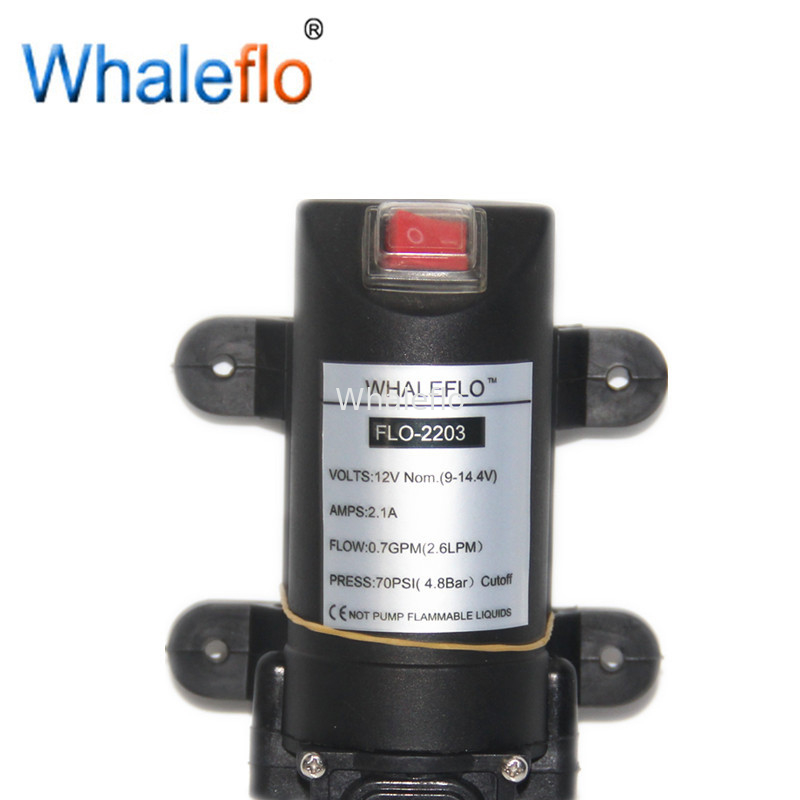

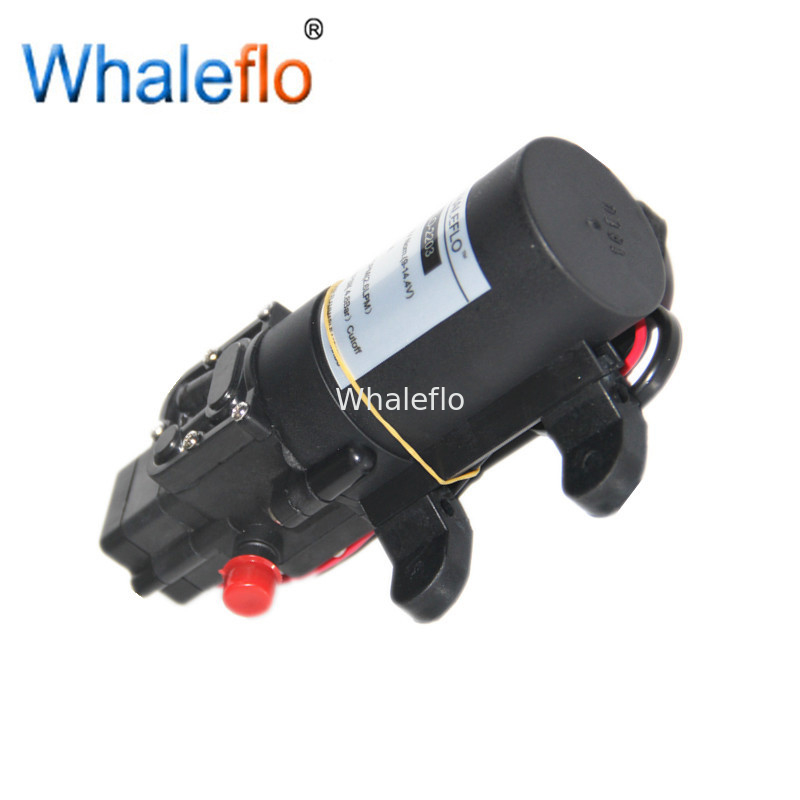

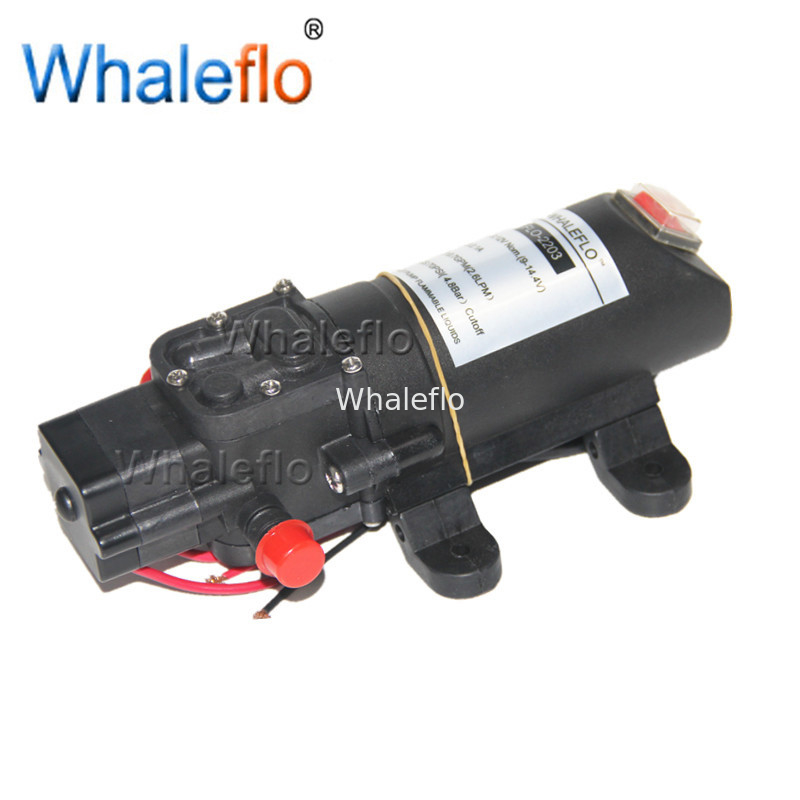

Whaleflo 12v DC 3.1Lpm 70psi agriculture backpack sprayer diaphragm water pump
It can be used for low flow rate while high pressure requirements in situation as:
Pressure pumps used in sprayers and spray fixtures.Water purification,filter machine,chemical metering and fluid supply.Food,Beverage filling and transfer.
So, it is special suitable for sprayers and spray fixtures with its low flow rate.
| Motor | Pump | Material of Contruction | Weight & Size |
| Type:12v/24v DC,Permanent magnet,Totally | Type:2-chamber Positive displacement | Motor Housing:PA66 | Dimension:18.5*11*6.5cm |
| Enclosed,Non-ventilated |
Liquid Temperature: 140ºF(60°C)Maximum |
Pump Housing: Polypropylene | Net weight:0.67kgs |
| Leads:16 AWG | Priming Capabilities: 3feet(0.9m)suction lift |
Valves: Viton or EPDM | Packing:50pcs/CTN |
| Duty cycle: Work intermittent |
Pump able to run dry without damage |
Diaphragm: Santoprene | Ctn size:58*37*37cm |
| CHECK VALVE: (1-Way Operation) Prevents Reverse Flow |
Ports Size: 3/8'' Hose Barb | N.W.:34kgs, G.W.:36kgs |
Application:
| Model | Volt |
Open Flow (lpm /Gpm) |
Pressure (PSI/bar) |
Amps | Wire Connections |
| FLO-2201 | 12 | 2(0.52) | 55(3.79) | 1.8 | 2-pin/Leads |
| FLO-2202 | 12 | 3.8(1.0) | 35(2.41) | 3 | 2-pin/Leads |
| FLO-2202-1 | 12 | 4.3(1.13) | 35(2.41) | 3.5 | 2-pin/Leads |
| FLO-2203 | 12 | 2.6(0.68) | 70(4.83) | 2.1 | 2-pin/Leads |
| FLO-2203-1 | 12 | 3.1(0.82) | 70(4.83) | 2.2 | 2-pin/Leads |
| FLO-2202A | 12 | 4(1.05) | 80(5.52) | 2.6 | 2-pin/Leads |
| FLO-2401 | 24 | 2(0.52) | 55(3.79) | 0.9 | 2-pin/Leads |
| FLO-2402 | 24 | 3.8(1.0) | 35(2.41) | 1.5 | 2-pin/Leads |
| FLO-2403 | 24 | 2.6(0.68) | 70(4.83) | 1.0 | 2-pin/Leads |
| FLO-2402A | 24 | 4(1.05) | 80(5.52) | 1.3 | 2-pin/Leads |
