| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | Rohs/CE/ISO9001 |
| Model Number: | DP-160B |
| Minimum Order Quantity: | 1 piece |
| Price: | USD35-45USD/piece |
| Packaging Details: | 1pc/box,10pcs/ctn |
| Delivery Time: | 5-8 work days after confirmed |
| Payment Terms: | L/C, T/T, Western Union, Western Union,Paypal |
| Supply Ability: | 1000 per month |
| Pump Design: | 3 Chamber Diaphragm | Port Size: | 3/8"BSPT Female Thread |
|---|---|---|---|
| Voltage: | 24V DC | Check Valve: | EPDM/VITON |
| Liquid Temp: | (60℃）Maximum | Self-Priming: | 6.5feet/2M Suction Lift |
| Max Flow LPM: | 5.5LPM(1.5gpm) | Max Pressure: | 160Psi(11bar) |
| Amps: | 10.5 | N.W/G.W: | 2.6/2.7kgs |
| Packing Size: | 210*110*105mm | Connecto: | 1pc 1/4" Male Thread,1pc 1/2" Hose Barb,1pc Elbow 1/2" Hose Barb Filter |
| Application: | MARINE/RV,water Treatment/beverage/food Service/agriculture Irrigation/general Industrial/automotive |

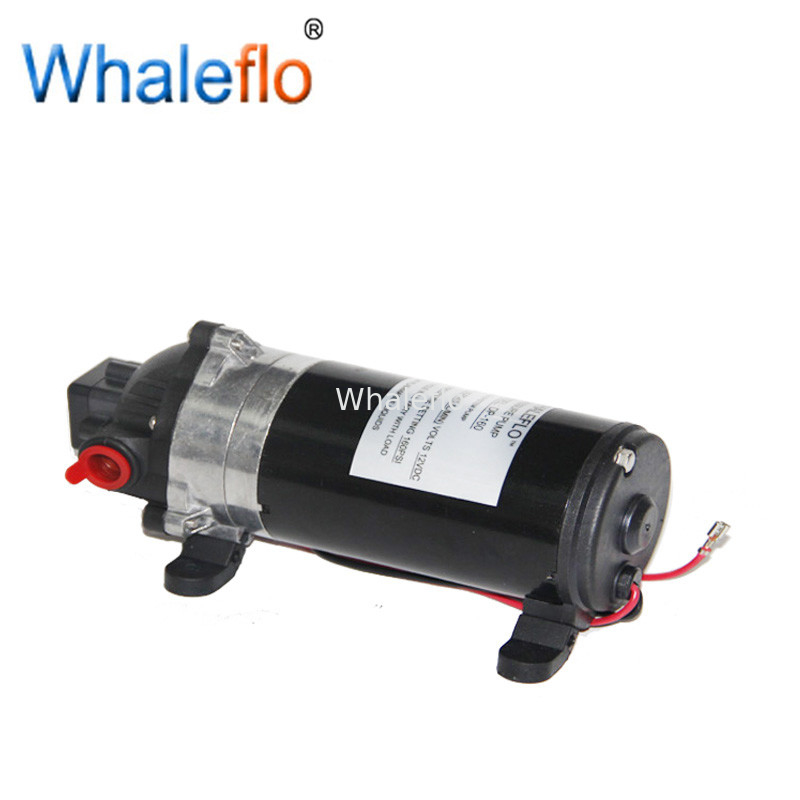

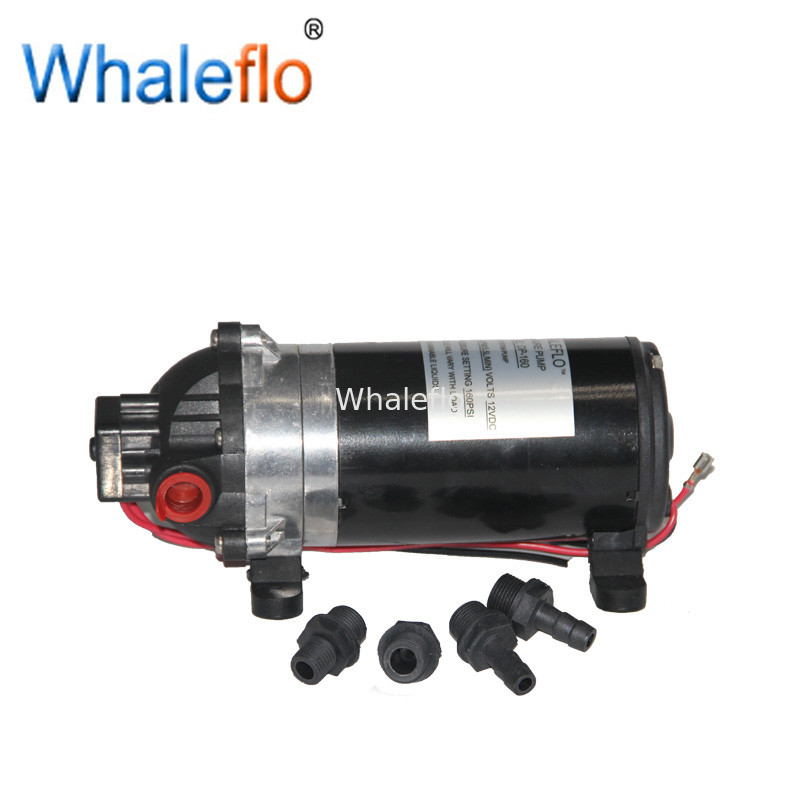

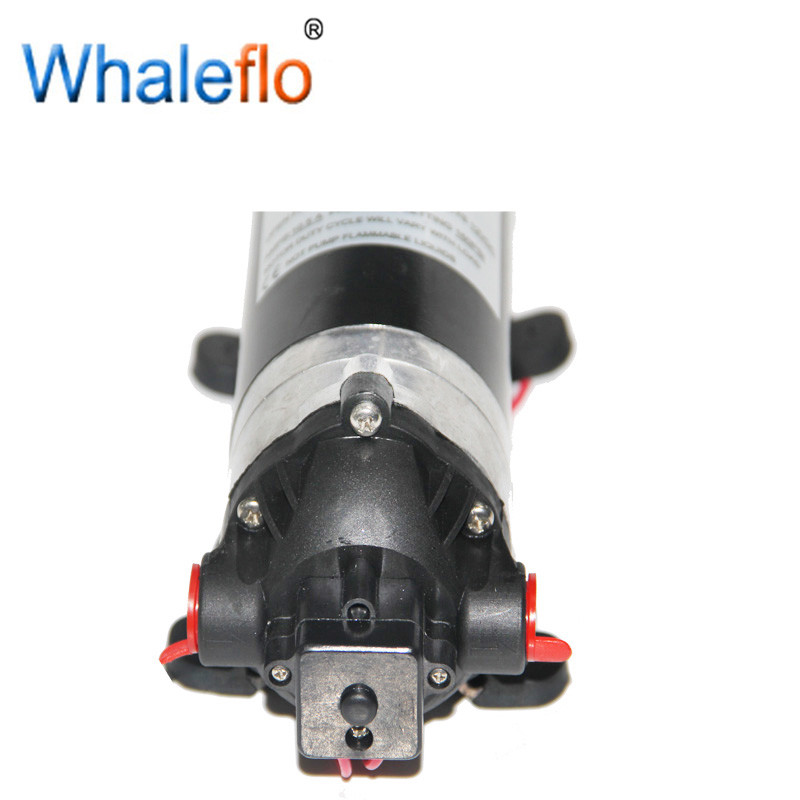

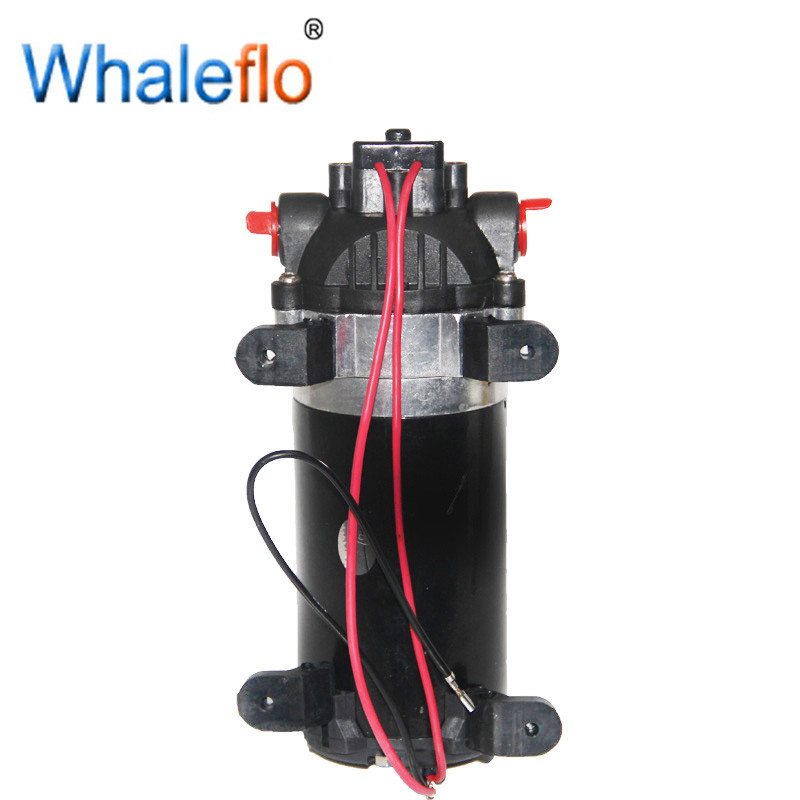

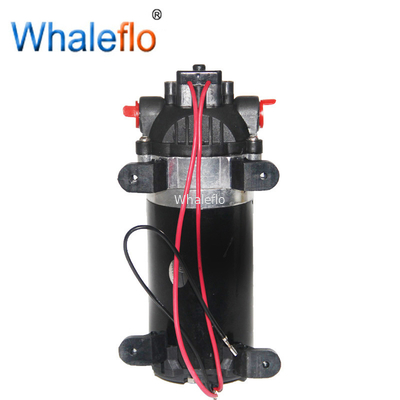

Whaleflo DP160B 160PSI PORTABLE CAR WASHING MACHINE
This series pump with high pressure, Perfect for portable car wash machine, carpet clear machine,sweeper and agriculture sprayer etc. Use it with fresh or weak acid/ alkaline liquid. These pumps automatically turn on and off when you turn the tap on and off.
We have tested these pumps and found they will operate to a 2 metre suction lift and 11 meters head.
| Feature | |
| Type: | 3 Chamber Diaphragm Pump |
| Port Size: | 3/8” BSPT Female Thread |
| Standard connector: | 1/4” BSPT Male Thread, 3/8” hose barb |
| Liquid: | 140°F [60 °C] Max |
| Self-priming: | 6 feet [about 2M] |
| Max pressure | 160psi(11bar) |
| Control Type | Pressure Switch or Bypass |
| Motor: | Permanent Magnet, Intermittent |
| Duty Protection: | Thermal Overload, Automatic Restart |
| Run Dry | Yes (within 30 second) |
| Volts: | 12/24 VDC motors standard |
STANDARD PUMP CONFIGURATIONS
| Model | Volt | Flow(LPM/GPM) | Pressure(PSI/BAR) | Valve | Amp Draw(A) |
| DP-60 | 12 | 4.6(1.2) | 60(4.1) | EPDM/VITON | 7.0 |
| DP-60B | 24 | 4.6(1.2) | 60(4.1) | EPDM/VITON | 4.0 |
| DP-80 | 12 | 5.5(1.5) | 80(5.5) | EPDM/VITON | 8.0 |
| DP-100 | 12 | 5.5(1.5) | 100(7.0) | EPDM/VITON | 9.0 |
| DP-120 | 12 | 5.5(1.5) | 120(8.3) | EPDM/VITON | 9.5 |
| DP-120B | 24 | 5.3(1.5) | 120(8.3) | EPDM/VITON | 4.5 |
| DP-160 | 12 | 5.5(1.5) | 160(11.0) | EPDM/VITON | 10.5 |
| DP-160B | 24 | 5.5(1.5) | 160(11.0) | EPDM/VITON | 4.2 |
Detailed Composition
| Key | Description |
| 1 | Complete assembled pump head |
| 2 | Pressure switch assembly |
| 3 | Check valve components |
| 4 | Upper housing |
| 5 | Bypass Valve and discharge valve assembly |
| Key | Description |
| 6 | Valve Plate Assembly |
| 7 | Diaphragm and piston components |
| 8 | Drive assembly |
| 9 | Motor assembly |
Working Video
