| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | ISO9001 |
| Model Number: | YK-7 |
| Minimum Order Quantity: | 1 |
| Price: | negotiate |
| Packaging Details: | 1 set/carton |
| Delivery Time: | 7-20 work days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 10000per month |
| Features1: | Output Ends Made Of 316 Stainless Steel | Features2: | Maximum Trave:9inch(225mm) |
|---|---|---|---|
| Features3: | Minimum Bend Radius:8 Inch (200mm) | Features4: | Maximum Working Load At Tiller End:5000N |
| Features5: | Cable Outer Diameter:16.5mm | Features6: | Spiral Inner Cable Diameter:8mm |

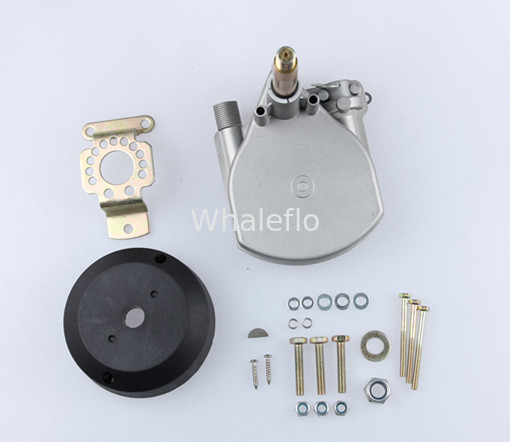

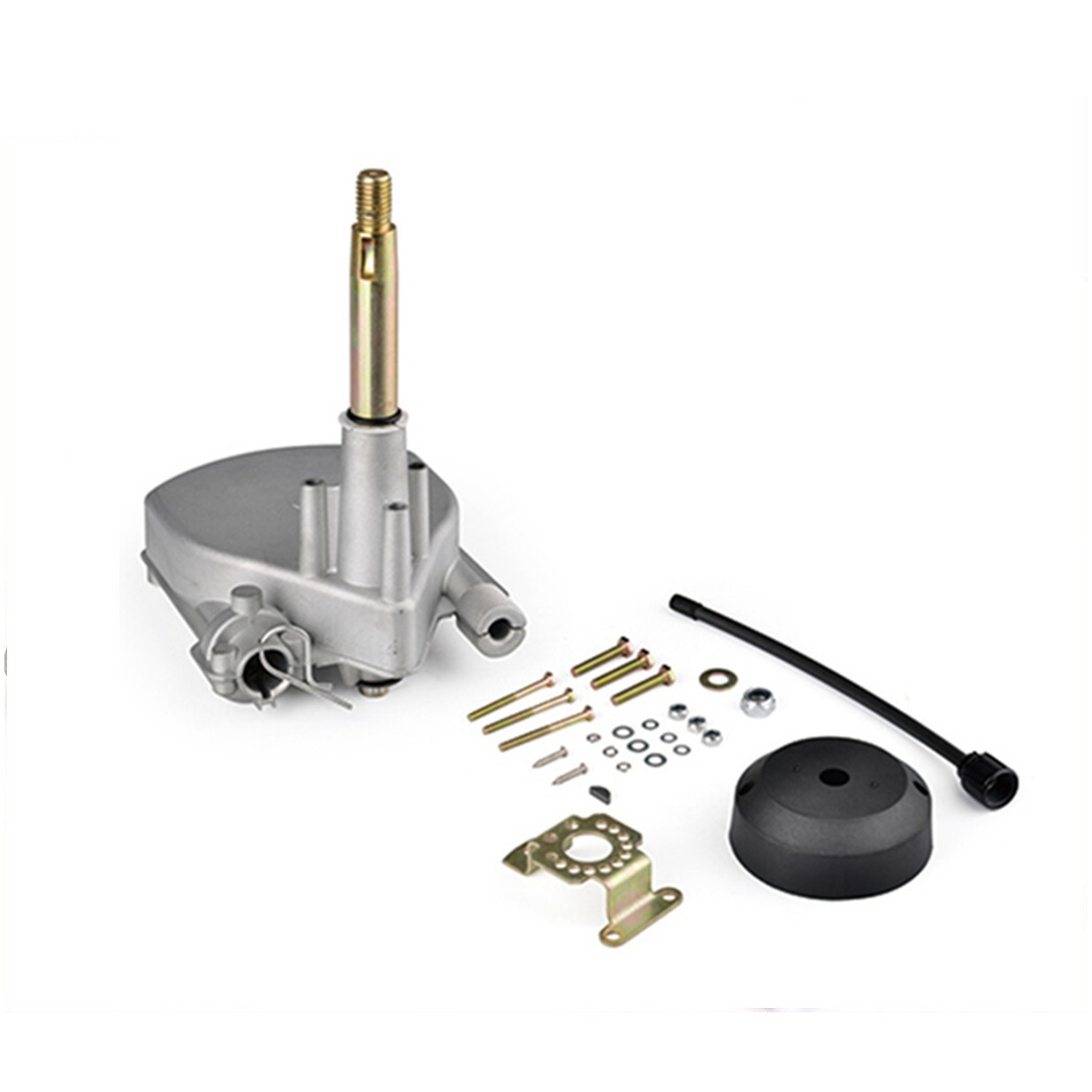

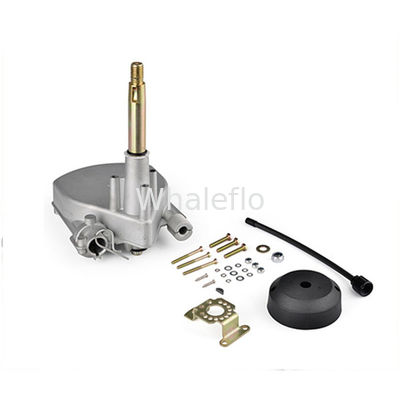

STEERING HELM:
The Steering Helm is a gearbox arrangement mounted on the dashboard of the boat.On the shaft of the helm is mounted the Steering Wheel.
Applications:
Suit for max.9 meters out board boat(up to 135hp)
Planetary gear design:3 turns lock to lock
Material:Chromed plated Zinc Alloy
BEZEL KITS
Bezel kit is a plastic part along with related hardware which is mounted between the steering wheel and dash board to cover the helm hardware/
Features:
Bezel made from Engineering Plastic
Black and white color available as standard options
90 degree and 20 degree tilt options
STEERING CABLE
The Steering Cable is a push pull mechanical cable which convents the rotary motion of the helm to linear motion at the engine/rudder.One end of the cable is connected to the helm & the end to the rudder.
Features:
Output ends made of 316 Stainless Steel
Maximum Trave:9inch(225mm)
Minimum bend radius:8 inch (200mm)
Maximum working load at Tiller end:5000N
Cable Outer Diameter:16.5mm
Spiral inner cable Diameter:8mm
