| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | CE, ROHS, FCC |
| Model Number: | fL35S |
| Minimum Order Quantity: | 1PCS |
| Price: | 42-52USD/SET |
| Packaging Details: | 4pcs INTO A PACKING |
| Delivery Time: | 7-20 work days |
| Payment Terms: | Western Union, l/c, t/t, PAYPAL ,, MoneyGram |
| Supply Ability: | 1000set/month |
| THEORY: | Electromagnetic Pump | DUTY CYCLE: | Intermittent |
|---|---|---|---|
| CHECK VALUE MADE: | EPDM OR VITON | Liquid Temperature: | 60 ℃ Max |
| PUMP DESIGN: | 5 Chamber Diahpragm | CONNECTION: | 1/2" Hose ( 13 Mm) |
| POWER: | Electric | APPLICATION: | Marine,boat,garden,RV, |
| MAX FLOW: | 20LPM | PRESSURE: | 60-70psi AVAILABLE |
|

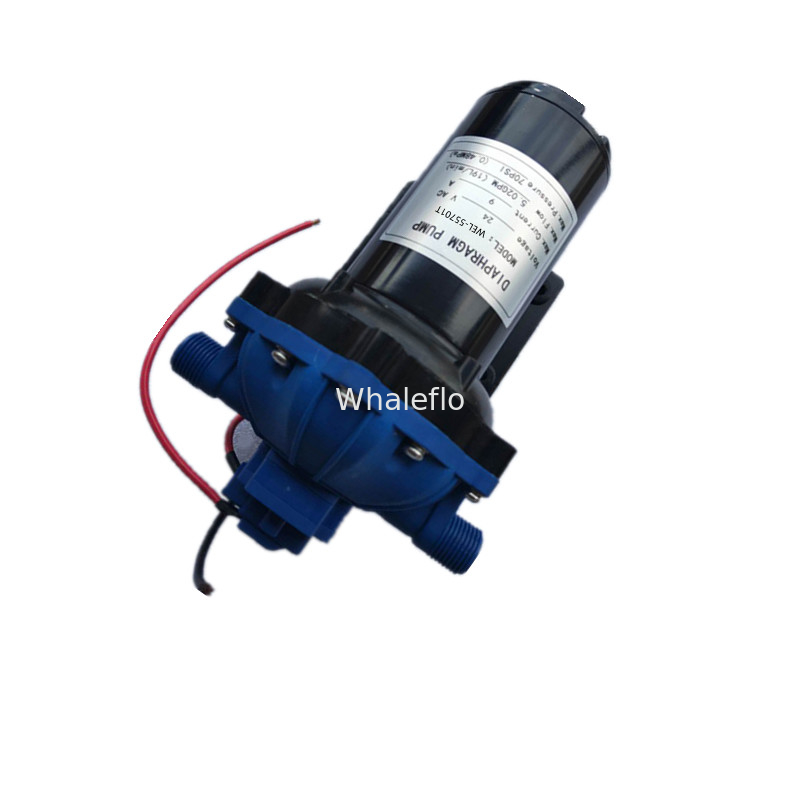

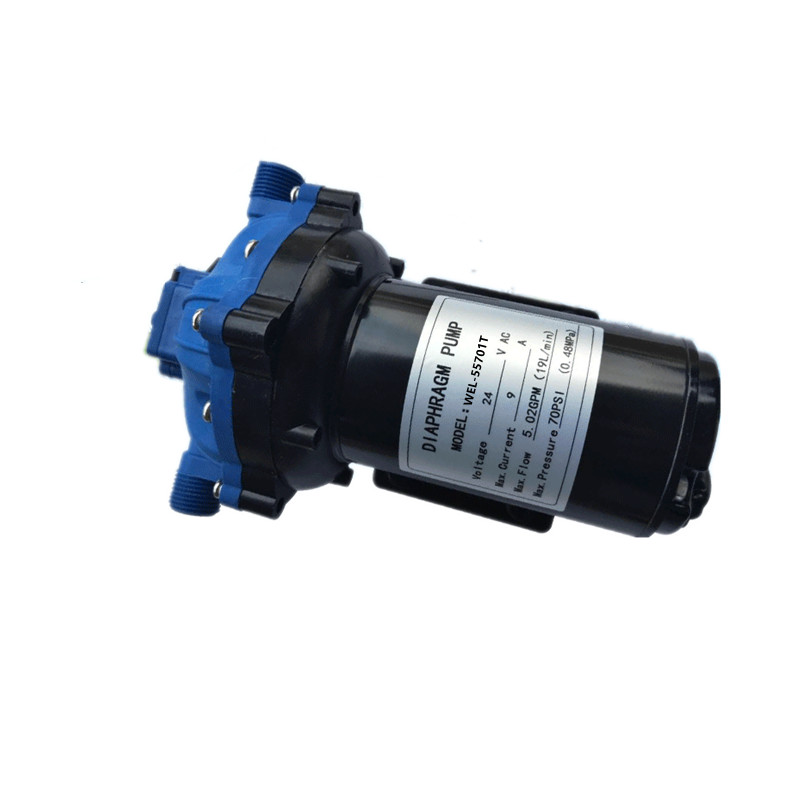

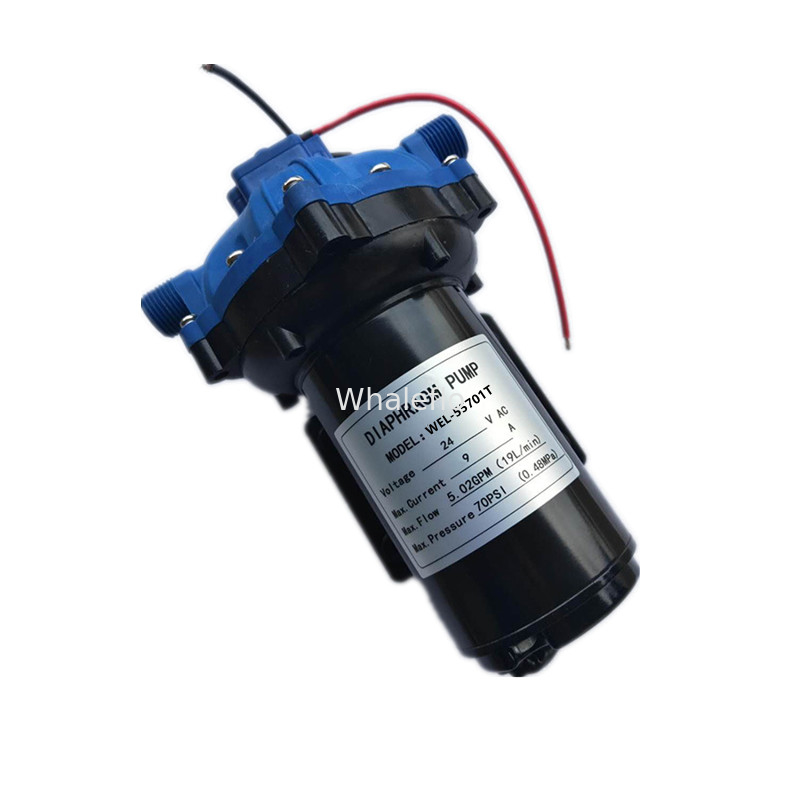

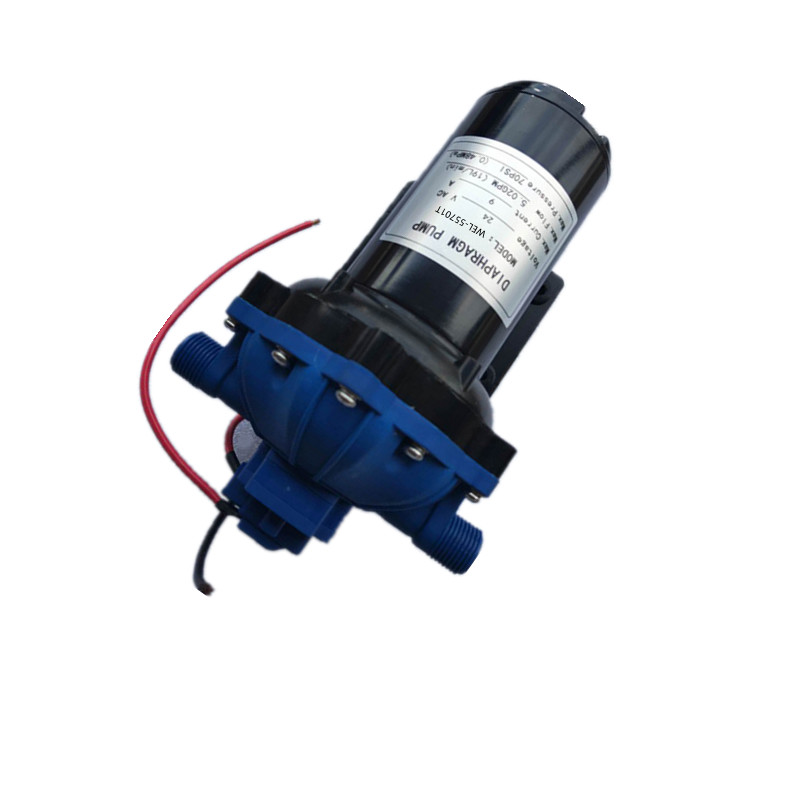

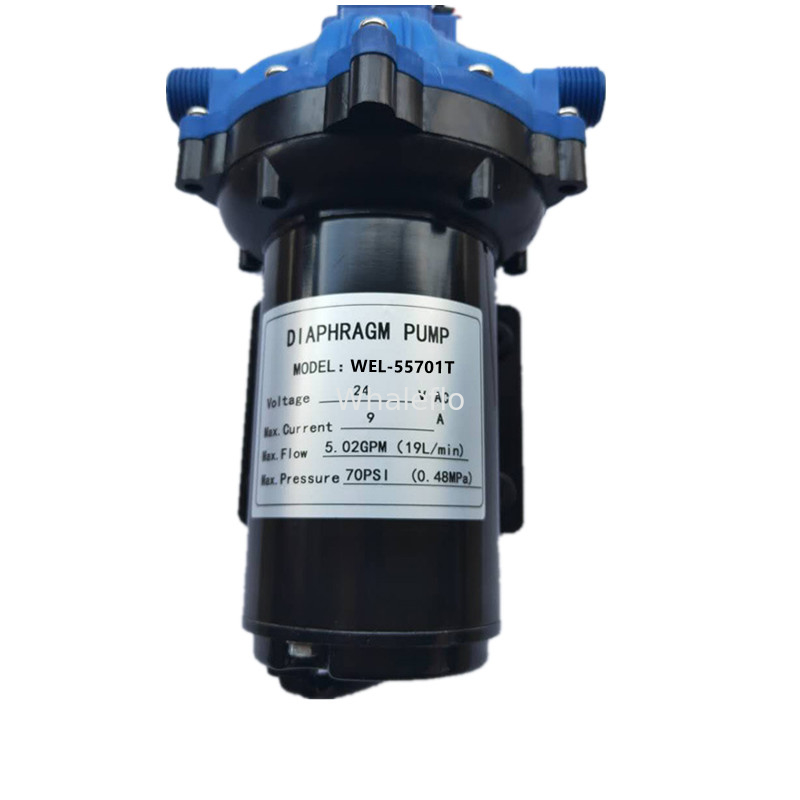

Pump style:5 chamber diaphragm self-priming:6.0feet(around 1.8M) control type:pressure switch max pressure:70psi(4.8bar) liquid temp: port size:1/2"BSPT Thread volts:12V DC max flow:20LPM AMPS:20.0A |
The application of the whaleflo micro diaphragm pump:
Used in reverse osmosis water purification systems, filters, spray devices, industrial equipment, chemical metering and liquid addition, sanitation, environmental protection, and printing industries.
1. Solve the use of water for eating, washing, bathing, toilet and flushing in vehicles, ships, yachts, etc.
(1) Water supply systems for toilets and drinking fountains in high, medium and low-grade passenger cars;
(2) Water supply systems for various RVs, camping cars, and family recreational vehicles;
(3) Other special vehicles, such as blood collection vehicles, ambulances, The water supply system for the onboard personnel such as TV OB trucks, survey vehicles, and engineering vehicles;
(4) Water supply systems for various ships and yachts. With the installation of matching filters, water can be drawn directly from the sea, rivers, lakes, ponds, and wells.
2. Food and beverage processing and processing equipment to realize the transfer, distribution, and filling of fluid food.
3. Household water supply.
4. Solar energy industry.
5. Other equipment and systems that require liquid transfer and injection. For example, cleaning equipment, road construction equipment, purification equipment, cooling systems, etc.
Instructions for installation of micro diaphragm pumps:
1. When installing, pull out the cover of the inlet and outlet of the diaphragm pump.
2. Equipped with the inlet and outlet joints attached to the pump; the inlet and outlet of the diaphragm pump adopts external hose joints.
3. The pump should be installed horizontally; if it needs to be installed vertically, the pump head should face down
