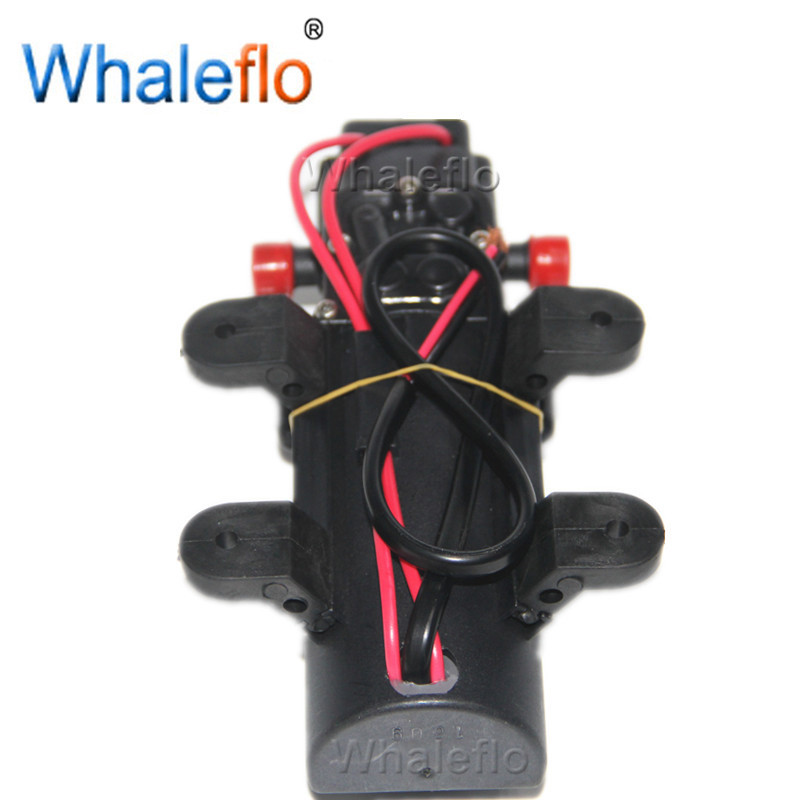

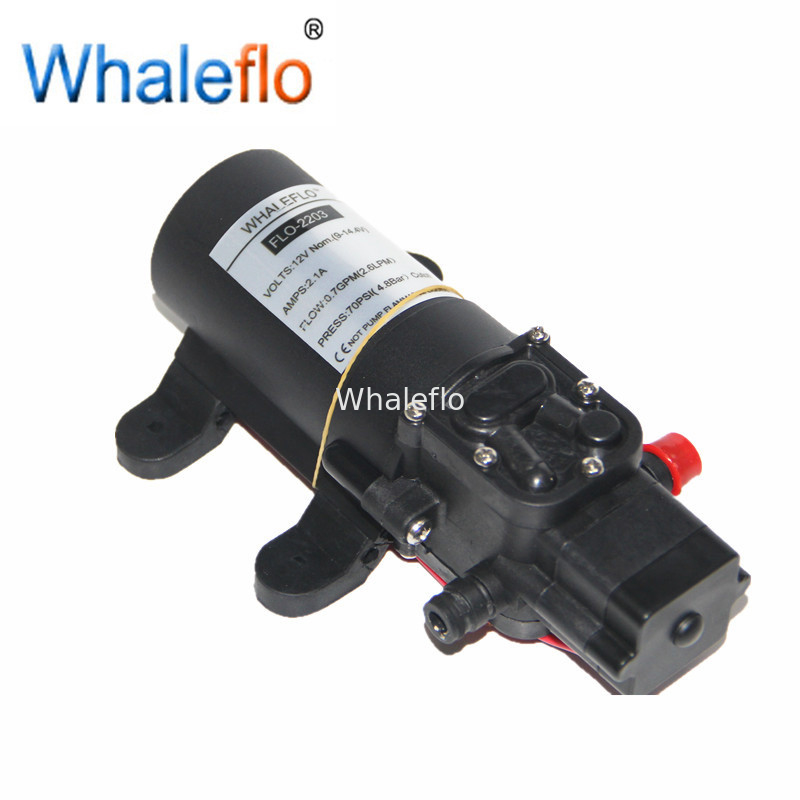

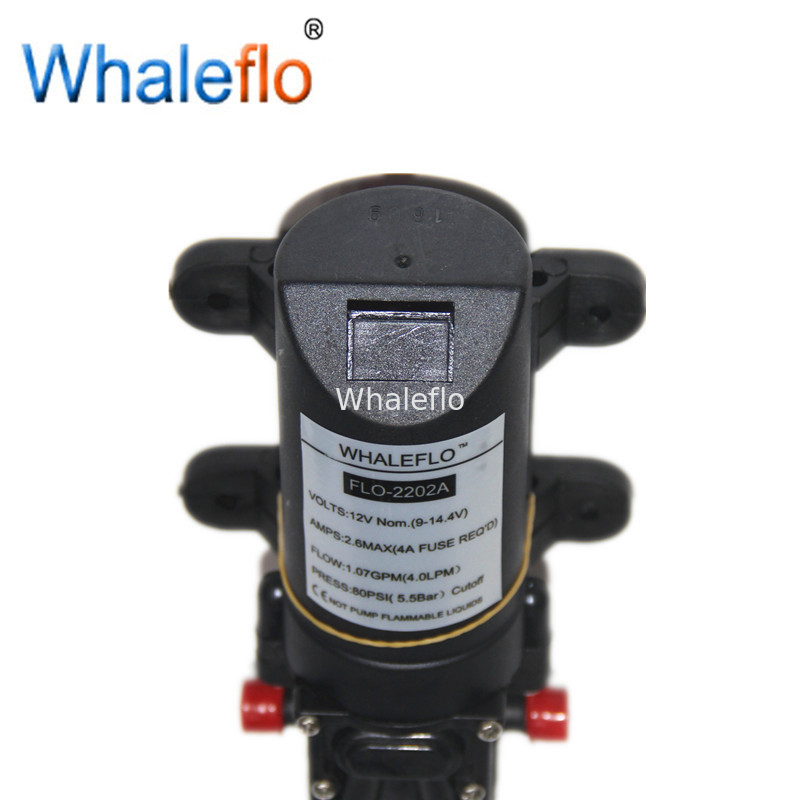

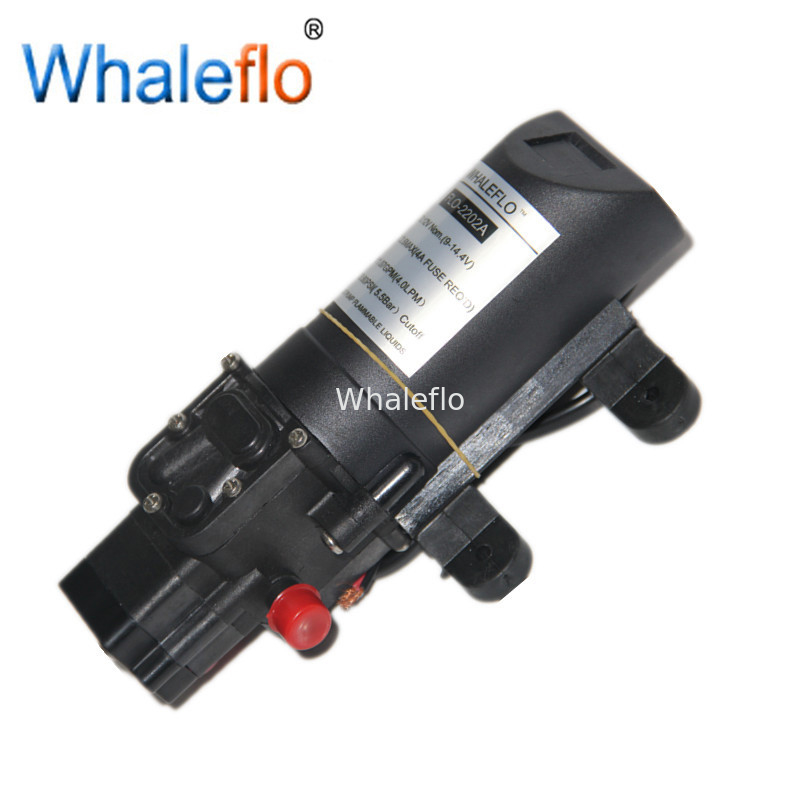

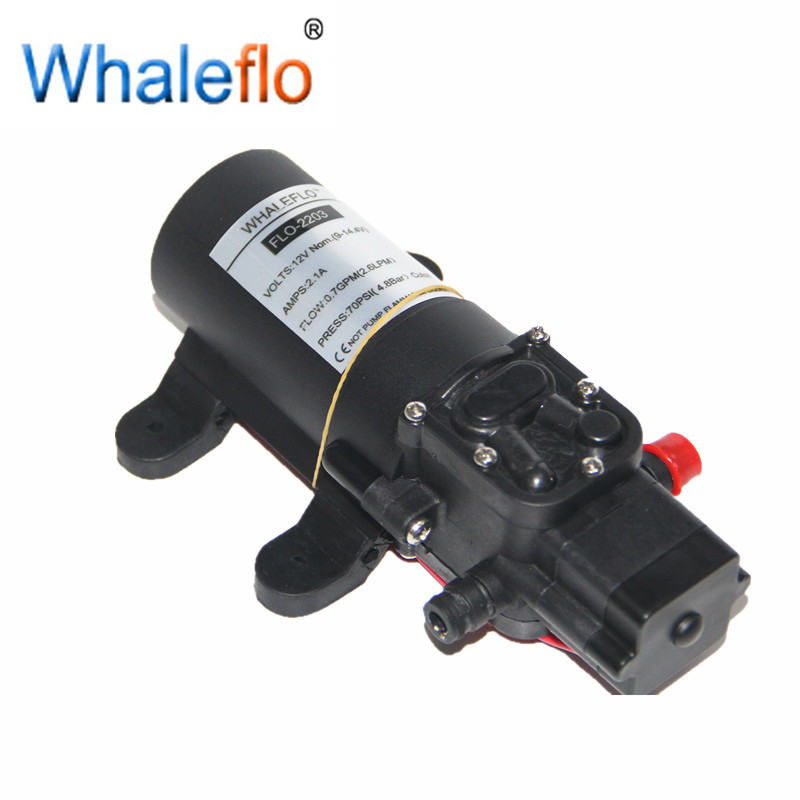

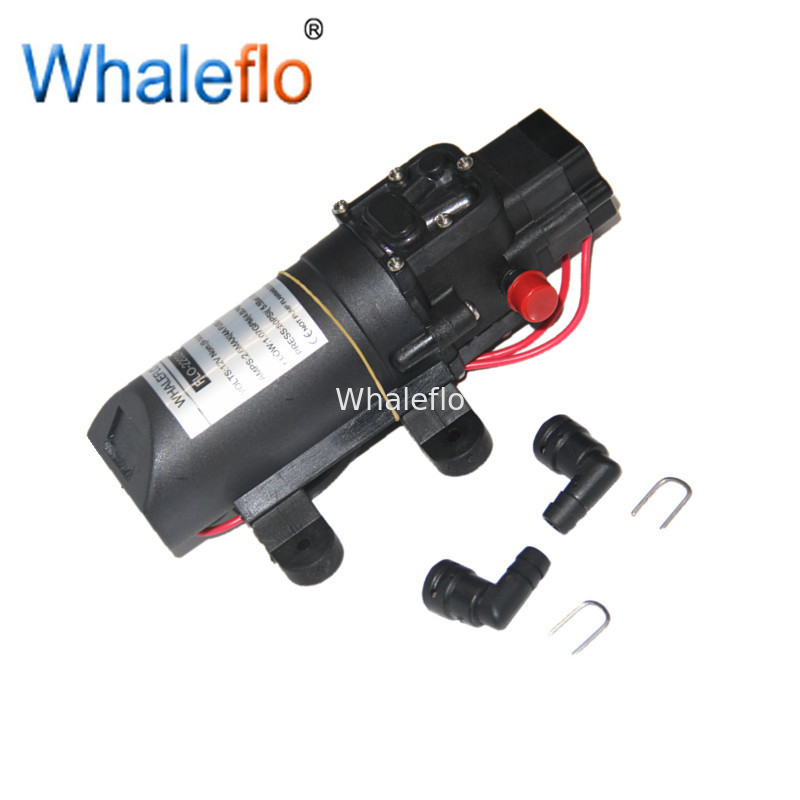

Whaleflo Micro Diaphragm Pumps 24 VOLTS 80psi 4.0LPM Pressure Water Pump for Agriculture

Whaleflo Micro Diaphragm Pumps 24 VOLTS 80psi 4.0LPM Pressure Water Pump for Agriculture
Whaleflo Micro Diaphragm Pumps 24 VOLTS 80psi 4.0LPM Pressure Water Pump for Agriculture Whaleflo Micro Diaphragm Pumps 24 VOLTS 80psi 4.0LPM Pressure Water Pump for Agriculture Whaleflo Micro Diaphragm Pumps 24 VOLTS 80psi 4.0LPM Pressure Water Pump for Agriculture Whaleflo Micro Diaphragm Pumps 24 VOLTS 80psi 4.0LPM Pressure Water Pump for Agriculture Whaleflo Micro Diaphragm Pumps 24 VOLTS 80psi 4.0LPM Pressure Water Pump for Agriculture
Basic Information
Place of Origin: China
Brand Name: Whaleflo
Certification: Rohs/CE/ISO9001
Model Number: FLO-2402A
Minimum Order Quantity: 1 piece
Price: USD8.99-9.99USD/piece
Packaging Details: 1 piece in a box
Delivery Time: 5-8 WORK DAYS
Payment Terms: L/C, T/T, Western Union, Western Union,Paypal
Supply Ability: 100000 per month
Contact Now
Theory: Electromagnetic Pump Structure: Diaphragm Pump
Typical Application: Marine/RV/Water Treatment/Beverage/Food Service/Agriculture Irrigation/General Industrial/Automotive Pump Design: 2 Chamber Diaphragm
Port Size: 3/8"(9.5mm) Voltage: 24V DC
Check Valve: EPDM/VITON Liquid Temp: (60℃）Maximum
Self-Priming: 4feet/1.2M Suction Lift Max Flow LPM: 4LPM(1.0gpm)
Max Pressure: 80Psi(2.4bar) Amps: 1.3
N.W/G.W: 0.68/0.72KGS


FEATURES & BENEFITS
Whaleflo Micro Diaphragm Pumps 24 VOLTS 80psi 4.0LPM Pressure Water Pump for Agriculture 0


Whaleflo Micro water pump
pump style 2 chamber diaphragm
motor Permanent
inlet/outlet port 3/8"(10mm)hose barb
max pressure 80psi
diaphragm materials viton or epdm
Priming Capabilities 4 feet (1.2 m) suction lift
PRODUCT DETAILS
Whaleflo Micro Diaphragm Pumps 24 VOLTS 80psi 4.0LPM Pressure Water Pump for Agriculture 1Whaleflo Micro Diaphragm Pumps 24 VOLTS 80psi 4.0LPM Pressure Water Pump for Agriculture 2Whaleflo Micro Diaphragm Pumps 24 VOLTS 80psi 4.0LPM Pressure Water Pump for Agriculture 3Whaleflo Micro Diaphragm Pumps 24 VOLTS 80psi 4.0LPM Pressure Water Pump for Agriculture 4Whaleflo Micro Diaphragm Pumps 24 VOLTS 80psi 4.0LPM Pressure Water Pump for Agriculture 5Whaleflo Micro Diaphragm Pumps 24 VOLTS 80psi 4.0LPM Pressure Water Pump for Agriculture 6Whaleflo Micro Diaphragm Pumps 24 VOLTS 80psi 4.0LPM Pressure Water Pump for Agriculture 7Whaleflo Micro Diaphragm Pumps 24 VOLTS 80psi 4.0LPM Pressure Water Pump for Agriculture 8TECHNICAL DETAILS
Model

Volt(V)

Flow Rate(LPM/GPM)

Demend Pressure(PSI/Bar)

 Amp Draw(A)
FLO-2201 12 2.0(0.52) 55(3.79) 1.8
FLO-2202 12 3.8(1.0) 35(2.41) 3.0
FLO-2202-1 12 4.3(1.13) 35(2.41) 3.5
FLO-2203 12 2.6(0.68) 70(4.83) 2.1
FLO-2203-1 12 3.1(0.82) 70(7.83) 2.2
FLO-2202A 12 4.0(1.05) 80(5.52) 2.6
FLO-2401 24 2.0(0.52) 55(3.79) 0.9
FLO-2402 24 3.8(1.0) 35(2.41) 1.5
FLO-2403 24 2.6(0.62) 70(4.83) 1.0
FLO-2402A 24 4.0(1.05) 80(5.52) 1.3
Whaleflo 2 Chamber Diaphragm DC Pump FLO Series designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing.
It  built-in pressure switch which automatically starts and stops the pump when faucet is opened and closed.
Dimension/pc 18.5*11*6.5cm
Net Weight/pc 0.64kg
Gross Weight/pc 0.72kg
Carton Dimension(50pcs) 56.5*38.5*36.5cm




Whaleflo Micro Diaphragm Pumps 24 VOLTS 80psi 4.0LPM Pressure Water Pump for Agriculture 9Whaleflo Micro Diaphragm Pumps 24 VOLTS 80psi 4.0LPM Pressure Water Pump for Agriculture 10



Our advantage



 Whaleflo Micro Diaphragm Pumps 24 VOLTS 80psi 4.0LPM Pressure Water Pump for Agriculture 11







Certificate

Whaleflo Micro Diaphragm Pumps 24 VOLTS 80psi 4.0LPM Pressure Water Pump for Agriculture 12

Whaleflo Micro Diaphragm Pumps 24 VOLTS 80psi 4.0LPM Pressure Water Pump for Agriculture 13FAQ

FAQ
Q: Are you a manufacturer or trading company?
Our plant covers 10000 square meters with full set of automative production lines and integrated testing facilities. Our sales depart located in Xiamen, China.

Q: What's your main products of your company?
A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm
pump,Marine pump,RV pump, bilge pump )for over 8 years with excellent quality and competitive price.



Q. What is your MOQ?
Our company is pleasure accept all items 1pcs order for testing.If bulk order, pls send inquiry to get more  discount.
Q. What about the delivery time?
A.The stock samples can be sent to you within 2-3days by international express after received
   A.The batch order can be shipped to you in about 15-20 working days after order confirmation (by air or by sea

Q. Can I buy different types in one container?

A:Yes, you can mix different types in one container.

Q.How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application, pump working duty and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.If you don’t know the details for the pump, tell us the usage, must suitable model will be recommended

Q.Do you accept OEM/ODM
A:Yes. We are also the OEM supplier of many famous companies.

Q. What is your terms of payment.
A:Usually we accept T/T , Alipay ,Western Union or PayPal.

Q. What is your warranty?
A:24month warranty and 2% spare parts after service, and within 24 hours reply will be provided to solve customers’ problems.

Q. What is your port of loading?
A: Xiamen Port.
