| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | CE/ROHS |
| Model Number: | FL-65A |
| Minimum Order Quantity: | 1PC |
| Price: | 25-38USD/pc |
| Packaging Details: | 1pc/box,10pc/ctn |
| Delivery Time: | 7-15 work days after confirmed |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs/month |
| Pump Head: | 2 Chambers | Open Flow: | 49L/min |
|---|---|---|---|
| Max Pressure: | No Pressure | Style: | Motor Configuration Lead Wires 2-pin Connector |
| Inlet/outlet Size: | 2"(50mm)/1"(25mm) | Motor Voltage: | 12V DC/24V |
TECHNICAL DATE| Model |
Volt(V) |
Flow Rate(LPM/GPM) |
Demend Pressure(PSI/Bar) |
Amp Draw(A) |
| FL-65A | 12V/DC | 49.2Lpm | No | 10.0 |
| FL-65B | 12V/DC | 49.2Lpm | No | 5.0 |
| Dimension/pc | 51.5*42*32cm |
| Net Weight/pc | 2.3kg |
| Gross Weight/pc | 2.5kg |
| Carton Dimension(10pcs) | 50*40*28cm |
|

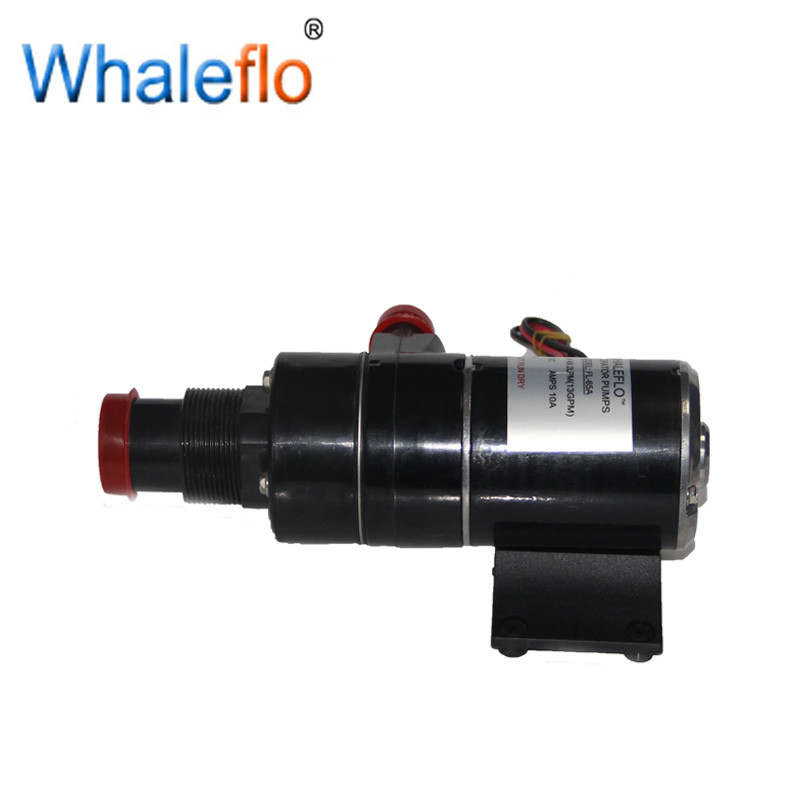

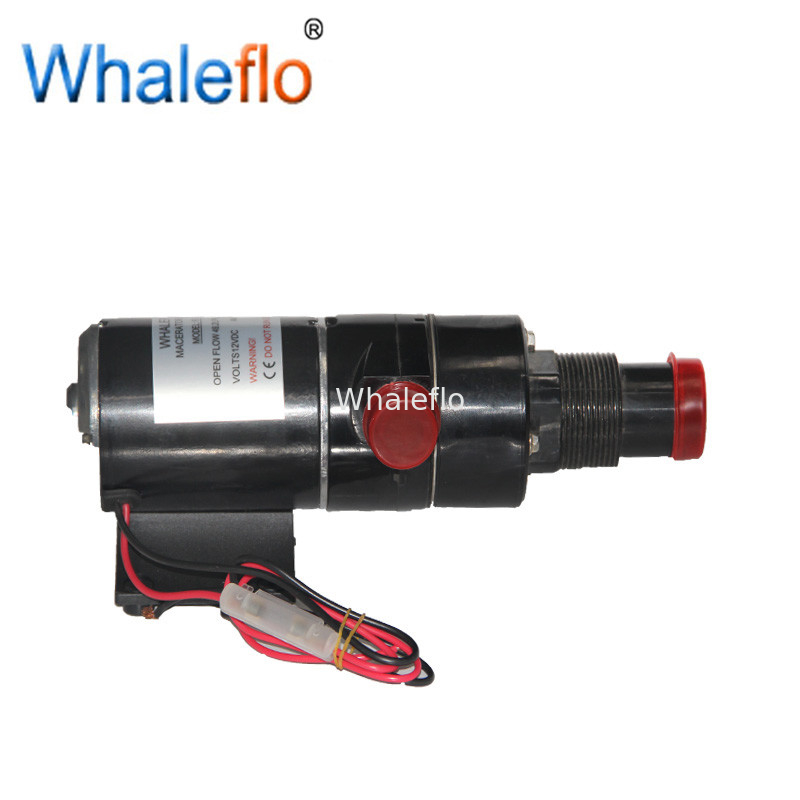

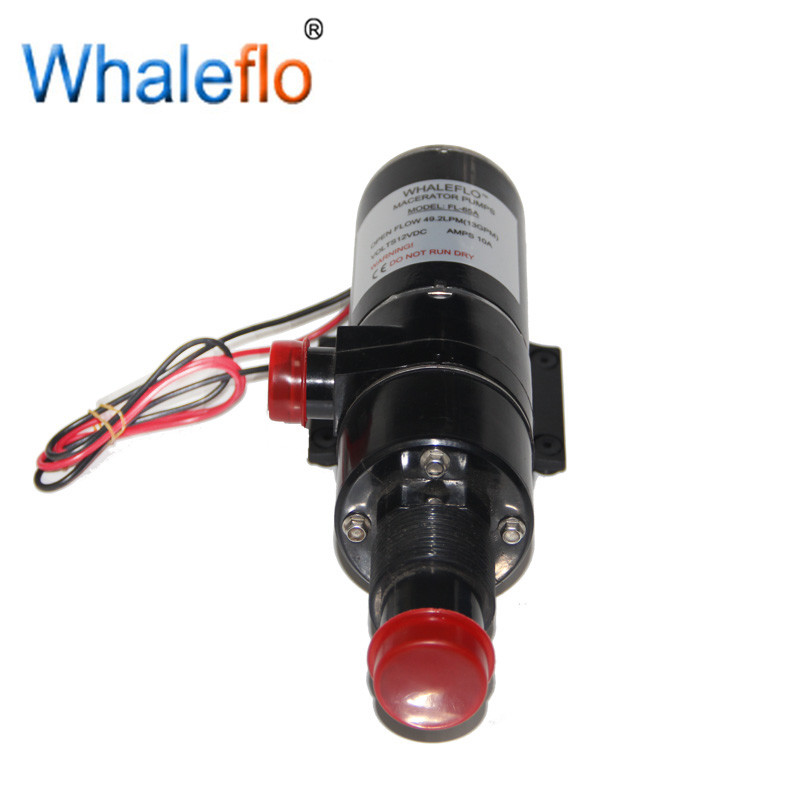

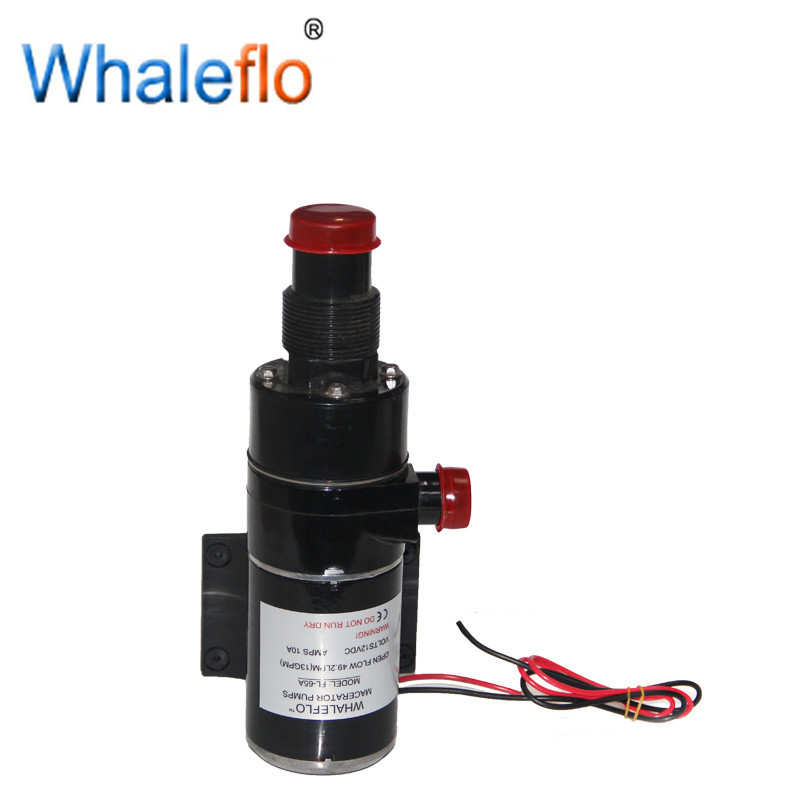

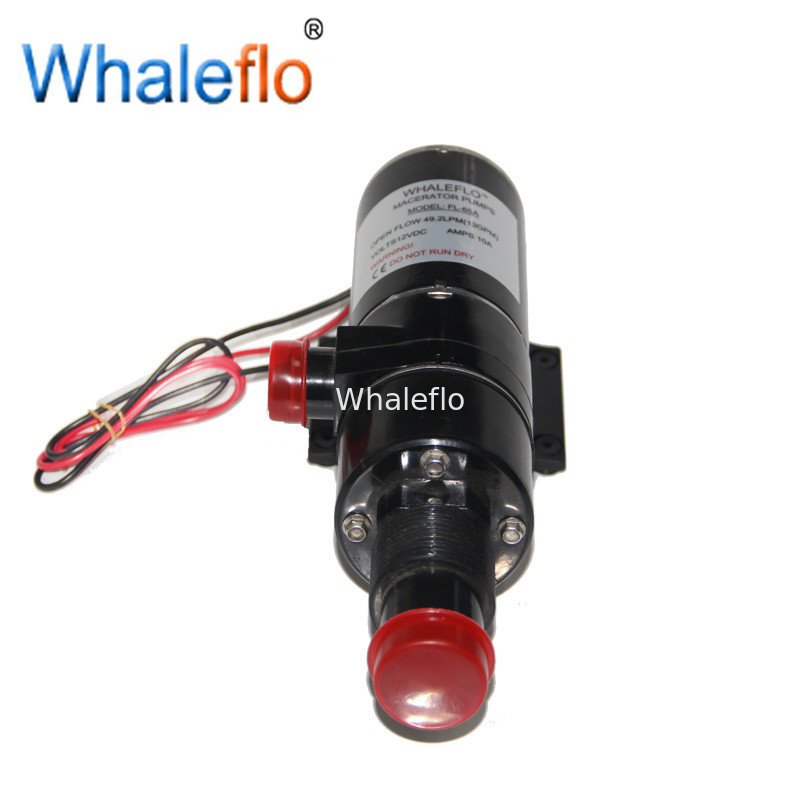

Whaleflo 2 Chamber Diaphragm DC Pump designed for Household Marine Dirty Flushing Drainage Water
|
|
Description:
This Macerator pump is designed specifically for sanitation waste and fish box
evacuations. This high-powered pump incorporates our high quality motor with a new
seamless shell and splash proof design. The Macerator features a premium impeller
design and includes o-ring sealed end bells to withstand the harsh marine environment.
The pump runs with superior performance wihle deliverying up to 13GPM (49.20LPM).
Power available in both 12VDC and 24VDC.
Features:
1, High quolity 12 and 24 Volt water pumps for sea water, fresh water, salt water, bilge water and much more.
2, Pumps are the cost effective, often half the price of other brands of the same quality.
3, A must for boats, caravans, mobiles, cars and any other application where 12 volt or 24volt power exists.
4, No pressure,High volume water
5, We produce Wash Down Agriculture Pumps, Bilge and Shower Pumps, Spraying and general purpose Pumps, Industrial Water Pumps
6, Certificate: Rohs/CE/ISO9001:2000
7, Stainless steel bolts, water resistant pressure swith, snap-in connection, special valve and diagphragm for easy priming
8, Moisture resistant O ring seal motor, double ball bearing motor and Rubber mounted for smooth, quiet operation, sealed drive bearings, corrosion resistant
9, Stable performance, self priming, automatic switch, low noise, corrosion resistant
Specifications:
1, Pump Head 2 chambers
2, Open Flow 45L/Min(consult factory for other flow rate)
3, Max Pressure no pressure(consult factory for other pressure)
4, Motor Configuration lead wires 2-pin connector(consult with factory)
5, 2-pin connector with on/off switch
6, Inlet/ outlet size 2''(50mm)/1''(25mm)
7, Pump grinds waste into small particals for easy disposal
8, Technical date:
Pump Type Demand
Motor Voltage 12 VDC/24V
Technical data:
| Model | Volts | Flow (Litres/min) | Pressure Off | Amp Draw |
| FL-65A | 12 | 49.2 | NO | 10 |
| FL-65B | 24 | 49.2 | NO | 5 |
Demension & Weight:
1. Dimension/pc:31*13*12.2cm
2.Net weight/pc:2.35kg
3. Gross weight/pc:2.55kg
4. Carton dimension (50pcs/30pcs):51.5*42*32cm
MACERATOR COMPONENT
DRAWING OF THE MARINE TOILET PUMP
Our advantage
Sample order is very welcome to have a test, if need more technical specification, pls send email to us !
