Name: 12V 24V DC Oil Diesel Transfer Gear Pump
Brand: Xiamen Whaleflo Industry and Trade Co.,Ltd.
SKU: FP12
Price: 40.00 USD
Availability: InStock

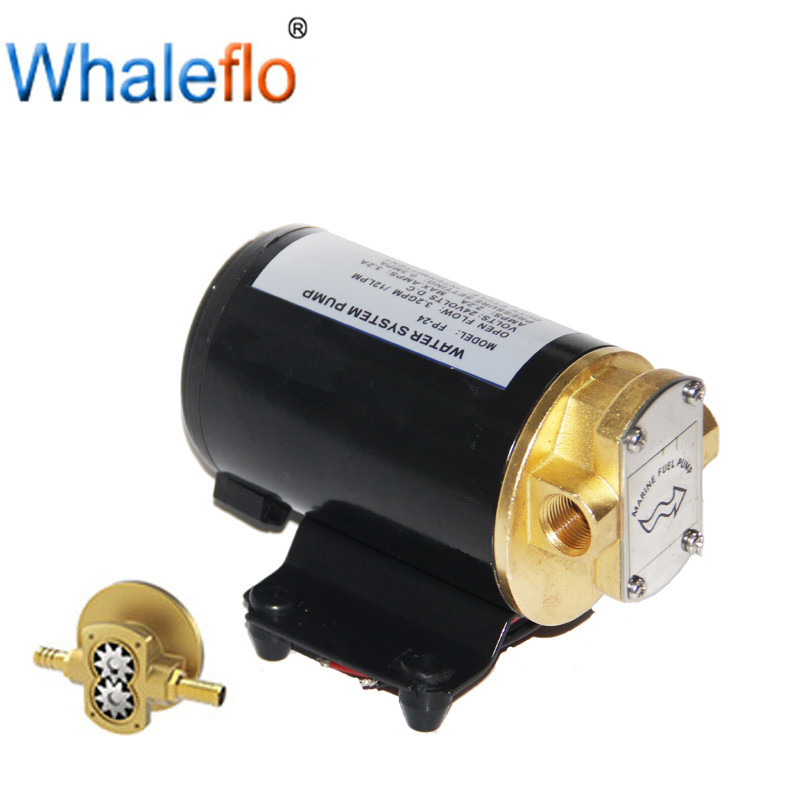

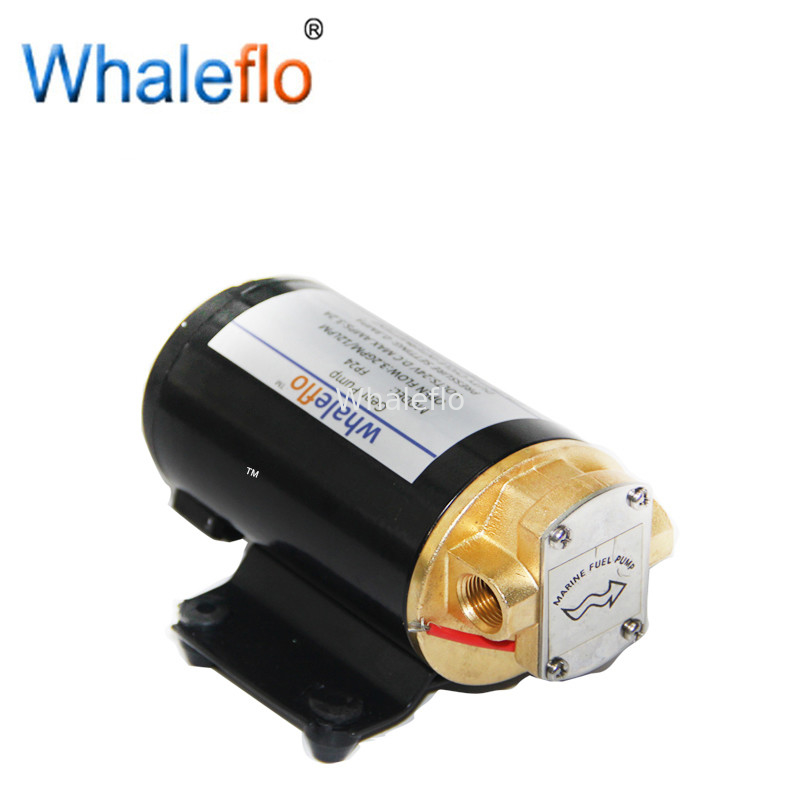

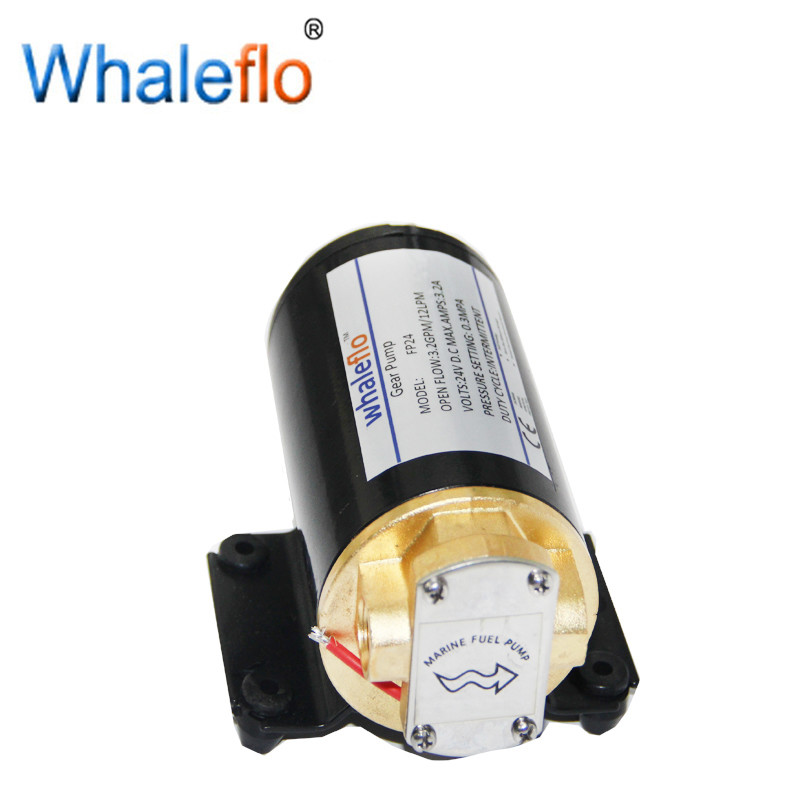

12V 24V DC Oil Diesel Transfer Gear Pump

Basic Information

Place of Origin:	China
Brand Name:	Whaleflo
Certification:	CE ROHS, ISO
Model Number:	FP12

Minimum Order Quantity:	1set
Price:	USD38-42.98USD/PC
Packaging Details:	10pcs into a carton
Delivery Time:	8-15 working days
Payment Terms:	Western Union,T/T,L/C ,Paypal
Supply Ability:	10000 per month

Contact Now

Body Material:

Bronze

Impeller:

Neoprene Compound

Seal:

Lip Type

Port:

3/8''Female Thread,1/2''Barbed Fittings Included

Volt:

12V Dc

Pump Amp:

Max.10.0(amp)

Fuse Amps:

15amps

Motor Type:

Permanent Magnet Type Fully Enclosed Stainless Steel Shaft Ball TypeShaft Bearing Reversible

Self-priming:

3.0m Vertical Lift

Pressure:

Can Generate Pressures Up To 2bar(30psi)

Liquids:

Lubricants, Diesel, And Visous Liquids

Whaleflo 12v 14LPM fuel oil transfer disel gear pump

12V 24V DC Oil Diesel Transfer Gear Pump 0

Product Description

12V 24V DC Oil Diesel Transfer Gear Pump 1

Technical data

Model	Voltage	Open flow(GPM/LPM)	Dimension	Gear	Port	Max Draw(A)
FP12	12V	3.2/12	195130108mm	copper	1/2''FNPT	10
FP24	24V	3.2/12	195130108mm	copper	1/2''FNPT	6

12V 24V DC Oil Diesel Transfer Gear Pump 2

Features:

For use 3.7 GPM(14LPM) open flow output
Self-priming 3m gear electric pumps suitable for lubricants and viscous liquids
Rugged bronze body and stainless steel shaft
pump are built in for intermittent use
Can be mounted on any position

Application:

Diesel:Lubricant;Viscous liquids
Be able to use for water and machinery fuel (except gasoline)

Specification:

Body Materials	Bronze
Impeller	Neoprene compound
Seal	Lip Type
Port(s)	3/8''Female Thread,1/2''Barbed Fittings Included
Voltage	12V dc
Amp Draw	Max.10.0(amp)
Fuse Size	15.0(amp)
Motor Type	Permanent Magnet Type Fully Enclosed Stainless Steel Shaft Ball TypeShaft Bearing Reversible
Self-priming	3.0m vertical lift
Pressure	Can generate pressures up to 2bar(30psi)
Liquids	Lubricants and visous liquids

Technical data:

Model	Volt	Flow (lpm/gpm)	Max.Lift (m)	Amp Draw (A)	Max draw (A)	Packing Size (mm)	N.W./G.W. (kgs)
WLE-12	12	14.0/3.7	3	7	10	215135110	2.48/2.68
WLE-24	24	14.0/3.7	3	4	6	215135110	2.48/2.68

Detailed composition& drawing:

pump pic:

12V 24V DC Oil Diesel Transfer Gear Pump 5

12V 24V DC Oil Diesel Transfer Gear Pump 6

12V 24V DC Oil Diesel Transfer Gear Pump 11

1, Quality Assurance

Every motor carry out basing on standard testing flow, pressure before delivery out.

2, Customer service

Professional feedback within 12 hours.

Warranty 24 month after service and 2 free FOB spare parts.

3, R&D department Experienced engineers who specialized in motor. We developed new model pumps every quarter and we meet different requirement.

4, Identification

CE,ROHS.ISO9--1;2008, ISO8846, FDA, SGS

5, Sales network

USA, Europe, South Australia,Brazil,South africa, Mid- american and other countries.

6, Production Ability

Our plant covers 10000 square meters with full set of automative production lines and integrated testing facilities.

More than 10 production and 300 skilled worker production over 1.6 million capacity pieces.
