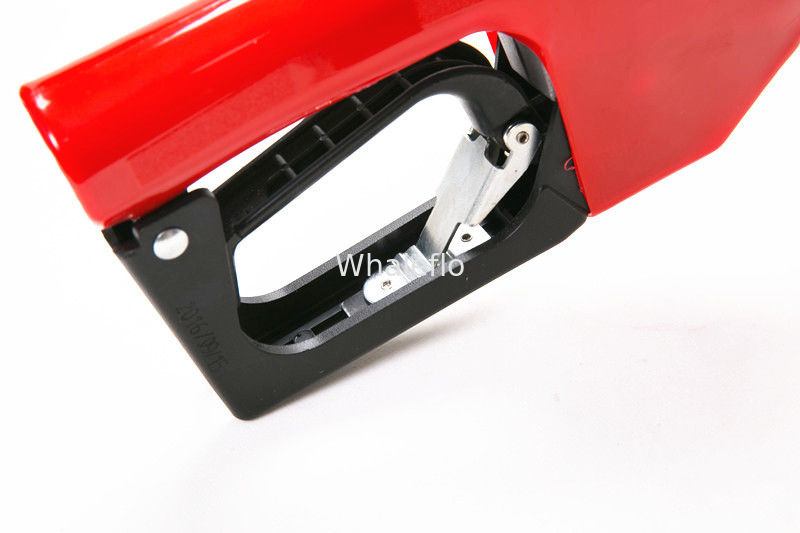

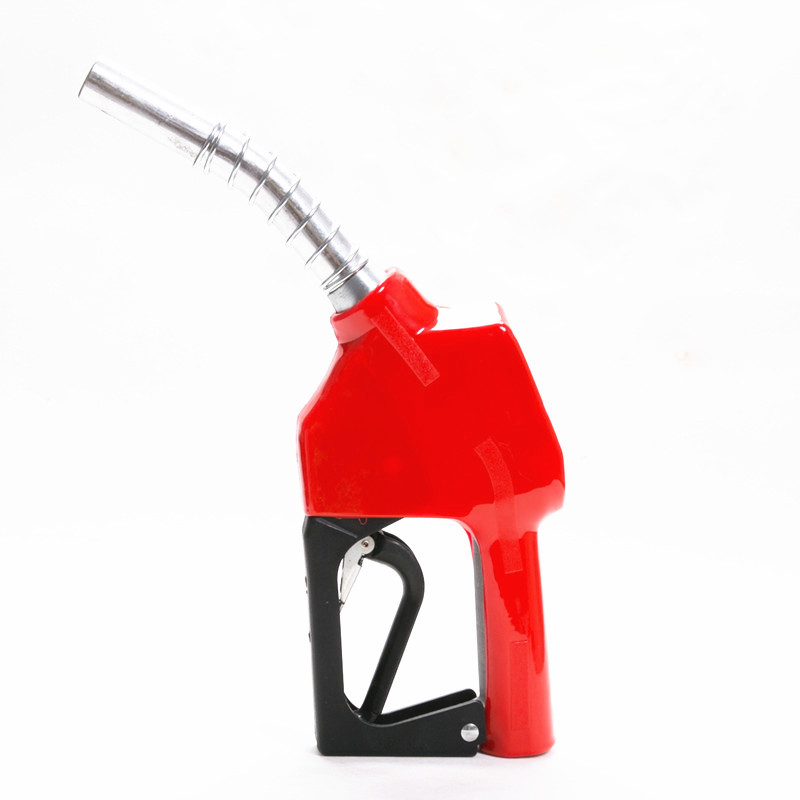

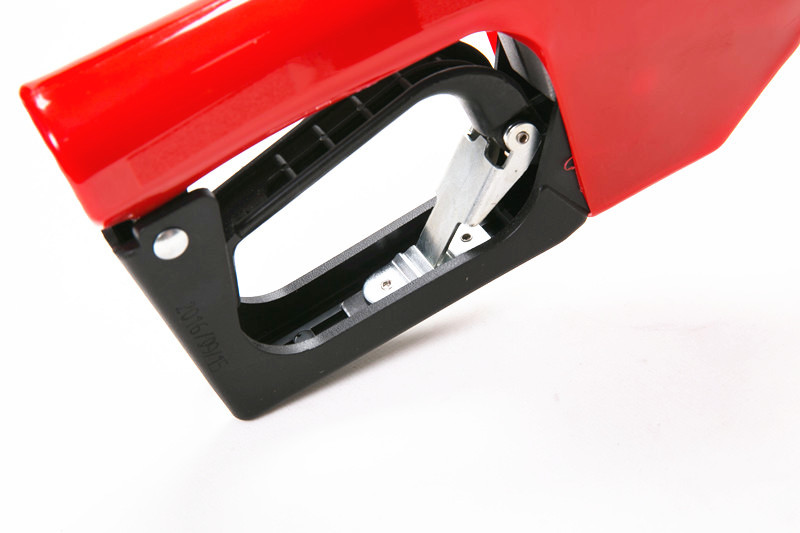

Whaleflo Automatic 3/4"Def Nozzle Supplier Diesel Fuel Transfer Dispenser

Whaleflo Automatic 3/4"Def Nozzle Supplier Diesel Fuel Transfer Dispenser

Features:

• 100% brand new and high quality.

• Made of sturdy aluminum material, this fuel nozzle is durable.

• It supports automatic cut-off function when the oil is full.

• Easy to clean, convenient to install, use and maintain.

• Designed for factories, gas station and household use.

Specification:

Material: Aluminum

Port Size: diesel inlet=outlet=3/4BSP

Flow: 0-60L/min

Size: 40*13.5*5.3cm/15.7*5.3*2.1in

Weight: 1164g(approx.)

Oil inlet: NPT3/4", BSPT3/4".
Oil outlet: 19mm
Flux range: 0-60L/min
Nominal pressure: 0.18MPa.
Self sealing time: 0.1s (max).

Material:aluminum
Seals:Buna-N, biton

Main stem seals:viton cased oil seal / graphite with Teflon

Main stem:stainless steel
Features:

Automatic nozzles for diesel, kerosene and all kinds of gasoline service.
Easily replaced spout simply removes the screw

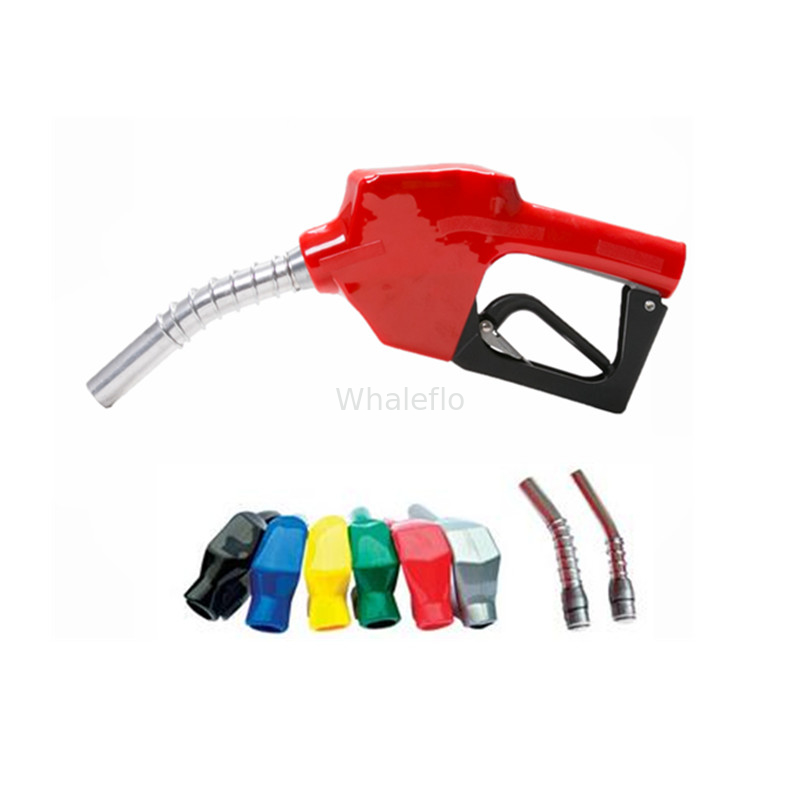

Spout kits available
Low-profile aluminum body: Light weight, easier to handle, provides an attractive, image-enhancing appearance
Vacuum design: Back-sealing design
Selective casting process of body
Sand casting technique or high-pressure casting
Technique. High-pressure casting technique can reduce diesel foaming and static electricity
Hold-open rack is available for full service applications
One-hand control means easy setting to flow rate for customer's convenience
Full hand insulator protects both nozzle and vehicle, and insulates user's hands
Available colors: Color chart on inside back cover
Selective splash guard
100% factory tested
