| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | Rohs/CE/ISO9001 |
| Model Number: | FL-40 |
| Minimum Order Quantity: | 1 piece |
| Price: | USD36-45USD/piece |
| Packaging Details: | 1pc/box,10pcs/ctn |
| Delivery Time: | 5-8 work days after confirmed |
| Payment Terms: | L/C, T/T, Western Union, Western Union,Paypal |
| Supply Ability: | 10000 per month |
| Pump Design: | 4 Chamber Diaphragm | Port Size: | 3/4"(19mm) Quick Attach |
|---|---|---|---|
| Voltage: | 12V DC | Check Valve: | EPDM/VITON |
| Liquid Temp: | (60℃）Maximum | Self-Priming: | 6.5feet/2M Suction Lift |
| Max Flow LPM: | 17LPM(4.5gpm) | Max Pressure: | 40Psi(2.76bar) |
| N.W/G.W: | 2.7/2.9kgs | Application: | MARINE/RV,water Treatment/beverage/food Service/agriculture Irrigation/general Industrial/automotive |
Descripition
Ideal agricultural chemical 12v pump for small boom spraying as can handle more than one outlet at a time. Automatically turns on and off when you turn the outlet on and off.
Specifically designed for several spray nozzles using agricultural chemical sprays. Designed for intermittent use. We also sell a 60 PSI ag pump for larger boom spraying, and a 100 PSI ag pump for use as a spot sprayer. This pump is not for spot spraying.
| Perfect for caravans, boats, motorbikes, trucks,camping and agricultural industry |
| liquid transportation.Use it with fresh or salt water or other chemical liquid. |
| wash or to run your toilet or shower.These pumps your deck automatically |
| turn themselves on and off when you turn the tap on and off. |

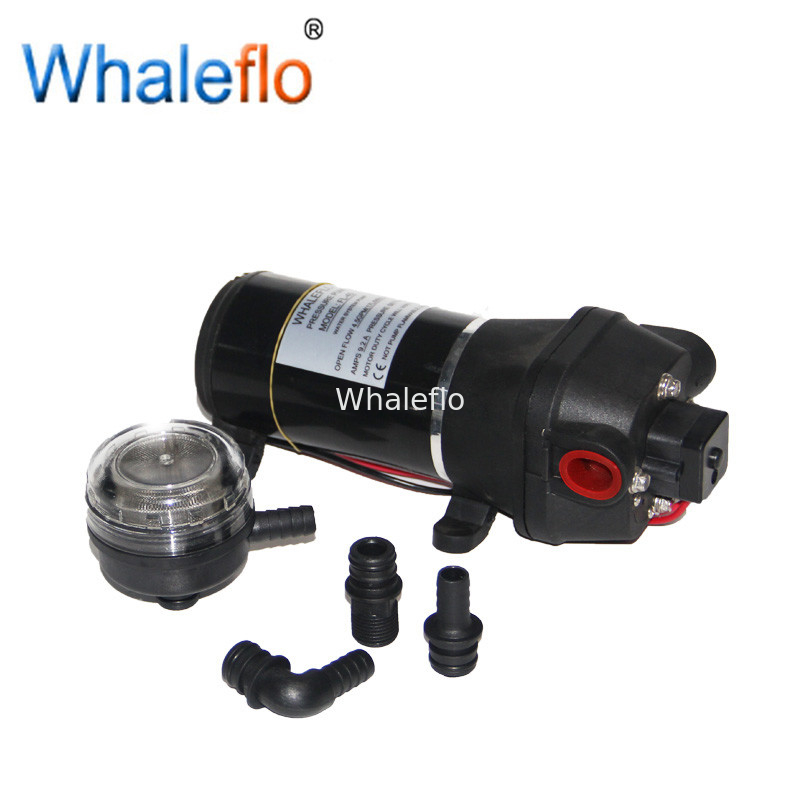

| Comes with filter and fittings.These pumps are for intermittent use only. |
| Feature: | |
| Type: | 4 Chamber Diaphragm |
| Port Size: | 3/4”(19mm) Quick attach |
| Liquid: | 140°F [60 °C] Max |
| Self-priming: | 6 feet [about 2M] |
| Max pressure | 40psi(2.76bar);can be adjust to 60psi. |
| Run Dry: | Yes (within 30 second) |
| Motor: | Permanent Magnet, Intermittent |
| Duty Protection: | Thermal Overload, Automatic Restart |
| Volts: | 12/24 VDC motors standard |
| Standard Connector: | 1pc 3/4” Male Thread, 1pc 1/2” hose barb, |
| 1pc 1/2” hose barb filter | |
| Approved Certificate: | CE and RoHS |
| √ High volume flow rate, Built-in chec valve |
| √ Permanent Magnet motor with longer lifetime |
| √ Antivibration pad,easy installation. |
| √ Self-priming,Top quality Automatic Pressure Switch. |
| √ Thermally Protected |
| √ Low Noise,with excellent resistant to chemical corrosion. |
STANDARD PUMP CONFIGURATIONS
| Model | Volt | Flow rate(LPM/GPM)) | Pressure(PSI/BAR) | Valve | Amp Draw(A) |
| FL-30 | 12Vdc | 10.0(2.63) | 17(1.17) | EPDM/VITON | 2.2 |
| FL-31 | 24Vdc | 10.0(2.63) | 17(1.17) | EPDM/VITON | 1.5 |
| FL-35 | 12Vdc | 12.5(3.29) | 35(2.41) | EPDM/VITON | 7.0 |
| FL-34 | 24Vdc | 12.5(3.29) | 35(2.41) | EPDM/VITON | 4 |
| FL-40 | 12Vdc | 17.0(4.47) | 40(2.76) | EPDM/VITON | 9.2 |
| FL-44 | 24Vdc | 17.0(4.47) | 40(2.76) | EPDM/VITON | 5.6 |
| FL-60 | 12Vdc | 17.0(4.47) | 60(4.13) | EPDM/VITON | 15 |
TECHNICAL DATA
1, Quality Assurance
Every motor carry out basing on standard testing flow, pressure before delivery out.
2, Customer service
Professional feedback within 12 hours.
Warranty 24 month after service and 2 free FOB spare parts.
3, R&D department Experienced engineers who specialized in motor. We developed new model pumps every quarter and we meet different requirement.
4, Identification
CE,ROHS.ISO9--1;2008, ISO8846, FDA, SGS
5, Sales network
USA, Europe, South Australia,Brazil,South africa, Mid- american and other countries.
6, Production Ability
Our plant covers 10000 square meters with full set of automative production lines and integrated testing facilities.
More than 10 production and 300 skilled worker production over 1.6 million capacity pieces.
FAQ
Q: Are you a manufacturer or trading company?
Our plant covers 10000 square meters with full set of automative production lines and integrated testing facilities. Our sales depart located in Xiamen, China.
Q: What's your main products of your company?
A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm
pump,Marine pump,RV pump, bilge pump )for over 8 years with excellent quality and competitive price.
Q. What is your MOQ?
Our company is pleasure accept all items 1pcs order for testing.If bulk order, pls send inquiry to get more discount.
Q. What about the delivery time?
A.The stock samples can be sent to you within 2-3days by international express after received
A.The batch order can be shipped to you in about 15-20 working days after order confirmation (by air or by sea
Q. Can I buy different types in one container?
A:Yes, you can mix different types in one container.
Q.How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application, pump working duty and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.If you don’t know the details for the pump, tell us the usage, must suitable model will be recommended
Q.Do you accept OEM/ODM
A:Yes. We are also the OEM supplier of many famous companies.
Q. What is your terms of payment.
A:Usually we accept T/T , Alipay ,Western Union or PayPal.
Q. What is your warranty?
A:24month warranty and 2% spare parts after service, and within 24 hours reply will be provided to solve customers’ problems.
Q. What is your port of loading?
A: Xiamen Port.
Sample order is welcome
