| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | Rohs/CE/ISO9001 |
| Model Number: | FLO-2402A |
| Minimum Order Quantity: | 1 piece |
| Price: | USD8.99-9.99USD/piece |
| Packaging Details: | 1 piece in a box |
| Delivery Time: | 5-8 work days after confirmed |
| Payment Terms: | L/C, T/T, Western Union, Western Union,Paypal |
| Supply Ability: | 100000pcs/month |
| Theory: | Electromagnetic Pump | Structure: | Diaphragm Pump |
|---|---|---|---|
| Typical Application: | Marine/RV/Camping/Water Treatment/Beverage/Food Service/Agriculture Irrigation/General Industrial/Automotive | Pump Design: | 2 Chamber Diaphragm |
| Port Size: | 3/8"BSPT Female Thread | Voltage: | 12V/24V |
| Check Valve: | EPDM/VITON | Liquid Temp: | (60℃）Maximum |
| Self-Priming: | 4feet/1.2M Suction Lift | Max Flow LPM: | 4LPM(1.0gpm) |
| Max Pressure: | 80Psi(2.4bar) | Amps: | 1.3 |
| N.W/G.W: | 0.68/0.72KGS |
FEATURES & BENEFITS| Whaleflo Micro water pump | |
| pump style | 2 chamber diaphragm |
| motor | Permanent |
| inlet/outlet port | 3/8"(10mm)hose barb |
| max pressure | 80psi |
| diaphragm materials | viton or epdm |
| Priming Capabilities | 4 feet (1.2 m) suction lift |
TECHNICAL DETAILS| Model | Volt(V) | Flow Rate(LPM/GPM) | Demend Pressure(PSI/Bar) | Amp Draw(A) |
| FLO-2201 | 12 | 2.0(0.52) | 55(3.79) | 1.8 |
| FLO-2202 | 12 | 3.8(1.0) | 35(2.41) | 3.0 |
| FLO-2202-1 | 12 | 4.3(1.13) | 35(2.41) | 3.5 |
| FLO-2203 | 12 | 2.6(0.68) | 70(4.83) | 2.1 |
| FLO-2203-1 | 12 | 3.1(0.82) | 70(7.83) | 2.2 |
| FLO-2202A | 12 | 4.0(1.05) | 80(5.52) | 2.6 |
| FLO-2401 | 24 | 2.0(0.52) | 55(3.79) | 0.9 |
| FLO-2402 | 24 | 3.8(1.0) | 35(2.41) | 1.5 |
| FLO-2403 | 24 | 2.6(0.62) | 70(4.83) | 1.0 |
| FLO-2402A | 24 | 4.0(1.05) | 80(5.52) | 1.3 |
|

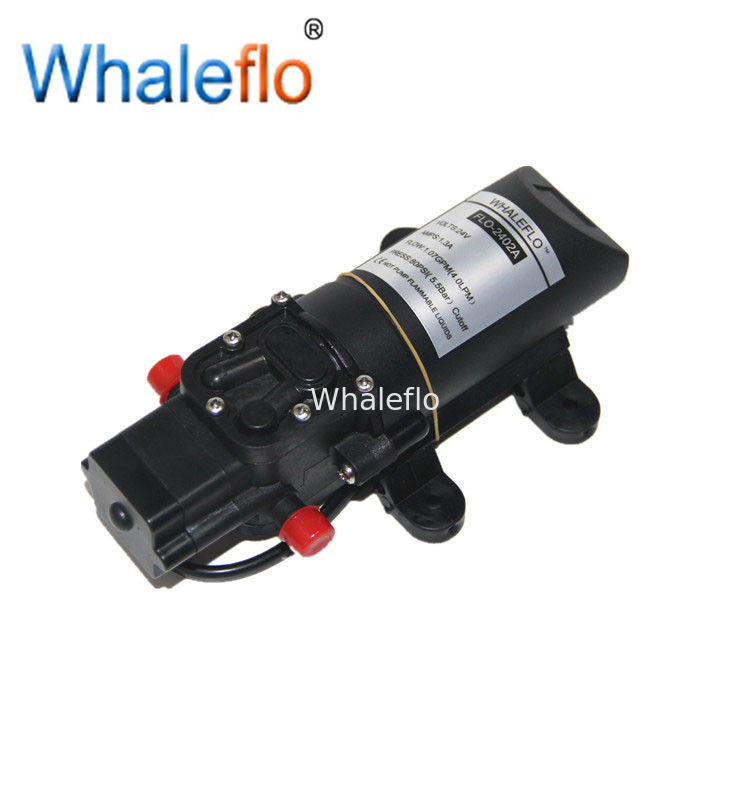

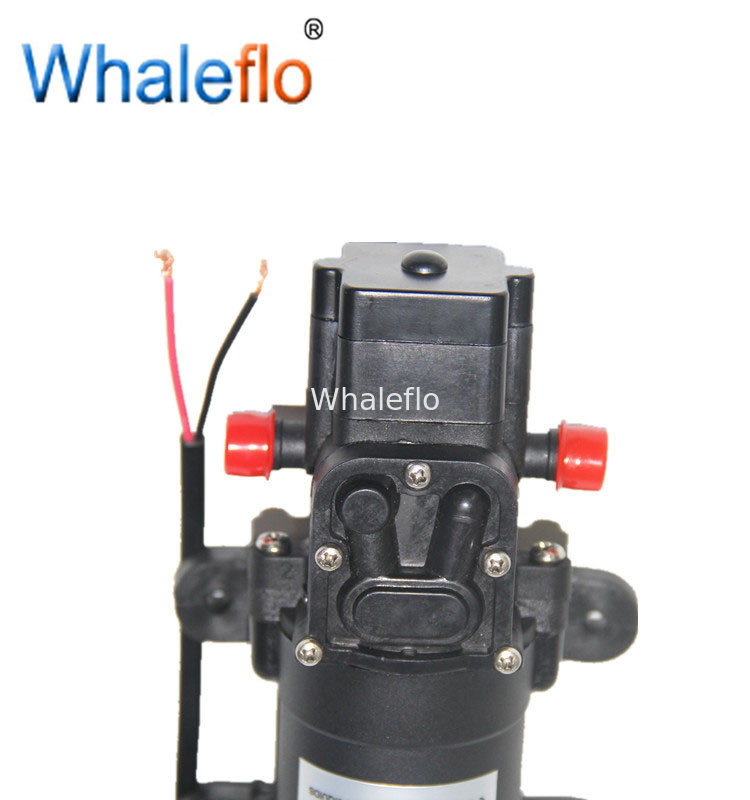

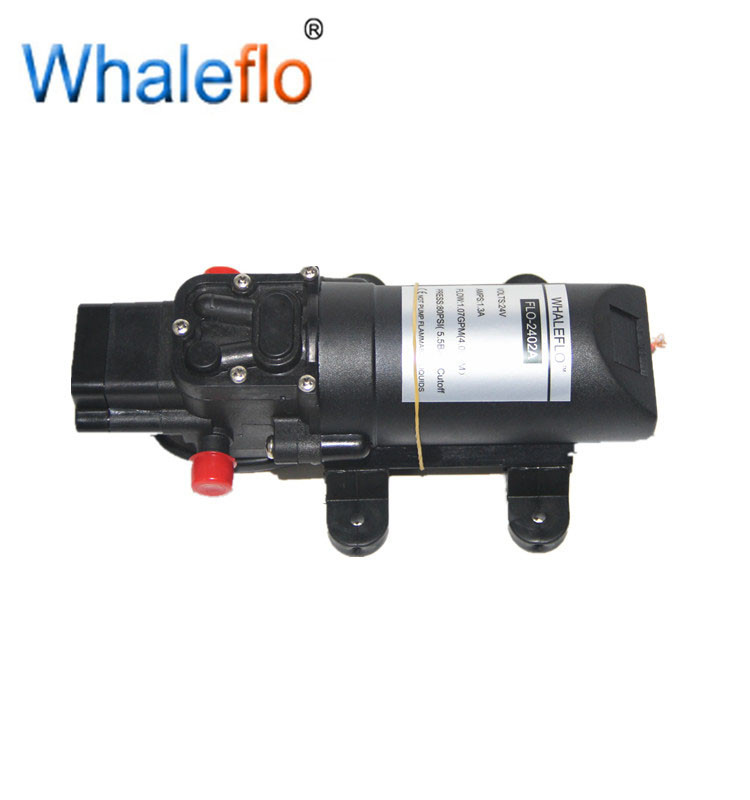

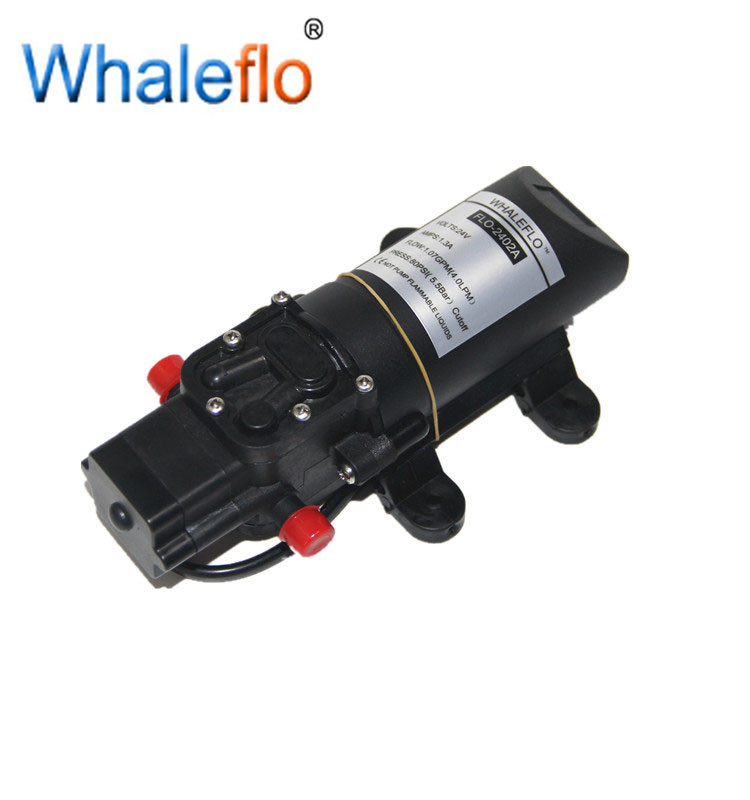

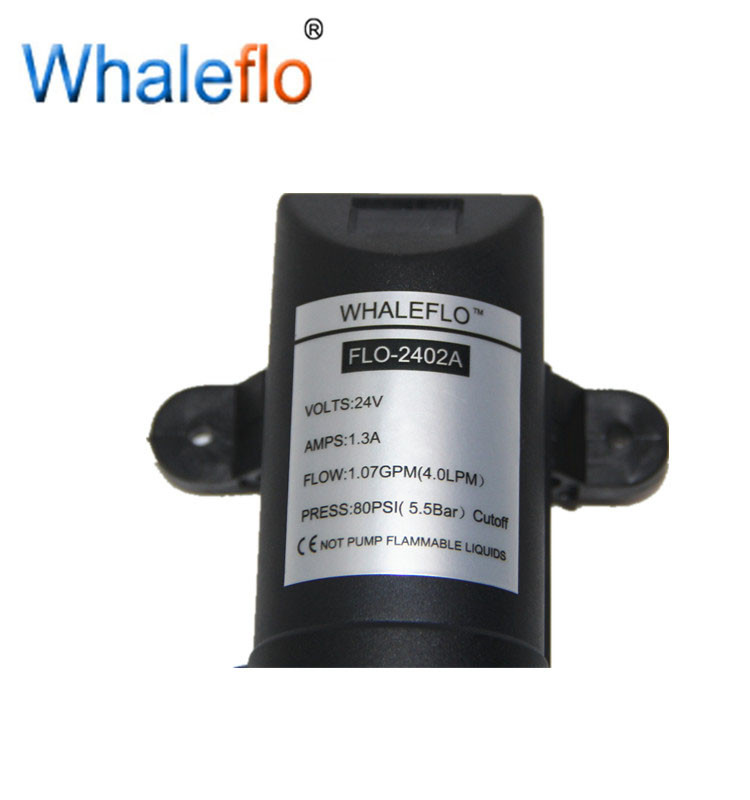

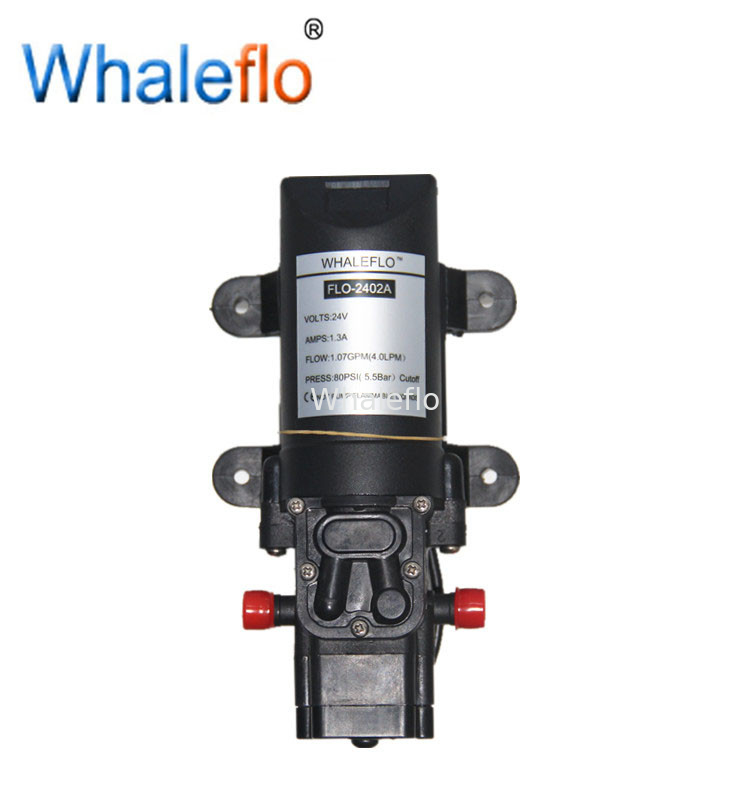

Whaleflo 2 Chamber Diaphragm DC Pump FLO Series designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing.
It built-in pressure switch which automatically starts and stops the pump when faucet is opened and closed.
|
||||
| Dimension/pc | 18.5*11*6.5cm |
| Net Weight/pc | 0.64kg |
| Gross Weight/pc | 0.72kg |
| Carton Dimension(50pcs) | 56.5*38.5*36.5cm |
