| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | CE ROHS, ISO |
| Model Number: | FP12 |
| Minimum Order Quantity: | 1 piece |
| Price: | USD38-42.98USD/PC |
| Packaging Details: | 10pcs into a carton |
| Delivery Time: | 8-15 working days |
| Payment Terms: | Western Union,T/T,L/C ,Paypal |
| Supply Ability: | 10000 per month |
| Body Material: | Bronze | Impeller: | Neoprene Compound |
|---|---|---|---|
| Seal: | Lip Type | Port: | 3/8''Female Thread,1/2''Barbed Fittings Included |
| Volt: | 12V Dc | Pump Amp: | Max.10.0(amp) |
| Fuse Amps: | 15amps | Motor Type: | Permanent Magnet Type Fully Enclosed Stainless Steel Shaft Ball TypeShaft Bearing Reversible |
| Self-priming: | 3.0m Vertical Lift | Pressure: | Can Generate Pressures Up To 2bar(30psi) |
| Liquids: | Lubricants, Diesel, And Visous Liquids |
Ideal to use for the bilge, deckwash or shower drain, this pump provides a high flow and hassle free operation. The pump has a heavy duty construction with a bronze head unit. It is continuously rated, has a high discharge head and is self priming.
A reliable marine grade pump. Bilge debris presents no problem to these robust pumps.
Technical data
| Model | Voltage | Open flow(GPM/LPM) | Dimension | Gear | Port | Max Draw(A) |
| FP12 | 12V | 3.2/12 | 195*130*108mm | copper | 1/2''FNPT | 10 |
| FP24 | 24V | 3.2/12 | 195*130*108mm | copper | 1/2''FNPT | 6 |
Features:
Application:
Specification:
| Body Materials | Bronze |
| Impeller | Neoprene compound |
| Seal | Lip Type |
| Port(s) | 3/8''Female Thread,1/2''Barbed Fittings Included |
| Voltage | 12V dc |
| Amp Draw | Max.10.0(amp) |
| Fuse Size | 15.0(amp) |
| Motor Type | Permanent Magnet Type Fully Enclosed Stainless Steel Shaft Ball TypeShaft Bearing Reversible |
| Self-priming | 3.0m vertical lift |
| Pressure | Can generate pressures up to 2bar(30psi) |
| Liquids | Lubricants and visous liquids |
Technical data:
| Model | Volt | Flow (lpm/gpm) |
Max.Lift (m) |
Amp Draw (A) |
Max draw (A) |
Packing Size (mm) |
N.W./G.W. (kgs) |
| WLE-12 | 12 | 14.0/3.7 | 3 | 7 | 10 | 215*135*110 | 2.48/2.68 |
| WLE-24 | 24 | 14.0/3.7 | 3 | 4 | 6 | 215*135*110 | 2.48/2.68 |
Detailed composition& drawing:

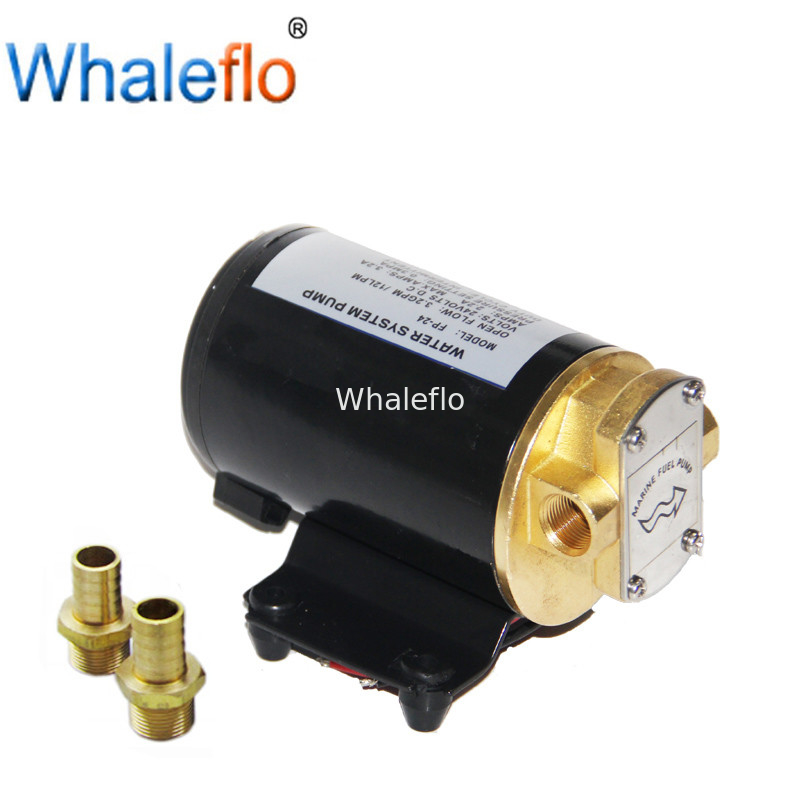

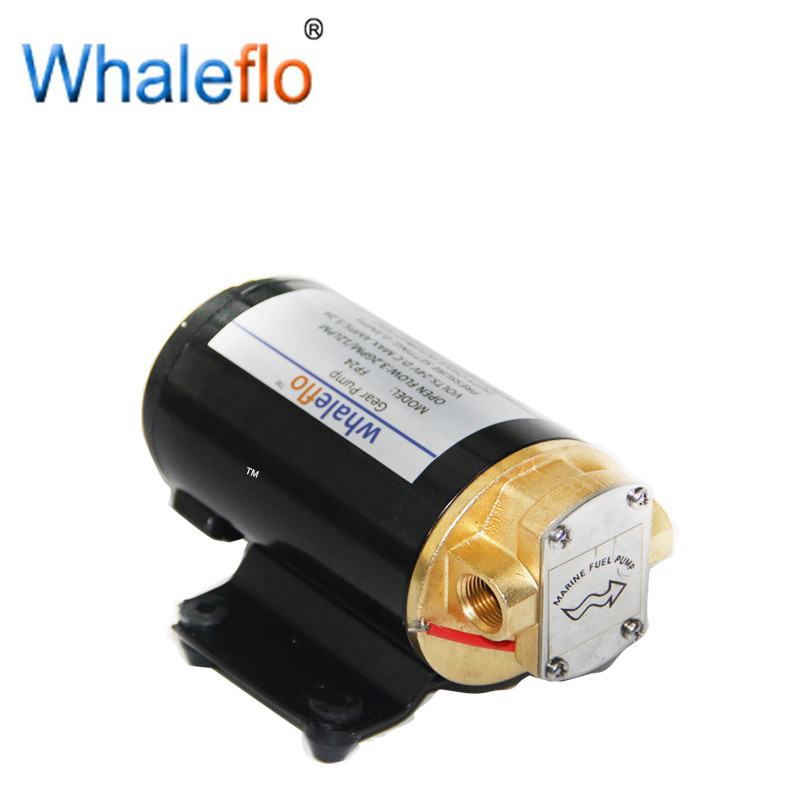

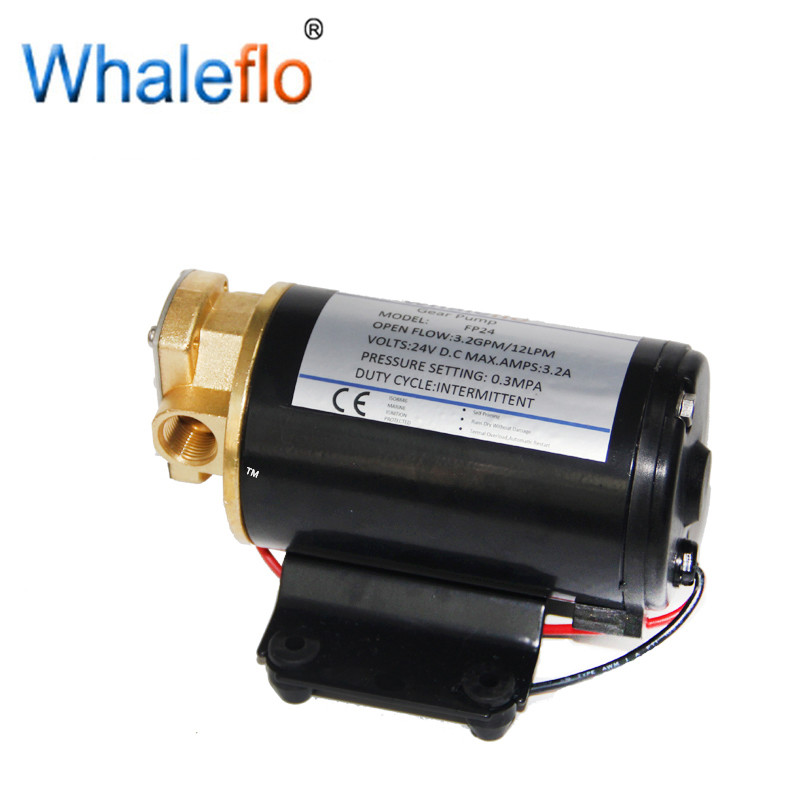

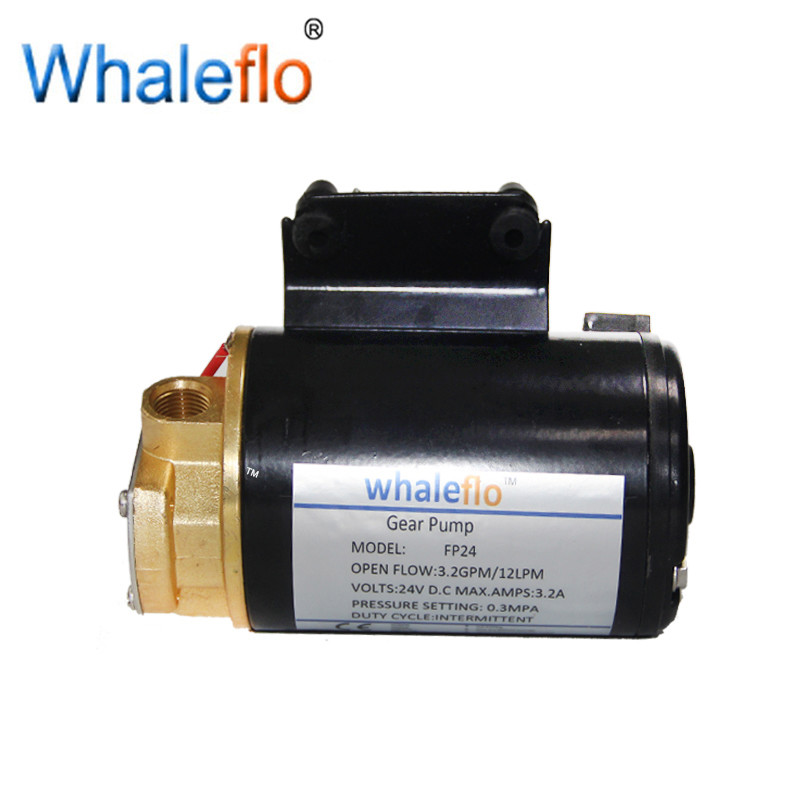

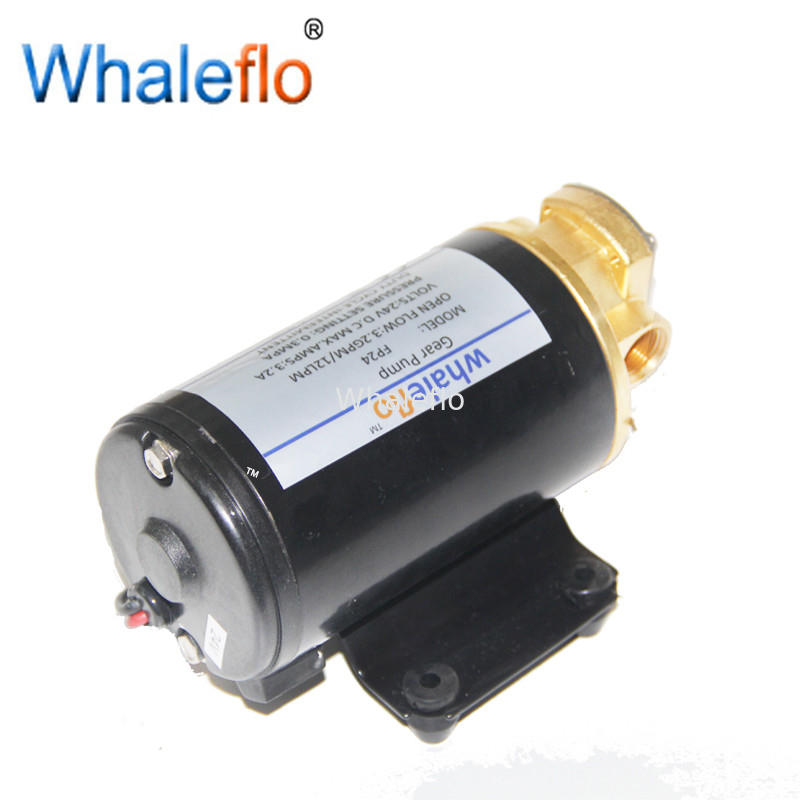

pump pic:
1, Quality Assurance
Every motor carry out basing on standard testing flow, pressure before delivery out.
2, Customer service
Professional feedback within 12 hours.
Warranty 24 month after service and 2 free FOB spare parts.
3, R&D department Experienced engineers who specialized in motor. We developed new model pumps every quarter and we meet different requirement.
4, Identification
CE,ROHS.ISO9--1;2008, ISO8846, FDA, SGS
5, Sales network
USA, Europe, South Australia,Brazil,South africa, Mid- american and other countries.
6, Production Ability
Our plant covers 10000 square meters with full set of automative production lines and integrated testing facilities.
More than 10 production and 300 skilled worker production over 1.6 million capacity pieces.
Sample order is welcome
