| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | CE |
| Model Number: | HV-30M |
| Minimum Order Quantity: | 1 piece |
| Packaging Details: | 1 piece in a box |
| Delivery Time: | 5-8 work days after confirmed |
| Payment Terms: | 10000 per month |
| Supply Ability: | 10000 per month |
| Theory: | Reciprocating Pump | Power: | Electric, On/off Switch |
|---|---|---|---|
| Pressure: | Low Pressure,Max 40psi | Volt: | 230V AC |
| Duty Cycle: | Working Intermittent | Body Material: | Aluminium |
| Pump Design: | 5 Chamber Diahpragm | Port Size: | Hose Connection 3/4'' 1'' |
| Diaphragm Material: | Viton | Liquid Of Adblue: | Adblue, Water, Urea, Oil |
| Diaphragm: | Santoprene | Max Flow: | 30LPM |
| Self Priming: | 2-3meter |
Product Detail

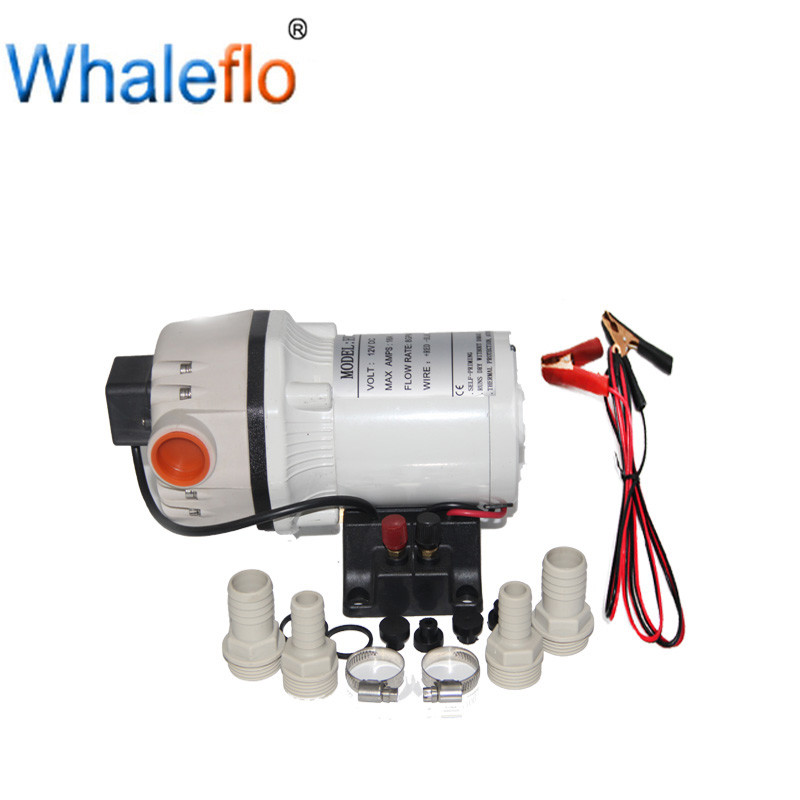

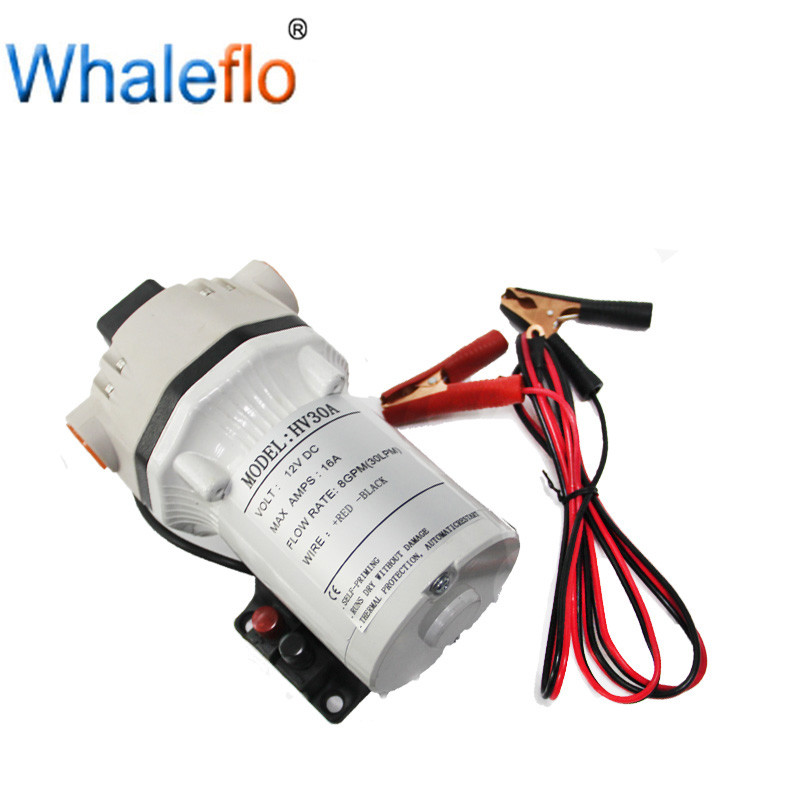

DC Adblue Pump System for truck and bus fleets
PRODUCT DESCRIPTION
Diesel Exhaust Fluid (DEF): New Directives aimed at reducing the emission of pollutants into the atmosphere are complied with by installing a catalyser on the truck (SCR), which requires the use of a special liquid blend of water and urea known as WHALEFLO, Arla or AUS 32 depending on reference market.
Every truck has to be equipped with an additional tank to store this special liquid. On the basis of meticulous analyses of the issues relating to urea transfer, WHALEFLO has developed a reliable range of products made with materials that are compatible with this fluid.
WHALEFLO is a non-toxic urea solution used for chemically reducing nitrogen oxide (NOx) levels in diesel engine exhaust gases.
With effect from JULY,2006, all new vehicles sold in Europe must comply with the Euro 4 standard, which significantly limits polluting emissions.
WHALEFLO enables latest-generation heavy vehicles to meet the envisaged limits, without compromising the performance or efficiency of their engines in any way.

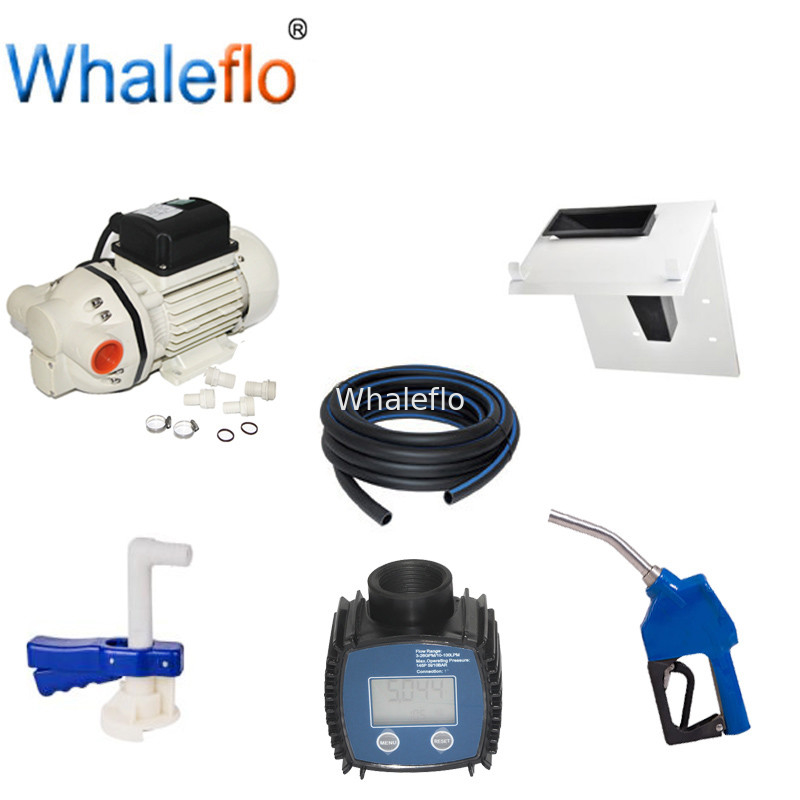

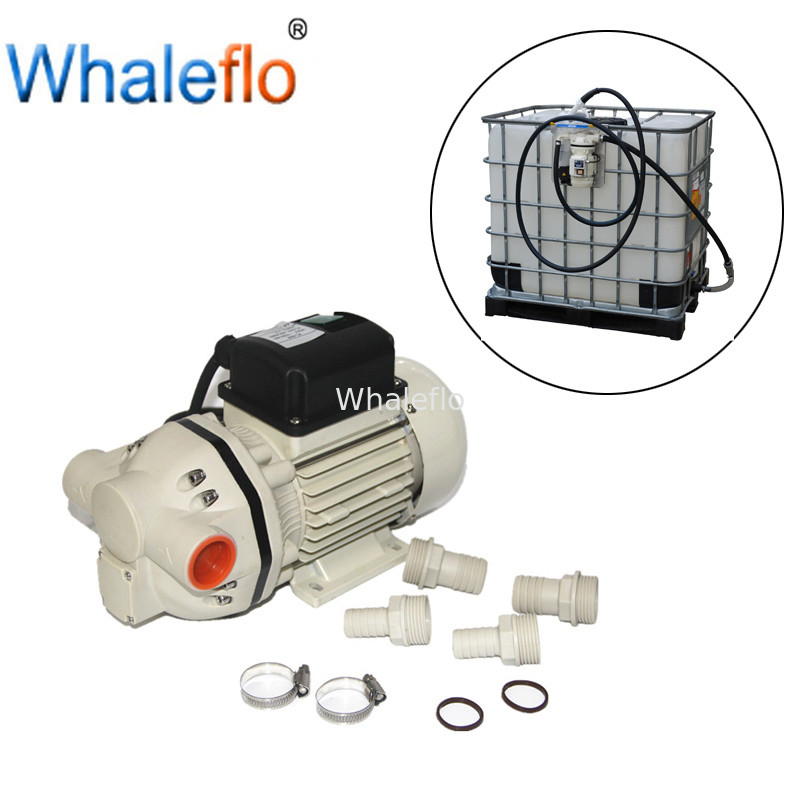

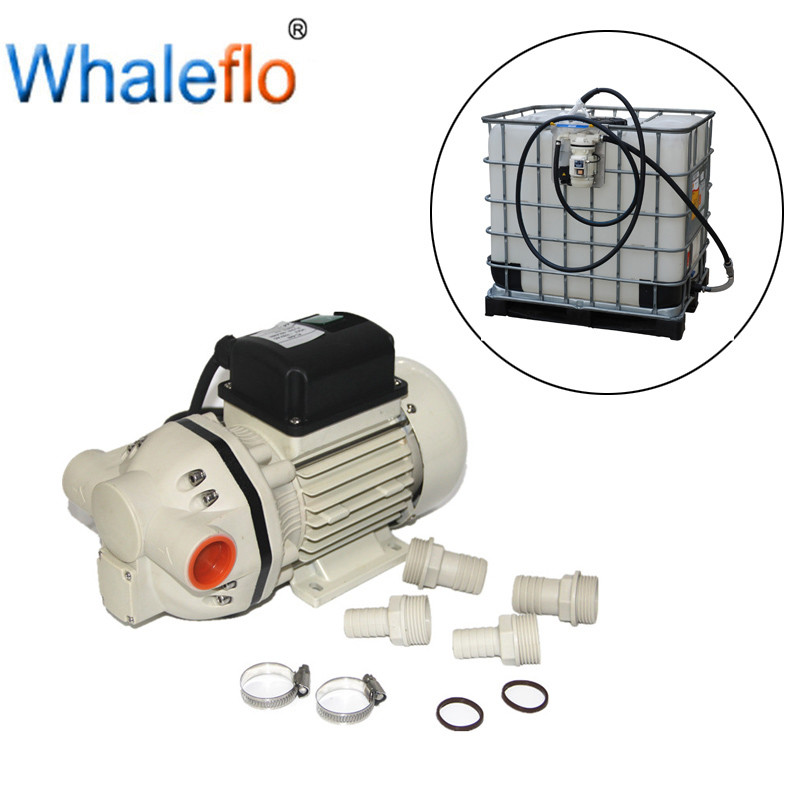

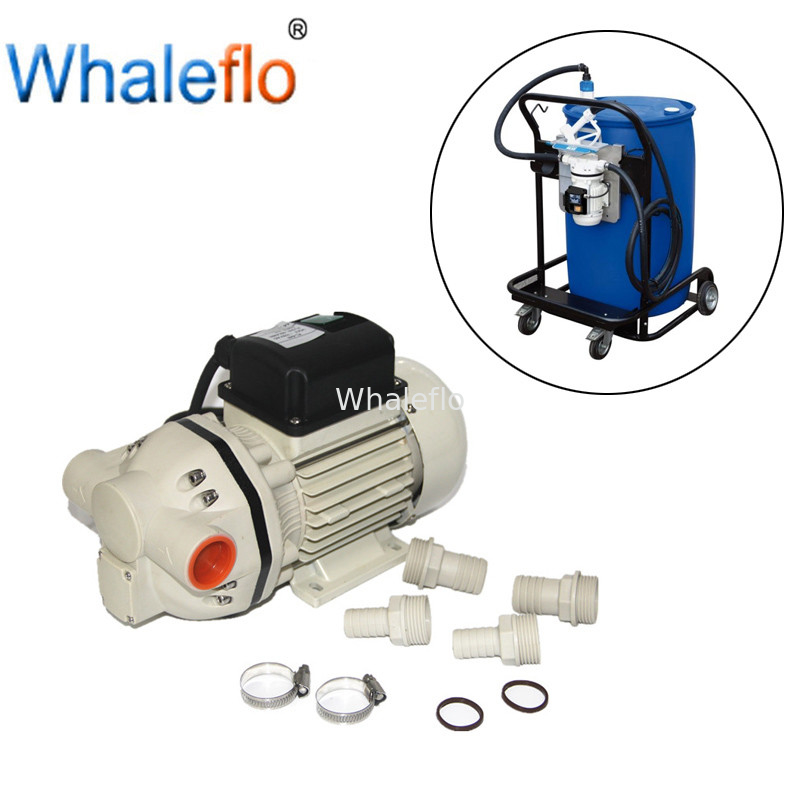

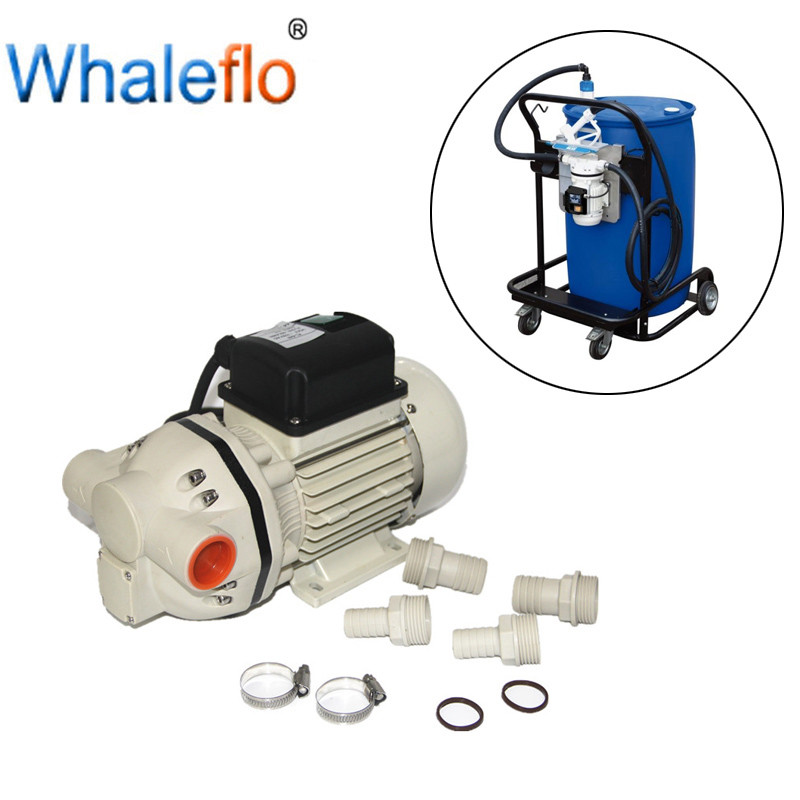

WHALEFLO offers a comprehensive range of transfer equipment and dispensers including pumps, flow meters, nozzles and all the necessary accessories for Urea transfer units. The units can be easily applied to and removed from IBC tanks and drums.
Function:
* Permanent magnet and continuous duty
* Built-in pressure switch automatically starts and stops pump when faucets is opened and closed
* Self-priming so pump can be located above water tank
* Runs dry for extended periods of time without damage
* Hold excellent motor keep stable temperature of pump
| Self Priming | More than 3 meters |
| Port Size: | Hose tail connection 3/4'' |
| Pressure Max. | 40PSI (2.8Bar) |
| Diaphragm Material | Viton |
| Check valve Made | Viton |
| Voltage: | 12V,24V DC, 115V,220V,230V AC |
| Power: | ON/OFF Switch |
| Body Material(DC) | Polypropylene |
| Body Material (AC) | Aluminium |
| Liquid of application: | Water,oil, Urea, |
FEATURES
Permanent magnet and continuous duty
Built-in pressure switch automatically starts and stops pump when faucets is opened and closed
Self-priming so pump can be located above water tank
Runs dry for extended periods of time without damage
Hold excellent motor keep stable temperature of pump
TECHNICAL OF ADBLUE PUMP
The WHOLE UREA SYSTEM INCLUDING AS BEBLOW
When using an Adblue IBC or an Adblue Drum to refill your trucks or bus , it will also need professional adblue pumps for the dispensing.whaleflo offers a complete range AdBlue pump equipment all fitted to the needs of truck-and bus owners. The range starts with a manual operated pump up to a double bunded mobile AdBlue system. All our pumps are fiedl tested and AdBlue proof.
Sample order is very welcome to have a test, if need more technical specification, pls send email to us !
