| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | CE,RoHs |
| Model Number: | WLBPG1100-12V |
| Minimum Order Quantity: | 500 |
| Packaging Details: | 1pcs per box, 20pcs in a carton |
| Delivery Time: | 7-15 WORK DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 Piece/Pieces per Month |
| Volt: | 12V DC | Flow Rate: | 1100GPH |
|---|---|---|---|
| Head: | 5M | Wire: | 100cm |
| Outlet Dia: | 19mm-29mm | Color: | White/blue |
| Outlet Dia: | 29mm | Weight: | 0.47/0.52kg |
| Amps: | 3.8A |

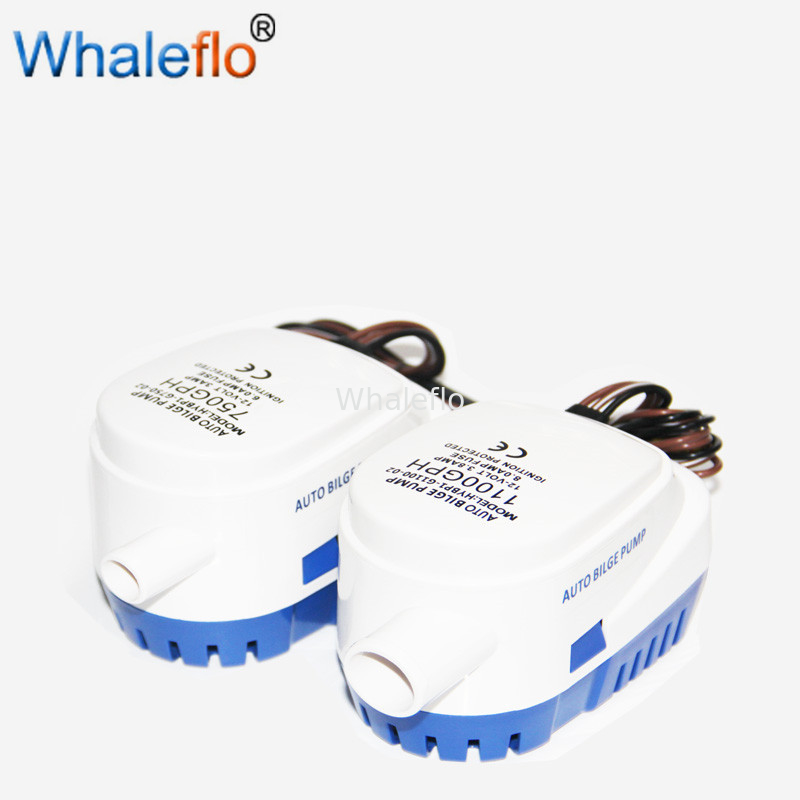

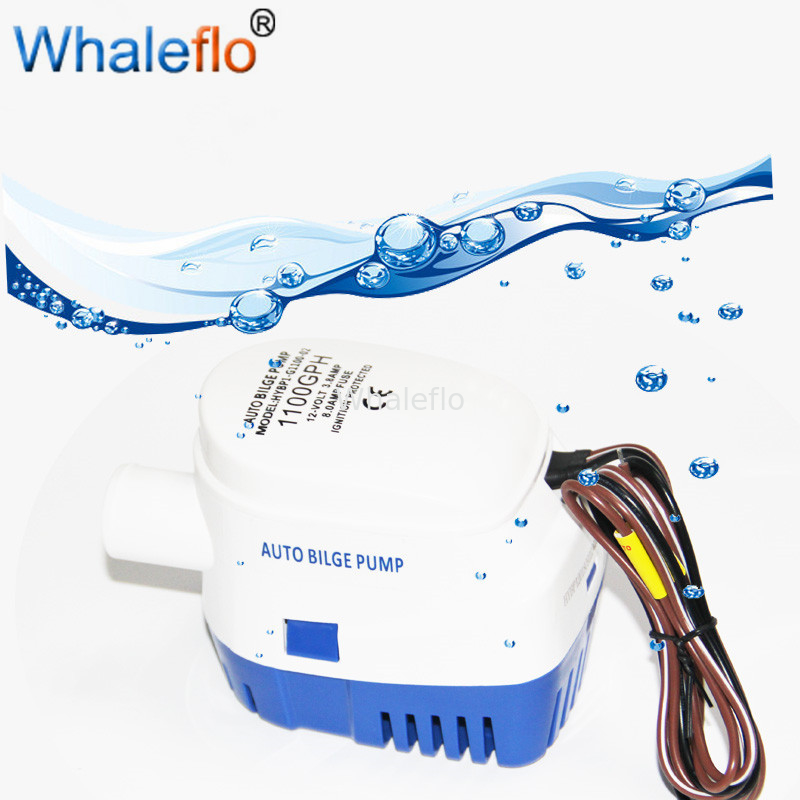

Whaleflo 1100GPH 12V DC Marine Automatic Bilge Pump For Boat Head 5.0M Current 3.8A Outlet 29mm
MORE FEATURES
PRODUCT DESCRIPTION
Whaleflo self-priming bilge pump All-in-one pump & float switch. No additional float switch required. Pump turns on
when water level rises & shuts off when water is removed.
With the good quality and the convenient potable, Whaleflo bilge pump major export to USA, Netherland , Australia market .
How A Bilge Pump Works

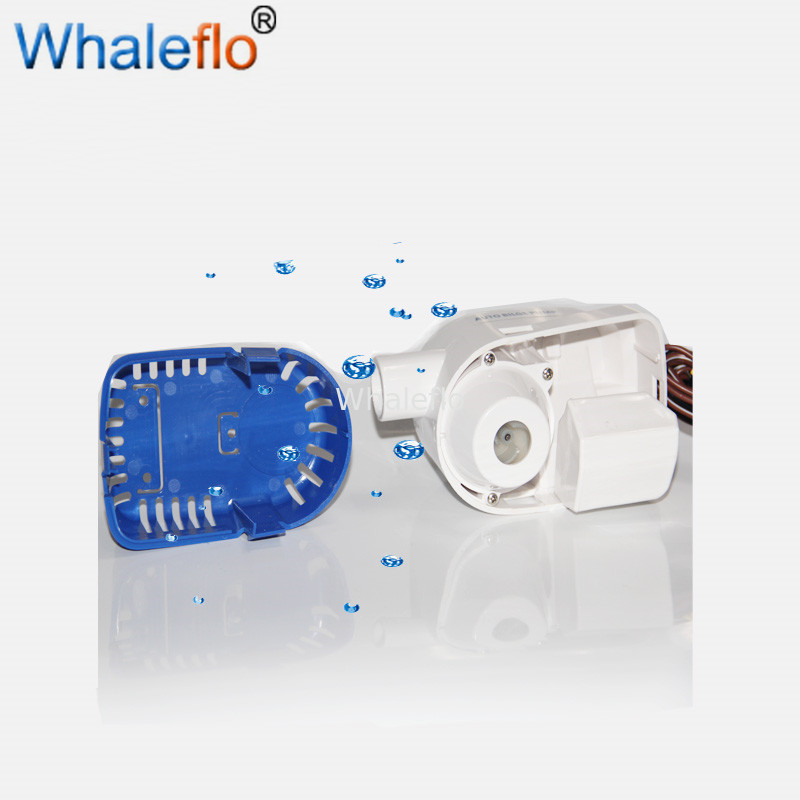

Automatic bilge pumps with Built-in switch. Removal of the motor cartridge allows for easy cleaning of the strainer and impeller in the event that the pump becomes clogged with debris.
Electric Submersible Pumps are by far the most popular type of electric Bilge Pumps, submersibles give very high outputs, are cost effective, have low amp draw and are easy to install.
Bilge pumps are designed to exhaust standing water only. They are not intended to prevent rapid accumulation of on-board water due to rough weather, hull damage, and/or other unsafe
navigational conditions.
110GPH
TECHNICAL DATA
| Model | Volt | FLow | Current | Head | Wire | Outlet Dia | N.W/G.W |
| WLBP-G600-01 | 12 | 600GPH | 2.5A | 3.5m | 100cm | 19 mm/3/4″ | 0.47/0.52 kg |
| WLBP-G600-02 | 24 | 600GPH | 1.5A | 3.5m | 100cm | 19 mm/3/4″ | 0.47/0.52 kg |
| Model | Volt | FLow | Current | Head | Wire Head | Outlet Dia | N.W/G.W |
| WLBP-G750-01 | 12 | 750GPH | 3.0A | 4m | 100cm | 19 mm/3/4″ | 0.47/0.52 kg |
| WLBP-G750-02 | 24 | 750GPH | 1.6A | 4m | 100cm | 19 mm/3/4″ | 0.47/0.52 kg |
| Model | Volt | FLow | Current | Head | Wire | Outlet Dia | N.W/G.W |
| WLBP-G1100-01 | 12 | 1100GPH | 3.8A | 5.0m | 100cm | 29 mm/ 1-1/8″ | 0.47/0.52 kg |
| WLBP-G1100-02 | 24 | 1100GPH | 2.0A | 5.0m | 100cm | 29 mm/ 1-1/8″ | 0.47/0.52 kg |
DIMENSION DRAWING OF MARINE BILGE PUMP
HOW AN AUTOMATIC BILGE PUMP WORK ?
Automatic bilge pumps with Built-in switch. Removal of the motor cartridge allows for easy cleaning of the strainer and impeller
in the event that the pump becomes clogged with debris. Electric Submersible Pumps are by far the most popular type of electric Bilge Pumps,
submersibles give very high outputs, are cost effective, have low amp draw and are easy to install. Bilge pumps are designed to
exhaust standing water only. They are not intended to prevent rapid accumulation of on-board water due to rough weather, hull damage,
and/or other unsafe navigational conditions.
Application
Working drawing:
Certificate
FAQ
Q: Are you a manufacturer or trading company?
Our plant covers 10000 square meters with full set of automative production lines and integrated testing facilities. Our sales depart located in Xiamen, China.
Q: What's your main products of your company?
A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm
pump,Marine pump,RV pump, bilge pump )for over 8 years with excellent quality and competitive price.
Q. What is your MOQ?
Our company is pleasure accept all items 1pcs order for testing.If bulk order, pls send inquiry to get more discount.
Q. What about the delivery time?
A.The stock samples can be sent to you within 2-3days by international express after received
A.The batch order can be shipped to you in about 15-20 working days after order confirmation (by air or by sea
Q. Can I buy different types in one container?
A:Yes, you can mix different types in one container.
Q.How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application, pump working duty and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.If you don’t know the details for the pump, tell us the usage, must suitable model will be recommended
Q.Do you accept OEM/ODM
A:Yes. We are also the OEM supplier of many famous companies.
Q. What is your terms of payment.
A:Usually we accept T/T , Alipay ,Western Union or PayPal.
Q. What is your warranty?
A:24month warranty and 2% spare parts after service, and within 24 hours reply will be provided to solve customers’ problems.
Q. What is your port of loading?
A: Xiamen Port.
Sample order is welcome
