| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | Rohs/CE/ISO9001 |
| Model Number: | DP-160 |
| Minimum Order Quantity: | 1 piece |
| Packaging Details: | 1pc/box,10pcs/ctn |
| Delivery Time: | 5-8 work days after confirmed |
| Payment Terms: | L/C, T/T, Western Union, Western Union,Paypal |
| Supply Ability: | 10000 per month |
| Pump Design: | 3 Chamber Diaphragm | Port Size: | 3/8"(19mm) Female Thread |
|---|---|---|---|
| Voltage: | 12V/24V | Check Valve: | EPDM/VITON |
| Liquid Temp: | (60℃）Maximum | Self-Priming: | 6.5feet/2M Suction Lift |
| Max Flow LPM: | 5.5LPM(1.5gpm) | Max Pressure: | 160Psi(7bar) |
| Amps: | 10.5 | Application: | MARINE/RV,water Treatment/beverage/food Service/agriculture Irrigation/general Industrial/automotive |

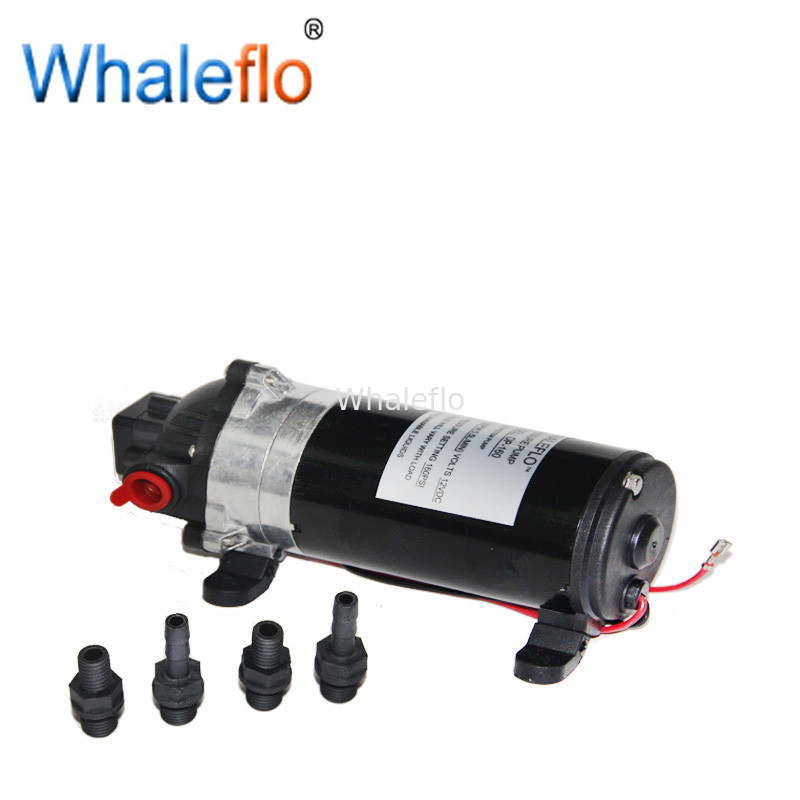

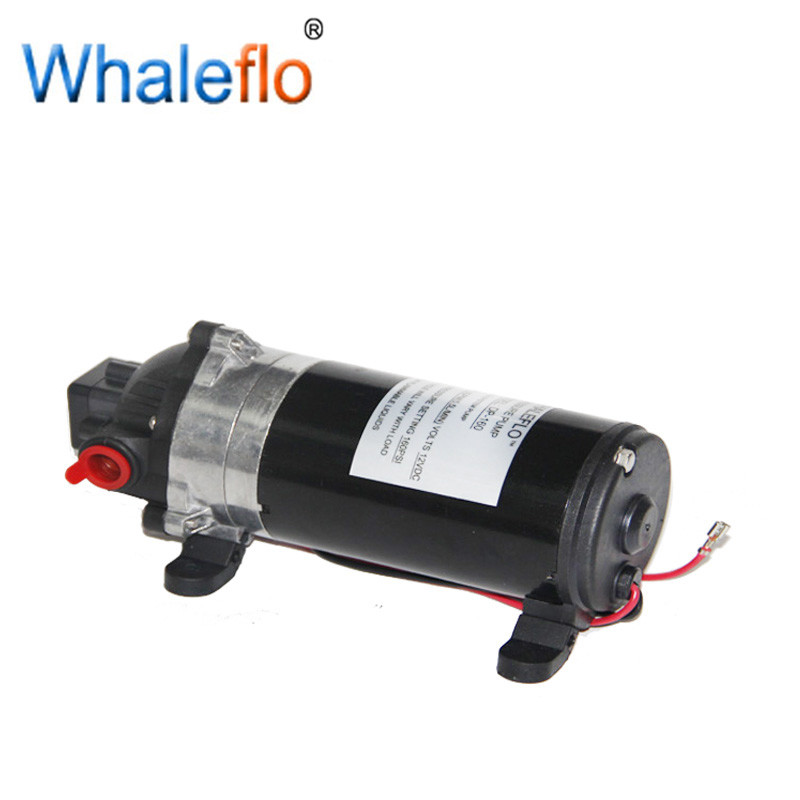

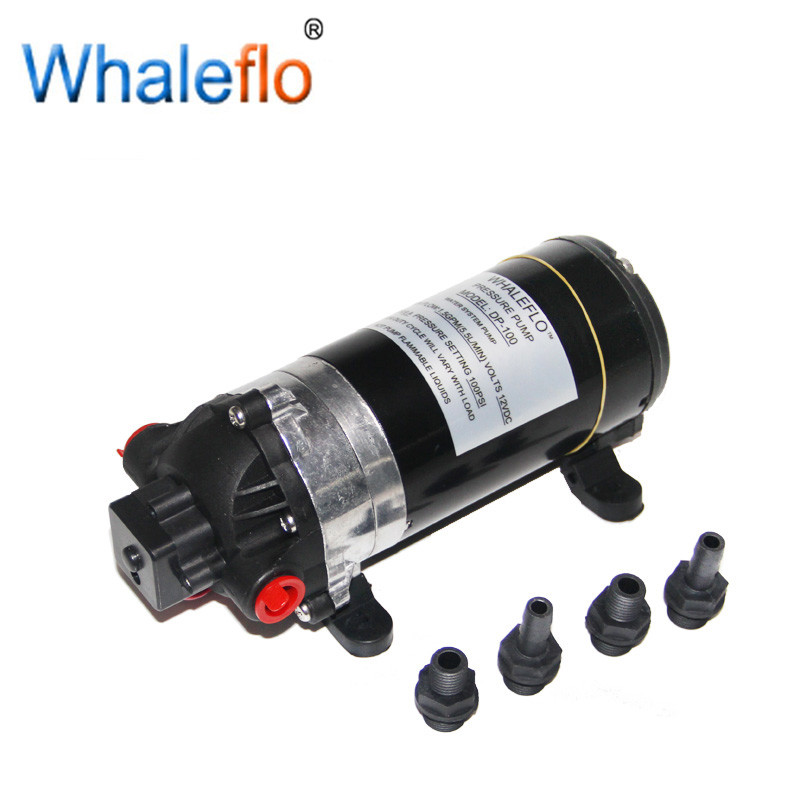

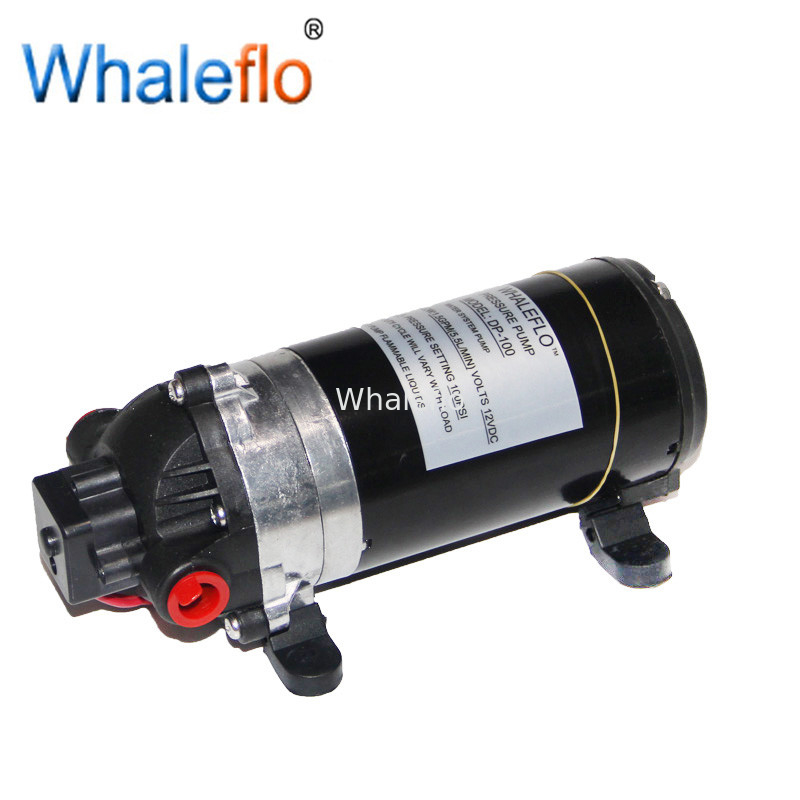

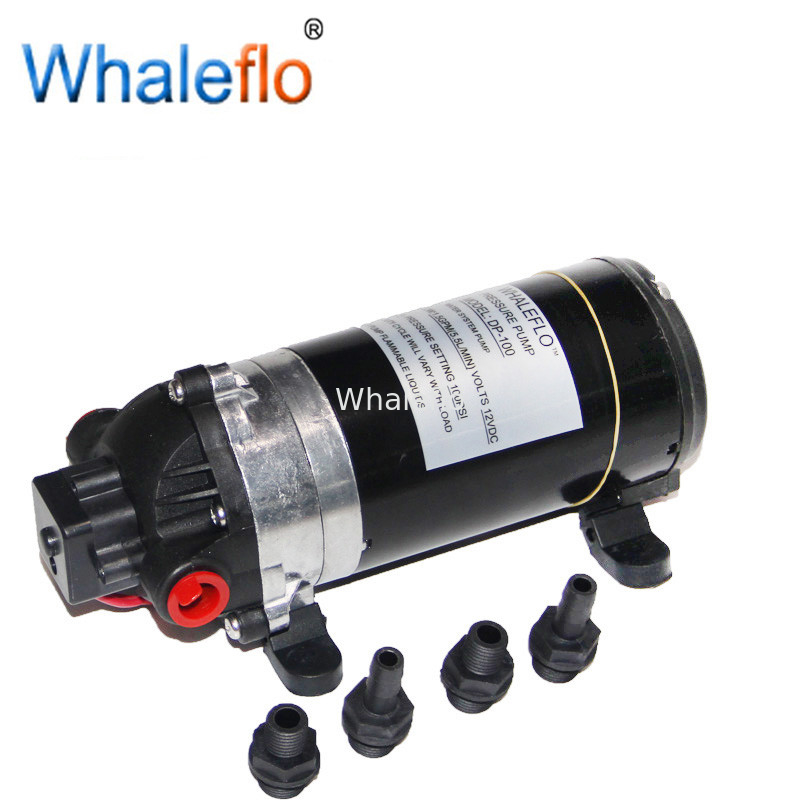

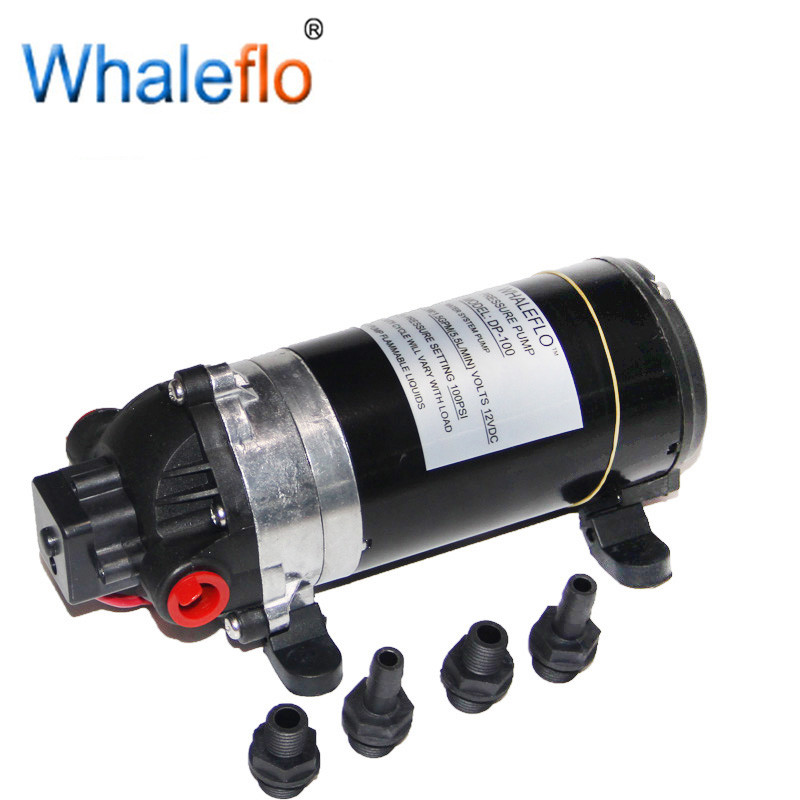

The DP series pumps are capable of continuous heavy duty and extreme workloads. Matched with high performance motor, the DP series has extreme chemical capability and goes beyond the normal call of duty with many other additives as well. This 3-chamber diaphragm pump provides up to 1.8 gallons per minute and is capable of self-priming up to 6 vertical feet, and can run dry without damage. They are easy to install, service and winterize.
Thread connections with multiple fittings allow connection to any outlet
It provides reliable performance in moderate water flow,high pressure applications.
Run smooth and quietly
Can run dry without damage
Iron and rubber feet for for noise reduction from vibration
Compact design and heavy duty demand switch
Adjustable pressure switch from 60psi-170psi for OEM service
|
1, Quality Assurance
Every motor carry out basing on standard testing flow, pressure before delivery out.
2, Customer service Professional feedback within 12 hours. Warranty 24 month after service and 2 free FOB spare parts. 3, R&D department Experienced engineers who specialized in motor. We developed new model pumps every quarter and we meet different requirement.
4, Identification CE,ROHS.ISO9--1;2008, ISO8846, FDA, SGS
5, Sales network USA, Europe, South Australia,Brazil,South africa, Mid- american and other countries.
6, Production Ability Our plant covers 10000 square meters with full set of automative production lines and integrated testing facilities.
More than 10 production and 300 skilled worker production over 1.6 million capacity pieces. Company Information
|
TECHNICAL DATA
