| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | CE,ISO9001 |
| Model Number: | WEL1240-30 |
| Minimum Order Quantity: | 1 piece |
| Price: | USD65-75/pc |
| Packaging Details: | Strong Export carton |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C,T/T,Western Union,Paypal |
| Supply Ability: | 100000 Piece/Pieces per Month |
| Application: | Home | Output Voltage (V): | 12V |
|---|---|---|---|
| Load Power (W): | 150W | Solar Power (W): | 100W |
| Work Time (h): | 24Hours | Voltage: | 12V/24V |
| Certificate: | ISO9001,CE | Warranty: | 1 Year |
| Material: | Stainless Steel/plastic | Maximum Lift: | 70m |
| Maximum Submerion: | 100 Feet Maximum (30m) | Outlet Port: | 1/2'' |

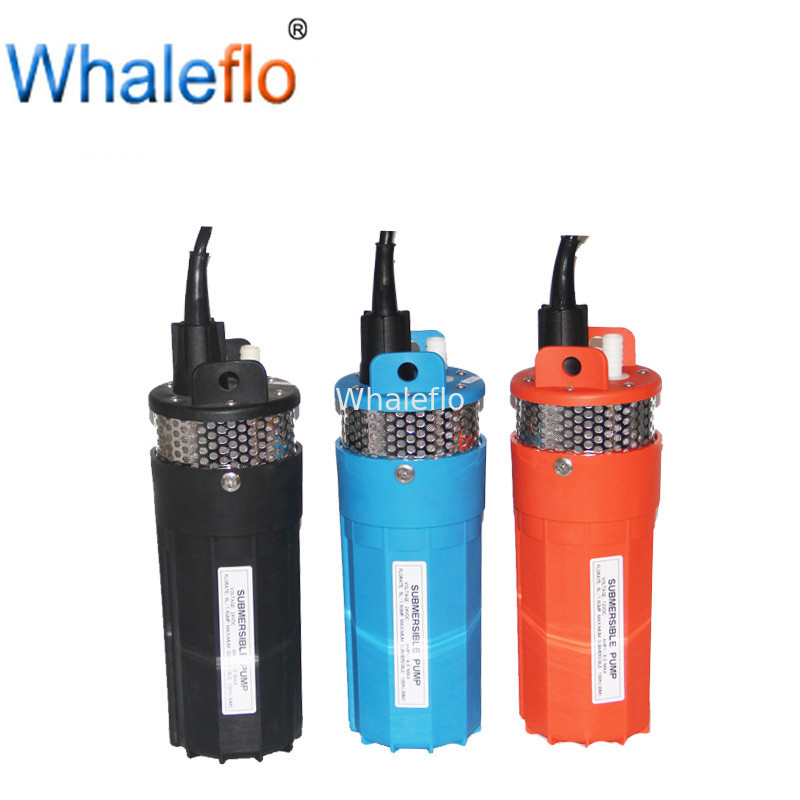

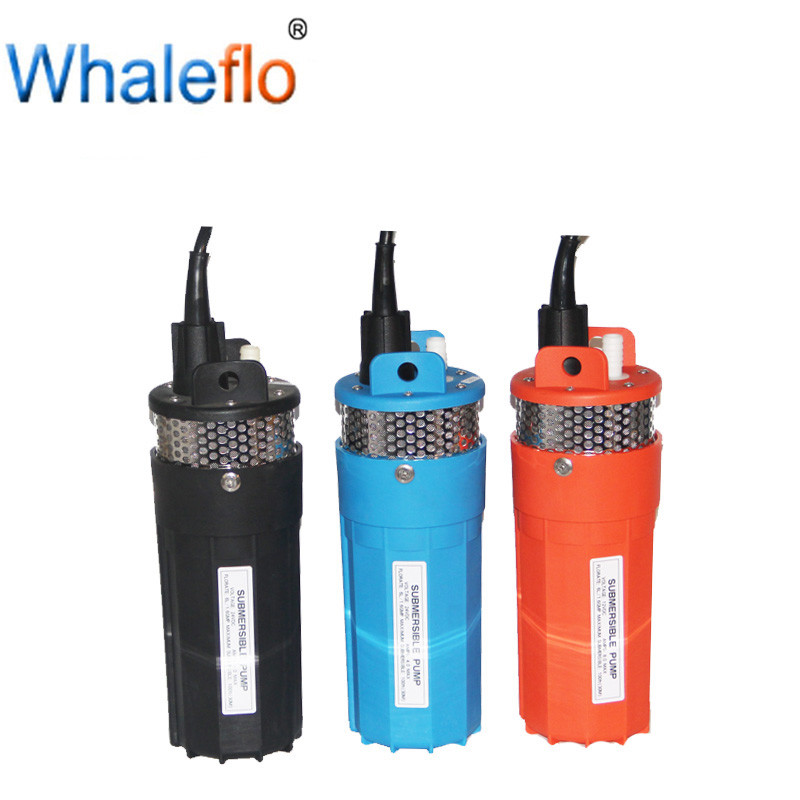

| Amps: | 4A/8A | Color: | Black,blue,orange |

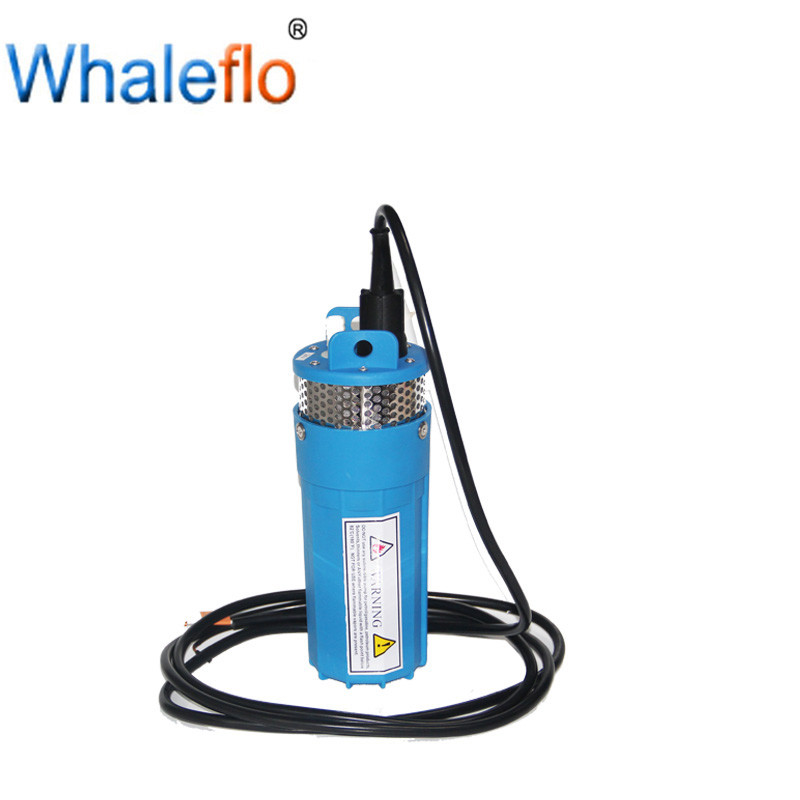

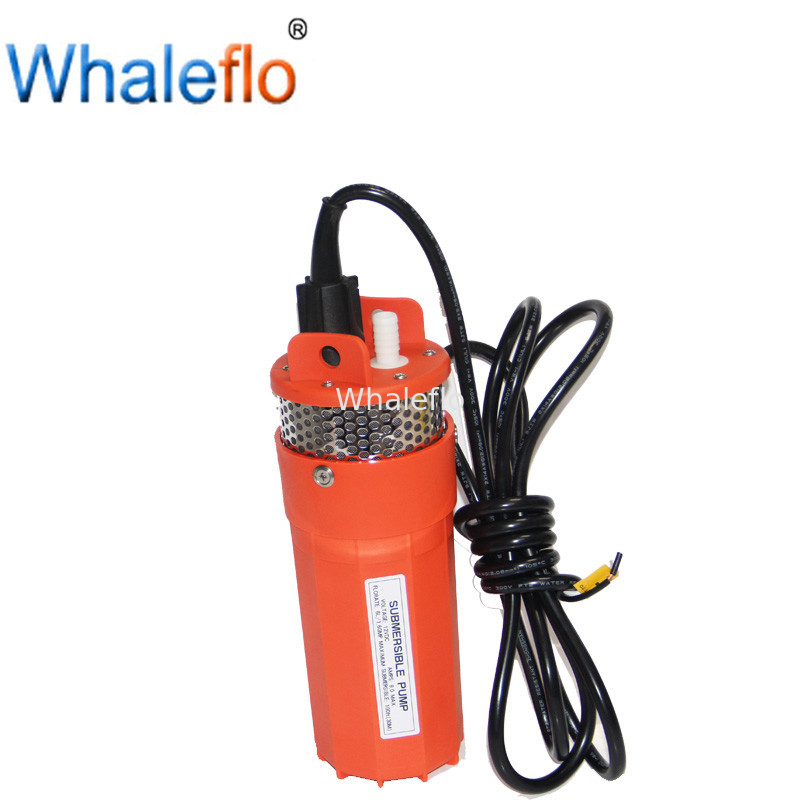

DC 12V/24V Solar Power Water Pump 70M Lift Diaphragm Vertical Submersible Outdoor Garden Fountain Deep Well Aquarium
The solution to your remote water pumping needs. This pump is rugged.durable and builtto last. This pump delivers a steady 162GPH(600LPH) at its maximum depth of 230 feet (70m) when supplied with 24VDC. Its unique water-tight power connector stops water wicking and prevents potential condensation problems. Great for livestock watering.irrigation,pondaeration,remote homes and cabins
| * Solar-powered submersible pump suitable for wells with a 4 inch diameter or larger. *Designed to be strong and yet lightweight *Wide-range of parts and kits for ease of rebuilding and repair. *Great for livestock watering,Irrigation,pond ration remote homes and cabins. |
 |
| FEATURES & BENEFITS |
Pump: *Strong Construction, yet lightweight (2.7kgs,6 lbs) * Corrosion-proof housing with stainless-steel fasteners *Dry Running capability without pump damage *Internal Bypass Feature for pump protection *Long-life,24VDC Operation *Easily repaired in the field *State of the art solid diaphragm Power Connector: *Unique water-tight gland connector * Stops water wicking and prevents potential condensation *Quick Discounnect-No splicing necessary *Accepts a variety of jacketable cables |
|
Pump Included.
Solar water pump 3 meters cable
Advantage.
The best competitive type solar pump for suction within 30M including 30M |
|
| TECHNICAL CHARACTERISTICS Pump Design Positive Displacement 3 Chamber Diaphragm Pump Motor Permanent Magnet, Thermally Protected Voltage 24V / 12V DC Nominal Amps: 4.0 Max./8.0 Max. Internal Bypass 105-110PSI Max.(7.2-7.5 BARS) Maximum Lift 230 Feet Maximum (70m) Maximum Submerion 100 Feet Maximum (30m) Outlet Port 1/2''(12.7mm) Barbed Fitting for 1/2'' (12.7mm) I.D.Tubing Inlet 50 Mesh Stainless Steel screen Materials High Strength Engineered Plastics, Stainless Steel Fasteners Potable Water Well Pump Model Volt Flow rate Amps WEL1240-30 12V 6.0LPM(360LPH) 8.0A |
|
|
Typical Applications *Solar micro irrigation(small family's garden. |
|
|
A Life Plate B Cable Plug Kit C Valve Kit D Lower Housing Assembly Kit E Motor Kit F Canister Kit G Filter Screen Kit H O-ring Kit |
|
|
