| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | Rohs/CE/ISO9001 |
| Model Number: | FL-60 |
| Minimum Order Quantity: | 1 piece |
| Packaging Details: | 1pc/box,10pcs/ctn |
| Delivery Time: | 5-8 work days after confirmed |
| Payment Terms: | L/C, T/T, Western Union, Western Union,Paypal |
| Supply Ability: | 100000 per month |
| Pump Design: | 4 Chamber Diaphragm | Port Size: | 3/4"(19mm) Quick Attach |
|---|---|---|---|
| Voltage: | 12V DC | Check Valve: | EPDM/VITON |
| Liquid Temp: | (60℃）Maximum | Self-Priming: | 6.5feet/2M Suction Lift |
| Max Flow LPM: | 17LPM(4.5gpm) | Max Pressure: | 60Psi(4.13bar) |
| Amps: | 13.2 | N.W/G.W: | 2.7/2.9kgs |
| Packing Size: | 250*125*105mm | Connecto: | 1pc 1/4" Male Thread,1pc 1/2" Hose Barb,1pc Elbow 1/2" Hose Barb Filter |
| Application: | MARINE/RV,water Treatment/beverage/food Service/agriculture Irrigation/general Industrial/automotive |

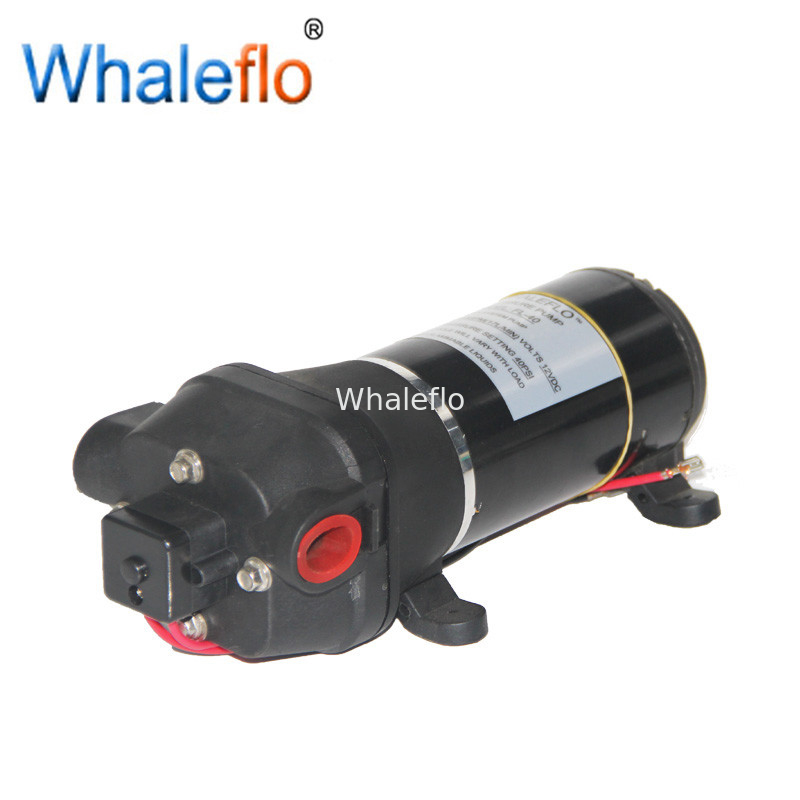

Whaleflo FL-60 DC 12V 4.5gpm water pump for caravan
| Perfect for caravans, boats, motorbikes, trucks,camping and agricultural industry |
| liquid transportation.Use it with fresh or salt water or other chemical liquid. |
| wash or to run your toilet or shower.These pumps your deck automatically |
| turn themselves on and off when you turn the tap on and off. |

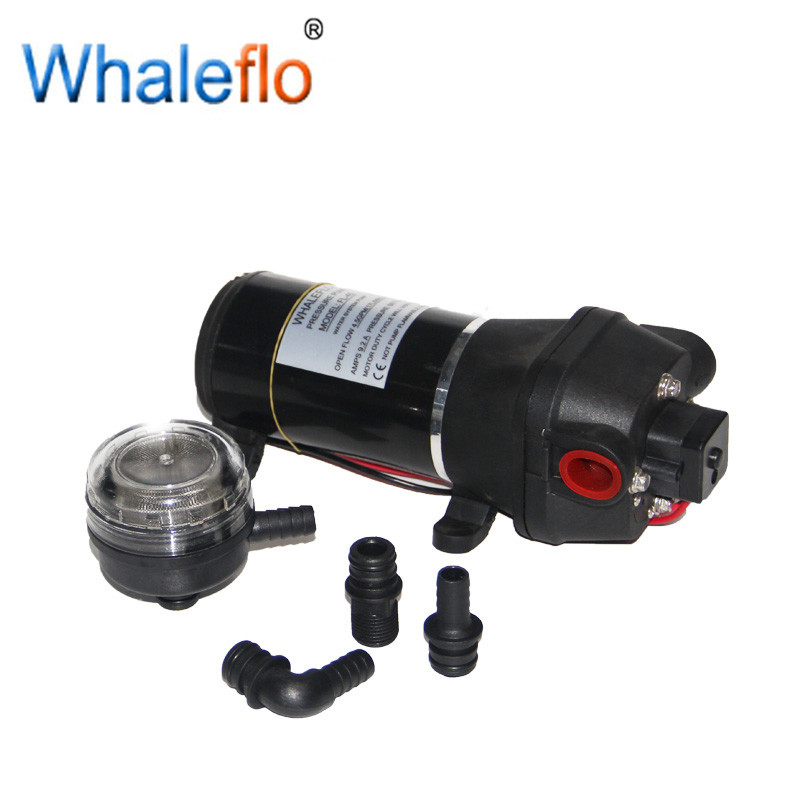

| Comes with filter and fittings.These pumps are for intermittent use only. |
| Feature: | |
| Type: | 4 Chamber Diaphragm |
| Port Size: | 3/4”(19mm) Quick attach |
| Liquid: | 140°F [60 °C] Max |
| Self-priming: | 6 feet [about 2M] |
| Max pressure | 40psi(2.76bar);can be adjust to 60psi. |
| Run Dry: | Yes (within 30 second) |
| Motor: | Permanent Magnet, Intermittent |
| Duty Protection: | Thermal Overload, Automatic Restart |
| Volts: | 12/24 VDC motors standard |
| Standard Connector: | 1pc 3/4” Male Thread, 1pc 1/2” hose barb, |
| 1pc 1/2” hose barb filter | |
| Approved Certificate: | CE and RoHS |
| √ High volume flow rate, Built-in chec valve |
| √ Permanent Magnet motor with longer lifetime |
| √ Antivibration pad,easy installation. |
| √ Self-priming,Top quality Automatic Pressure Switch. |
| √ Thermally Protected |
| √ Low Noise,with excellent resistant to chemical corrosion. |
STANDARD PUMP CONFIGURATIONS
| Model | Volt | Flow rate(LPM/GPM)) | Pressure(PSI/BAR) | Valve | Amp Draw(A) |
| FL-30 | 12Vdc | 10.0(2.63) | 17(1.17) | EPDM/VITON | 2.2 |
| FL-31 | 24Vdc | 10.0(2.63) | 17(1.17) | EPDM/VITON | 1.5 |
| FL-35 | 12Vdc | 12.5(3.29) | 35(2.41) | EPDM/VITON | 7.0 |
| FL-34 | 24Vdc | 12.5(3.29) | 35(2.41) | EPDM/VITON | 4 |
| FL-40 | 12Vdc | 17.0(4.47) | 40(2.76) | EPDM/VITON | 9.2 |
| FL-44 | 24Vdc | 17.0(4.47) | 40(2.76) | EPDM/VITON | 5.6 |
| FL-60 | 12Vdc | 17.0(4.47) | 60(4.13) | EPDM/VITON | 15 |
