| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | ISO9001,CE |
| Model Number: | 4SC48-60 |
| Minimum Order Quantity: | 20pcs |
| Price: | 259-280USD/PC |
| Packaging Details: | Strong Export carton |
| Delivery Time: | 7-15 work days after confirmed |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 5000pcs/month |
| Power: | 600W | Fuel: | Solar |
|---|---|---|---|
| Outlet Port: | 1.2 Inches | Material: | Stainless Steel |
| Rate Head: | 40meters | Rated Flow: | 2T/H |
| Protection: | IP68 | Application: | Submersible |
| Type: | Centrifugal Pump | Max Head: | 70M |
| Inlet: | 100mm | Max Flow: | 4T/H |
| Open Voltage: | 88v | MPPT Voltage: | 72v |

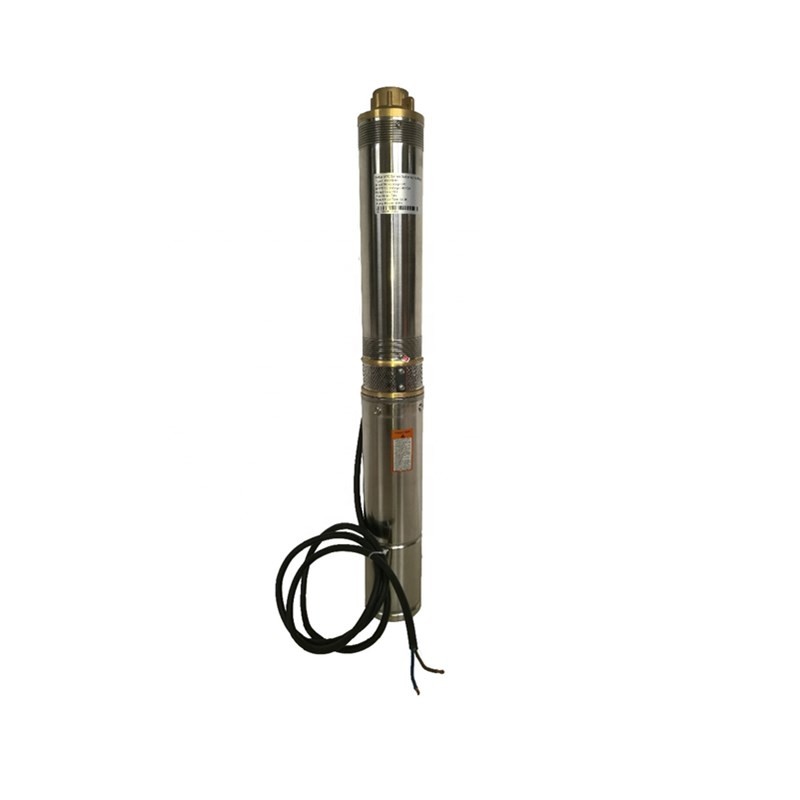

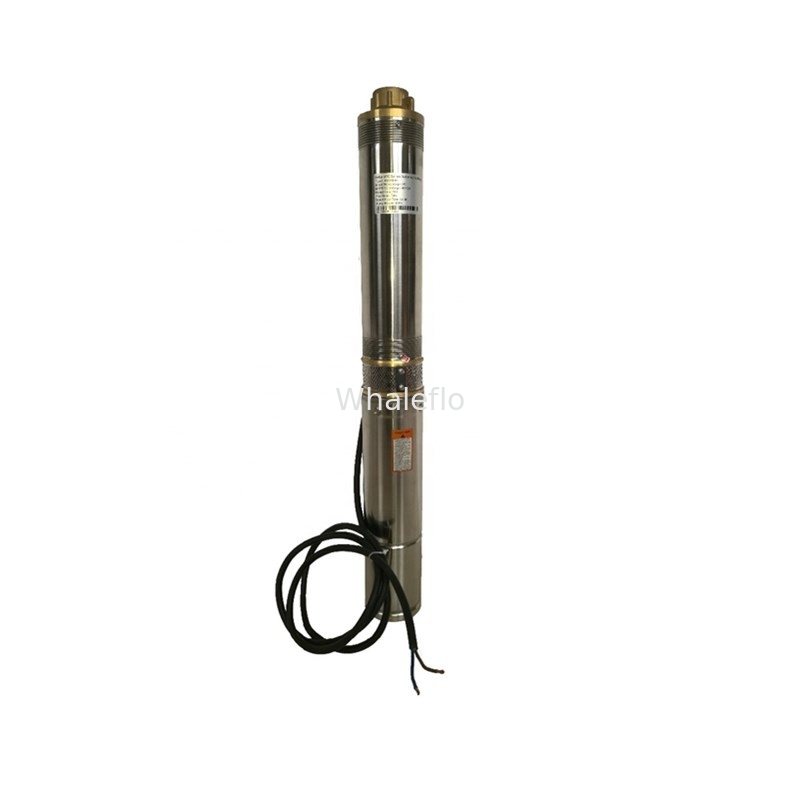

Whaleflo 600W Household 48V Solar Photovoltaic Water Pump 4T/H

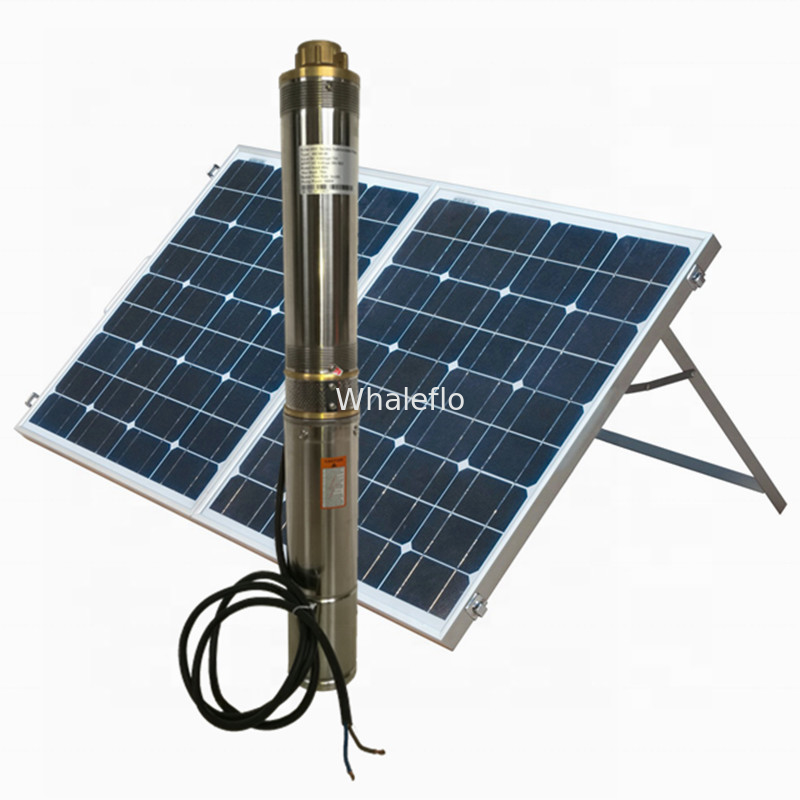

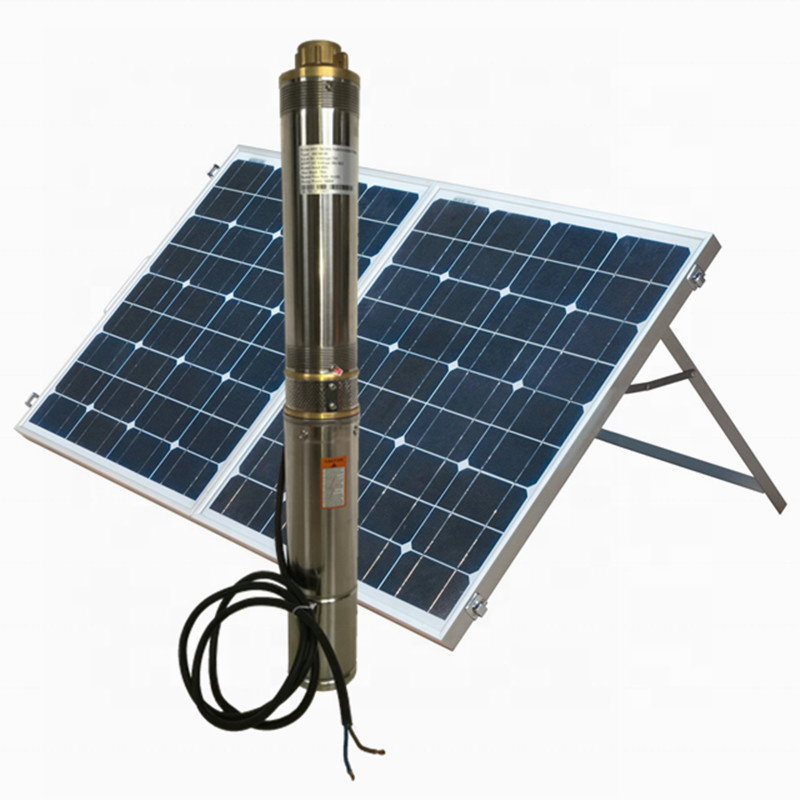

As a professional manufacturer of complete solar powered water pump system, Whaleflo offer practical, professional and affordable AC and DC solar powered water pump system to residential, commercial and industrial application. Whaleflo solar water pump system mainly consists of solar panels, the specialized pump inverter, cable, battery and water pump etc.
Product Advantage
Higher energy efficiency on lift & flow rate 15% than others, special Imported fresh POM material impeller. 20,000 hours life for DC brushless motor continuous working & pump not just clean water. Working environmental extremes Continuous working 10 h/day; Life: 5 years.
Model:4SC48-60
Power:600W
MPPT Volt:36-72Volt
Open Volt:88V
Max Lift:70Meters
Max Flow:4T/H
Rated lift:40Meters
Rated Flow:2T/H
As a professional manufacturer of complete solar powered water pump system, Whaleflo offer practical, professional and affordable AC and DC solar powered water pump system to residential, commercial and industrial application. Whaleflo solar water pump system mainly consists of solar panels, the specialized pump inverter, cable, battery and water pump etc.
Higher energy efficiency on lift & flow rate 15% than others, special Imported fresh POM material impeller. 20,000 hours life for DC brushless motor continuous working & pump not just clean water. Working environmental extremes Continuous working 10 h/day; Life: 5 years.
Product Benefit
* Wide working voltage.
* Built-in MPPT controller which can make the best use of solar energy.
* Over-voltage protection / Under-voltage protection: The pump will stop working automatically when the voltage is too high or too low; Then it will detect the voltage every 10 minutes, and it will start to work automatically when the voltage is between the working voltage range of the pump.
* The pump can be directly connected to solar panels without controller in sunshine.
Note: Do not operate for long time when there is no water in the pump. We will not offer warranty if the pump was damage for the reason of water shortage.
Application
1. Tank/Cistern filling
2. Village or family water supply
3. Water supply for farm
4. Garden/courtyard irrigation systems
5. Livestock watering
6. Swimming pool filling
7. Fountains
8. Water supply for bivouac or camping car
9. Solar water circulating system
10. Renewable energy projects
4.Product Specification
| Industrial Purpose Sand-control Solar water pump | |||||||||
| Model | Power | MPPT | Open Circuit | Rated Head | Max. Head | Rated Flow | Input | Output | IP |
| W | V | V | m | m | T/H | mm | Inch | ||
| 3SH1.5/7-0.18 | 180 | 18V-36V | 44V | 26 | 30 | 1.5 | 76 | 1 | IP68 |
| 3SH1.5/10-0.25 | 250 | 18V-36V | 44V | 37 | 45 | 1.5 | 76 | 1 | IP68 |
| 3SH2.5 Series(2.4T/H) | |||||||||
| Industrial Purpose Sand-control Solar water pump | |||||||||
| Model | Power | MPPT | Open Circuit | Rated Head | Max. Head | Rated Flow | Input | Output | IP |
| W | V | V | m | m | T/H | mm | Inch | ||
| 3SH2.5/5-0.18 | 180 | 18V-36V | 44V | 15 | 25 | 2.5 | 76 | 1 | IP68 |
| 3SH2.5/7-0.25 | 250 | 18V-36V | 44V | 21 | 32 | 2.5 | 76 | 1 | IP68 |
| 4SH1.5 Series(1.5T/H) | |||||||||
| Industrial Purpose Sand-control Solar water pump | |||||||||
| Model | Power | MPPT | Open Circuit | Rated Head | Max. Head | Rated Flow | Input | Output | IP |
| W | V | V | m | m | T/H | mm | Inch | ||
| 4SH1.5/7-0.25 | 250 | 18V-36V | 44V | 30 | 49 | 1.5 | 76 | 1.25 | IP68 |
| 4SH2 Series(2T/H) | |||||||||
| Industrial Purpose Sand-control Solar water pump | |||||||||
| Model | Power | MPPT | Open Circuit | Rated Head | Max. Head | Rated Flow | Input | Output | IP |
| W | V | V | m | m | T/H | mm | Inch | ||
| 4SH1.5/6-0.25 | 250 | 18V-36V | 44V | 24 | 42 | 2 | 76 | 1.25 | IP68 |
Sample order is welcome testing!
