| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | CE/UN38.3/MSDS/EMC/RoHS |
| Model Number: | LDHEB-4400 |
| Minimum Order Quantity: | 10pcs |
| Price: | neogatiable |
| Packaging Details: | carton box/wooden box |
| Delivery Time: | 2-4weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1200pcs/month |
| Battery Cell Material: | Lithium LiFePO4 | IP Protection: | IP20 |
|---|---|---|---|
| Weight: | 48kg | Operation Temp: | 0-45℃ |
| Storage Temperature: | -20℃-45℃ | Cycle Life: | ≥5000 |
| Operating LIfe: | 10years | Communication Port: | RS232/RS485/CAN |
| Communication Mode: | Wifi/bluetooth | Operation Atitude: | ＜3000M |
| Warantty: | 5years | Installation: | Ground Mounted/Wall Hanging |
| Nominal Energy Capacity: | 4400kWh | Nominal Voltage: | 51.2V |
| Operating Voltage Range: | 40-58.4 | Continuous Charge Current: | 80A |
| Continuous DisCharge Current: | 80A | Depth Of Discharge: | 80% |

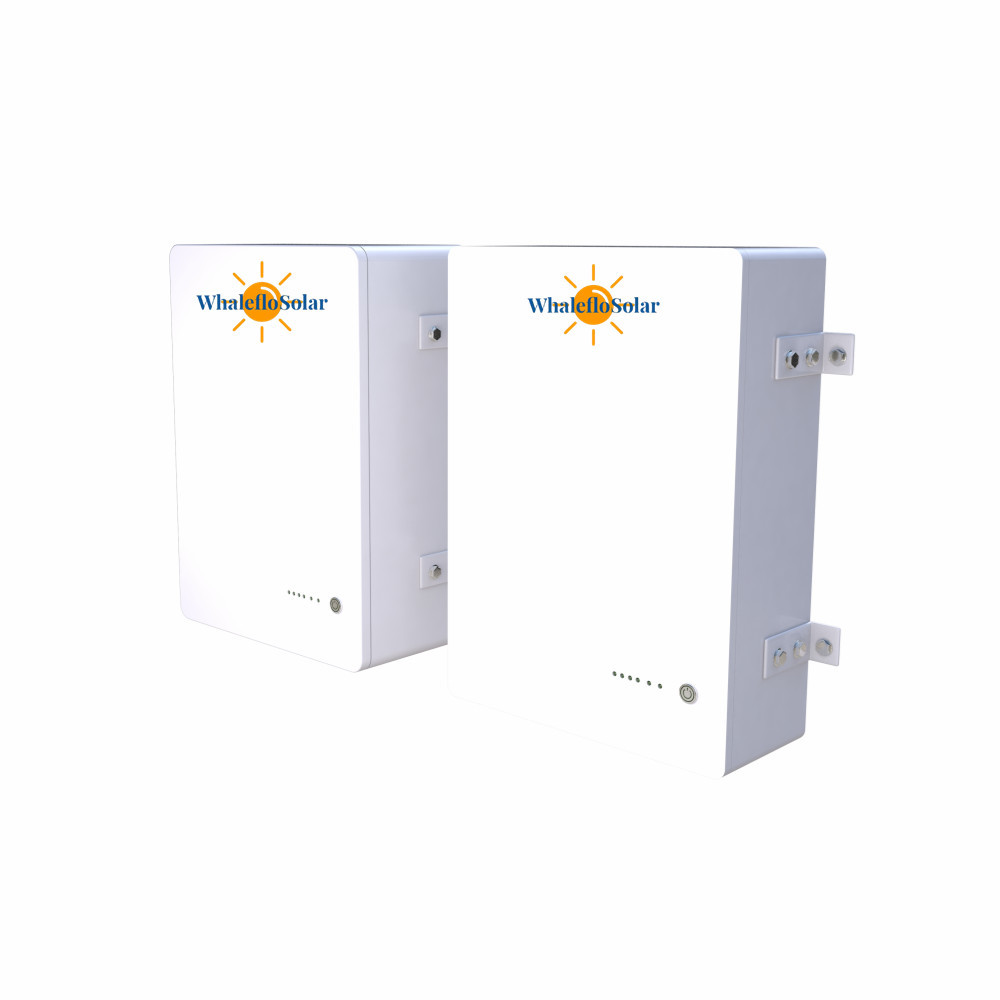

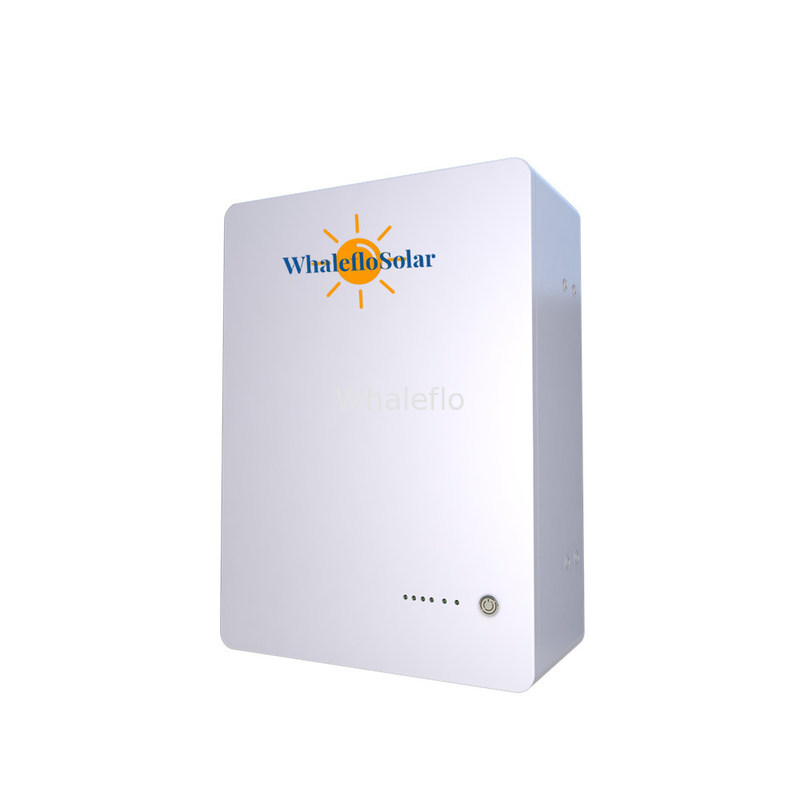

BMS System 51.2V 4.4Kwh 86Ah POWERBOX LDHEB-4400 Lithium Ion Battery For Hybrid
Lifepo 86a/48v Description:
Shipping: Sea
TECHNICAL PARAMETER:
|
Datasheet
|
LDHEB-4400
|
LDHEB-6100
|
|
Dimensions (H x W x D)
(mm / ")
|
540 * 393 * 161mm 21.25 * 15.5 * 6.34’’
|
540*393 * 198mm
21.25 * 15.5 * 7.80’’
|
|
Weight (Kgs)
|
48 | 60.2 |
|
Operating Temperature
|
0 to 45℃ / 0 to 113℉
|
0 to 45℃ / 0 to 113℉
|
| IP Protection | IP20 | IP20 |
|
Storage Temperature
|
-20 to 45℃ / -68 to 113℉
|
-20 to 45℃ / -68 to 113℉
|
|
Cycle Life (80% DoD @25℃)
|
≥5000
|
≥5000
|
|
Operating Life (Years)
|
10
|
10
|
|
Communication Port
|
RS232 / RS485 / CAN
|
RS232 / RS485 / CAN
|
|
Communication Mode
|
WIFI/BLUETOOTH
|
WIFI/BLUETOOTH
|
|
Operating Altitude (m)
|
＜3000
|
＜3000
|
|
Humidity Conditions (%)
|
5% to 95%
|
5% to 95%
|
|
Warranty (Years)
|
5 Years
|
5 Years
|
|
Installation
|
Ground Mounted / Wall-Hanging
|
Ground Mounted / Wall-Hanging
|
|
Specifification
|
||
|
Nominal Energy Capacity
(Wh)
|
4400
|
6100
|
|
Nominal Voltage (V)
|
51.2 | 51.2 |
|
Operating Voltage Range
|
40-58.4 | 40-58.4 |
|
Continuous Charging
Current (A)
|
80 | 80 |
|
Continuous Discharging
Current (A)
|
80 | 80 |
|
Depth Of Discharge (%)
|
80 | 80 |
|
Battery Cell Material
|
Lithium (LiFePO4)
|
Lithium (LiFePO4)
|
|
Certifification
|
UN38.3 CE-EMC CE-LVD MSD ROHS
|
UN38.3 CE-EMC CE-LVD MSD ROHS
|
Efficient
Real-time tracking of power generation consumption to optimize energy utilization
