| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | CE/UN38.3/MSDS/EMC/RoHS |
| Model Number: | POWERBOX-4400 |
| Minimum Order Quantity: | 10pcs |
| Price: | neogatiable |
| Packaging Details: | carton box/wooden box |
| Delivery Time: | 2-4weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1200pcs/month |
| Battery Cell Material: | Lithium LiFePO4 | IP Protection: | IP20 |
|---|---|---|---|
| Weight: | 48kg | Operation Temp: | 0-45℃ |
| Storage Temperature: | -20℃-45℃ | Cycle Life: | ≥5000 |
| Operating LIfe: | 10years | Communication Port: | RS232/RS485/CAN |
| Communication Mode: | Wifi/bluetooth | Operation Atitude: | ＜3000M |
| Warantty: | 5years | Installation: | Ground Mounted/Wall Hanging |
| Nominal Energy Capacity: | 4400kWh | Nominal Voltage: | 51.2V |
| Operating Voltage Range: | 40-58.4 | Continuous Charge Current: | 43A |
| Continuous DisCharge Current: | 60A | Depth Of Discharge: | 80% |

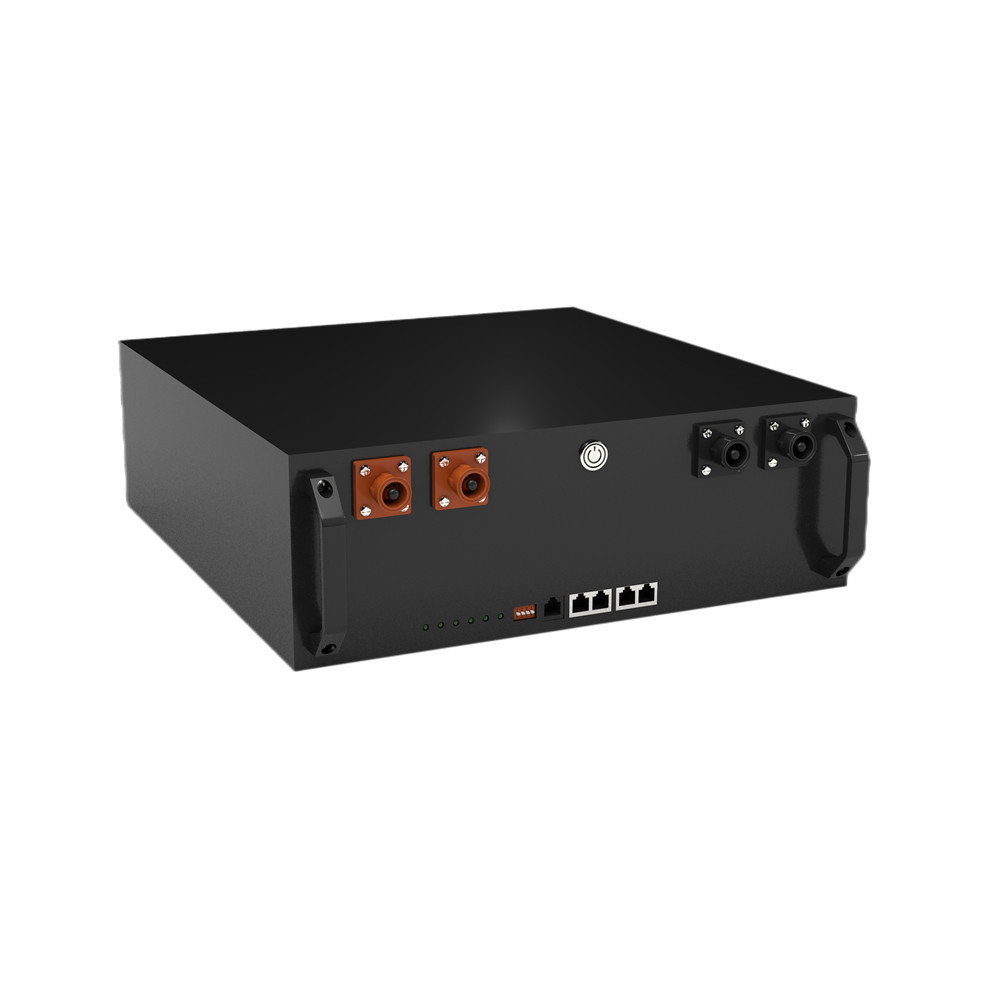

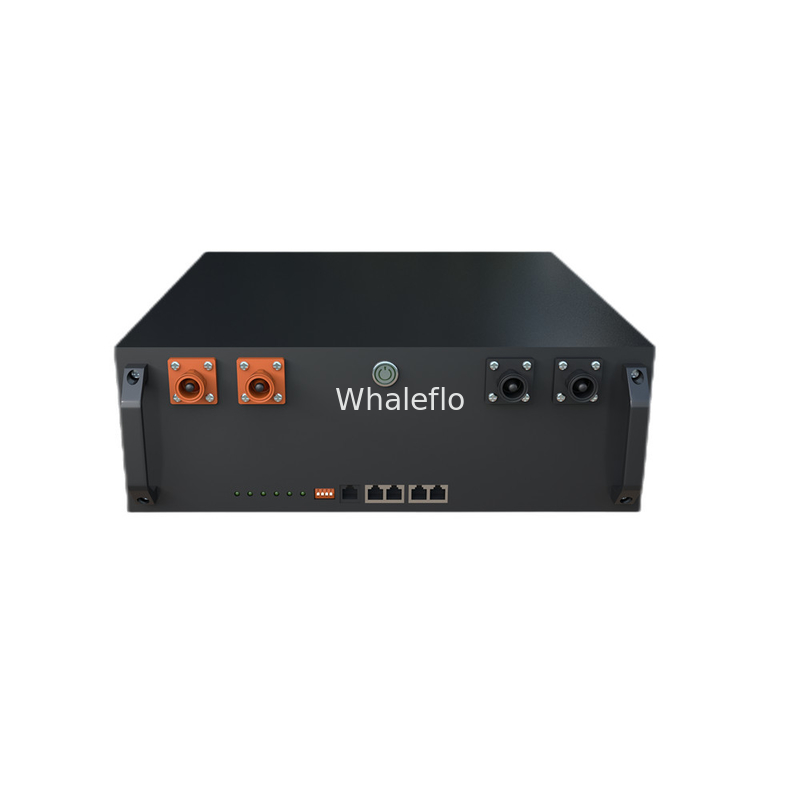

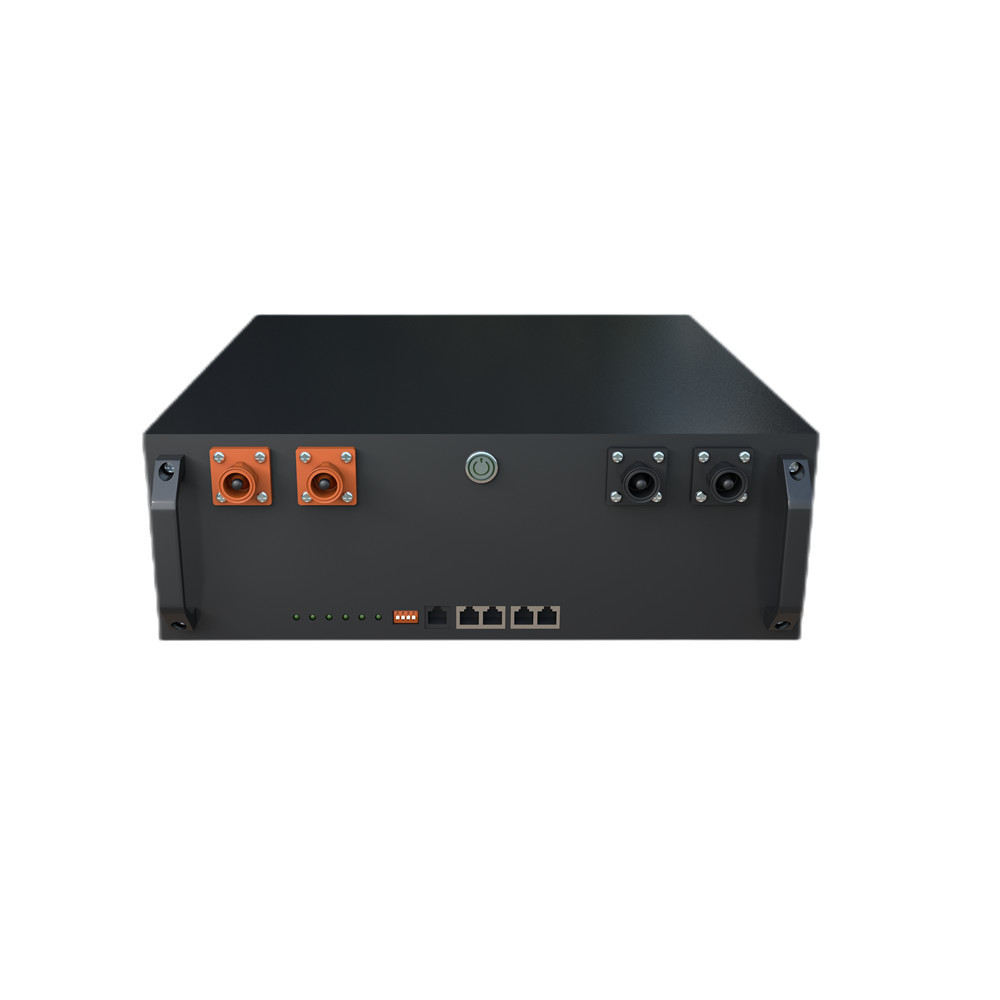

48v 86Ah 4.4kwh 120Ah 6.1kwh LifePO4 Power Box Lithium Battery Supplier
Home Battery Storage Description:
Shipping: Sea
4.4kwh 6.1kwh Battery Features
Communication Port:RS232 / RS485 / CAN
Communication Mode:WIFI/BLUETOOTH
5Years warranty,≥5000 Cycles
Parallel 16 units
WALL MOUNTED BATTERY TECHNICAL PARAMETER
Ground-mountable
≥5000 Cycles
Parallel 16 units
|
Datasheet
|
POWERBOX-4400
|
POWERBOX-6100
|
|
Dimensions (H x W x D)
(mm / ")
|
146.2 * 434.5 * 450.5mm 5.756 * 17.1 *
17.736’’
|
184.2 * 434.5 * 450.5mm 7.252 * 17.1 *
17.736’’
|
|
Weight (Kgs)
|
46.2 | 58.8 |
|
Operating Temperature
|
0 to 45℃ / 0 to 113℉
|
0 to 45℃ / 0 to 113℉
|
| IP Protection | IP20 | IP20 |
|
Storage Temperature
|
-20 to 45℃ / -68 to 113℉
|
-20 to 45℃ / -68 to 113℉
|
|
Cycle Life (80% DoD @25℃)
|
≥5000
|
≥5000
|
|
Operating Life (Years)
|
10
|
10
|
|
Communication Port
|
RS232 / RS485 / CAN
|
RS232 / RS485 / CAN
|
|
Communication Mode
|
WIFI/BLUETOOTH
|
WIFI/BLUETOOTH
|
|
Operating Altitude (m)
|
＜3000
|
＜3000
|
|
Humidity Conditions (%)
|
5% to 95%
|
5% to 95%
|
|
Warranty (Years)
|
5 Years
|
5 Years
|
|
Installation
|
Ground Mounted
|
Ground Mounted
|
|
Specifification
|
||
|
Nominal Energy Capacity
(Wh)
|
4400
|
6100
|
|
Nominal Voltage (V)
|
51.2 | 51.2 |
|
Operating Voltage Range
|
49-56.8 | 49-56.8 |
|
Continuous Charging
Current (A)
|
43 | 60 |
|
Continuous Discharging
Current (A)
|
60 | 80 |
|
Depth Of Discharge (%)
|
80 | 80 |
|
Battery Cell Material
|
Lithium (LiFePO4)
|
Lithium (LiFePO4)
|
|
Certifification
|
UN38.3 CE-EMC CE-LVD MSD ROHS
|
UN38.3 CE-EMC CE-LVD MSD ROHS
|
Efficient
Real-time tracking of power generation consumption to optimize energy utilization
