| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo Solar |
| Certification: | CE IEC62619 MSDS RoHS UN38.3 |
| Model Number: | HV2560 |
| Minimum Order Quantity: | 10pcs |
| Packaging Details: | wooden/carton |
| Delivery Time: | 15-30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs per month |
| Long Life Cycle: | > 6000 Cycle @ 90%DOD | Intelligent Communication: | RS232/RS485/CAN |
|---|---|---|---|
| Customizable Communication Protocol: | Growatt,Solis, Goodwe,Victron, INVT Etc. | Certificate: | CE IEC62619 MSDS RoHS UN38.3 |

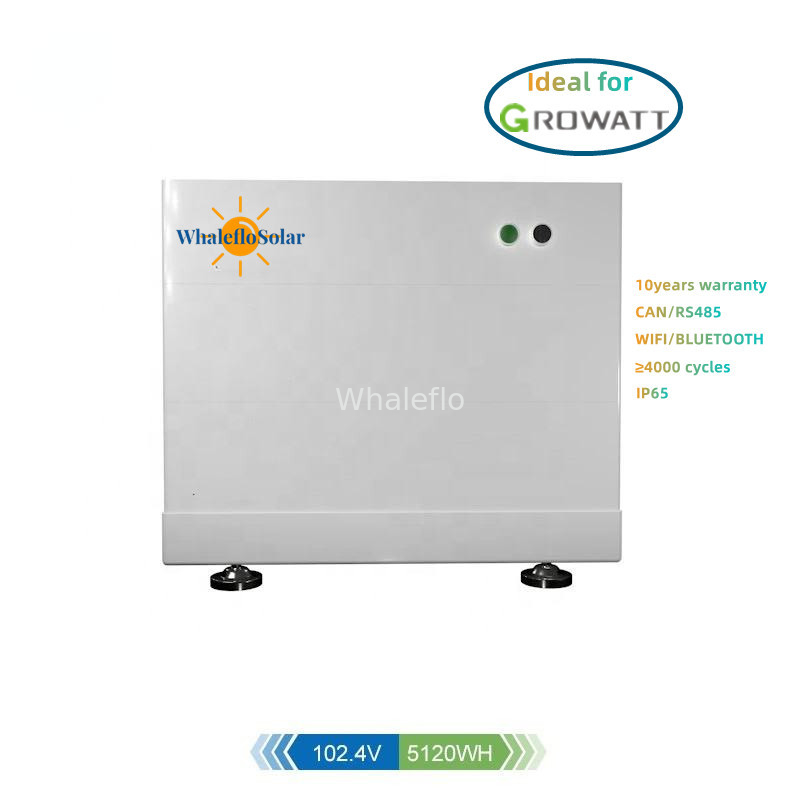

Growatt HV Batteries OEM Factory 5.12KWH Lithium LiFePO4 Battery For HV Hybrid Inverter
High Voltage LFP Storage Battery Specification
|
Datesheet
|
ELEBOX-HV 5.1
|
|
Battery Module
|
ELEBOX-HV-2.56 (2.56kWh, 51.2V, 34kg, 600/355/145)
|
|
Number of Modules
|
2
|
|
Energy Capability
|
5.12KWh
|
|
Nominal Voltage
|
102.4V
|
|
Dimension mm (H/W/D)
|
600/355/442
|
|
Weight
|
93kgs
|
|
Battery Type
|
Cobalt free Lithium Iron Phosphate (LFP)
|
|
Standard Charge/Discharge Current
|
25A @ 0.5C
|
|
Max Charge/Discharge Current
|
50A @ 1C
|
|
IP Protection
|
IP65
|
|
Installation
|
Wall-mounted or Floor Installation
|
|
Operation Temperature
|
0 °C to 45°C
|
|
DOD
|
90%
|
|
Cycle Life
|
>6000
|
|
Warranty
|
10 Years
|
|
Communication Port
|
CAN/RS485
|
|
Communication Mode
|
WIFI
|
|
Certification
|
CE, IEC62619, MSDS, ROHS, UN38.3
|
