| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | CE,ISO9001 |
| Model Number: | WEL2440-30 |
| Minimum Order Quantity: | 1 pc |
| Price: | USD69-89/pc |
| Packaging Details: | 1pc/box |
| Delivery Time: | 7-15 days after confirmed |
| Payment Terms: | L/C,T/T,Western Union,Paypal |
| Supply Ability: | 100000 Piece/Pieces per Month |
| Application: | Home | Load Power (W): | 150W |
|---|---|---|---|
| Solar Power (W): | 100W | Work Time (h): | 24Hours |
| Voltage: | 24V | Certificate: | ISO9001,CE |
| Warranty: | 1 Year | Material: | Plastic |
| Maximum Lift: | 70m | Maximum Submerion: | 100 Feet Maximum (30m) |
| Outlet Port: | 1/2'' | Amps: | 4A |
| Color: | Black,blue,orange |

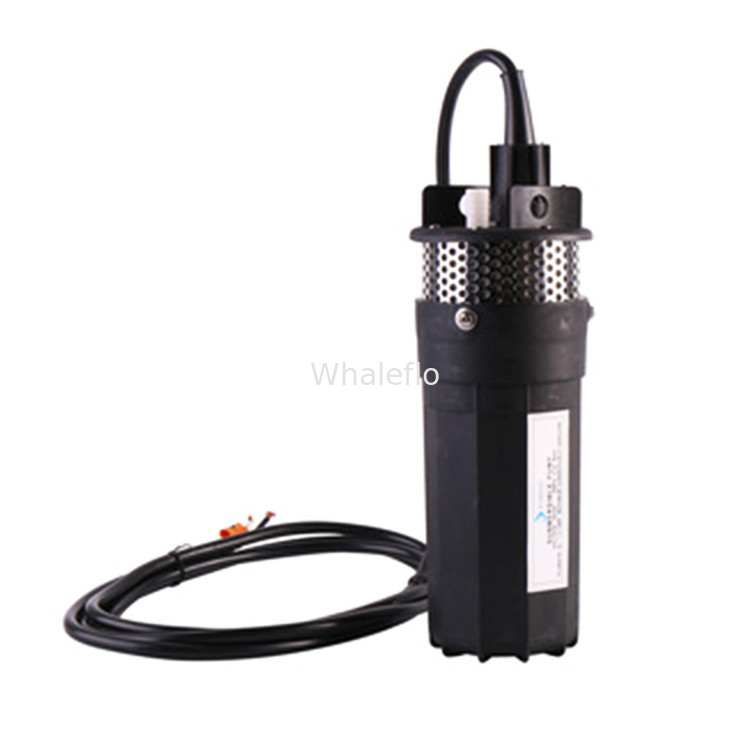

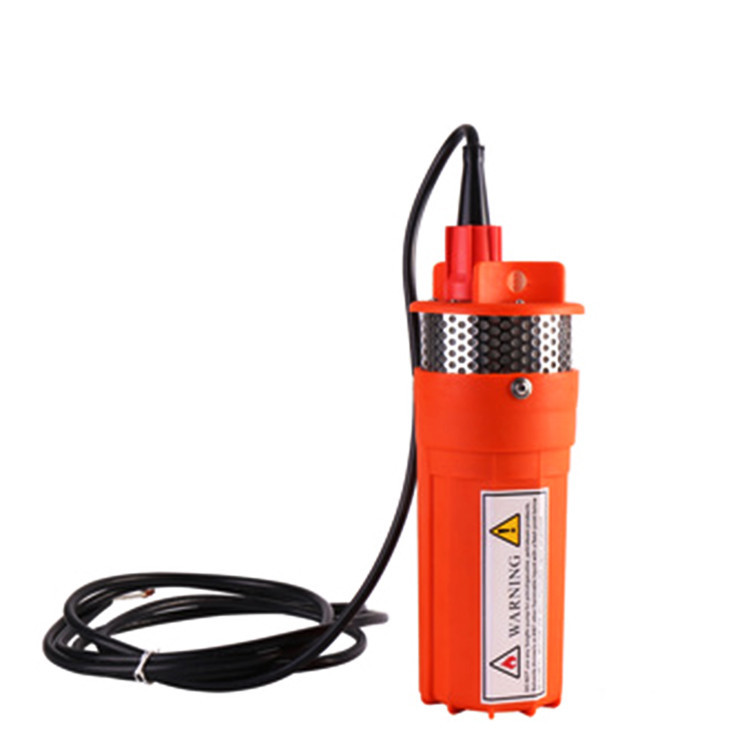

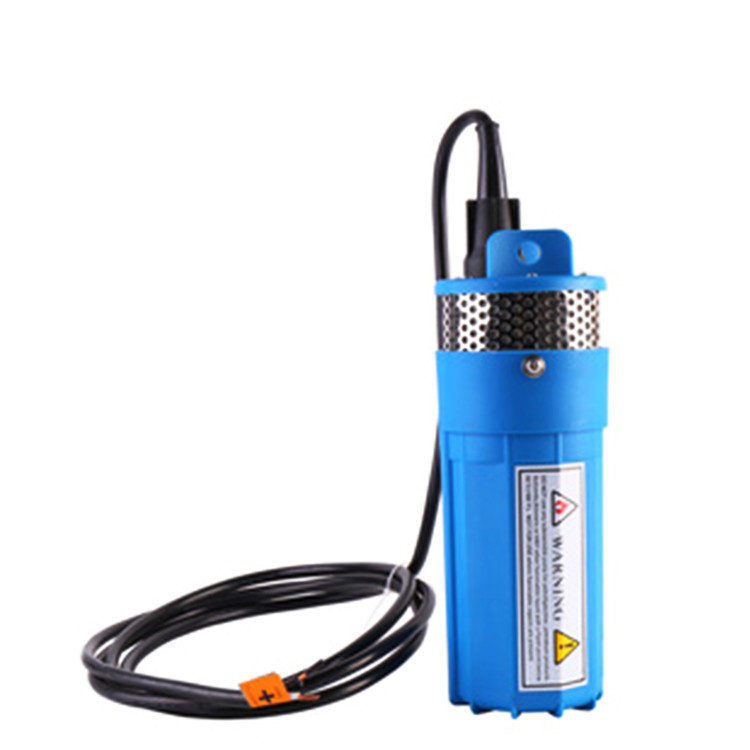

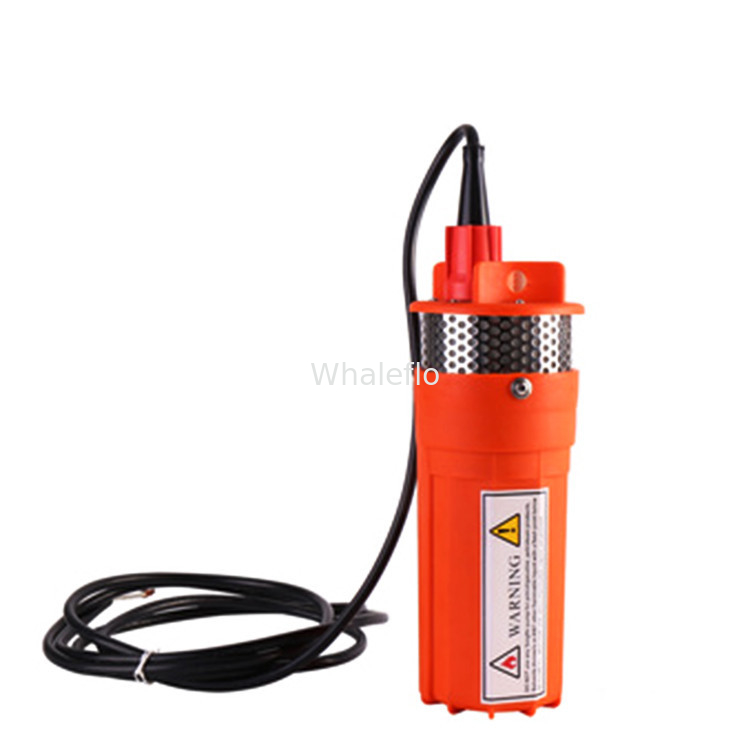

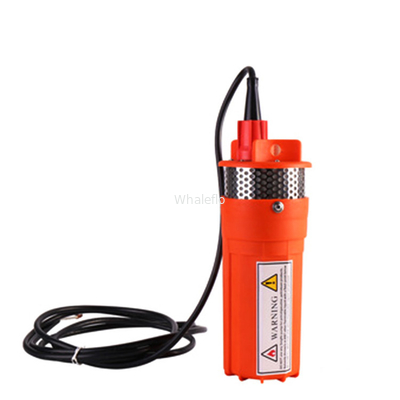

Whalelfo Plastic 70M maximum lift 24 volt 6Lpm 4.0A Submersible Water Deep Well Pump For Irrigation In Uganda
The solution to your remote water pumping needs. This pump is rugged.durable and builtto last. This pump delivers a steady 162GPH(600LPH) at its maximum depth of 230 feet (70m) when supplied with 24VDC. Its unique water-tight power connector stops water wicking and prevents potential condensation problems. Great for livestock watering.irrigation,pondaeration,remote homes and cabins
* Solar-powered submersible pump suitable
| FEATURES & BENEFITS | Pump: *Strong Construction, yet lightweight (2.7kgs,6 lbs) * Corrosion-proof housing with stainless-steel fasteners *Dry Running capability without pump damage *Internal Bypass Feature for pump protection *Long-life,24VDC Operation *Easily repaired in the field *State of the art solid diaphragm Power Connector: *Unique water-tight gland connector * Stops water wicking and prevents potential condensation *Quick Discounnect-No splicing necessary *Accepts a variety of jacketable cables |
|
whaleflo Pump Included. |
|
| TECHNICAL CHARACTERISTICS Pump Design Positive Displacement 3 Chamber Diaphragm Pump Motor Permanent Magnet, Thermally Protected Voltage 24V / 12V DC Nominal Amps: 4.0 Max./8.0 Max. Internal Bypass 105-110PSI Max.(7.2-7.5 BARS) Maximum Lift 230 Feet Maximum (70m) Maximum Submerion 100 Feet Maximum (30m) Outlet Port 1/2''(12.7mm) Barbed Fitting for 1/2'' (12.7mm) I.D.Tubing Inlet 50 Mesh Stainless Steel screen Materials High Strength Engineered Plastics, Stainless Steel Fasteners Potable Water Well Pump Model Volt Flow rate Amps WEL1240-30 12V 6.0LPM(360LPH) 8.0A |
|
|
Typical Applications |
|
|
A Life Plate B Cable Plug Kit C Valve Kit D Lower Housing Assembly Kit E Motor Kit F Canister Kit G Filter Screen Kit H O-ring Kit |
|
|
*Drinking water supply
*Solar micro irrigation(small family's garden,Small rural areas or green roof system)
*Water supply for remote domestic usage
*Water supply for solar thermal installation
*Irrigation of fields and greenhouses
*Water supply for animals
*Pond management
*Game parks and game farms
*Livestock drinking water
*Irrigation
*pond water change
*remote home and small log cabin water supply
Sample order is welcome testing!
