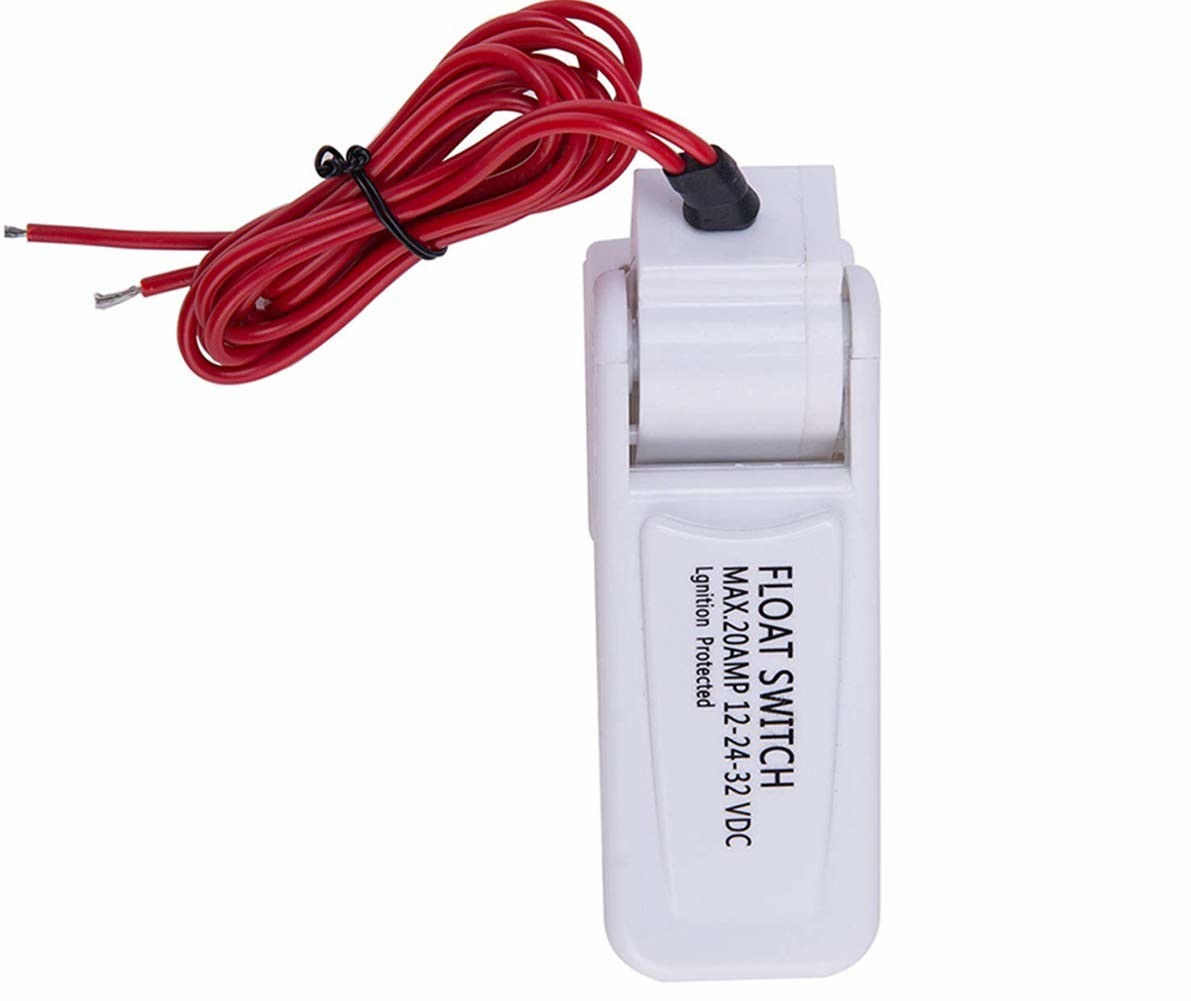

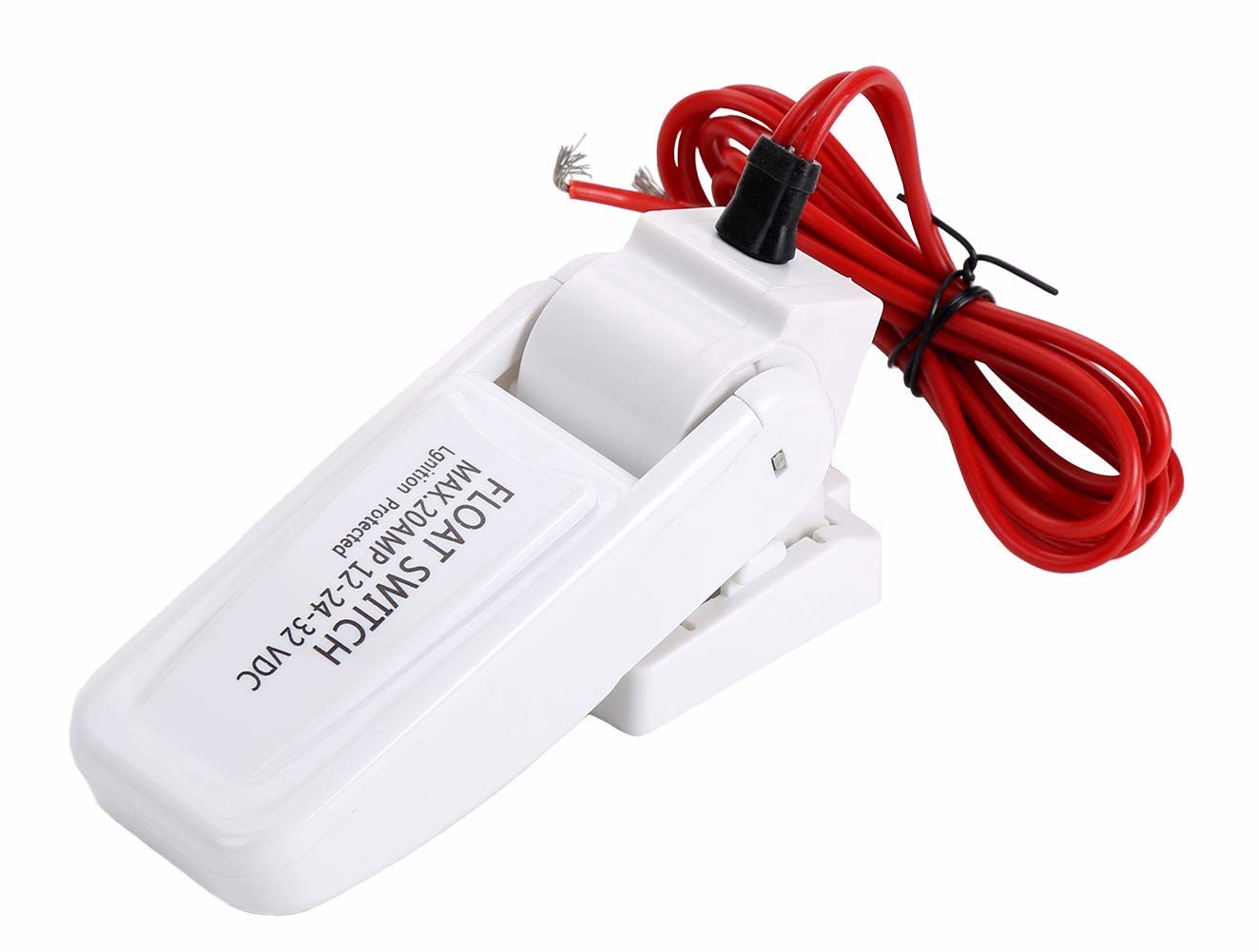

Whaleflo 12-32Volts DC White Plastic Automatic Boat Bilge Pump Float Switch 20 amps AUTO plastic Liquid level controller

Whaleflo 12-32Volts DC White Plastic Automatic Boat Bilge Pump Float Switch 20 amps AUTO plastic Liquid level controller
Whaleflo 12-32Volts DC White Plastic Automatic Boat Bilge Pump Float Switch 20 amps AUTO plastic Liquid level controller Whaleflo 12-32Volts DC White Plastic Automatic Boat Bilge Pump Float Switch 20 amps AUTO plastic Liquid level controller Whaleflo 12-32Volts DC White Plastic Automatic Boat Bilge Pump Float Switch 20 amps AUTO plastic Liquid level controller Whaleflo 12-32Volts DC White Plastic Automatic Boat Bilge Pump Float Switch 20 amps AUTO plastic Liquid level controller Whaleflo 12-32Volts DC White Plastic Automatic Boat Bilge Pump Float Switch 20 amps AUTO plastic Liquid level controller
Basic Information
Place of Origin: China
Brand Name: Whaleflo
Certification: CE,ROHS
Model Number: FLS-01
Minimum Order Quantity: 1pcs
Price: 5-7USD/Set
Packaging Details: 50pcs into a carton
Delivery Time: 7-15 work days after payments
Payment Terms: Western Union, L/C, T/T, MoneyGram
Supply Ability: 10000pcs/month
Contact Now
Operating Temp: 60 Centigrade Voltage: 12V-24V-32V
Usage: Marine,Bilge,Yacht Wire Size: 18AWG
N.W./G.W.: 0.16/0.18k Max Amps(12V): 20A
Max Amps(24V): 10A

Whaleflo Automatic Boat Float Switch,Boat Bilge Pump Float Switch (12V 24V 32V) (Float Switch)



Feature:
Turn pump on when water lever reaches 2"
Turn pump off when water level reaches 3/4"
For use with pumps drawing up to 20Amps>Use with the recommended size fuse for the pump to which it is connected.
Heavy duty and brand new
For yachts, boats, fishermen.

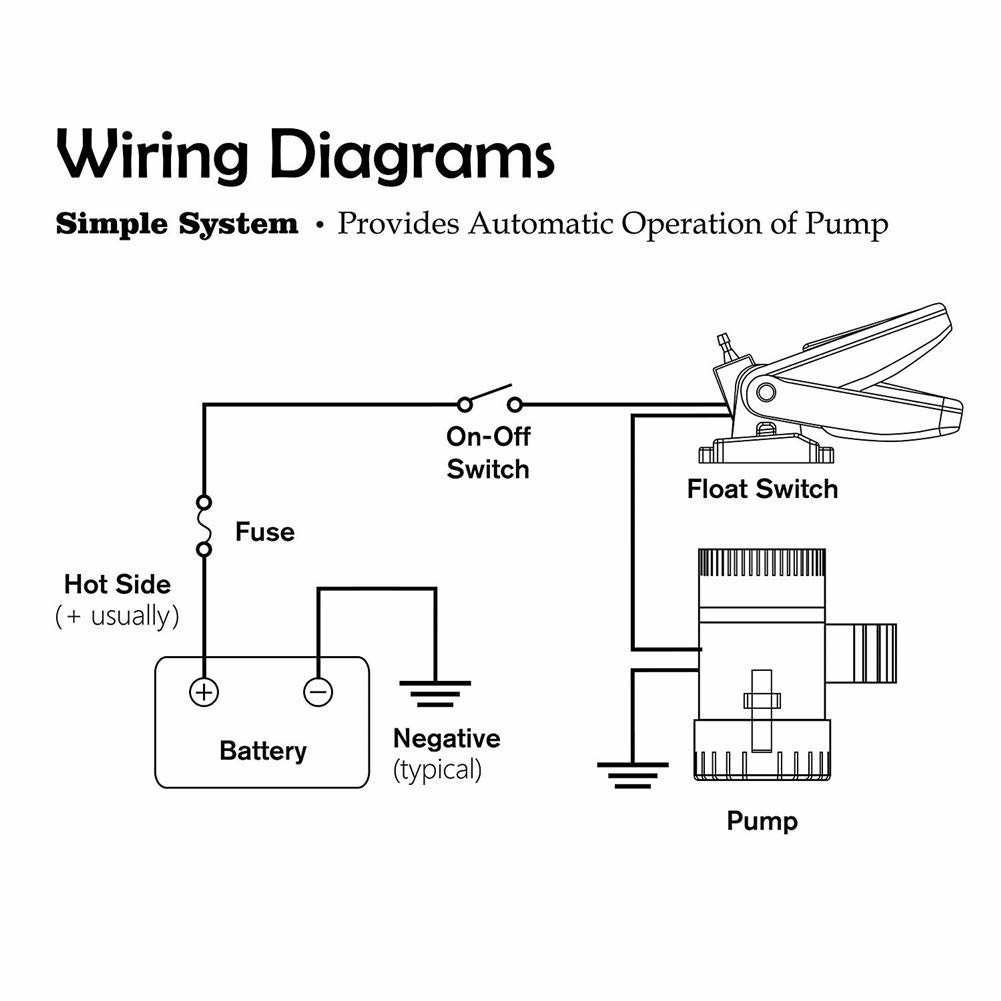

Connect it to a pump.

CAUTION:
Keep all wire connections above the highest water level. Wires should be sealed with a waterproof marine sealant to prevent wire corrosion.
Do not use with 110V applications
Designed for fresh water or sea water only.


Model: SFBS-20-01; 20AMP 12-24-34V DC
Max Amps 12volts 30A
Max Amps 24 volts 15A
Max Amps 32 volts 12A
Wire length 1m
Wire gauge size 18
N.W/N.W 0.16/0.2

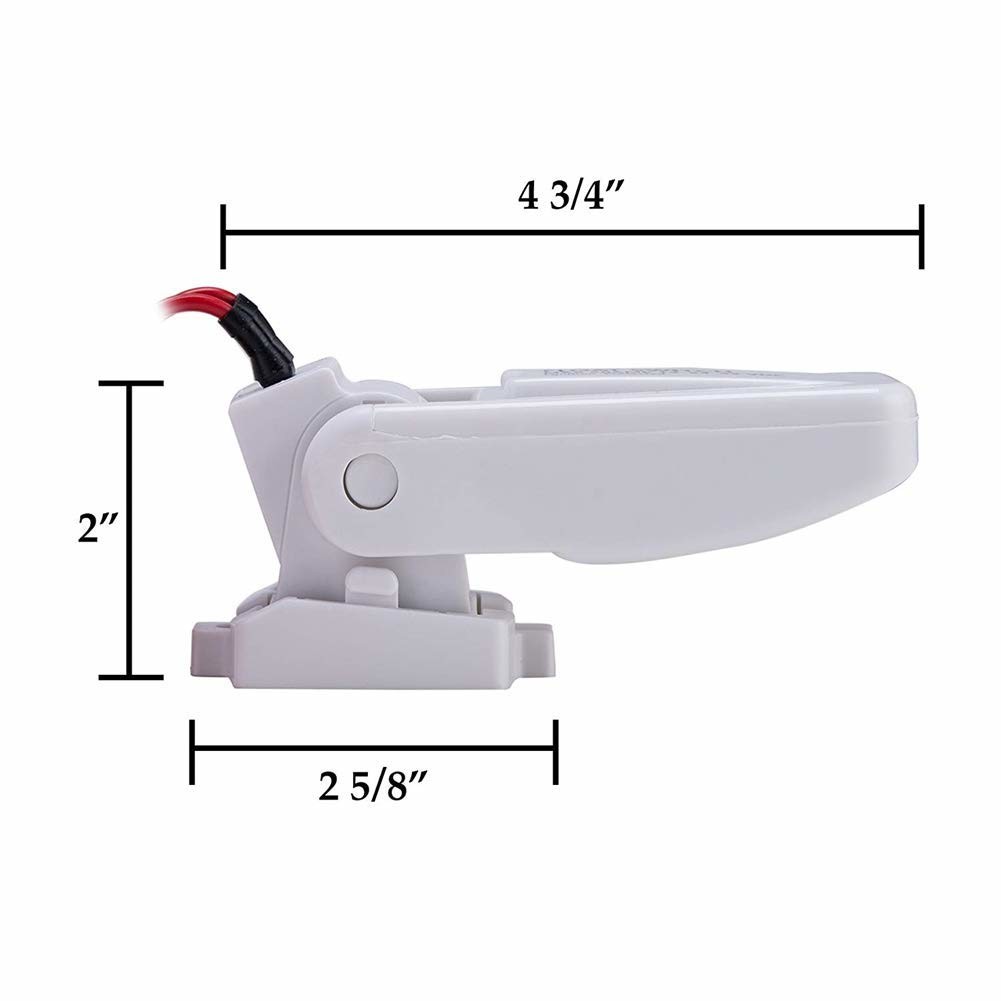

Product dimensions: 5" x 1.9" x 2" approx.;
Ignition protected; Mercury free;
Solid ABS material for high strength and durability
Long life, switching frequency up to 10 million times;
Ultrasonic welding, forming a seal, reliable and secure, not leaking

Note:
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

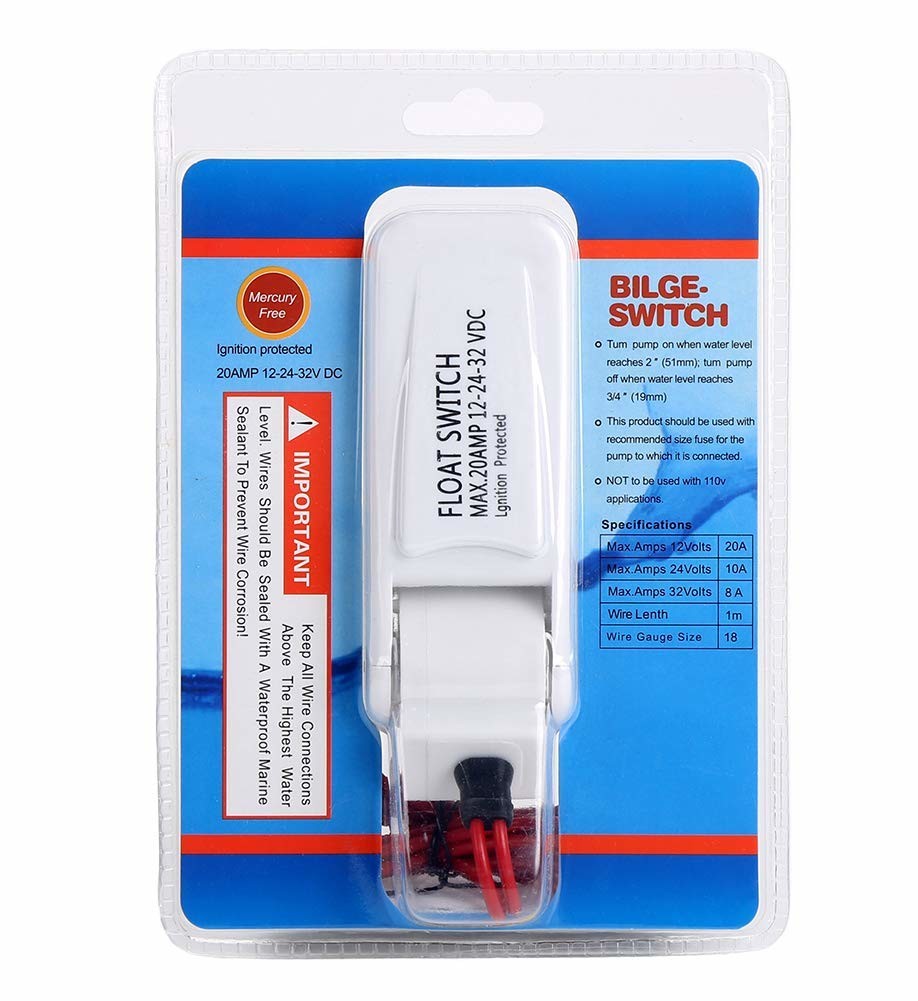

Package includes:
1 Pc Float Switch




1.Completely sealed metal capsules enhance flawless operation
2.A mercury free snap switch tested to over one million cycles
3.Switch is removable from the base for easy cleaning
4.Turn pump on when water level reaches 2 (51mm) ; Turn pump off when water level reaches 3/4(19mm)
5.Heavy duty flow switch is designed for the toughest applications; Environmentally responsible.



Whaleflo 12-32Volts DC White Plastic Automatic Boat Bilge Pump Float Switch 20 amps AUTO plastic Liquid level controller 0Whaleflo 12-32Volts DC White Plastic Automatic Boat Bilge Pump Float Switch 20 amps AUTO plastic Liquid level controller 1Whaleflo 12-32Volts DC White Plastic Automatic Boat Bilge Pump Float Switch 20 amps AUTO plastic Liquid level controller 2Whaleflo 12-32Volts DC White Plastic Automatic Boat Bilge Pump Float Switch 20 amps AUTO plastic Liquid level controller 3Whaleflo 12-32Volts DC White Plastic Automatic Boat Bilge Pump Float Switch 20 amps AUTO plastic Liquid level controller 4Whaleflo 12-32Volts DC White Plastic Automatic Boat Bilge Pump Float Switch 20 amps AUTO plastic Liquid level controller 5Whaleflo 12-32Volts DC White Plastic Automatic Boat Bilge Pump Float Switch 20 amps AUTO plastic Liquid level controller 6Whaleflo 12-32Volts DC White Plastic Automatic Boat Bilge Pump Float Switch 20 amps AUTO plastic Liquid level controller 7

Sample order is welcome testing!
