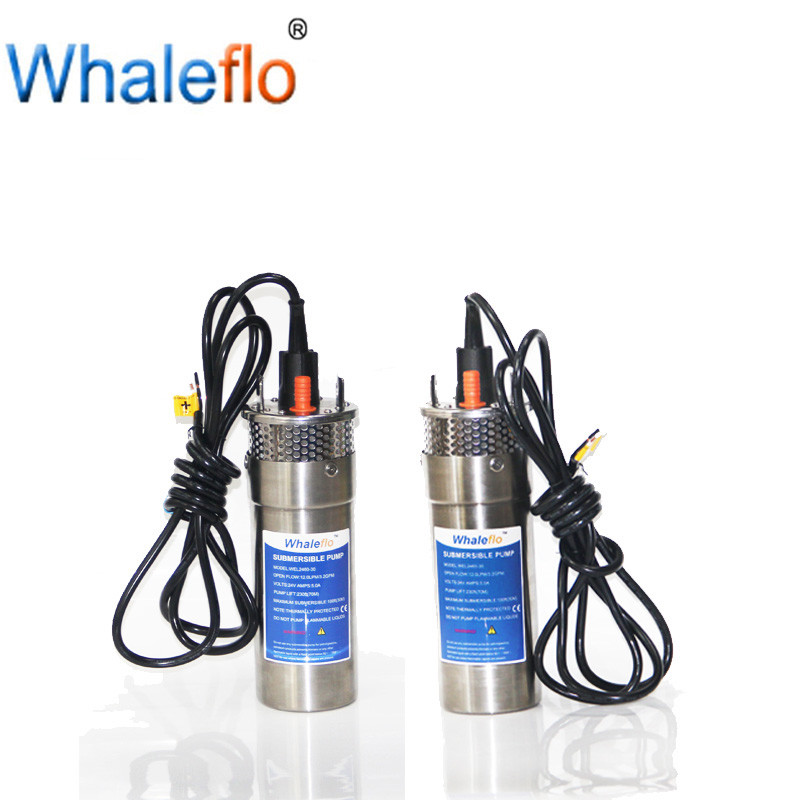

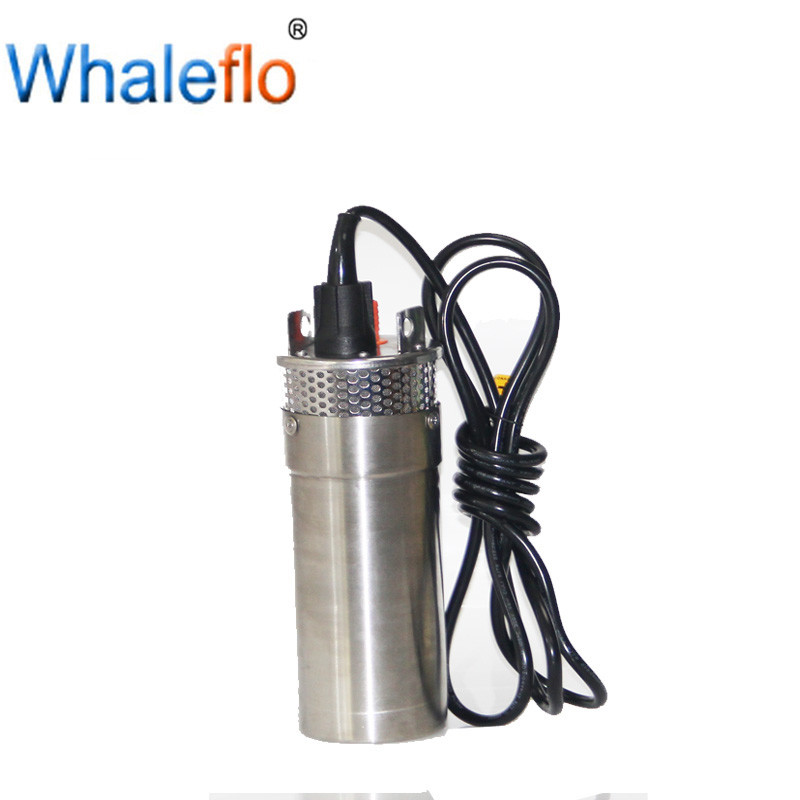

Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump

Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump
Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump
Basic Information
Place of Origin: China
Brand Name: Whaleflo
Certification: CE,ISO9001
Model Number: WEL2460-30/WEL1260-30
Minimum Order Quantity: 1 piece
Price: USD85-95/pc
Packaging Details: Strong Export carton
Delivery Time: 7-15days after confirmed
Payment Terms: L/C,T/T,Western Union,Paypal
Supply Ability: 100000 Piece/Pieces per Month
Contact Now
Application: Home Output Voltage (V): 12V/24V
Work Time (h): 24Hours Certificate: ISO9001,CE
Warranty: 1 Year Material: Stainless Steel
Maximum Lift: 100m Maximum Submerion: 100 Feet Maximum (30m)
Outlet Port: 1/2'' Motor: Permanent Magnet, Thermally Protected
Amps: 5.0A/10.0A Flow: 8L/12L/20L

Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pumpWhaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 0

Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 1

Solar submersible pumps can solve your long-distance water trouble, which is a sturdy and durablewater pump, it can at a maximum depth of 70 meters for your continued to provide 3 to 6 liters / minute of water flow, generally used for outdoor long-range water operating.

* Solar-powered submersible pump suitable for wells with a 4 inch diameter or larger.

*Designed to be strong and yet lightweight.

*Wide-range of parts and kits for ease of rebuilding and repair.

Features&Benefits

Pump:

*Strong Construction, yet lightweight.

*Dry Running capability without pump damage.

*Internal Bypass Feature for pump protection.

*Long-life,24VDC Operation.

*Easily repaired in the field.

*State of the art solid diaphragm.

Power Connector:

*Unique water-tight gland connector.

* Stops water wicking and prevents potential condensation.

*Quick Discounnect-No splicing necessary.

*Accepts a variety of jacketable cables.

Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 2

Pump Design Positive Displacement 3 Chamber Diaphragm Pump
Motor Permanent Magnet, Thermally Protected
Voltage 24V / 12V DC Nominal
Voltage 24V / 12V DC Nominal
Internal Bypass 105-110PSI Max.(7.2-7.5 BARS)
Maximum Lift 100m Maximum
Maximum Submerion 100Feet Maximum (30m)
Outlet Port 1/2''(12.7mm) Barbed Fitting for 1/2'' (12.7mm) I.D.Tubing

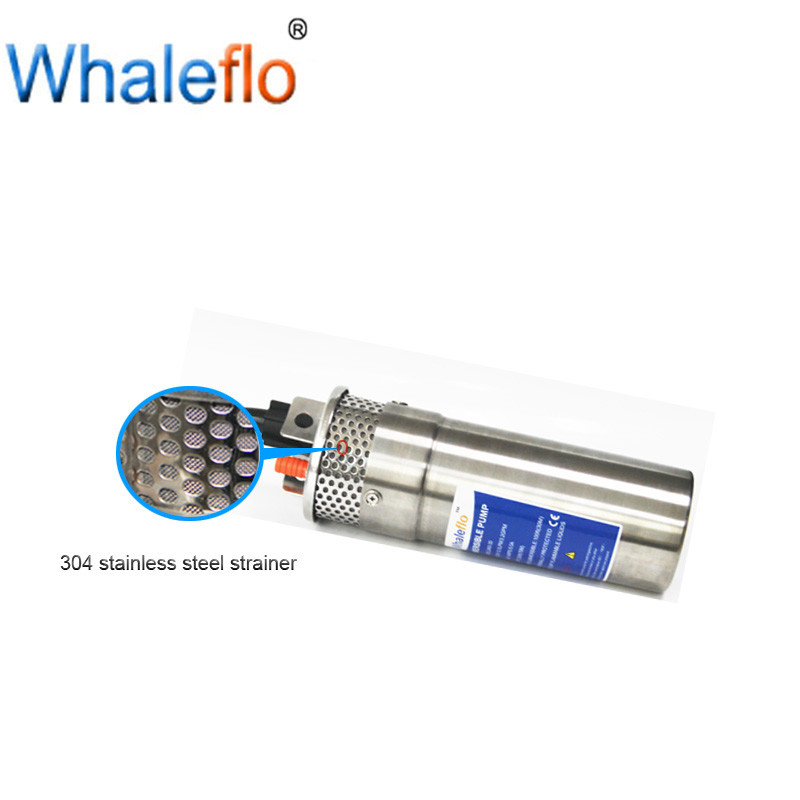

Inlet 50 Mesh Stainless Steel screen
Material High Strength Engineered Plastics, Stainless Steel Fasteners



Model Volt Flow rate lift(m) Amps Body cover
WEL2440-30 24V 6.0LPM(360LPH) 70 4.0A Plastic body
WEL1240-30 12V 6.0LPM(360LPH) 70 8.0A Plastic body
WEL2460-30 24V 12.0LPM(720LPH) 100 5.0A Stainless steel body
WEL1260-30 12V 12.0LPM(720LPH) 100 10.0A Stainless steel body
product show
Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 3Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 4Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 5Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 6

Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 7
Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 8

A Life Plate
B Cable Plug Kit
C Valve Kit
D Lower Housing Assembly Kit
E Motor Kit
F Canister Kit
G Filter Screen Kit
H O-ring Kit


Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 9 Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 10Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 11Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 12

Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 13

Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 14

Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 15

Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 16




Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 17

Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 18

Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 19

Application:

Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 20




Applications

Livestock drinking water, irrigation, pond water change, remote home and small log cabin water supply


Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 21Whaleflo DC12V/24V Solar Powered Irrigation Powerful Water Pump With Stainless Steel Body Submersible pump 22
Sample order is welcome testing.
