| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | CE,ISO9001 |
| Model Number: | WEL2460-30/WEL1260-30 |
| Minimum Order Quantity: | 1 piece |
| Price: | USD85-95/pc |
| Packaging Details: | Strong Export carton |
| Delivery Time: | 7-15 days after confirmed |
| Payment Terms: | L/C,T/T,Western Union,Paypal |
| Supply Ability: | 100000 Piece/Pieces per Month |
| Application: | Home | Output Voltage (V): | 12V/24V |
|---|---|---|---|
| Work Time (h): | 24Hours | Certificate: | ISO9001,CE |
| Warranty: | 1 Year | Material: | Stainless Steel |
| Maximum Lift: | 100m | Maximum Submerion: | 100 Feet Maximum (30m) |
| Outlet Port: | 1/2'' | Motor: | Permanent Magnet, Thermally Protected |
| Amps: | 5.0A/10.0A | Flow: | 8L/12L/20L |

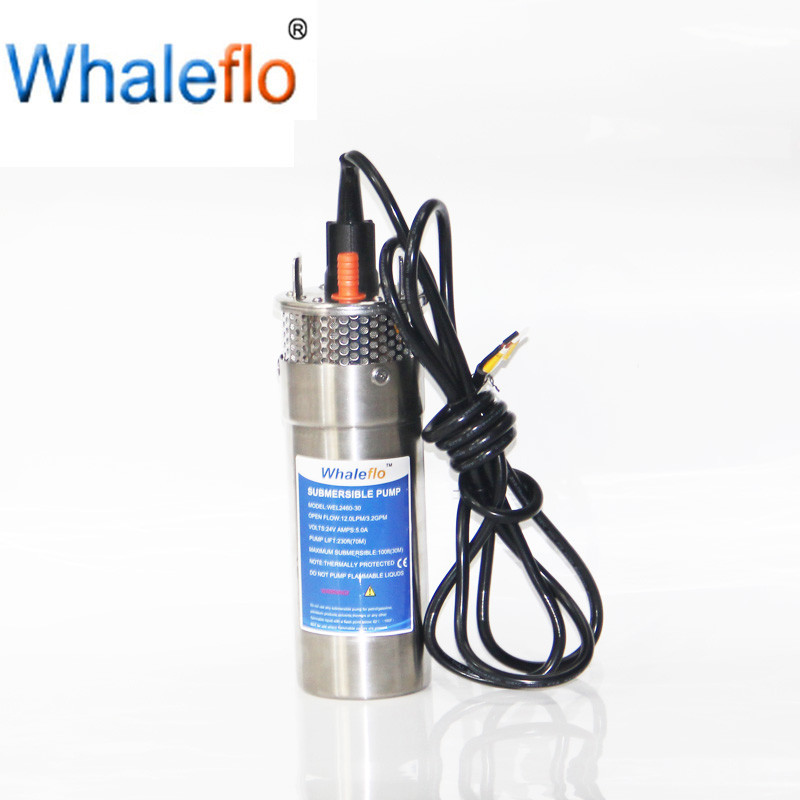

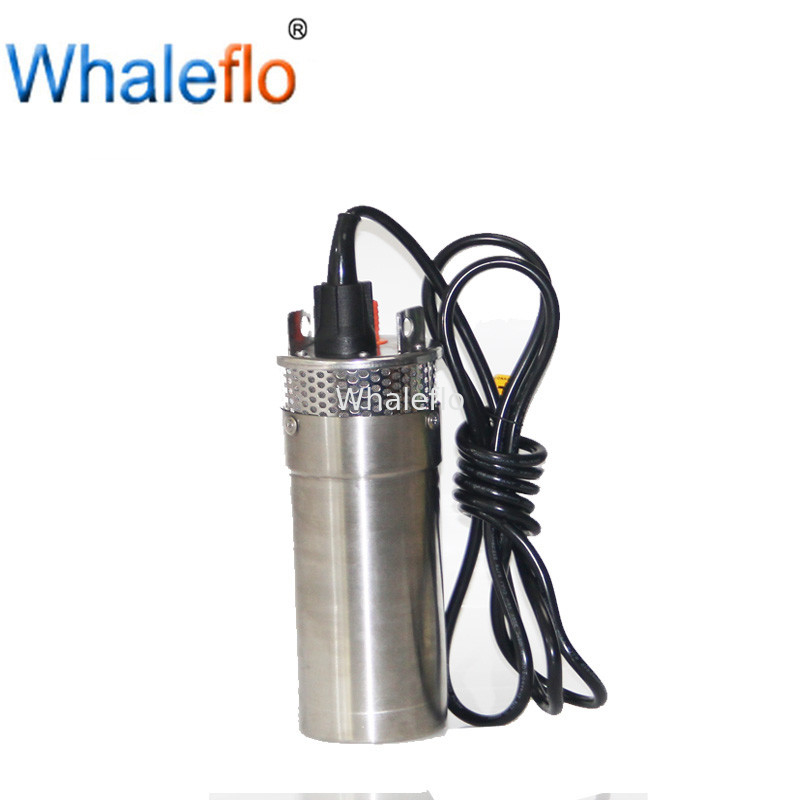

Solar submersible pumps can solve your long-distance water trouble, which is a sturdy and durablewater pump, it can at a maximum depth of 70 meters for your continued to provide 3 to 6 liters / minute of water flow, generally used for outdoor long-range water operating.
* Solar-powered submersible pump suitable for wells with a 4 inch diameter or larger.
*Designed to be strong and yet lightweight.
*Wide-range of parts and kits for ease of rebuilding and repair.
Features&Benefits
Pump:
*Strong Construction, yet lightweight.
*Dry Running capability without pump damage.
*Internal Bypass Feature for pump protection.
*Long-life,24VDC Operation.
*Easily repaired in the field.
*State of the art solid diaphragm.
Power Connector:
*Unique water-tight gland connector.
* Stops water wicking and prevents potential condensation.
*Quick Discounnect-No splicing necessary.
*Accepts a variety of jacketable cables.
| Pump Design | Positive Displacement 3 Chamber Diaphragm Pump |
| Motor | Permanent Magnet, Thermally Protected |
| Voltage | 24V / 12V DC Nominal |
| Voltage | 24V / 12V DC Nominal |
| Internal Bypass | 105-110PSI Max.(7.2-7.5 BARS) |
| Maximum Lift | 100m Maximum |
| Maximum Submerion | 100Feet Maximum (30m) |
| Outlet Port | 1/2''(12.7mm) Barbed Fitting for 1/2'' (12.7mm) I.D.Tubing |

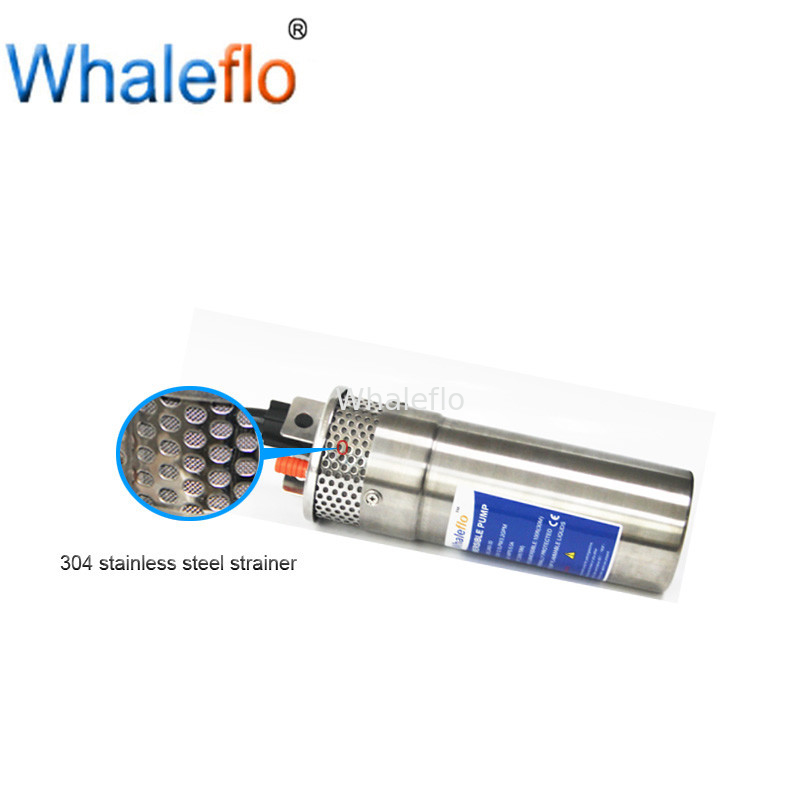

| Inlet | 50 Mesh Stainless Steel screen |
| Material | High Strength Engineered Plastics, Stainless Steel Fasteners |
| Model | Volt | Flow rate | lift(m) | Amps | Body cover |
| WEL2440-30 | 24V | 6.0LPM(360LPH) | 70 | 4.0A | Plastic body |
| WEL1240-30 | 12V | 6.0LPM(360LPH) | 70 | 8.0A | Plastic body |
| WEL2460-30 | 24V | 12.0LPM(720LPH) | 100 | 5.0A | Stainless steel body |
| WEL1260-30 | 12V | 12.0LPM(720LPH) | 100 | 10.0A | Stainless steel body |
| A | Life Plate |
| B | Cable Plug Kit |
| C | Valve Kit |
| D | Lower Housing Assembly Kit |
| E | Motor Kit |
| F | Canister Kit |
| G | Filter Screen Kit |
| H | O-ring Kit |
Application:
Applications
Livestock drinking water, irrigation, pond water change, remote home and small log cabin water supply
Sample order is welcome testing.
