| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | CE,ISO9001 |
| Model Number: | WEL1240-30 |
| Minimum Order Quantity: | 1 pc |
| Price: | USD68-80/pc |
| Packaging Details: | 1pc/box |
| Delivery Time: | 7-15 days after confirmed |
| Payment Terms: | L/C,T/T,Western Union,Paypal |
| Supply Ability: | 100000 Piece/Pieces per Month |
| Application: | Home | Load Power (W): | 150W |
|---|---|---|---|
| Solar Power (W): | 100W | Work Time (h): | 24Hours |
| Voltage: | 12V | Certificate: | ISO9001,CE |
| Warranty: | 1 Year | Material: | Plastic |
| Maximum Lift: | 70m | Maximum Submerion: | 100 Feet Maximum (30m) |
| Outlet Port: | 1/2'' | Amps: | 8A |
| Color: | Black,blue,orange |

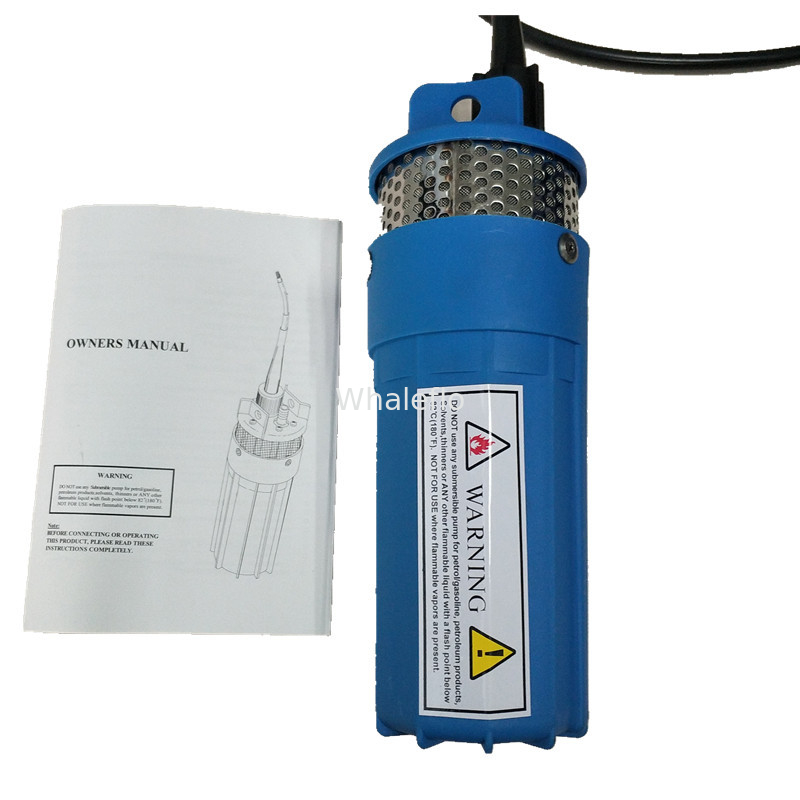

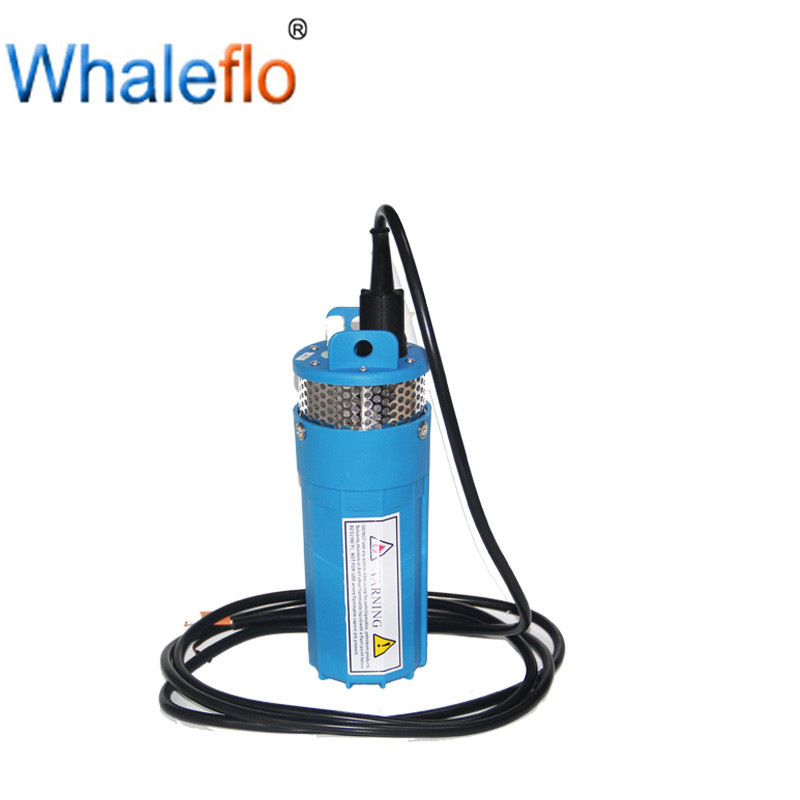

The solution to your remote water pumping needs. This pump is rugged.durable and builtto last. This pump delivers a steady 162GPH(600LPH) at its maximum depth of 230 feet (70m) when supplied with 24VDC. Its unique water-tight power connector stops water wicking and prevents potential condensation problems. Great for livestock watering.irrigation,pondaeration,remote homes and cabins
| FEATURES & BENEFITS |
Pump: *Strong Construction, yet lightweight (2.7kgs,6 lbs) * Corrosion-proof housing with stainless-steel fasteners *Dry Running capability without pump damage *Internal Bypass Feature for pump protection *Long-life,24VDC Operation *Easily repaired in the field *State of the art solid diaphragm Power Connector: *Unique water-tight gland connector * Stops water wicking and prevents potential condensation *Quick Discounnect-No splicing necessary *Accepts a variety of jacketable cables |
|
Whaleflo Pump Included. |
|

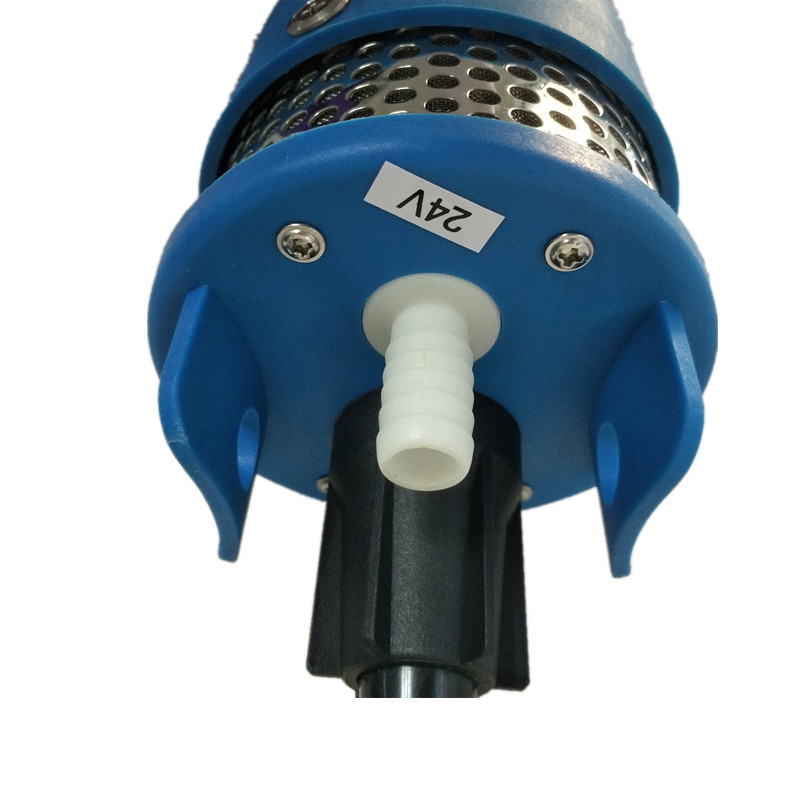

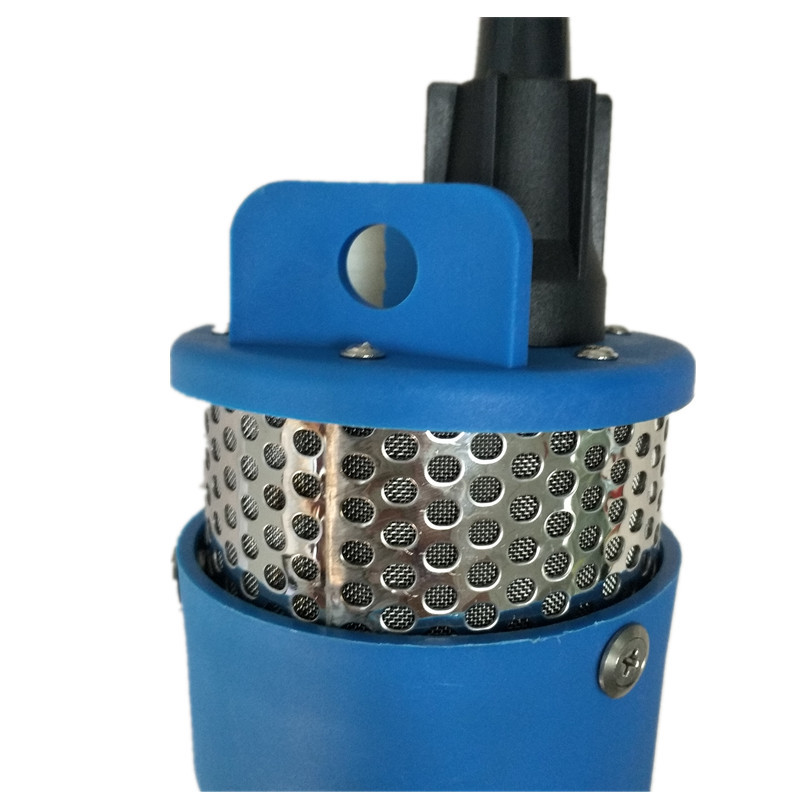

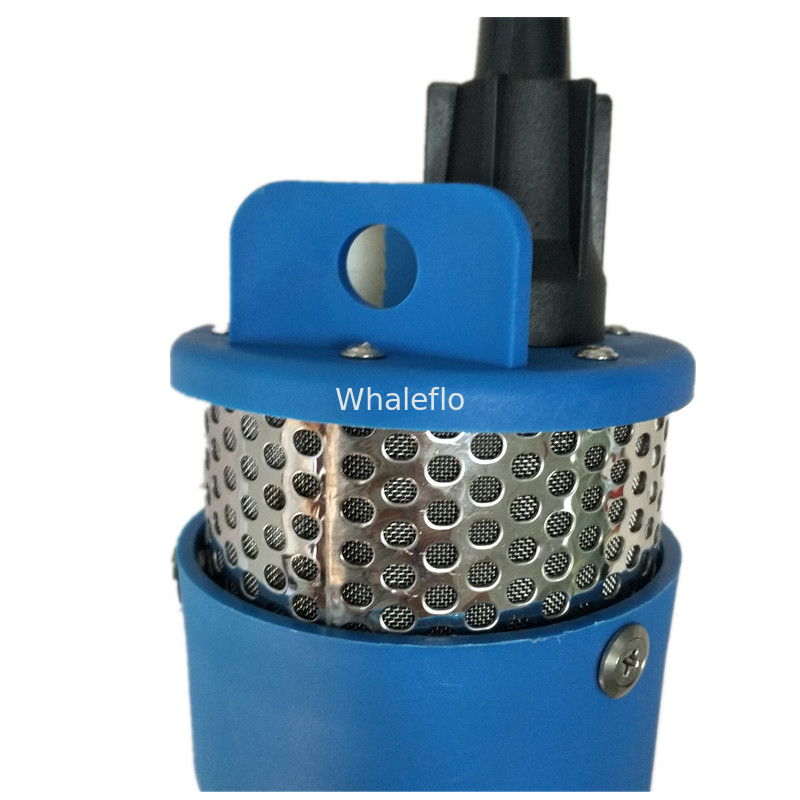

| TECHNICAL CHARACTERISTICS Pump Design Positive Displacement 3 Chamber Diaphragm Pump Motor Permanent Magnet, Thermally Protected Voltage 24V / 12V DC Nominal Amps: 4.0 Max./8.0 Max. Internal Bypass 105-110PSI Max.(7.2-7.5 BARS) Maximum Lift 230 Feet Maximum (70m) Maximum Submerion 100 Feet Maximum (30m) Outlet Port 1/2''(12.7mm) Barbed Fitting for 1/2'' (12.7mm) I.D.Tubing Inlet 50 Mesh Stainless Steel screen Materials High Strength Engineered Plastics, Stainless Steel Fasteners Potable Water Well Pump Model Volt Flow rate Amps WEL1240-30 12V 6.0LPM(360LPH) 8.0A |
|
|
Typical Applications |
|
|
A Life Plate B Cable Plug Kit C Valve Kit D Lower Housing Assembly Kit E Motor Kit F Canister Kit G Filter Screen Kit H O-ring Kit |
|
|
production image
*Drinking water supply
*Solar micro irrigation(small family's garden,Small rural areas or green roof system)
*Water supply for remote domestic usage
*Water supply for solar thermal installation
*Irrigation of fields and greenhouses
*Water supply for animals
*Pond management
*Game parks and game farms
*Livestock drinking water
*Irrigation
*pond water change
*remote home and small log cabin water supply
Sample order is welcome testing!
