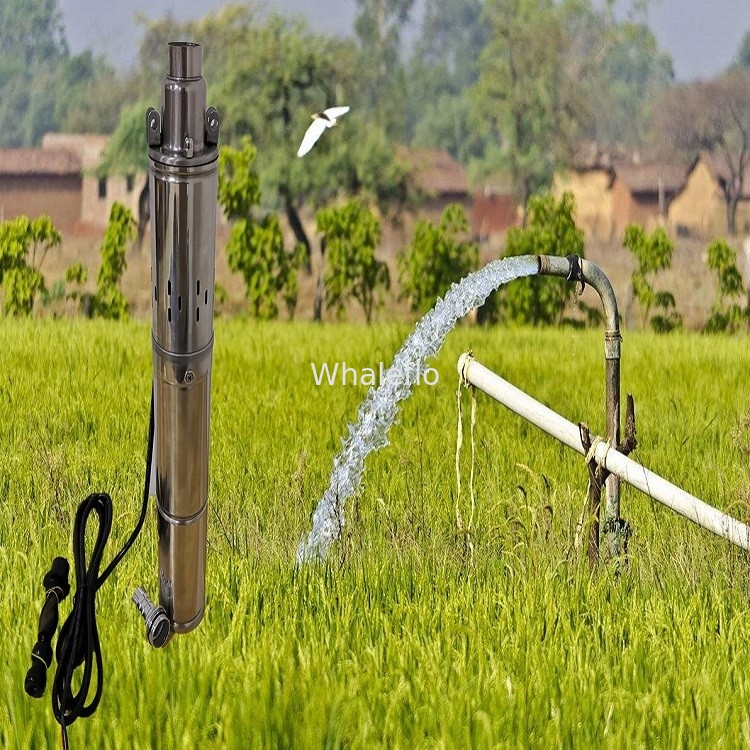

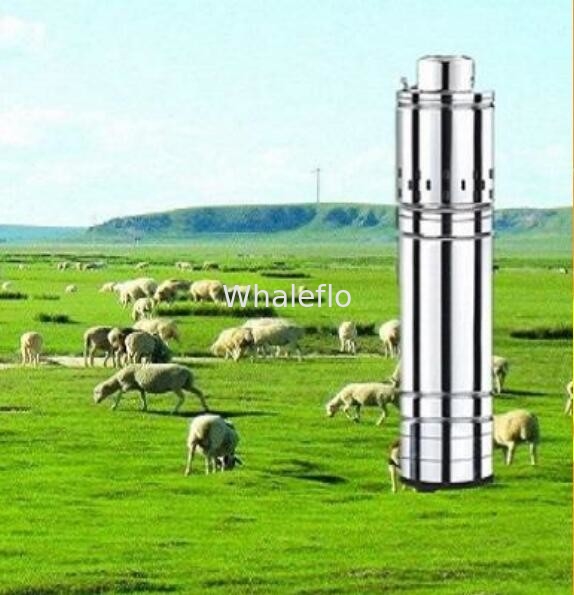

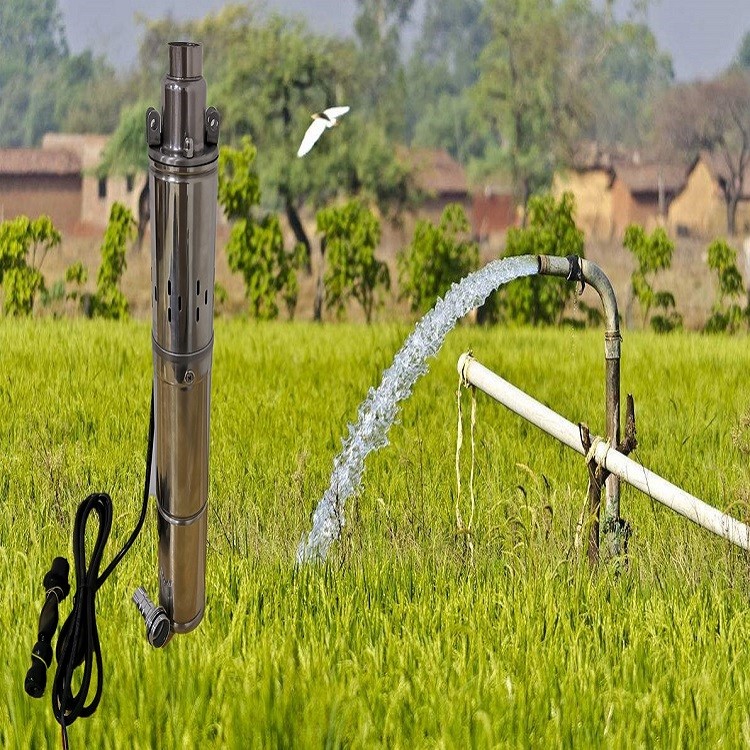

Whaleflo bldc solar submersible water pump for deep well 500W outlet port 1 inches maxi flow 2T/H maxi head

Whaleflo bldc solar submersible water pump for deep well 500W outlet port 1 inches maxi flow 2T/H maxi head
Whaleflo bldc solar submersible water pump for deep well 500W outlet port 1 inches maxi flow 2T/H maxi head Whaleflo bldc solar submersible water pump for deep well 500W outlet port 1 inches maxi flow 2T/H maxi head
Basic Information
Place of Origin: China
Brand Name: Whaleflo
Certification: ISO9001,CE
Model Number: 3PB48-110
Minimum Order Quantity: 400 pcs
Price: negotiation
Packaging Details: Strong Export carton
Delivery Time: 7-30 work days after confirmed
Payment Terms: Western Union, L/C, T/T, Western Union
Supply Ability: 5000pcs/month
Contact Now
Power: 500W Fuel: Solar
Outlet Port: 1 Inches Material: Stainless Steel
Rate Head: 75meters Rated Flow: 1T/H
Protection: IP68 Application: Submersible
Maxi Flow: 2T/H Inlet: 76mm
Open Volts: 92V MPPT: 72V
Maxi Head: 110Meter

Whaleflo bldc solar submersible water pump for deep well 500W outlet port 1 inches maxi flow 2T/H maxi headWhaleflo bldc solar submersible water pump for deep well 500W outlet port 1 inches maxi flow 2T/H maxi head 0Whaleflo bldc solar submersible water pump for deep well 500W outlet port 1 inches maxi flow 2T/H maxi head 1Whaleflo bldc solar submersible water pump for deep well 500W outlet port 1 inches maxi flow 2T/H maxi head 2



Product Specification





Model Power MPPT Volts open volts maxi head rate head maxi flow rate flow inlet port outlet port protect class
W V V m m T/H T/H mm Inch
3PB24-60 250 36 44 60 40 2 1 76 1 IP68
3PB48-110 500 72 92 110 75 2 1 76 1 IP68
Industrial Purpose Sand-control Solar water pump
Model Power MPPT Open Circuit Rated Head Max. Head Rated Flow Input Output IP
W V V m m T/H mm Inch
3SH1.5/7-0.18 180 18V-36V 44V 26 30 1.5 76 1 IP68
3SH1.5/10-0.25 250 18V-36V 44V 37 45 1.5 76 1 IP68
3SH2.5 Series(2.4T/H)
Industrial Purpose Sand-control Solar water pump
Model Power MPPT Open Circuit Rated Head Max. Head Rated Flow Input Output IP
W V V m m T/H mm Inch
3SH2.5/5-0.18 180 18V-36V 44V 15 25 2.5 76 1 IP68
3SH2.5/7-0.25 250 18V-36V 44V 21 32 2.5 76 1 IP68
4SH1.5 Series(1.5T/H)
Industrial Purpose Sand-control Solar water pump
Model Power MPPT Open Circuit Rated Head Max. Head Rated Flow Input Output IP
W V V m m T/H mm Inch
4SH1.5/7-0.25 250 18V-36V 44V 30 49 1.5 76 1.25 IP68
4SH2 Series(2T/H)
Industrial Purpose Sand-control Solar water pump
Model Power MPPT Open Circuit Rated Head Max. Head Rated Flow Input Output IP
W V V m m T/H mm Inch
4SH1.5/6-0.25 250 18V-36V 44V 24 42 2 76 1.25 IP68



Whaleflo bldc solar submersible water pump for deep well 500W outlet port 1 inches maxi flow 2T/H maxi head 3Whaleflo bldc solar submersible water pump for deep well 500W outlet port 1 inches maxi flow 2T/H maxi head 4Whaleflo bldc solar submersible water pump for deep well 500W outlet port 1 inches maxi flow 2T/H maxi head 5

Sample order is welcome testing!
