| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | ISO9001 |
| Model Number: | YK-7 |
| Minimum Order Quantity: | 1 |
| Price: | negotiate |
| Packaging Details: | 1 set/carton |
| Delivery Time: | 7-20 work days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 10000per month |
| Application: | Rotary Steering System | No. Of Steering Wheel Turns: | 4.2 Approx |
|---|---|---|---|
| Stroke: | 225mm | Max Wheel Size: | 360mm |
| Max Boat HP: | 125 | Material: | Zinc Alloy |
| Finishing: | Shot Blasting | Specification: | ISO9001 |
| HS Code: | 847989100 |

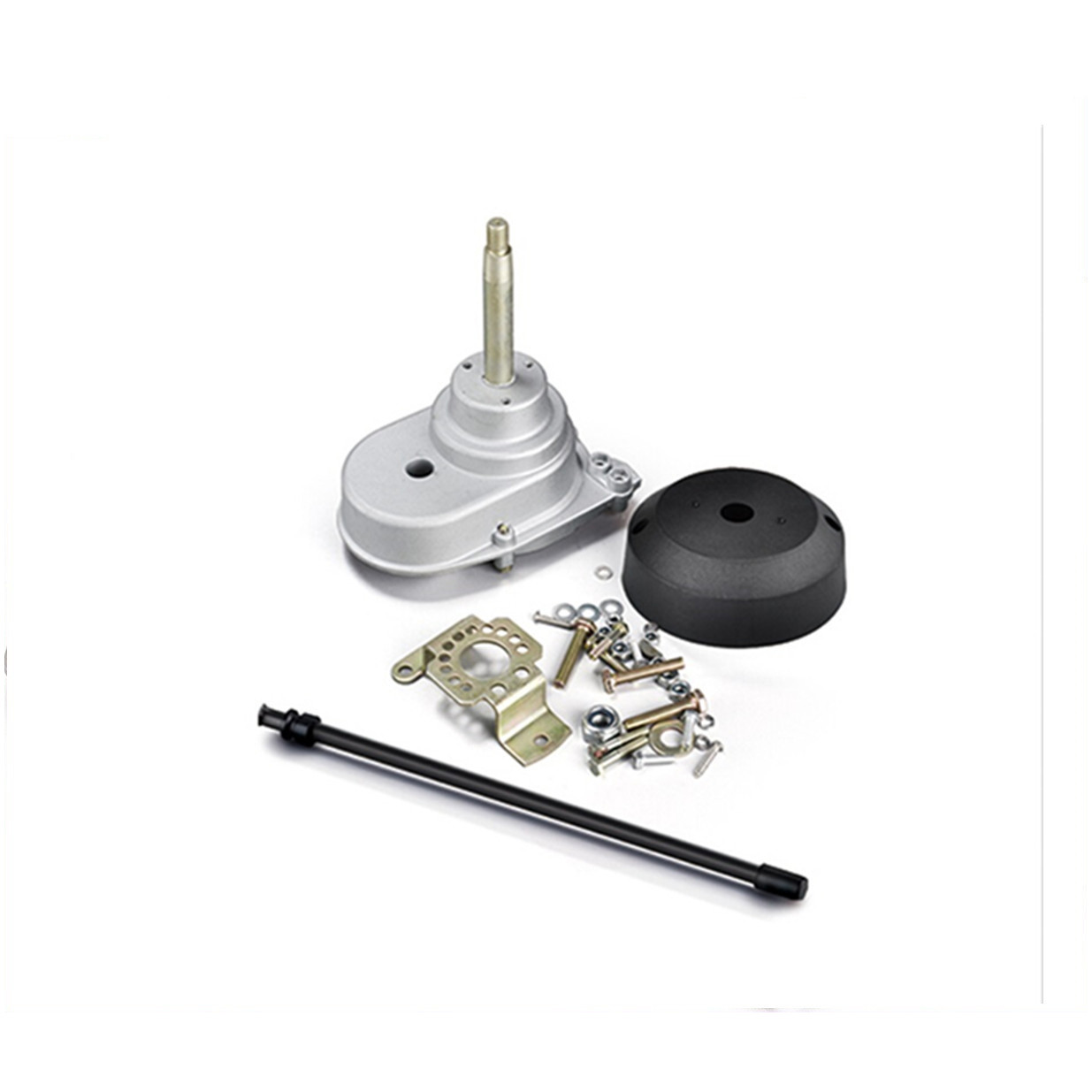

Whaleflo YK7-A Marine Steering System
Can replace to ULTRAFLEX T85 type

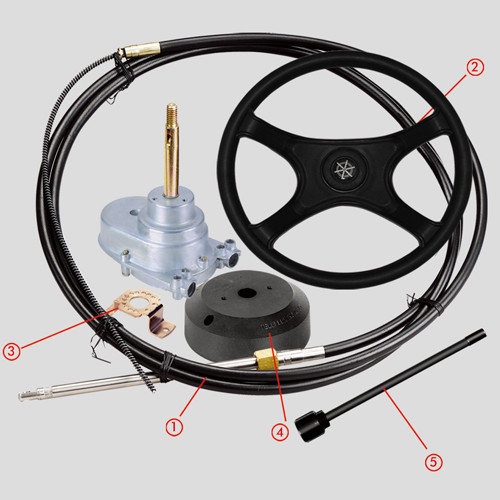

*Easy Connect Steering Helm :
Steering Helm :Part No. : EC7B
*Steering Cable : Part No :EC7-160-XX(XX is the length of the cable in feet )
*Bezel kits :
Bezel kits -90 degree : Part No: EC7-K-1
Bezel kits -20 degree : Part No: EC7-K-2

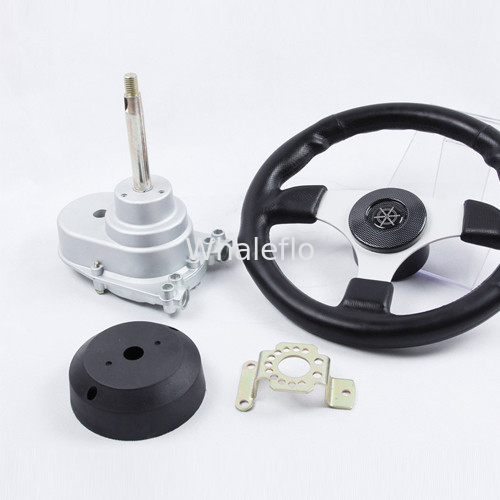

Steering Helm
EC7-B

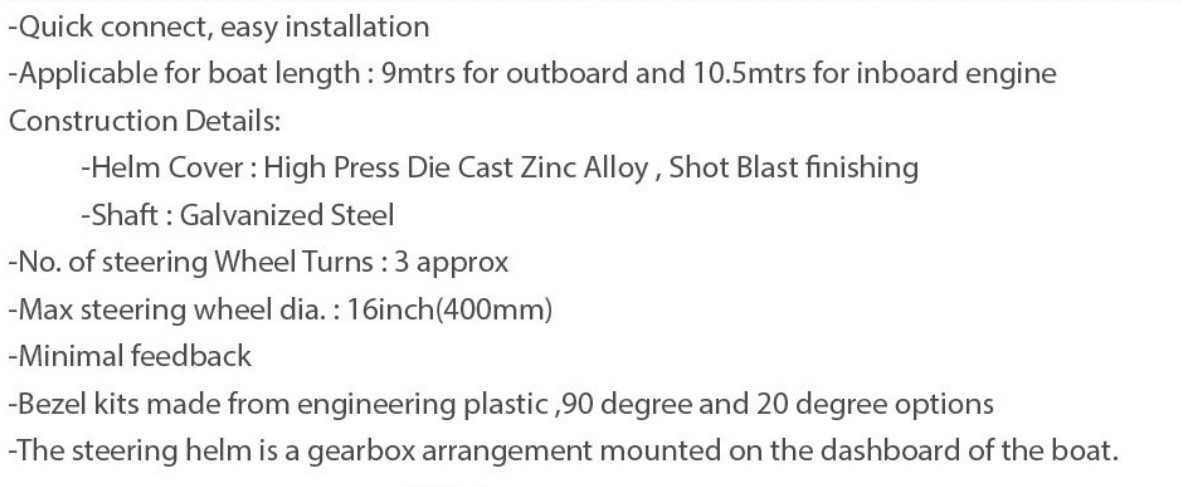

-Thread connect, easy installation
-Applicable for boat length : 9mtrs for outboard and 10.5mtrs for inboard engine
Construction Details:
-Helm Cover : High Press Die Cast Zinc Alloy , Shot Blast finishing
-Shaft : Galvanized Steel
-No. of steering Wheel Turns : 3 approx
-Max steering wheel dia. : 16inch(400mm)
-Minimal feedback
-The steering helm is a gearbox arrangement mounted on the dashboard of the boat.
Steering Cable
EC7-160-XX
( XX is the length of the cable in feet )
-Steering cable to be used with YK7 quick connect helm
-Output ends of 316 stainless steel
-Maximum Stroke : 9inch (225mm)
-Minimum bend radius : 8inch(220mm)
-Maximum working load at tiller end : 5000N
-Cable Outer Diameter : 15.8mm
-Spiral inner cable diameter :8mm
Bezel Kits
Mounted between steering wheel and dash board
EC7-K-1/EC7-K-2
-Bezel kits made from engineering plastic
-90 degree and 20 degree options
-Black and white color options
-Related hardware contain nuts and screws
| Item |
No. of Steering Wheel Turns
|
Stroke |
Max Wheel Size
|
Max Boat HP
|
Material |
Finishing |
|
|
Steering System
|
4.2 Approx
|
225mm |
360mm
|
125 |
Zinc Alloy
|
Shot Blasting |
