| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | CE/Rohs |
| Model Number: | WEL-S201 |
| Minimum Order Quantity: | 100 |
| Price: | 1.98-2.58$/pc |
| Packaging Details: | 1pc/box |
| Delivery Time: | 5-8days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000pc/month |
| Color: | Black | Sample: | Available |
|---|---|---|---|
| Theory: | Hall Sensor | Sensor Type: | Hall Effect |
| Max Current Draw: | 15mA @ 5V | Working Voltage: | 5 To 18V DC (min Tested Working Voltage 4.5V) |
| Output Type: | 5V TTL | Working Temperature Range:: | -25 To +80℃ |
| Working Humidity Range:: | 35%-80% RH | Accuracy: | ±10% |
| Maximum Water: | 2.0 MPa | Output Duty Cycle: | 50% +-10% |

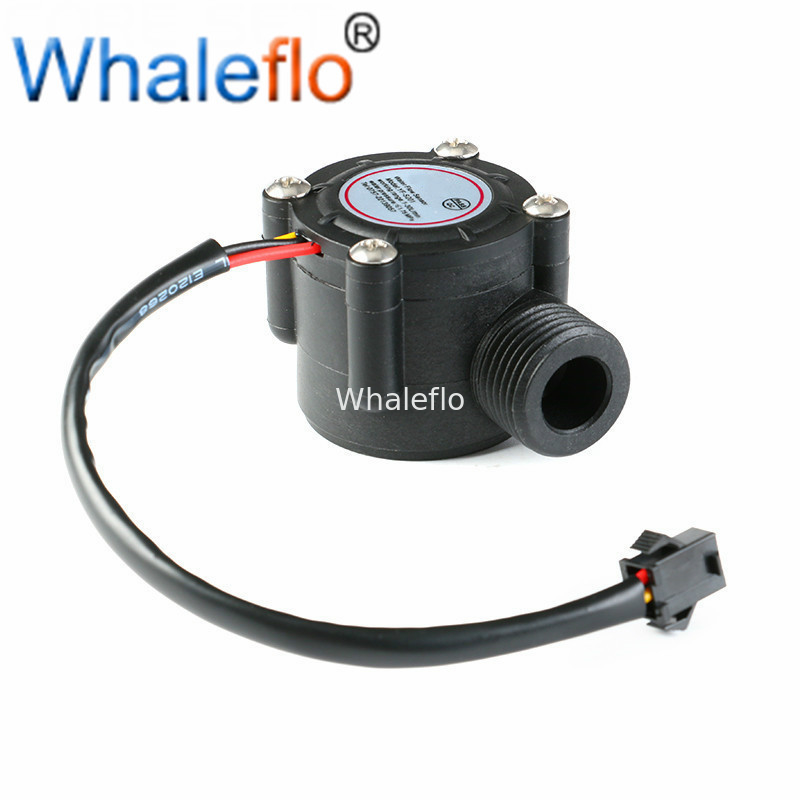

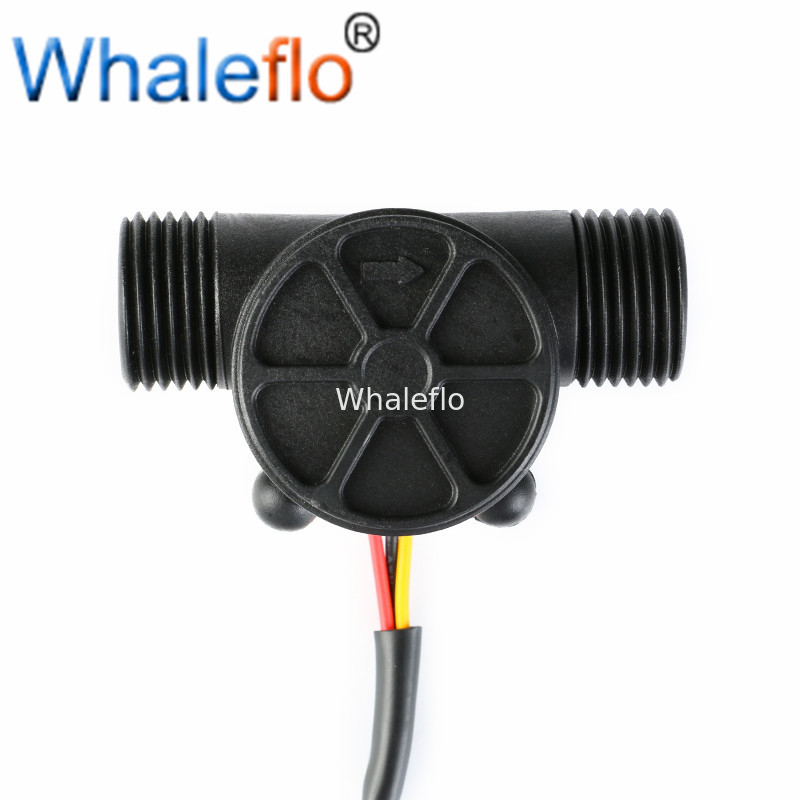

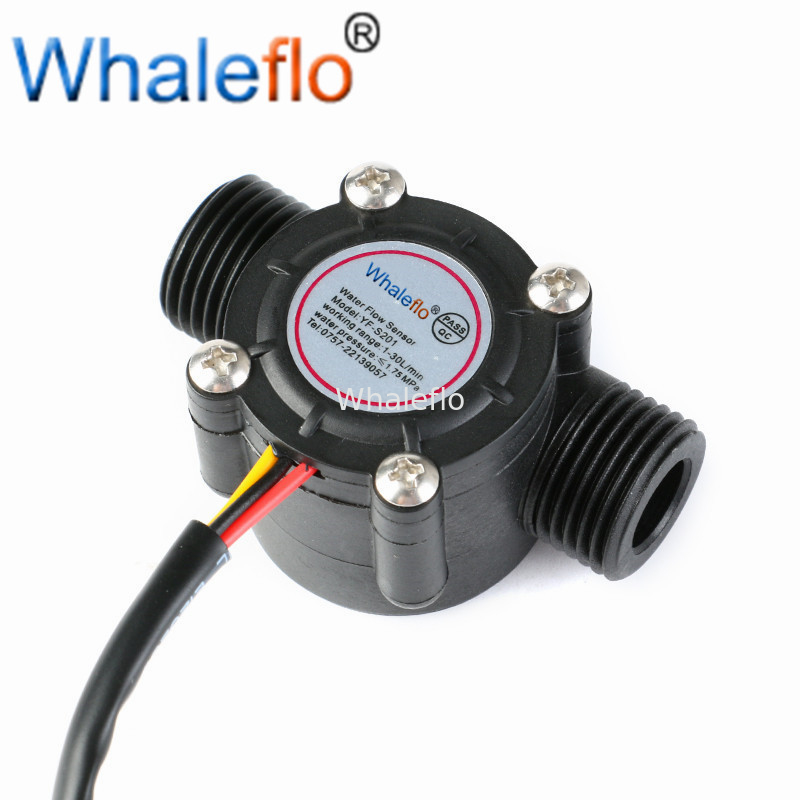

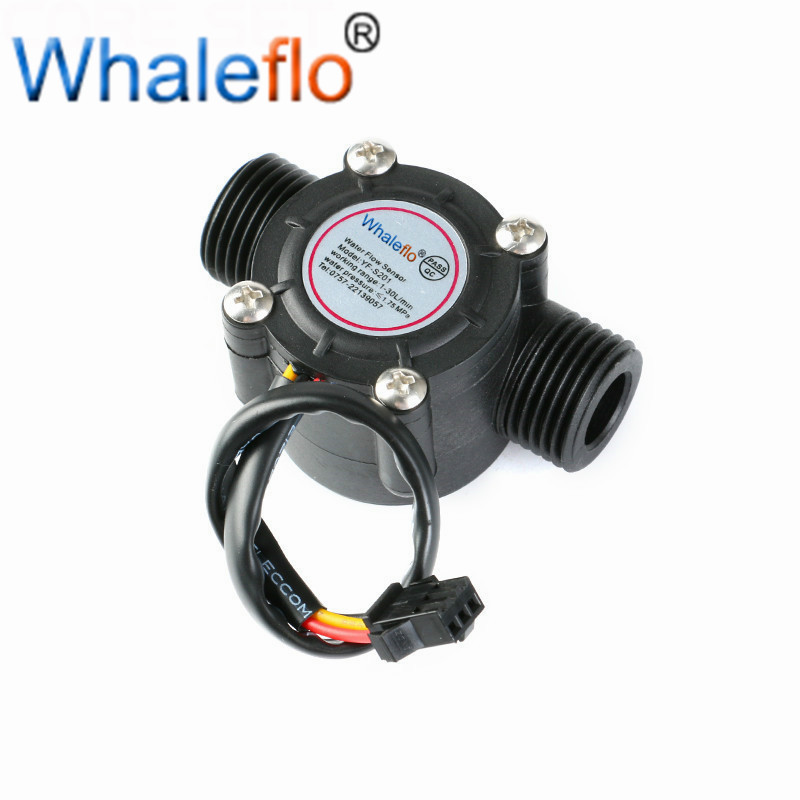

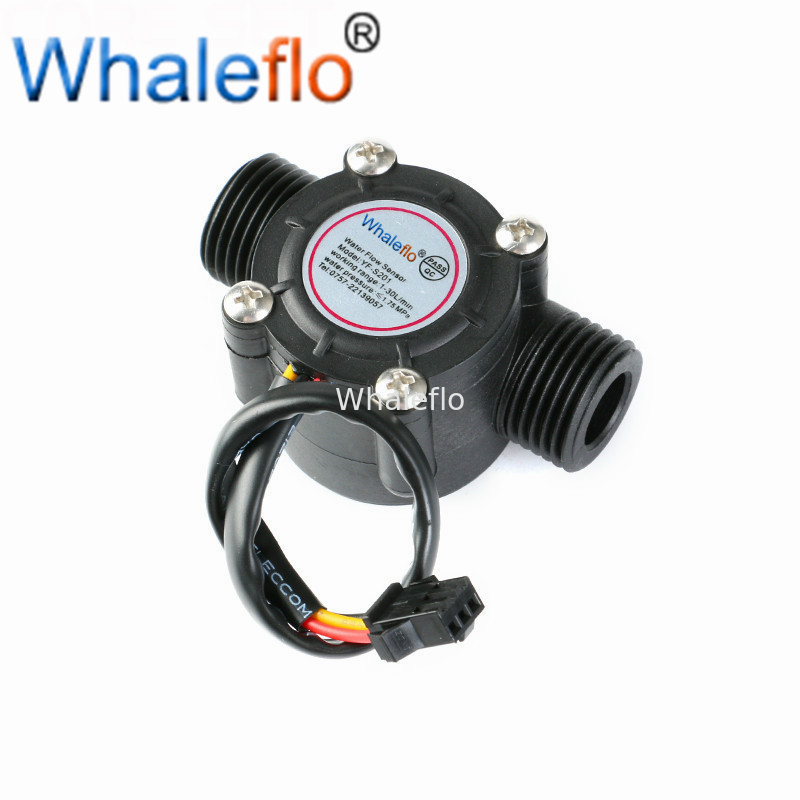

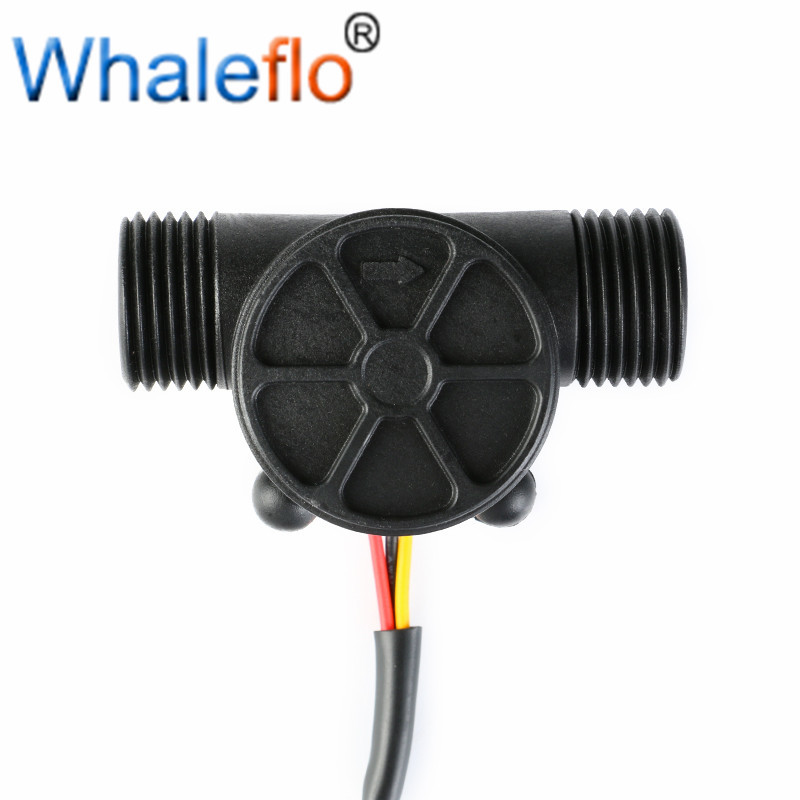

This sensor sits in line with your water line and contains a pinwheel sensor to measure how much liquid has moved through it. There's an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.

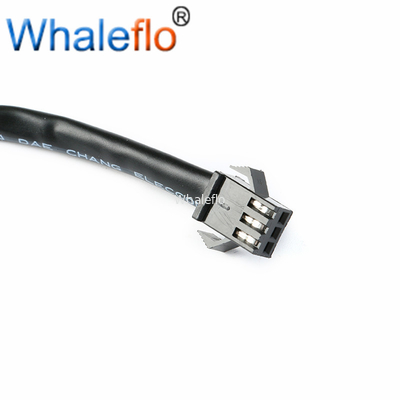

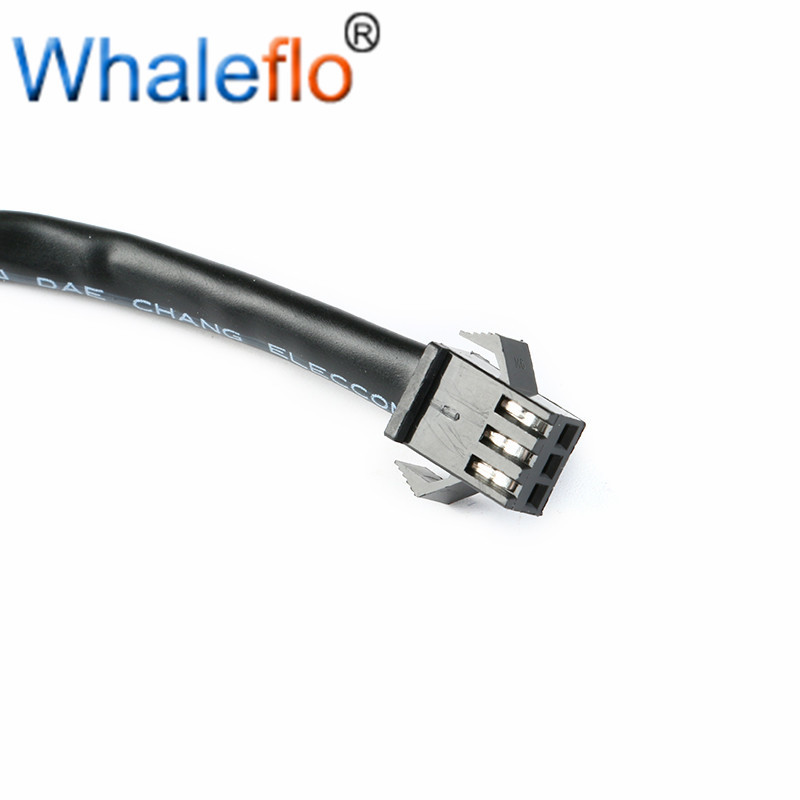

The sensor comes with three wires: red (5-24VDC power), black (ground) and yellow (Hall effect pulse output). By counting the pulses from the output of the sensor, you can easily calculate water flow. Each pulse is approximately 2.25 milliliters. Note this isn't a precision sensor, and the pulse rate does vary a bit depending on the flow rate, fluid pressure and sensor orientation. It will need careful calibration if better than 10% precision is required. However, its great for basic measurement tasks!
We have as example Arduino sketch that can be used to quickly test the sensor, it will calculate the approximate flow of water in liters/hour.
The pulse signal is a simple square wave so its quite easy to log and convert into liters per minute using the following formula.
Pulse frequency (Hz) / 7.5 = flow rate in L/min.
Features:
Connection details:
1, Quality Assurance
Every motor carry out basing on standard testing flow, pressure before delivery out.
2, Customer service
Professional feedback within 12 hours.
Warranty 24 month after service and 2 free FOB spare parts.
3, R&D department Experienced engineers who specialized in motor. We developed new model pumps every quarter and we meet different requirement.
4, Identification
CE,ROHS.ISO9--1;2008, ISO8846, FDA, SGS
5, Sales network
USA, Europe, South Australia,Brazil,South africa, Mid- american and other countries.
6, Production Ability
Our plant covers 10000 square meters with full set of automative production lines and integrated testing facilities.
More than 10 production and 300 skilled worker production over 1.6 million capacity pieces.
Our advantage
Application
Certificate
FAQ
Q: Are you a manufacturer or trading company?
Our plant covers 10000 square meters with full set of automative production lines and integrated testing facilities. Our sales depart located in Xiamen, China.
Q: What's your main products of your company?
A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm
pump,Marine pump,RV pump, bilge pump )for over 8 years with excellent quality and competitive price.
Q. What is your MOQ?
Our company is pleasure accept all items 1pcs order for testing.If bulk order, pls send inquiry to get more discount.
Q. What about the delivery time?
A.The stock samples can be sent to you within 2-3days by international express after received
A.The batch order can be shipped to you in about 15-20 working days after order confirmation (by air or by sea
Q. Can I buy different types in one container?
A:Yes, you can mix different types in one container.
Q.How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application, pump working duty and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.If you don’t know the details for the pump, tell us the usage, must suitable model will be recommended
Q.Do you accept OEM/ODM
A:Yes. We are also the OEM supplier of many famous companies.
Q. What is your terms of payment.
A:Usually we accept T/T , Alipay ,Western Union or PayPal.
Q. What is your warranty?
A:24month warranty and 2% spare parts after service, and within 24 hours reply will be provided to solve customers’ problems.
Q. What is your port of loading?
A: Xiamen Port.
Sample order is welcome
